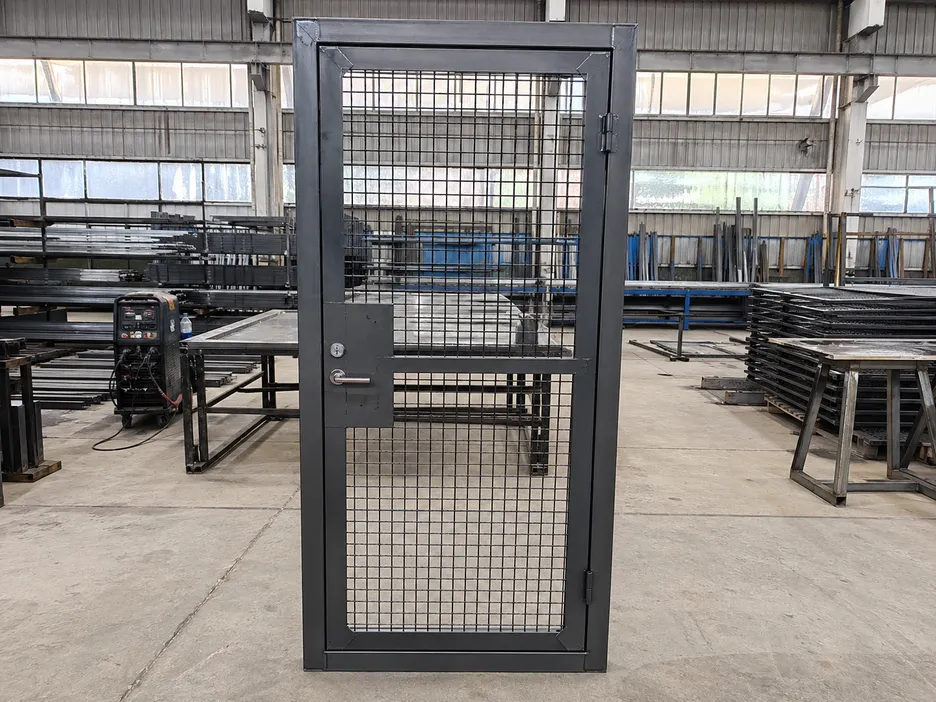

Wire Mesh Security Door Direct From Factory
Welded wire mesh security doors built for sustained force — not just the appearance of security.
EUWOO manufactures wire mesh security doors from our 18,000 m² facility in Henan, China. Heavy-gauge welded wire panel in a reinforced steel frame, configured for storage, utility, and commercial applications where the mesh needs to hold under repeated load.
What Separates a Wire Mesh Security Door from Standard Mesh
The distinction matters commercially. Understanding the construction difference protects your warranty position and ensures the right SKU reaches the right end market.
Standard Expanded Mesh Door
Residential / Light CommercialUses a single sheet of expanded (slit-and-stretched) steel — the mesh pattern is formed by cutting and pulling the sheet, not by welding individual wires. It's lighter, cheaper to produce, and adequate for light residential use.
- Lower unit cost
- Lighter weight
- Relies on tensile strength of a continuous sheet
- Will generate returns in high-abuse environments
Wire Mesh Security Door
Storage / Utility / CommercialUses individually drawn steel wires welded at every intersection point. The result is a panel that resists sustained prying force at each node rather than relying on the tensile strength of a continuous sheet.
- Welded at every intersection — force resistance at each node
- Handles deliberate, sustained force
- Right SKU for storage, utility, commercial segments
- Protects your warranty position in high-abuse environments
When to Specify This SKU
The wire mesh door is the right SKU when your customer is a storage facility operator, a utility room manager, a commercial property contractor, or any application where the door will face deliberate, sustained force rather than opportunistic entry attempts.
If your distribution catalog serves those segments, this is the product that protects your warranty position — the expanded mesh alternative will generate returns in high-abuse environments; this one won't.
Technical Specifications
Industry-standard parameters for this product type. Actual specifications may vary by configuration — contact us for detailed product data sheets.
Wire Mesh Security Door — Standard Parameters
ISO 9001:2015| Parameter | Specification |
|---|---|
| Mesh Type | Welded wire mesh (wire welded at each intersection) |
| Wire Diameter | 4mm – 6mm (standard); heavier gauge on request |
| Mesh Opening Size | 50×50mm / 75×75mm / 100×100mm (standard patterns) |
| Frame Material | Cold-rolled SPCC steel, 1.5–2.0mm gauge |
| Frame Profile | Square hollow section or angle iron perimeter frame |
| Door Leaf Thickness | 45mm – 60mm (frame depth) |
| Standard Door Sizes | 800×2000mm, 900×2000mm, 960×2100mm, 1000×2100mm |
| Custom Sizes | Width 700–1200mm, Height 1800–2400mm (confirm via inquiry) |
| Surface Treatment | Zinc phosphate pre-treatment + electrostatic powder coat |
| Powder Coat Thickness | 60–80μm |
| Salt Spray Rating | 500 hours (standard finish) |
| Color Options | 60+ standard RAL colors; custom color matching available |
| Hinge Configuration | 3-hinge standard; heavy-duty continuous hinge available |
| Lock Options | Single-point deadbolt; multi-point available on request |
| Leaf Configuration | Single leaf standard; double leaf available |
| Certifications |
ISO 9001:2015 CE SGS
|
| MOQ (standard) | 50 units |
| MOQ (custom) | 100 units |
Specifications shown are industry-standard values for this product type. Contact us for exact product data sheets and custom configuration options.
Key Specification Highlights
Need Exact Data Sheets?
Request a specification sheet, sample, or custom configuration quote directly from our engineering team.
Request Specification SheetThe Mesh Panel: Where Most Suppliers Cut Corners

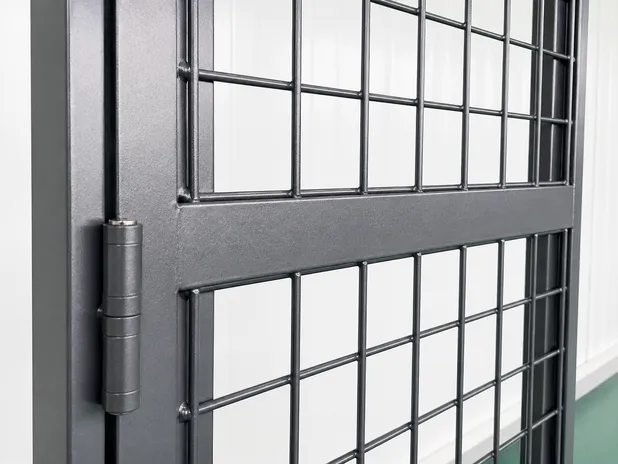

The wire mesh panel is where the product either holds or fails under real-world conditions — and where manufacturing shortcuts are hardest to detect from a photo or a spec sheet.

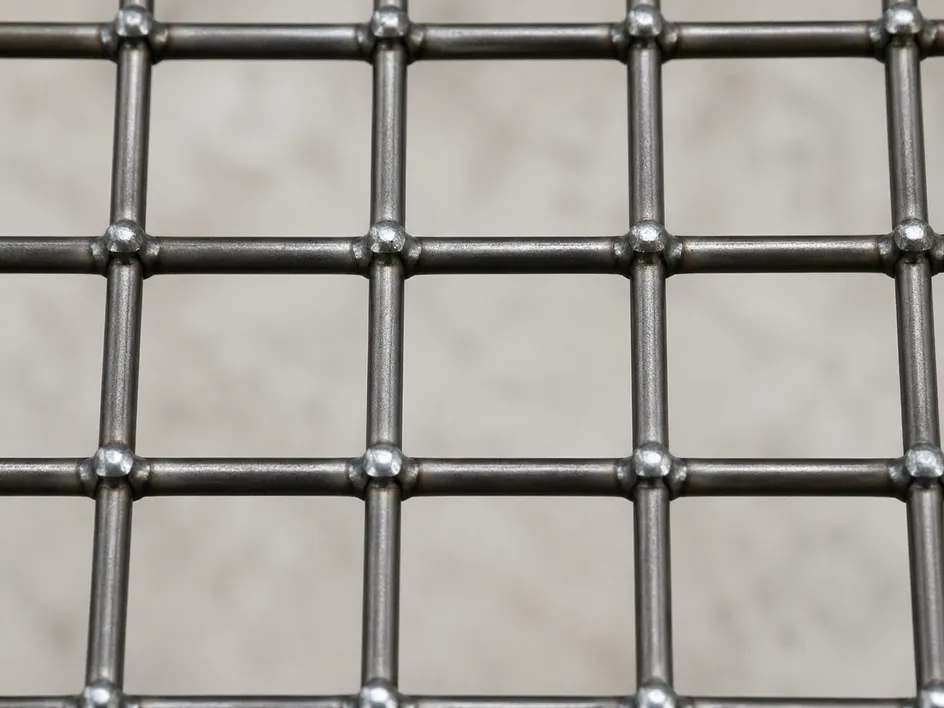

Weld Quality at Wire Intersections
Critical Failure Point #1In a properly manufactured welded wire panel, each intersection is resistance-welded with enough heat and pressure to fuse the wires metallurgically — the joint is as strong as the wire itself. In a poorly welded panel, the wires are tacked rather than fused: they hold under light load but separate under sustained prying force, which is exactly the scenario a security door is supposed to resist.
Our process: Resistance welding with controlled parameters — current, pressure, and dwell time are set per wire gauge and held consistent across the production run. The test is simple: a properly welded intersection won't separate when you try to pull the wires apart by hand. We check this at incoming inspection on every mesh panel batch before it goes to frame assembly.
Wire Diameter Selection
Critical Failure Point #2The 4mm wire that looks adequate in a product photo behaves very differently from 6mm wire under a pry bar. Most buyers who've had a warranty claim on a competitor's mesh door find out afterward that the wire was undersized for the application — 4mm wire in a 6mm application is a margin decision that costs you downstream.
Light commercial applications. Adequate for low-risk environments with minimal deliberate force exposure.
Storage and utility applications where the door will face deliberate force. Our default for commercial builds.
Both gauges available under the same SKU family with clear spec differentiation for catalog buyers spanning both segments.
Frame-to-Mesh Attachment
Critical Failure Point #3A mesh panel that's only tack-welded to the perimeter frame will bow under force even if the mesh itself is sound — the panel separates from the frame rather than the mesh tearing. Your end customer can't see this from the outside, but it's the difference between a door that holds and one that deforms.
Our process: We weld the mesh panel to the frame at every perimeter wire intersection, not just at corners, and run a continuous weld bead along the frame channel where the mesh edge sits.
Incoming Inspection Checklist
-
Pull-test at wire intersections — no separation under hand force
-
Wire gauge verification per batch against specified diameter
-
Perimeter weld count — every intersection, not corners only
-
Continuous weld bead along frame channel — no gaps
-
Panel bow test — no deformation under lateral load before frame assembly
Applied to every mesh panel batch before frame assembly. Not a sample check — every batch.
These three failure points — weld quality, wire diameter, and frame attachment — are invisible in product photos and absent from most spec sheets. They are the variables that determine whether a warranty claim lands on your desk 18 months after installation. Ask any prospective supplier to document their weld parameters and inspection protocol in writing before placing a volume order.
Market Segments: Where Wire Mesh Security Doors Generate Repeat Volume
Four segments drive the majority of repeat order volume for wire mesh security doors. Each has a distinct procurement pattern, order size profile, and buyer type — understanding the differences shapes how you position inventory and build distributor relationships.

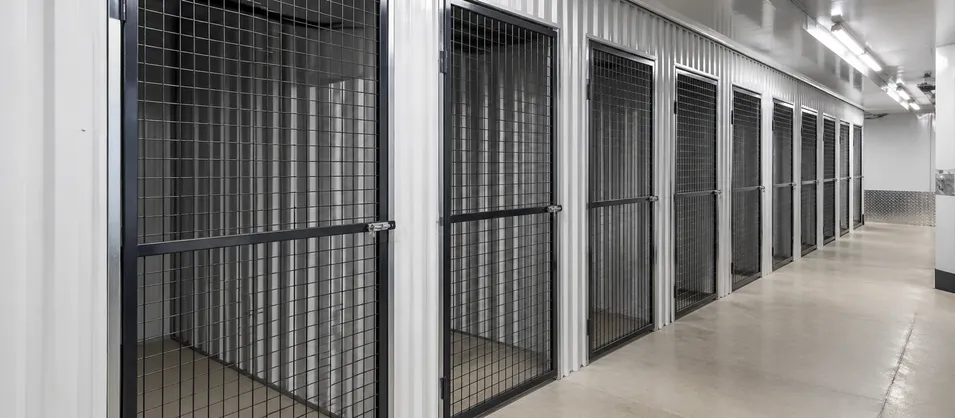

Self-Storage & Commercial Storage Facilities
Highest VolumeStorage operators typically fit out 50–200 individual units per facility, and new facilities open in volume in North America, Southeast Asia, and the Gulf as urbanization drives demand for off-site storage. The spec is standardized within a facility — one or two door sizes across the whole build — which means a single project can generate a 100–200 unit order.
Operators also renovate and expand existing facilities on rolling schedules, so a distributor who gets into this segment builds a repeatable reorder cycle rather than one-off project business. This segment has grown consistently for our mesh door buyers over the past several years — worth building inventory depth if you serve property developers or facility operators.

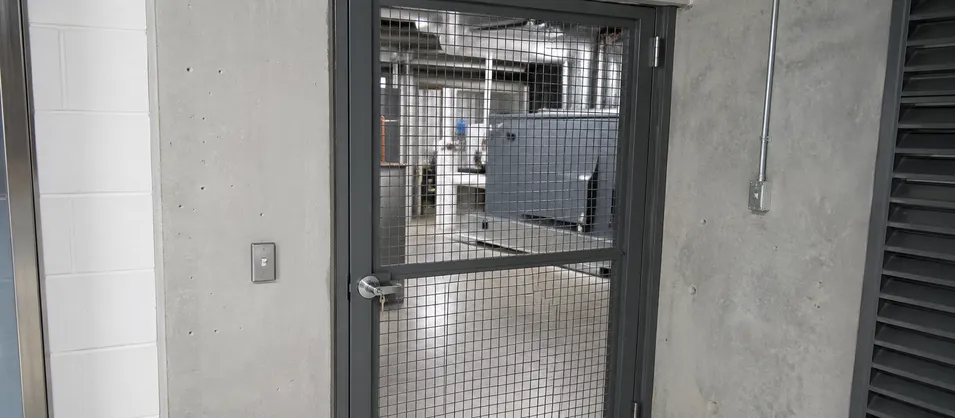

Utility & Mechanical Rooms
Spec-DrivenElectrical rooms, HVAC plant rooms, server room anteriors, pump rooms — these require a door that provides physical access control while allowing ventilation and visibility for maintenance staff. Wire mesh satisfies both requirements in a single product: the mesh panel lets air circulate and allows visual inspection of equipment status without opening the door, while the welded wire construction resists unauthorized entry.
Commercial contractors sourcing for office buildings, hospitals, and institutional facilities typically need 5–20 units per project across multiple room types, with consistent spec across the building. This is a steady, specification-driven segment where the door gets written into the project spec early and ordered in volume.

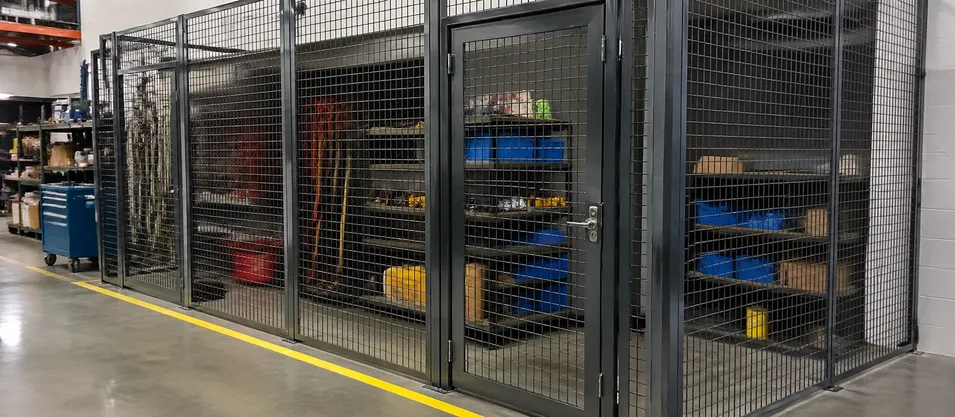

Industrial & Manufacturing Facilities
High-CycleIndustrial applications demand a door that survives a high-cycle environment — forklift traffic nearby, frequent opening and closing, and the occasional impact from equipment or materials. We configure industrial wire mesh doors with heavy-duty continuous hinges and commercial-grade hardware for this reason.
Buyers serving industrial contractors or facility management companies can position this as a durable, low-maintenance SKU that reduces replacement frequency compared to lighter mesh alternatives.

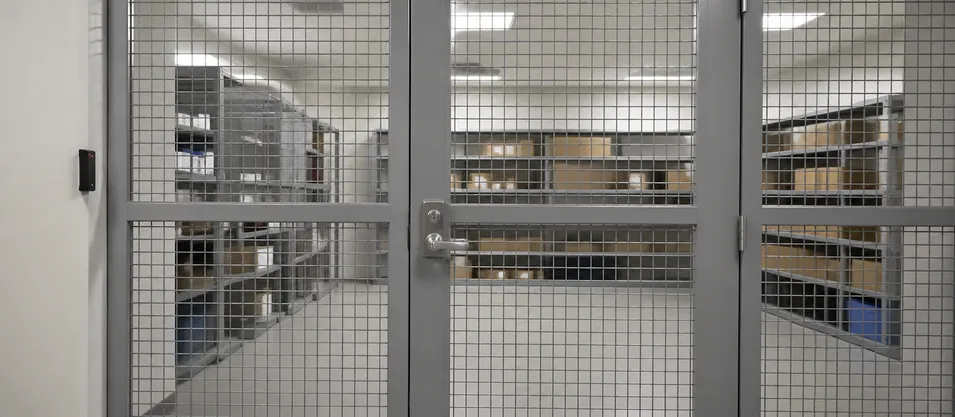

Correctional & Institutional Applications
Large Orders- Detention facilities
- Evidence storage rooms
- Secure holding areas
- Long procurement cycles
- Large order sizes
- Spec locked once approved
Detention facilities, evidence storage rooms, and secure holding areas specify wire mesh doors for visibility and ventilation alongside physical security. These projects are specification-driven with long procurement cycles, but order sizes are large and the spec is locked once approved.
If you're positioned as a supplier to government contractors or institutional procurement offices, this segment offers predictable volume with minimal price competition once you're on the approved vendor list.
Segment Coverage Strategy for Distributors
The four segments above share a common characteristic: order volume is driven by project scale, not individual unit price. A distributor who builds relationships with storage facility developers, commercial contractors, and industrial facility managers can generate consistent 50–200 unit orders rather than competing on single-unit retail. The wire mesh security door SKU family supports all four segments from a single inventory position — the differentiation is wire gauge (4mm vs 6mm) and hardware configuration, not a completely separate product line.

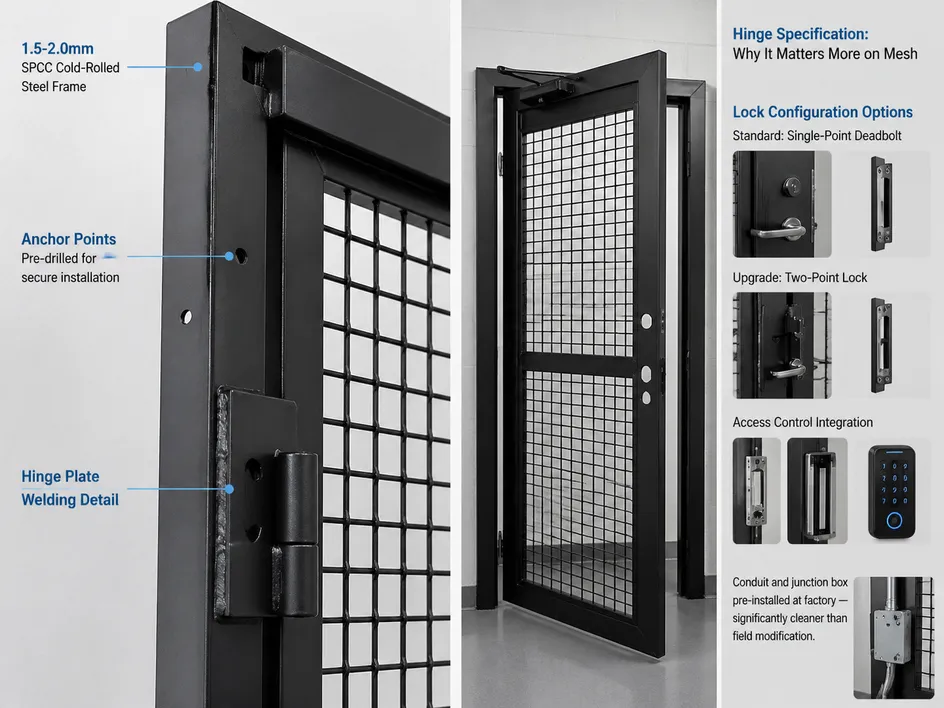

Frame Construction and Hardware: The Commercial Durability Argument
The frame is where the door's long-term performance is determined — and the component most buyers underestimate when evaluating mesh doors.
Why the Frame Is the Real Failure Point
A 6mm wire mesh panel in a 1.0mm frame is a security liability — the frame is the failure point under forced entry, not the mesh. Our wire mesh security door frames run 1.5–2.0mm cold-rolled SPCC with a minimum of three anchor points per jamb.
- Masonry installation: anchor bolt patterns matched to frame depth
- Steel stud framing: clip-angle kits supplied
- Minimum 3 anchor points per jamb — standard configuration
Hinge Specification: Why It Matters More on Mesh
The mesh panel is heavier per unit area than a hollow steel panel — weight is distributed differently and puts more stress on hinge attachment points. Our approach:
Every door is cycled through open/close testing at final inspection. For applications exceeding 20–30 cycles per day, we recommend the continuous hinge option — load distributed across the full door height.
Lock Configuration Options
The mesh panel doesn't support a multi-point lock mechanism the way a solid steel panel does. Standard and upgrade paths:
High-Cycle Industrial Applications
For any application where the door will be opened more than 20–30 times per day, specify the continuous hinge option. Load is distributed across the full door height, eliminating the concentrated stress at individual hinge attachment points that causes premature failure in standard configurations.
Powder Coat on Welded Wire: The Process Detail That Affects Your Warranty Claims
Powder coating a welded wire mesh panel is technically more demanding than coating a flat steel panel — and the failure mode is different. Understanding the process is how you evaluate supplier claims.
The Failure Point on Wire Mesh
On a flat panel, coating failures appear at weld seams or edges. On wire mesh, the failure points are the wire intersections — the weld node creates a geometry change that traps contamination and creates a stress concentration in the coating film.

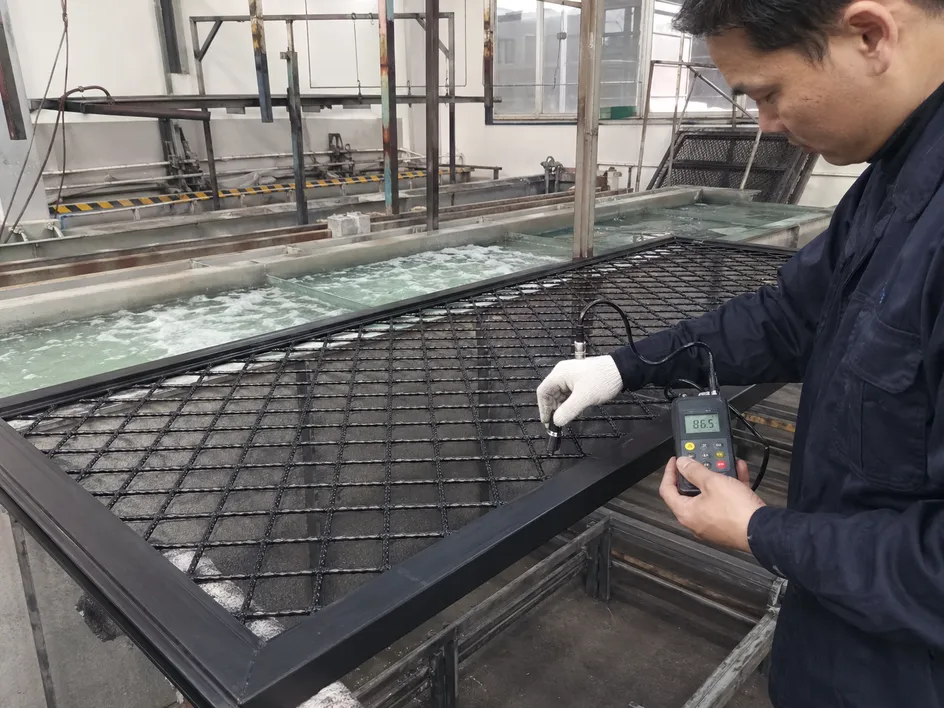

Zinc Phosphate Pre-Treatment
Every mesh panel goes through a zinc phosphate bath before powder coating. The phosphate conversion coating bonds to the steel substrate at the molecular level — including at the weld nodes — giving the powder coat a chemically bonded base rather than mechanical adhesion.
Film Thickness Control
After coating, every panel is checked for film thickness with a digital gauge. We hold 60–80μm across the full mesh surface, including at the wire intersections. Panels that fall below spec at the nodes go back to the line.
Zinc Phosphate vs. Iron Phosphate: The Performance Gap
Adequate for dry climates. Mechanical adhesion only. Fails in coastal and high-humidity markets — adhesion failures at weld nodes under salt spray conditions.
Chemical bond at molecular level, including at weld nodes. Passes 500 hours salt spray — the threshold for coastal and high-humidity markets including Gulf and Southeast Asia.
We switched to zinc phosphate in 2020 after seeing adhesion failures on coastal-market orders. The iron phosphate process was adequate for dry climates but not for the Gulf and Southeast Asian markets where most of our mesh door volume goes.
For your coastal and high-humidity accounts, this process is the difference between zero finish warranty claims and a steady stream of rust complaints at the weld points. Specify zinc phosphate pre-treatment when comparing supplier quotes.
Process Quality Checkpoints

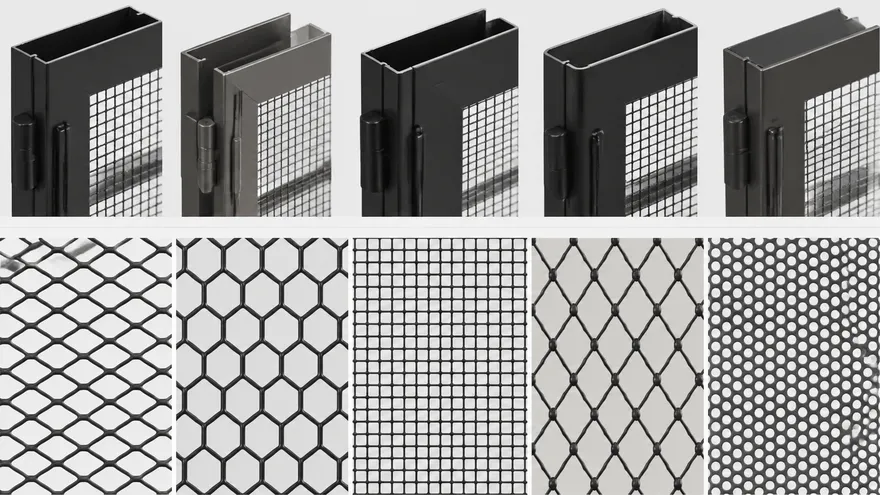

Customization: What Can Be Specified and What Can't
Wire mesh security doors have more customization flexibility than solid panel doors in some dimensions and less in others. Here's the practical breakdown.
What's Straightforward to Customize
-
Door size within our forming equipment range (width 700–1200mm, height 1800–2400mm)
-
Wire diameter (4mm, 5mm, 6mm — heavier gauge on request)
-
Mesh opening size (50×50mm, 75×75mm, 100×100mm standard; other patterns on request with tooling lead time)
-
Frame profile (square hollow section or angle iron perimeter)
-
Color — any RAL color, 60+ standard options, custom color matching available on runs over 100 units
-
Hardware configuration (lock type, hinge type, closer prep, access control pre-wiring)
-
Leaf configuration (single or double leaf)
-
OEM branding and private-label packaging
What Requires Discussion Before Quoting
- Non-standard mesh patterns or wire diameters outside our standard range — possible but requires tooling confirmation
- Sizes outside the standard range — possible within equipment limits, confirm via inquiry
- Combined mesh and solid panel configurations — available, quoted individually
MOQ and Lead Time by Configuration Type
Building a private-label line or have a project spec that doesn't match our standard catalog? Send us the spec sheet — our engineering team will review it for manufacturability and come back with a quote and 3D rendering at no charge.

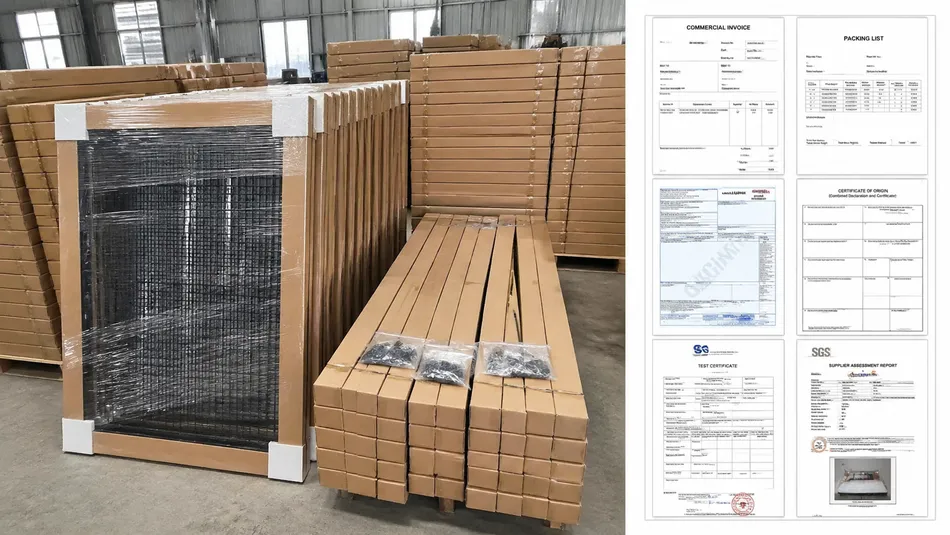

Start Custom InquiryContainer Loading and Landed Cost for Wire Mesh Doors
Wire mesh doors load differently from solid panel doors because the mesh panel adds weight without adding the same packing density as a flat steel surface. Here's the practical data for your freight calculations.
40HQ Container
Approximately 180–240 KD wire mesh door sets for 900×2000mm single-leaf doors, depending on wire gauge and frame depth.
20GP Container
Approximately 70–100 KD sets for standard single-leaf doors — the format most buyers use for trial orders and initial stocking runs.
Most common for first ordersLead Times
25–35 days for standard catalog orders from deposit confirmation. Custom configurations quoted individually.
Packaging Detail
- Mesh panels wrapped in stretch film and packed in double-walled corrugated cartons with foam corner protection
- Frame sections bundled and banded separately
- Hardware bagged and packed inside the frame bundle
-
Reinforced corner guards on mesh panel packaging — added after observing edge damage on early shipments from wire ends puncturing cartons during port handling
Shipping Documentation
Complete documentation ships with every order, covering customs clearance in North America, the EU, the Gulf, Southeast Asia, Africa, and Australia.
Need a landed cost estimate for your market? Share your destination port and target volume — we'll provide freight benchmarks alongside your product quote.
Request Freight QuoteBuyer FAQs: Wire Mesh Security Door Sourcing
Direct answers to the specification and procurement questions that come up most often from distributors, contractors, and importers.
What wire diameter should I specify for a storage facility application?
For self-storage units and commercial storage rooms, 5mm or 6mm wire diameter is the right spec. The 4mm option is adequate for light commercial use where the door faces opportunistic entry attempts, but storage facilities attract deliberate, sustained force — a pry bar applied to a 4mm wire mesh panel will deform the mesh at the intersections over time. 6mm wire with properly fused weld nodes resists this. If your end customer is a storage operator who's had problems with competitor doors, ask them what wire gauge they were running — it's almost always 4mm or below.
What is the difference between a wire mesh security door and a security grill door?
A security grill door uses steel bar or tube sections welded into a grid or decorative pattern — the bars are typically 10–20mm in diameter and the openings are large (100–200mm or more). It's a visual deterrent and a physical barrier against body entry, but the large openings mean it doesn't restrict the passage of hands or tools.
A wire mesh security door uses smaller-diameter wire (4–6mm) with tighter mesh openings (50–100mm), which restricts tool access and provides a more complete physical barrier. Wire mesh doors are the right choice for applications where tool access through the door is a concern; grill doors are better suited for ventilation-priority applications where the main threat is unauthorized body entry.
View Security Grill DoorCan wire mesh security doors be used outdoors?
Yes, with the right finish specification. Our standard 60–80μm powder coat over zinc phosphate pre-treatment passes a 500-hour salt spray test, which is adequate for most covered outdoor applications (covered parking, loading docks, covered storage yards).
For fully exposed outdoor installations in coastal or high-humidity environments, specify the heavy-duty coating option and confirm the frame gauge — 2.0mm frame with galvanized pre-treatment is the configuration we recommend for direct weather exposure. Contact us with your installation environment and we'll spec the right configuration.
What is the MOQ for wire mesh security doors?
50 units for standard catalog sizes with color or branding changes only.
100 units for custom sizes, non-standard wire gauges, or mesh patterns that require tooling changes.
If you're evaluating whether the volume makes sense, send us your target spec and annual volume estimate — we'll tell you directly whether the economics work at your order size.

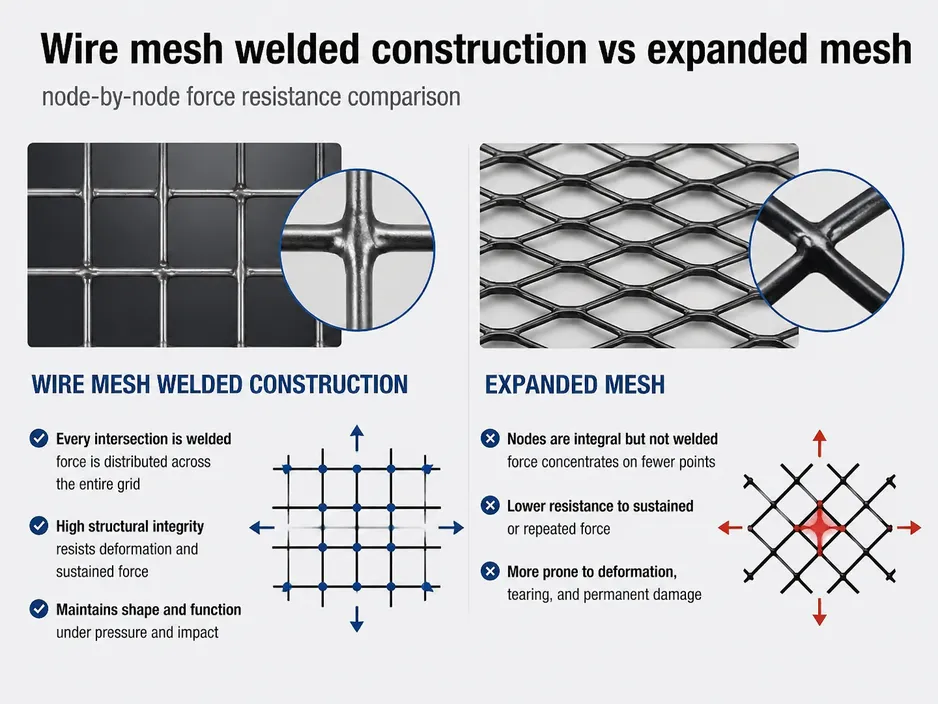

How do wire mesh security doors compare to expanded mesh security doors for high-abuse environments?
Expanded mesh is formed by slitting and stretching a steel sheet — the mesh pattern is continuous, not welded. Under sustained prying force, the failure mode is stretching and deformation of the sheet rather than node separation.
Welded wire mesh resists this differently: each intersection is a discrete weld joint, and a properly fused joint is as strong as the wire itself. For high-abuse environments — storage facilities, industrial tool cribs, correctional applications — welded wire mesh holds its geometry under repeated force better than expanded mesh of equivalent wire diameter.
The trade-off is cost: welded wire mesh is more expensive to produce. If your application is light commercial or residential, the expanded mesh option is the more cost-effective choice.
View Mesh Security DoorWhat certifications do wire mesh security doors carry?
Our wire mesh security doors are manufactured under ISO 9001:2015 quality management certification, CE marking (European conformity), and SGS third-party audit. For North American import compliance, ISO 9001:2015 and SGS documentation satisfy most requirements.
If your project or market has a specific certification requirement, send us the spec — we'll confirm whether our product qualifies or what modifications are needed.
Related Security Door Products
If the wire mesh configuration doesn't match your application, these sibling products may be a better fit.

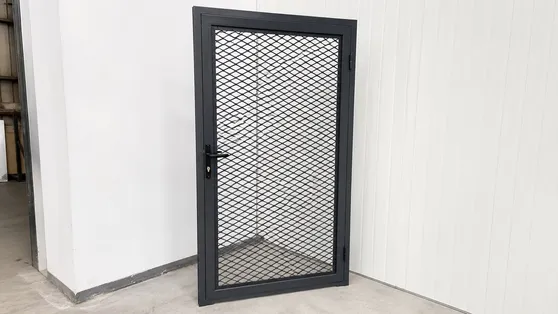

Mesh Security Door
Expanded steel mesh panel, lighter gauge, lower price point. The right choice for residential and light commercial distribution where the application doesn't demand welded wire construction.
View Product

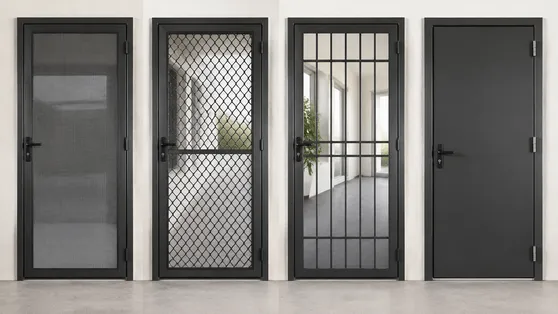

Security Screen Door
Fine mesh framed screen for residential and light commercial use. Covers the segment where insect screening and security are both requirements.
View Product

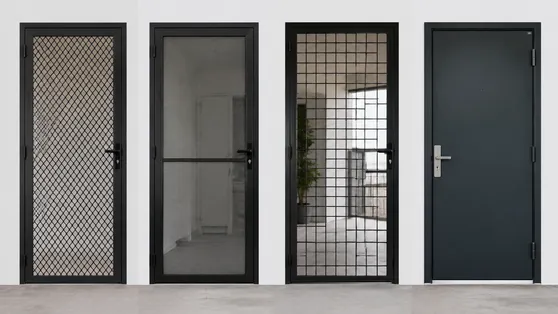

Security Grill Door
Steel bar or tube grid construction, large openings, ventilation-priority applications. Better suited where body-entry deterrence is the primary requirement and tool access through the door is not a concern.
View Product

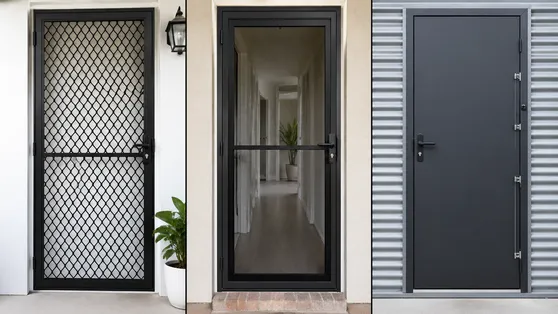

Heavy Duty Security Door
Solid 1.5mm+ steel panel with multi-point locking. For applications where maximum forced-entry resistance is required and ventilation through the door is not needed.
View Product

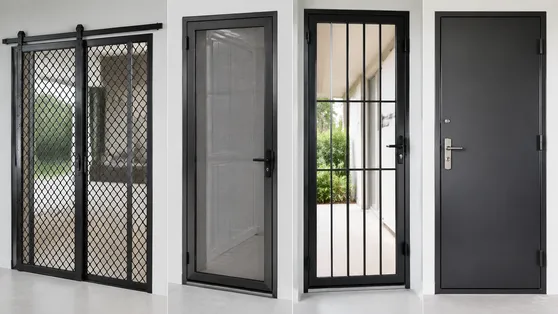

Sliding Security Door
Track-mounted sliding configuration for openings where a swing door isn't practical — warehouses, wide storage bays, constrained floor clearance.
View ProductView the Full Security Door Range
Browse all security door configurations — steel, mesh, grill, sliding, and specialty formats — direct from the manufacturer.
Browse All ProductsSource Wire Mesh Security Doors Direct from the Manufacturer

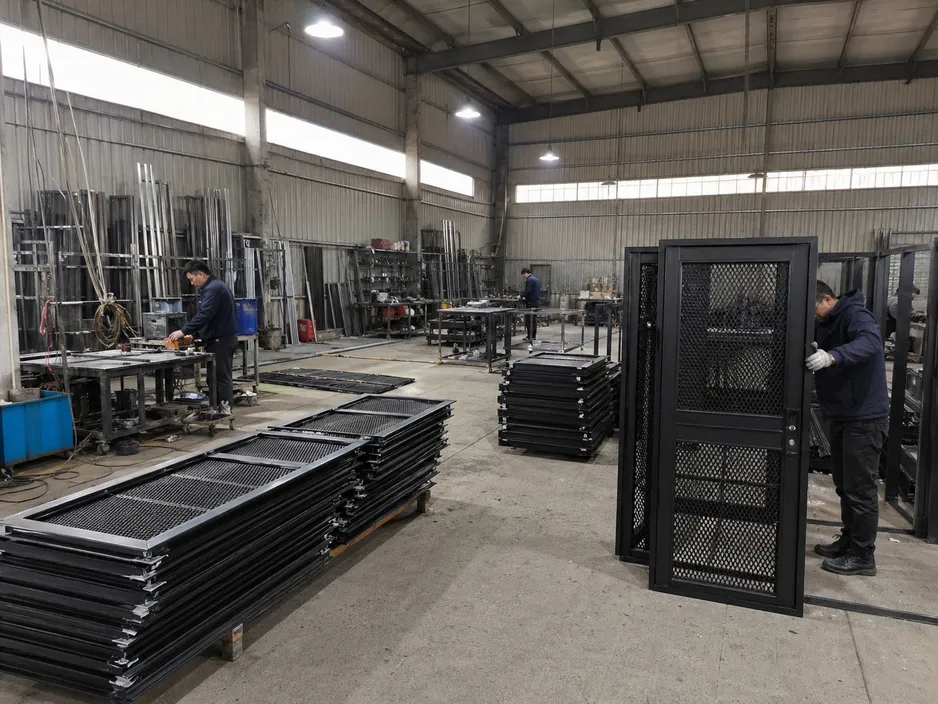

We manufacture wire mesh security doors in-house at our 18,000 m² facility in Henan, China — the same floor where we cut, weld, coat, and inspect every unit.
Our Manufacturing Capability
How to Start
The fastest way to evaluate fit is to send us your current sourcing spec: door size, wire gauge, mesh opening, frame depth, finish color, and target volume. Our engineering team will review it and come back with a detailed quote and, for custom configurations, a 3D rendering.
Most buyers in this category start with a 2–5 unit sample order to test against their project spec or show their downstream customers before committing to a container.
Contact Our Sales Team
Send your sourcing spec and we'll respond with a detailed quote. Custom configurations include a 3D rendering.
