Heavy duty industrial steel doors engineered for high-cycle, high-abuse environments — built to spec, not to a catalog.

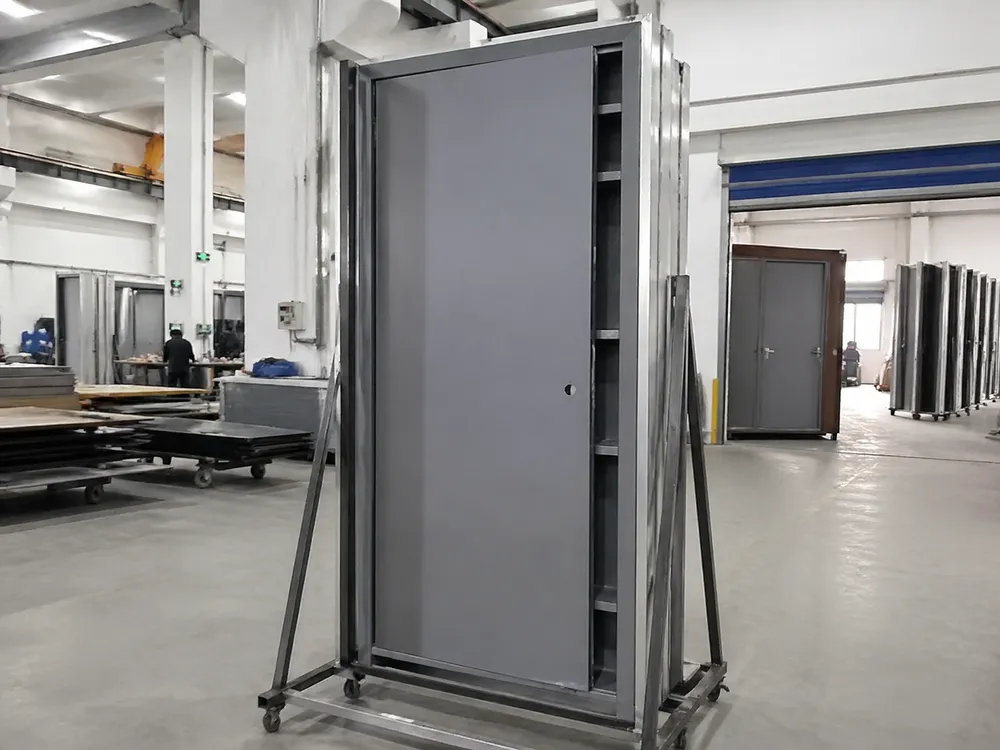

1.5mm SPCC cold-rolled steel body, reinforced internal frame, and 100,000-cycle tested hardware. Every unit passes 100% pre-shipment inspection before your container loads.
What Makes an Industrial Steel Door Different from Standard Commercial
The distinction matters when you're sourcing for the right market. Understanding the spec boundary helps you stock correctly and avoid losing orders to a competitor who carries the industrial grade.
A standard commercial steel door — the kind that goes into an office corridor or retail back-of-house — runs at 1.0–1.2mm body gauge, standard butt hinges, and a basic mortise lock. That spec is correct for its application and we make plenty of them.
An industrial steel door is a different product. The body panel runs at 1.5mm SPCC cold-rolled steel — 25–50% heavier gauge than standard commercial. The internal reinforcement changes: we run a full-perimeter steel channel frame welded inside the door leaf, plus horizontal stiffener ribs at mid-height and lock-block zone.
The hinge spec steps up to heavy-duty ball-bearing hinges rated for doors in the 80–120kg range, and the lock preparation accommodates multi-point locking or heavy-duty deadbolt hardware. The result is a door that handles forklift-adjacent traffic, repeated hard contact, and environments where a standard door would show dents and frame distortion within months.
For your distribution business, that difference is a market segment boundary. Buyers sourcing for manufacturing plants, logistics facilities, utility rooms, and infrastructure projects are specifically asking for heavy duty steel door specifications — and they'll reject a standard commercial door on sight. Stocking or specifying the right product means you're not losing those orders to a competitor who carries the industrial grade.

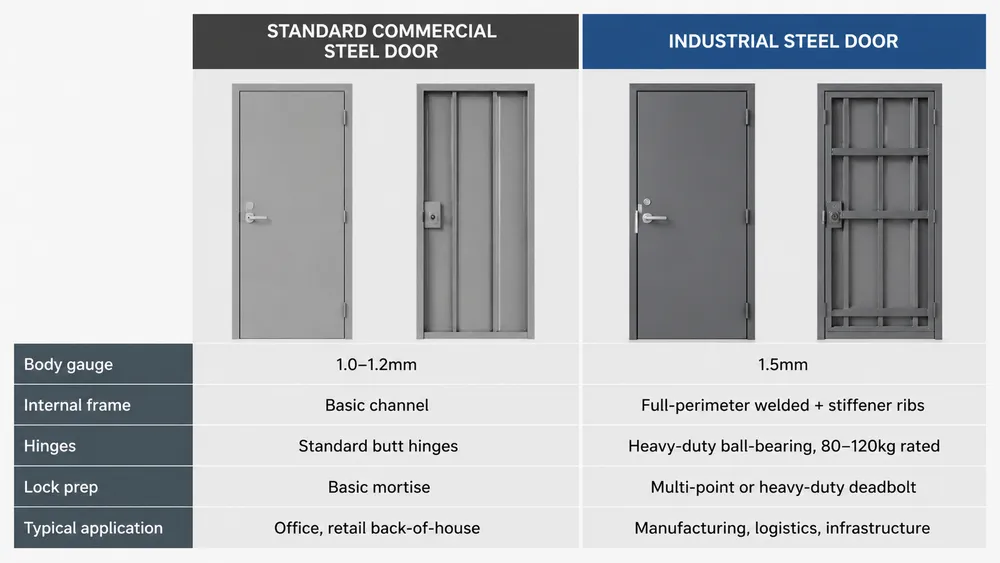

Spec Comparison at a Glance
| Parameter | Standard Commercial | Industrial Grade |
|---|---|---|
| Body gauge | 1.0–1.2mm | 1.5mm SPCC |
| Internal frame | Basic channel | Full-perimeter welded + stiffener ribs |
| Hinges | Standard butt hinges | Heavy-duty ball-bearing, 80–120kg rated |
| Lock prep | Basic mortise | Multi-point or heavy-duty deadbolt |
| Typical application | Office, retail back-of-house | Manufacturing, logistics, infrastructure |
Technical Specifications
Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets and exact parameters for your project.
Full Specification Table
Industrial Grade| Parameter | Specification |
|---|---|
| Door leaf thickness | Typical 50–60mm |
| Body panel gauge | 1.5mm SPCC cold-rolled steel |
| Internal frame | Full-perimeter welded steel channel, 1.5–2.0mm |
| Stiffener ribs | Horizontal mid-height + lock-block zone reinforcement |
| Standard door sizes | W700–1200mm × H2000–2400mm (single leaf) |
| Double leaf sizes | W1200–2400mm × H2000–2400mm |
| Frame material | 1.5mm cold-rolled steel, roll-formed profile |
| Frame type | Knock-down (KD) or welded, buyer's choice |
| Hinge spec | Heavy-duty ball-bearing hinges, 3–4 per leaf |
| Lock preparation | Multi-point lock or heavy-duty deadbolt, 60mm backset standard |
| Surface finish | Automated electrostatic powder coat, 60–80μm film thickness |
| Color options | 60+ RAL colors; custom RAL on request (min. 100 units per color) |
| Finish options | Smooth, fine texture, embossed panel profiles |
| Hardware | Lever handle, deadbolt, door closer, kick plate — configurable |
| Certifications | CE ISO 9001:2015 SGS |
| Standard weight | Approx. 45–75kg depending on size and configuration |

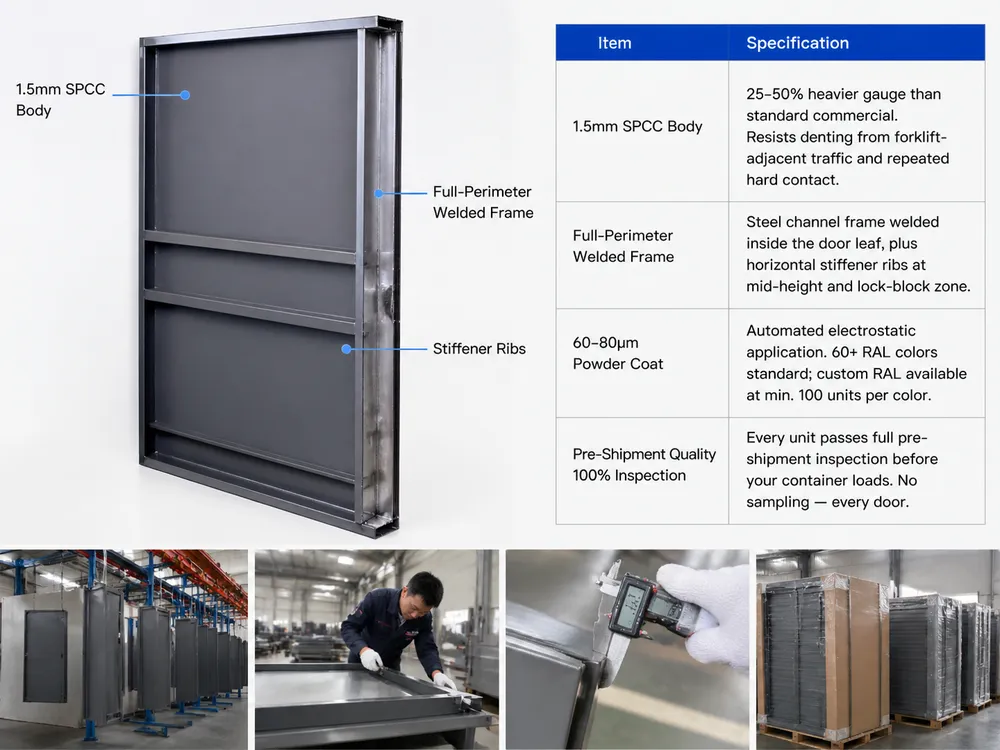

1.5mm SPCC Body
25–50% heavier gauge than standard commercial. Resists denting from forklift-adjacent traffic and repeated hard contact.
Full-Perimeter Welded Frame
Steel channel frame welded inside the door leaf, plus horizontal stiffener ribs at mid-height and lock-block zone.
60–80μm Powder Coat
Automated electrostatic application. 60+ RAL colors standard; custom RAL available at min. 100 units per color.
Every unit passes full pre-shipment inspection before your container loads. No sampling — every door.
How We Build the Industrial Grade: Process Details That Affect Your Order
The gauge upgrade from 1.0mm to 1.5mm is the starting point, but it's not the whole story. Here's what actually happens on the production floor — and why it matters for your buyers.
Press Brake Tooling Control
At 1.5mm, the bending radius on the press brake changes — you need tighter tooling control to maintain the crisp edge profile on the door face. We run industrial panels on a dedicated press brake setup with adjusted tooling to hold the same ±0.5mm dimensional tolerance we maintain across the standard line. Buyers in the Gulf and Southeast Asia are particular about door squareness — a door that's 1mm out of square creates frame-fit problems on site.

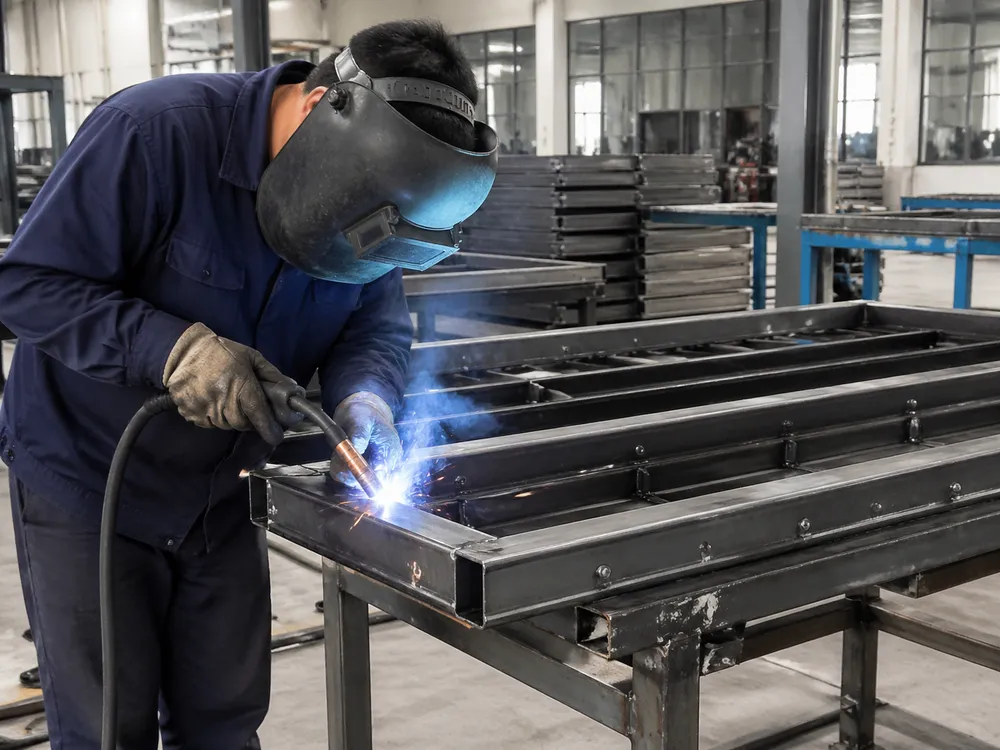

Welded Internal Reinforcement
The internal reinforcement is welded, not just inserted. Some manufacturers drop a loose steel channel inside the door cavity and call it reinforced. We MIG-weld the perimeter frame to the face panels at every corner and at intermediate points along the long edges. That weld connection is what keeps the door from racking under lateral load — a door that's been hit by a pallet jack or slammed repeatedly will eventually show the difference between welded and loose-insert construction.
Zinc Phosphate Pre-Treatment
After welding, every industrial door body goes through our zinc phosphate pre-treatment bath before powder coating. We switched from iron phosphate in 2020 specifically because of adhesion failures on coastal-market orders — zinc phosphate gives better corrosion resistance at the substrate level, which matters in port facilities, coastal warehouses, and humid industrial environments.
Powder Coat Specification
The powder coat runs at 60–80μm film thickness, passes 500-hour salt spray testing, and uses zero-VOC chemistry — relevant if your buyers are supplying food processing facilities or projects with indoor air quality requirements.
100% Pre-Pack Inspection
Every completed door is test-fitted with its frame before packing. Hardware is cycled — hinges, lock, closer if specified — and the door is checked for squareness and gap consistency. 100% of units are inspected before they go into cartons. No statistical sampling on outgoing product.
Process Comparison: Industrial vs. Standard
| Process Step | Standard | Industrial |
|---|---|---|
| Steel gauge | 1.0mm | 1.5mm |
| Dimensional tolerance | ±1.0mm | ±0.5mm |
| Internal reinforcement | Loose insert | MIG-welded |
| Pre-treatment | Iron phosphate | Zinc phosphate |
| Powder coat thickness | 40–60μm | 60–80μm |
| Salt spray rating | 240 hours | 500 hours |
| VOC chemistry | Standard | Zero-VOC |
| Outgoing inspection | Statistical sample | 100% units |
Market Segments Where Industrial Steel Doors Move at Volume
Four segments drive the majority of industrial door volume. Understanding the procurement logic in each helps you position the spec correctly and close faster.

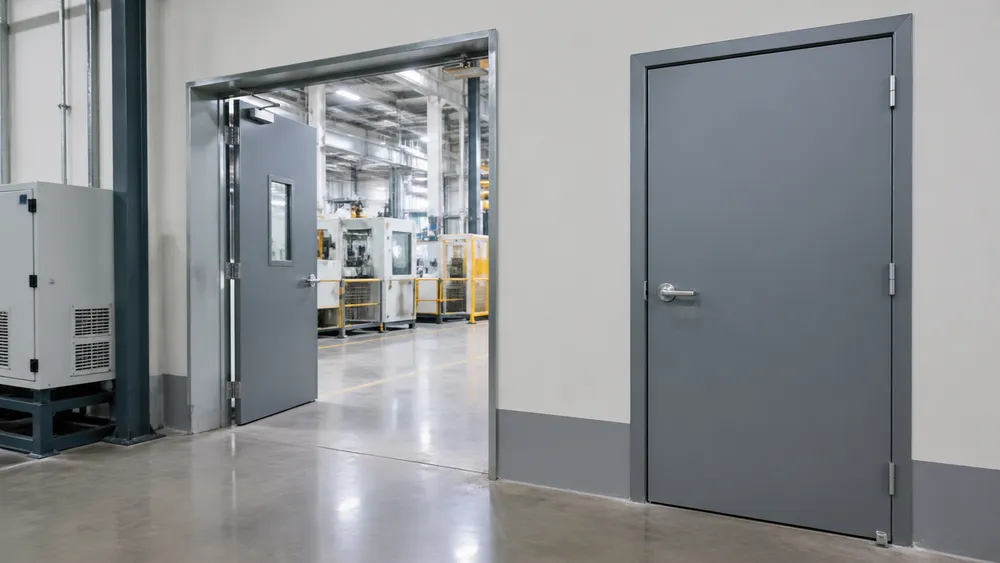

Manufacturing & Processing Facilities
The core segment. Plant managers and facility contractors sourcing for production floor access points, utility room entries, and equipment room doors specify heavy duty steel door grade as a baseline — standard commercial won't pass their internal procurement specs.
Typical Order Profile
50–300 units per project, with repeat orders as facilities expand or replace aging doors on a rolling basis.

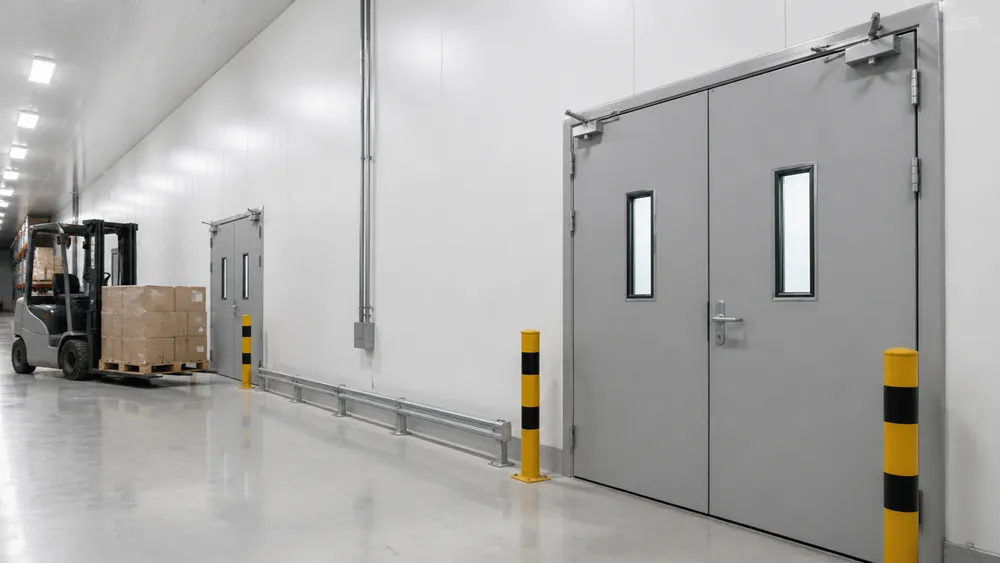

Logistics & Warehousing
Fastest Growing SegmentDistribution centers, cold storage facilities, and cross-dock operations need doors that survive forklift traffic, high-cycle use (some installations see 200+ open-close cycles per day), and the temperature differentials in refrigerated zones. A standard door in a cold storage entry will show frame distortion within a year.
Why Industrial Grade Wins Here
Industrial gauge and reinforced hinge spec are what make this application viable long-term.

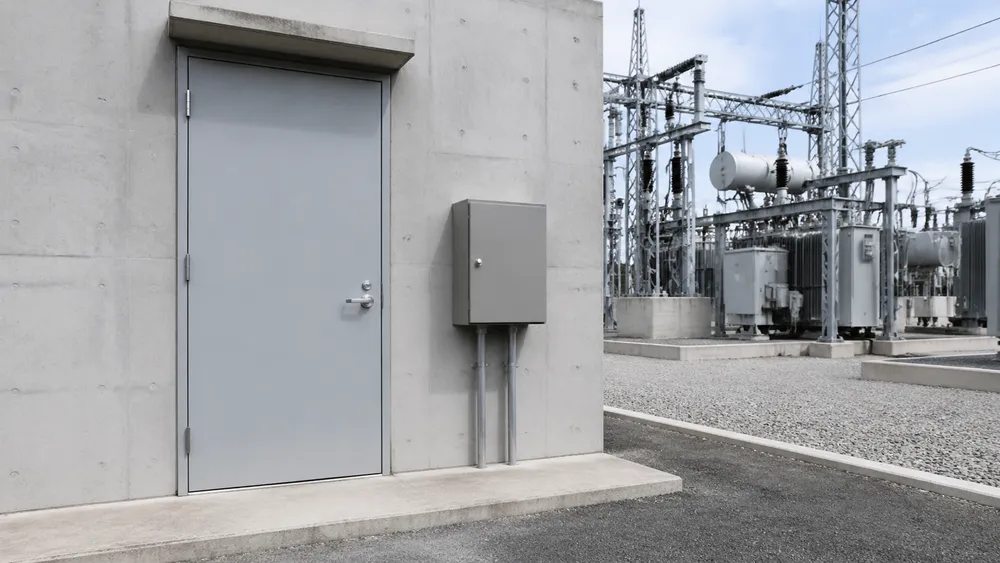

Infrastructure & Utilities
Power substations, water treatment facilities, telecom equipment rooms, and government infrastructure projects specify industrial steel doors for security and durability. These projects often require CE certification documentation and sometimes NFPA 80 compliance for fire-rated variants.
Project Size Range
10-unit substation orders to 500+ unit government contracts. Our certifications cover both, so your compliance review is straightforward.

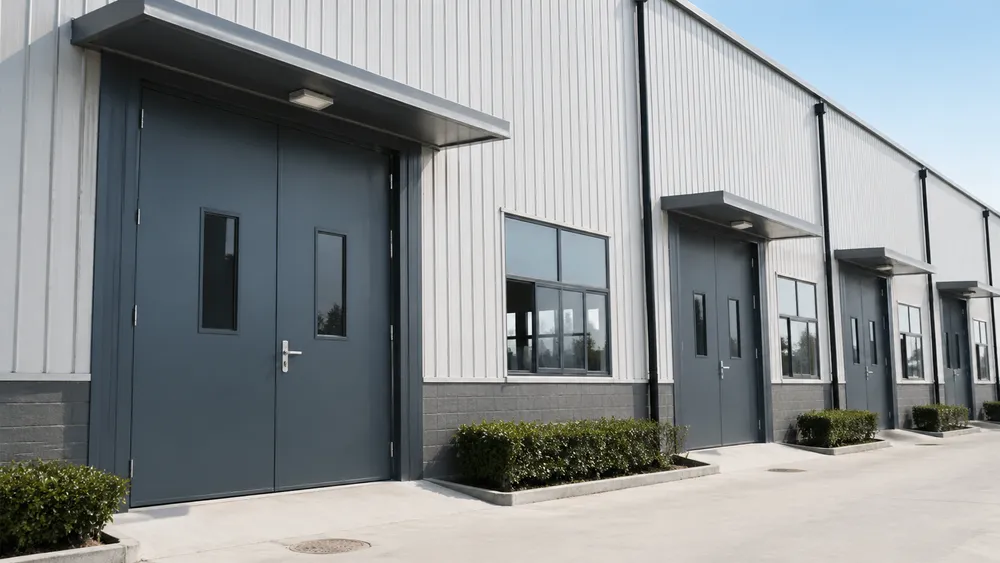

Industrial Construction Contractors
Contractors sourcing for multi-site projects — factory builds, industrial park development, port facility construction — buy in volume, buy repeatedly as projects roll, and compare suppliers on spec compliance and delivery reliability, not just unit price.
Distributor Advantage
The ability to show CE certification and a 100% inspection standard is a meaningful differentiator against trading companies that can't provide the same documentation trail.
Building Your Product Line Around These Segments?
Logistics and warehousing has grown significantly in our order book over the last three years — worth building into your product line if you're targeting logistics infrastructure buyers. We can walk you through the spec requirements and typical order structures for each segment.
Customization: What You Can Specify, What Affects MOQ
Industrial steel doors are almost never ordered off a standard catalog in B2B. Here's what we can configure and what the constraints are.
Dimensions
Width 700–1200mm, height 2000–2400mm for single leaf. Double leaf up to 2400mm wide.
Non-standard sizes — oversized openings for equipment access, reduced-height utility entries — are available on custom order with a 100-unit MOQ and 15–20 working day engineering lead time before production.
Steel Gauge
Standard industrial spec is 1.5mm body. For high-security or blast-resistant applications, we can run 2.0mm body panels with additional internal reinforcement.
Ask us about the weight and freight implications before committing — the jump from 1.5mm to 2.0mm adds roughly 15–20% to door weight and affects your container loading count.
Frame Configuration
KD (knock-down) flat-pack is standard for export — frame ships disassembled for container efficiency.
Pre-hung welded frames are available for buyers whose end customers want a ready-to-install assembly; this reduces container loading count by approximately 30% but simplifies site installation.
Hardware Packages
We configure hardware at the factory — lever handle, deadbolt, door closer, kick plate, vision panel. Specifying hardware at order time means your end customer receives a complete, pre-fitted assembly.
We can also supply door leaf only if your buyers source hardware locally.
Surface Finish & Color
Any RAL color on runs of 100+ units per color. Below 100 units, we work from our standard 60+ color palette.
Embossed panel profiles (woodgrain, flat panel, ribbed) are available on the industrial body — useful if your buyers need the durability of industrial gauge with a less utilitarian appearance.
OEM / Private Label
We run OEM programs on industrial doors from 100 units. Your logo, your packaging, your product documentation.
Our engineering team handles the 3D rendering and spec sheet at no charge before you commit to an order.
MOQ at a Glance
50 units
Standard catalog configurations — dimensions within range, colors from our 60+ palette, standard hardware packages.
100 units
Custom dimensions, non-standard colors (any RAL), OEM/private label programs. Engineering lead time 15–20 working days before production starts.
Ready to Spec Your Order?
Send us your dimensions, gauge requirement, hardware spec, and target color. We'll return a factory quote with container loading count and lead time within one business day.
Container Loading and Landed Cost Planning
Plan your import economics before comparing unit prices. Industrial door density, packing format, and gauge all affect your true landed cost per unit.
150–200
KD door sets per 40HQ container (size & hardware dependent)
~30%
Reduction in loading count when switching to pre-hung welded frames
15–20%
Weight increase from 1.5mm to 2.0mm gauge — affects freight cost
25–35
Days lead time from deposit confirmation (standard configurations)

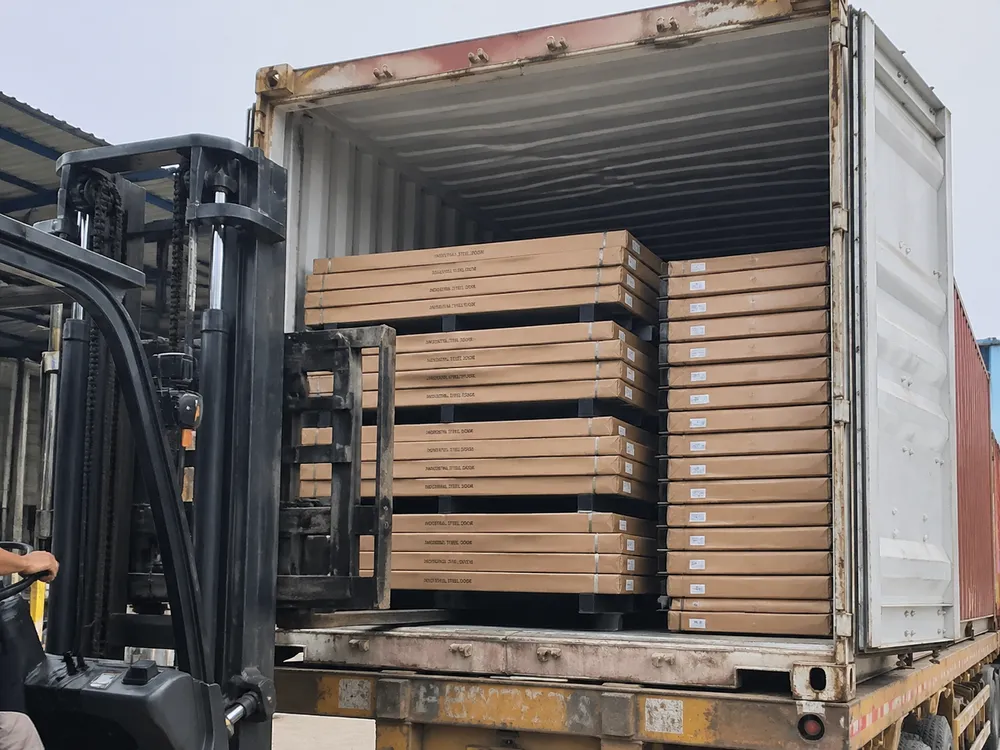

Packing Format
We pack industrial doors in reinforced double-wall cartons with internal foam corner protection and a moisture-barrier wrap. The KD format — leaf, frame sections, and hardware packed separately — is optimized for port handling and survives the rough treatment that containers see in transit.
We've shipped to Los Angeles, Houston, Dubai, Singapore, Lagos, and Sydney without damage claims on properly packed orders.
Batch Traceability
Every carton carries a barcode linked to our production batch record. If there's a quality question on arrival, you can trace the unit back to its production date, line, and inspection record. That traceability is useful when your buyer's project manager is asking for documentation on a specific batch.
Landed Cost Modeling Note
The heavier gauge and larger typical sizes mean industrial doors load at lower density than standard commercial — factor this into your landed cost model before comparing unit prices. A lower per-unit factory price can be offset by fewer units per container if you're not accounting for the density difference.
Lead Time
Standard industrial steel door orders: 25–35 days from deposit confirmation. Custom configurations are quoted individually — engineering lead time of 15–20 working days applies before production begins on non-standard dimensions or OEM programs.
Certifications and Compliance for Your Import Markets
Our standard certification package covers the compliance requirements across all active export markets. Below is a reference table for procurement and import documentation purposes.
| Certification | Scope | Relevance |
|---|---|---|
| CE | European conformity — structural and mechanical | Required for EU market entry; accepted in many Middle East and African markets |
| ISO 9001:2015 | Quality management system | Demonstrates documented QC process; required by many institutional buyers |
| SGS | Third-party audit and product testing | SGS audit reports available on request for your import compliance files |
| NFPA 80 | US fire door standard | Applicable to fire-rated variants of this door; confirm if your project requires fire rating |
North American Buyers
Industrial steel doors without a fire rating ship under standard structural product import requirements. If your project or buyer requires a fire-rated industrial door, that is a separate product line — see our industrial fire door.
Documentation on Request
SGS audit reports and CE declaration of conformity are available on request. Most active export markets — North America, the Gulf, Southeast Asia, Australia — are covered by our existing certification package without additional testing requirements on your end.
Frequently Asked Questions
Decision-support answers for procurement, specification, and import planning.
What steel gauge should I specify for a heavy duty industrial steel door in a high-abuse environment?
For standard industrial applications — manufacturing plant access, utility rooms, logistics facilities — 1.5mm SPCC cold-rolled steel body is the correct spec. It handles repeated hard contact and forklift-adjacent traffic without denting or frame distortion. For genuinely high-abuse environments (vehicle impact zones, correctional facilities, blast-risk areas), specify 2.0mm body with additional internal reinforcement. The 2.0mm spec adds weight and freight cost, so confirm the application requirement before upgrading — most industrial buyers don't need it.
What is the difference between an industrial steel door and a commercial steel door?
Body gauge (1.5mm vs. 1.0–1.2mm), internal reinforcement (welded perimeter frame vs. standard stiffener), hinge rating (heavy-duty ball-bearing vs. standard butt hinge), and lock preparation (multi-point or heavy deadbolt vs. standard mortise). The industrial spec is designed for environments where a commercial door would show damage within months. For procurement purposes: if the end application involves high-cycle use, vehicle-adjacent traffic, or institutional/industrial occupancy, specify industrial grade.
What certifications does an industrial steel door need for export to North America or the EU?
For structural (non-fire-rated) industrial steel doors: CE covers EU market entry. For North America, there is no mandatory federal certification for non-fire-rated steel doors — ISO 9001:2015 and SGS third-party test reports satisfy most institutional buyer requirements. If the door is installed in a fire-rated assembly, NFPA 80 compliance is required in the US and Canada. Our CE, ISO 9001:2015, SGS, and NFPA 80 certifications cover the standard compliance requirements across all our active export markets.
What is the MOQ for custom-size industrial steel doors?
50 units for standard catalog sizes. 100 units for non-standard dimensions, custom RAL colors outside our standard palette, or OEM/private-label programs. For very large custom openings (equipment access doors, oversized industrial entries), contact us with your rough opening dimensions — we'll confirm manufacturability and MOQ before you commit.
How do industrial steel doors ship, and what container loading count should I plan for?
KD (knock-down) flat-pack format: door leaf, frame sections, and hardware packed separately in reinforced cartons. A standard 40HQ loads approximately 150–200 sets depending on door size.
Pre-hung assemblies are available but reduce container loading count by roughly 30%. We provide exact loading counts with your quote so your freight team can calculate landed cost accurately.
Get a Quote for Industrial Steel Doors
Send us your project specs — door quantity, size requirements, hardware configuration, target market, and any certification requirements. Our engineering team reviews every inquiry and comes back with a detailed quote, container loading count, and 3D rendering if you need it for your own customer presentation. No charge for the consultation.
What to include in your RFQ
- Door quantity and size requirements
- Hardware configuration preferences
- Target market and destination country
- Certification requirements (CE, GB, ISO, etc.)
Most new buyers in this category start with a sample order of 2–5 units to test fit and finish with their own customers before committing to a full container. We can arrange samples on that basis.
