Exterior Specialty Door Direct From Factory
Factory-direct exterior specialty doors built for non-standard openings, architectural requirements, and high-specification entry applications.
Custom profiles, reinforced steel construction, and multi-point locking — configured to your project spec, not pulled from a generic catalog. CE and ISO 9001:2015 certified, shipping to North America, the Middle East, Southeast Asia, and beyond.

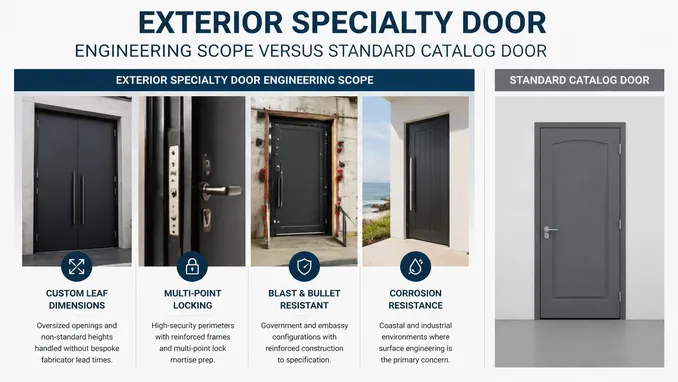

What Makes an Exterior Specialty Door Different from a Standard Entry Door
The word "specialty" in this context has a specific meaning on the production floor: it means the opening, the application, or the performance requirement falls outside what a standard catalog door handles. That covers a wide range of real-world situations — oversized openings that need custom leaf dimensions, architectural facades where the door profile has to match a design spec, high-security perimeters requiring multi-point locking and reinforced frames, blast-resistant or bullet-resistant configurations for government and embassy projects, and entry applications in coastal or industrial environments where corrosion resistance is the primary engineering concern.
We've been manufacturing exterior specialty doors since the early years of our export business. The first serious specialty orders came from Gulf distributors supplying government and hospitality projects — those buyers needed doors that looked architectural but performed to commercial security standards, and they needed a factory that could hold tight tolerances on custom sizes without the lead time penalty of a bespoke fabricator. That's the gap we built our specialty door capability to fill.
The distinction from our standard exterior door and front door lines is primarily in engineering scope: standard doors ship from a defined catalog with limited size and hardware variation; exterior specialty doors start from your spec. The frame profile, leaf thickness, panel configuration, hardware prep, and surface finish are all determined by the application — not by what's easiest to run on a standard line.
Custom Leaf Dimensions
Oversized openings and non-standard heights handled without bespoke fabricator lead times.
Multi-Point Locking
High-security perimeters with reinforced frames and multi-point lock mortise prep.
Blast & Bullet Resistant
Government and embassy configurations with reinforced construction to specification.
Corrosion Resistance
Coastal and industrial environments where surface engineering is the primary concern.
Technical Specifications
These are industry-standard parameters for steel exterior specialty doors. Actual specifications vary by configuration — contact us for a detailed data sheet matched to your project requirements.
Standard Parameter Range
Contact us for exact data sheets on your configuration
| Parameter | Standard Range | Notes |
|---|---|---|
| Door leaf thickness | 45–80mm | Thicker profiles for blast/bullet-resistant configurations |
| Steel body gauge | 1.2–2.0mm SPCC cold-rolled | 1.5mm standard for exterior specialty; 2.0mm for high-security |
| Frame profile | 100–160mm depth | Roll-formed steel, welded corners |
| Door leaf width | 700–1,500mm (single) | Double-leaf up to 2,400mm total clear opening |
| Door leaf height | 2,000–3,000mm | Oversized heights available on custom runs |
| Infill options | Polyurethane foam, mineral wool, honeycomb steel | Mineral wool for fire-rated configurations |
| Hardware prep | Multi-point lock mortise, hinge reinforcement, closer prep | Specified per order |
| Surface finish | Powder coat 60–80μm, primer + topcoat, stainless cladding | RAL color or custom match |
| Thermal break | Available | Required for cold-climate markets |
| Glazing option | Single or double-glazed vision panel | Laminated, tempered, or fire-rated glass |
| Weight (typical) | 60–120kg per leaf | Varies by gauge, infill, and glazing |
Specifications shown are industry-standard values for this product type. Contact us for exact data sheets on your configuration.

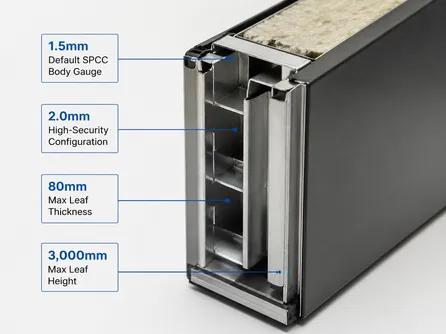

Gauge Selection Guidance
The 1.5mm SPCC body gauge is our default recommendation for exterior specialty applications — it gives you the rigidity needed for multi-point lock alignment across a tall leaf without the freight cost penalty of going to 2.0mm.
We've had buyers spec 2.0mm across the board for a hospitality project, then switch back to 1.5mm after seeing the container weight difference. For most applications, 1.5mm with internal reinforcement channels at the lock zone achieves the same result at lower landed cost.
Body Gauge
Configuration
Thickness
Height
Where Exterior Specialty Doors Generate Margin: Market Segments
Exterior specialty doors are not a commodity segment. The buyer who needs a 1,200mm-wide arched-top entry door with a specific RAL color and a five-point lock is not price-shopping on Alibaba — they're looking for a factory that can actually execute the spec. That's where your margin lives.

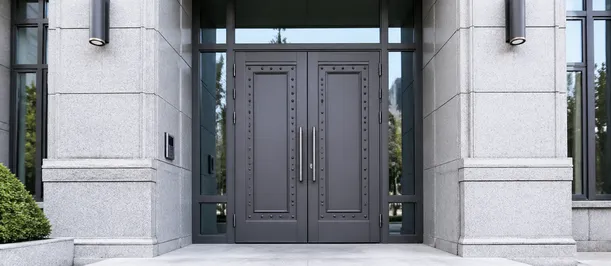

Government & Institutional Projects
Embassies, consulates, municipal buildings, and public infrastructure projects specify doors to security and blast standards that standard catalog products can't meet. Orders typically run 50–300 units per project, with repeat procurement cycles tied to renovation and new construction budgets.
If you're supplying to government contractors or construction firms working on public projects, this is a segment worth building a specialty door SKU around.

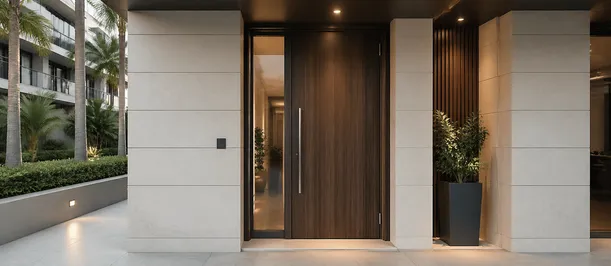

Hospitality & High-End Residential
Hotels, serviced apartments, and luxury residential towers specify entry doors that carry architectural intent. The door is part of the facade design, not just a functional opening. These buyers need custom panel profiles, specific hardware finishes (satin stainless, antique brass, matte black), and tight dimensional tolerances so the door fits the architect's opening without site modification.
Project sizes run 100–500 units for a mid-scale hotel; a large resort development can run 1,000+ units across multiple door types. This segment has grown significantly in the Gulf and Southeast Asia — worth paying attention to if you're building your product line for those markets.
Industrial & Logistics Facilities
Warehouses, data centers, pharmaceutical plants, and food processing facilities all have entry points that see heavy traffic and need to meet both security and hygiene or contamination-control requirements. These buyers need exterior specialty doors that combine security hardware with durability in high-cycle, high-abuse environments.
These buyers order in smaller quantities per project but reorder frequently as facilities expand — making them a reliable repeat-revenue segment once you're qualified into their procurement process.
Coastal & High-Humidity Markets
Southeast Asia, the Gulf, parts of Africa and Australia need exterior doors where corrosion resistance is engineered in, not added as an afterthought. Our zinc phosphate pre-treatment plus 60–80μm powder coat passes a 500-hour salt spray test — the threshold most North American and European buyers need for coastal accounts.
For buyers distributing into these markets, that spec eliminates warranty claims on finish failures — zero RMA from your downstream customers on surface degradation.
Ready to identify your highest-margin segment?
Tell us your target market and volume requirements — we'll confirm which specialty door configurations align with your buyer's spec.
Custom Configuration: What We Can Build and Where the Limits Are
Exterior specialty doors are almost entirely custom by nature — the question is which parameters you're changing and how that affects MOQ and lead time.
Size & Profile
- Single-leaf widths: 700mm – 1,500mm
- Heights: 2,000mm – 3,000mm
- Double-leaf: up to 2,400mm clear opening
- Arched tops, transom panels, sidelite frames on custom runs
- CNC press brake handles non-standard profiles — low tooling cost on first orders
Steel Gauge & Infill
- Body gauges: 1.2mm, 1.5mm, 2.0mm (standard stock)
- Polyurethane foam — thermal performance
- Mineral wool — fire-rated configurations
- Honeycomb steel — blast-resistant builds
Mixed infill types require separate production runs — plan accordingly if your order spans two infill specs.
Hardware
- Multi-point lock mortise prep: 3-point, 5-point
- Single-point deadbolt
- Panic bar prep
- Electromagnetic lock prep
- Concealed closer channels
- Pre-install or hardware-prepped for local install
- OEM programs: source & pre-install your specified brands
Surface Finish
- 60+ RAL colors on automated powder line
- Primer-only for field painting
- Stainless steel cladding on exterior face
- Wood-grain transfer film for architectural applications
- Custom RAL or sample color match: 100+ unit runs
Glazing
- Vision panels: 150×300mm up to full-lite
- Clear tempered glass
- Laminated safety glass
- Frosted glass
- Fire-rated glass for dual-spec configurations
MOQ Summary
OEM MOQ follows the same structure: 50 units for standard, 100 units for custom profiles.
What We Can't Do
Honest scope boundaries — so you can plan your sourcing correctly.
No aluminum-framed specialty doors
Our production is steel only. For curtain wall integration or thermally broken aluminum frames, source from an aluminum fabricator.
No automatic sliding or folding specialty doors
Our specialty door range covers swing configurations only. Automatic sliding or folding configurations are outside our production scope.
Have a spec ready?
Send us your configuration requirements — size, gauge, infill, hardware, finish, and glazing — and we'll confirm feasibility and quote within 48 hours.
How We Build Exterior Specialty Doors: Process Details That Affect Your Order
Exterior specialty doors go through a different production path than our standard catalog lines, and the differences matter for quality and lead time.
Engineering Review (3–5 Working Days)
Every specialty door order starts with an engineering review. Our 15-engineer R&D team checks your spec for manufacturability — frame-to-leaf clearance, hinge load calculations for heavy leaves, lock mortise placement relative to the leaf structure, and thermal break integration if required. For orders with architectural profiles, we generate a 3D rendering before production starts.
Why this step is non-optional: We've seen what happens when it gets skipped — a 200-unit hotel order where the frame depth didn't match the wall construction. The engineering review adds 3–5 working days to the front end, but it eliminates the much larger cost of a production run that doesn't fit the opening.

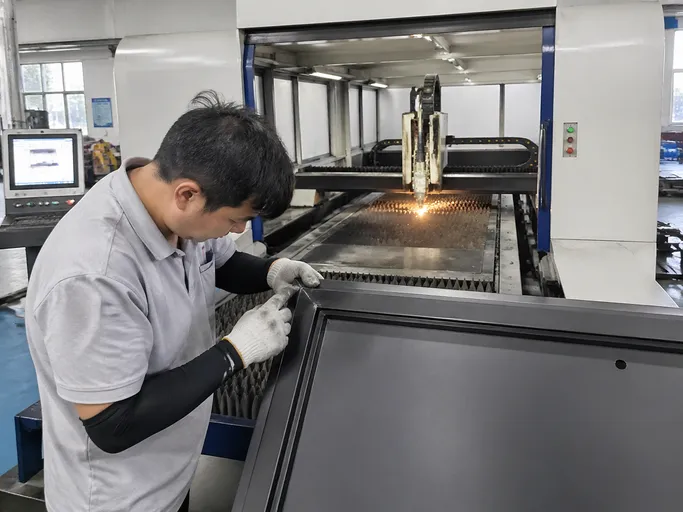

CNC Cutting to ±0.5mm Tolerance
The steel body is cut on our CNC laser line to ±0.5mm dimensional tolerance. For specialty doors with non-rectangular profiles — arched tops, angled sidelites — we use CNC plasma cutting on the profile sections. Frame corners are welded, not mechanically joined.
Corner Weld Inspection & Re-Treatment
Every corner weld on a specialty door gets a visual inspection and a grind-and-re-treat before powder coating. Weld quality at the corners is where most exterior door failures originate — either the weld cracks under thermal cycling or the coating adhesion fails at the weld seam. We grind every corner weld flush and re-apply zinc phosphate treatment to the bare metal before the door enters the coating line.
Powder Coating: 60–80μm Consistent Film
The powder coating process is the same automated line used across all our production — 60–80μm consistent film thickness, electrostatic application, convection cure. For specialty doors with stainless cladding, the cladding is bonded and mechanically fastened after powder coating, not before, so the substrate is fully protected before the cladding goes on.
100% Unit Inspection — No Statistical Sampling
Final assembly includes a full hardware cycle test — every lock point is cycled, every hinge is checked for binding, and the door is measured for squareness and gap consistency against the frame. 100% of units are inspected before packing. No statistical sampling.
Certifications and Compliance for Your Target Markets
EUWOO holds ISO 9001:2015, CE, SGS, and NFPA 80 certifications. For exterior specialty doors specifically, here is what each certification covers and when it matters for your buyers.
CE Marking
Covers structural performance and hardware compatibility for European and Gulf markets.
If your buyers are importing into the EU or GCC countries with CE requirements, our CE documentation is available for your customs and compliance files.
ISO 9001:2015
Covers the quality management system across all production, including specialty door lines.
SGS audit reports are available on request for buyers who need third-party documentation.
NFPA 80
Applies to fire-rated door configurations. Common for institutional and government projects.
Specify the required fire rating at inquiry stage: 20-minute, 45-minute, 60-minute, or 90-minute.
SGS Audit
Third-party audit documentation available on request for buyers requiring independent verification.
Full certification documentation is available on our certifications page and about page.
Market-Specific Standards
UL listings for North American markets. Confirm exact certification requirement at inquiry stage — we can advise on which configurations are pre-qualified and which require additional testing documentation.
BS 476 for UK market. Confirm the exact certification requirement at the inquiry stage.
AS 1905 for Australian market. Confirm the exact certification requirement at the inquiry stage.
Zero-VOC Powder Chemistry
Zero-VOC powder chemistry on our coating line means no VOC compliance issues for buyers importing into markets with indoor air quality or environmental regulations.
RoHS-Compliant Hardware
RoHS-compliant hardware is available on request for buyers supplying into EU markets with restricted substances requirements.
For markets with specific local standards, we recommend confirming the exact certification requirement at the inquiry stage. We can advise on which configurations are pre-qualified and which require additional testing documentation.
Confirm Certification RequirementsPackaging, Container Loading, and Landed Cost
Every crate carries a barcode linked to the production batch record — if there's a quality question on arrival, you can trace the unit back to its production date, line, and inspection record.

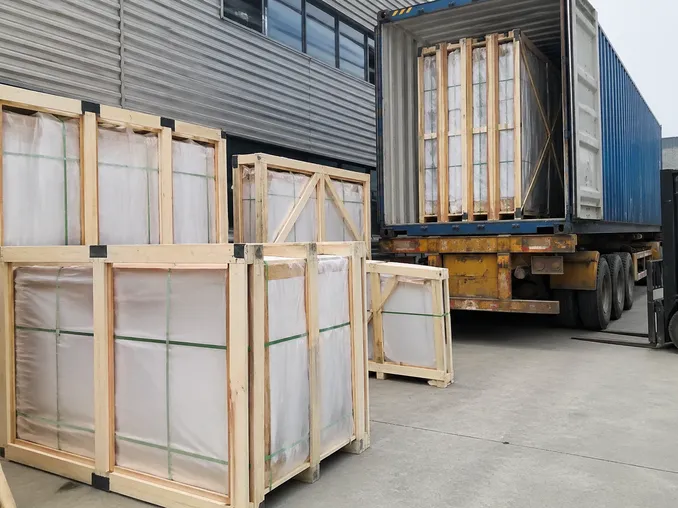

Protective Crating Standard
Exterior specialty doors ship in foam-lined protective crates with corner guards on the frame. For heavy-gauge or glazed configurations, we add internal bracing to prevent leaf movement during transit.
KD Flat-Pack Option
KD (knock-down) flat-pack is available for standard specialty configurations — door leaf, frame, and hardware packed separately. KD format increases container loading efficiency by 15–20% compared to pre-hung assemblies, which directly reduces your per-unit freight cost.
For buyers distributing into markets where local installation labor is available and inexpensive, KD is the better landed cost option.
Container Loading Reference
| Door Configuration | 20GP (approx.) | 40HQ (approx.) |
|---|---|---|
| Standard single-leaf (900×2,100mm) | 60–80 sets | 130–160 sets |
| Oversized single-leaf (1,200×2,400mm) | 35–50 sets | 75–100 sets |
| Double-leaf (1,600×2,100mm) | 30–40 sets | 65–80 sets |
Planning figures only. Exact loading quantities depend on frame depth and crating dimensions, confirmed with a packing plan before shipment.
Standard Lead Time
30–45 working days from deposit confirmation for standard specialty configurations. Engineering review and 3D rendering (included at no charge) happen in the first 3–5 working days — built into the lead time, not added on top.
Custom Tooling Lead Time
Custom profile orders with non-standard tooling add 5–10 working days for tooling fabrication. Contact us at the inquiry stage for urgent project timelines — we'll confirm current line loading.
Frequently Asked Questions
Direct answers to the questions buyers ask most before placing an exterior specialty door order.
What is the minimum order quantity for a custom exterior specialty door?
50 units for specialty configurations using our standard profiles and tooling. 100 units for fully custom profiles requiring new tooling or non-standard frame dimensions. For OEM private-label programs, the same MOQ structure applies.
Below 50 units, the powder line changeover and engineering setup cost doesn't make sense for either side — we'd rather be honest about that upfront than quote a price that doesn't work.
What steel gauge should I specify for a coastal or high-humidity environment?
1.5mm SPCC body gauge with zinc phosphate pre-treatment and 60–80μm powder coat is the right spec for coastal applications. The zinc phosphate pre-treatment is the critical step — it bonds to the steel substrate and provides corrosion resistance at the base layer before the powder coat goes on. This combination passes a 500-hour salt spray test.
For extreme coastal environments (direct ocean exposure, industrial port areas), specify 1.5mm gauge plus stainless steel cladding on the exterior face — the cladding adds cost but eliminates the surface corrosion risk entirely.
Can exterior specialty doors be fire-rated?
Yes. We build fire-rated exterior specialty doors to NFPA 80 standards, with mineral wool infill and intumescent seals. Available ratings are 20-minute, 45-minute, 60-minute, and 90-minute.
The fire rating affects the infill specification, seal configuration, and hardware requirements — specify the required rating at the inquiry stage so we can confirm the correct configuration.
CE-marked fire-rated configurations are also available for European and Gulf market requirements.
What is the lead time for exterior specialty door orders?
30–45 working days from deposit confirmation for standard specialty configurations. Custom profile orders with new tooling add 5–10 working days.
Engineering review and 3D rendering (included at no charge) happen in the first 3–5 working days of the order — this is built into the lead time, not added on top. For urgent project timelines, contact us at the inquiry stage and we'll confirm current line loading.
Exterior specialty door vs. standard exterior door: which is right for my project?
If your opening is a standard size (800–1,000mm wide, 2,000–2,100mm tall) and your hardware requirement is a standard single-point lock, our standard exterior door is the faster and lower-cost option — it ships from a defined catalog with shorter lead times and lower MOQ.
Exterior specialty doors are the right choice when you have non-standard dimensions, architectural profile requirements, multi-point locking, blast or bullet resistance, or a fire rating requirement. If you're not sure which applies to your project, send us the opening dimensions and performance spec — we'll tell you which product fits.
What customization is available for surface finish on exterior specialty doors?
60+ RAL colors on our automated powder line, available on all order sizes. Custom RAL color matching to a specific sample is available on runs of 100+ units.
- Stainless steel cladding (brushed or mirror finish) on the exterior face for architectural applications
- Wood-grain transfer film for projects requiring a timber appearance with steel performance
- Primer-only finish for buyers who apply field paint or a proprietary topcoat after delivery
Related Exterior Door Products
If your requirement doesn't match the exterior specialty door profile, these sibling products may be a better fit.
Exterior Door
Standard catalog exterior doors for commercial and residential applications. Faster lead times, lower MOQ, defined size range. The right choice when your opening is standard and your spec is straightforward.
View ProductFront Door
Entry doors with architectural panel profiles and premium hardware options, designed for main entrance applications in commercial and residential buildings. Overlaps with specialty in aesthetics but works within standard size ranges.
View ProductGet a Quote for Your Exterior Specialty Door Project
Send us your opening dimensions, performance requirements, and target market — our engineering team will review the spec, confirm feasibility, and come back with a detailed quote and 3D rendering. No charge for the design consultation.
Most specialty door inquiries get a preliminary response within 24 hours. For complex configurations, we'll confirm the engineering review timeline when we acknowledge your inquiry.
Submit Your Inquiry NowWhat to Include in Your Inquiry
-
Opening DimensionsWidth, height, and wall thickness. Include rough opening if available.
-
Performance RequirementsSecurity class, fire rating, acoustic rating, thermal value, or other compliance targets.
-
Target MarketDestination country and applicable certification standards (CE, GB, ANSI, or other).
-
Order VolumeEstimated quantity per order and annual volume if known. Helps us confirm MOQ fit and pricing tier.
-
Finish & Hardware PreferencesPanel profile, surface finish, lock grade, and any hardware brand requirements.
