Warehouse Steel Door Direct From Factory
High-cycle warehouse steel doors — built for loading docks, perimeter access, and forklift-traffic corridors.
Wide-opening configurations, forklift-clearance threshold options, and hardware rated for 500,000+ cycles. Factory-direct from EUWOO's 18,000 m² facility — 100% inspected before shipment.
What Makes a Warehouse Steel Door Different from a Standard Commercial Door
A warehouse steel door is not a heavier version of an office door. The design requirements diverge at almost every point: wider clear openings to accommodate pallet jacks and forklifts, threshold configurations that don't catch wheels or create trip hazards, hinge and hardware specs rated for the kind of cycle counts that a loading dock door accumulates in a year, and a body gauge that survives contact with equipment without denting through to the core.

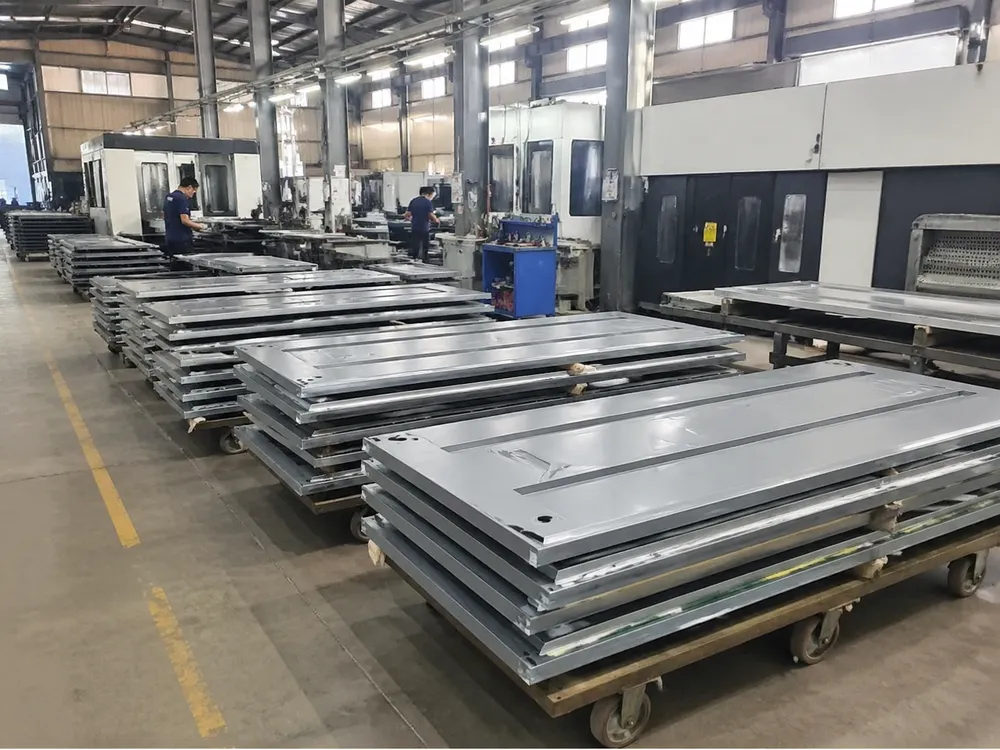

We've been building doors for logistics and industrial facilities since the early years of the business, and the warehouse application is one where the spec decisions have real downstream consequences. A door that's underspecified for its environment — wrong gauge, wrong hinge rating, wrong threshold — generates warranty claims and replacement orders within 18–24 months. The buyers who've been sourcing from us the longest are the ones who got burned by that cycle once and decided to spec correctly from the start.
The warehouse steel door we manufacture is purpose-built for this environment: 1.2–1.5mm SPCC cold-rolled steel body, 3-hinge heavy-duty configuration as standard, threshold options matched to forklift clearance requirements, and wide-opening single or double-leaf configurations up to 1800mm clear width. Every unit goes through our 5-stage QC process and 100% pre-shipment inspection before it loads into your container.

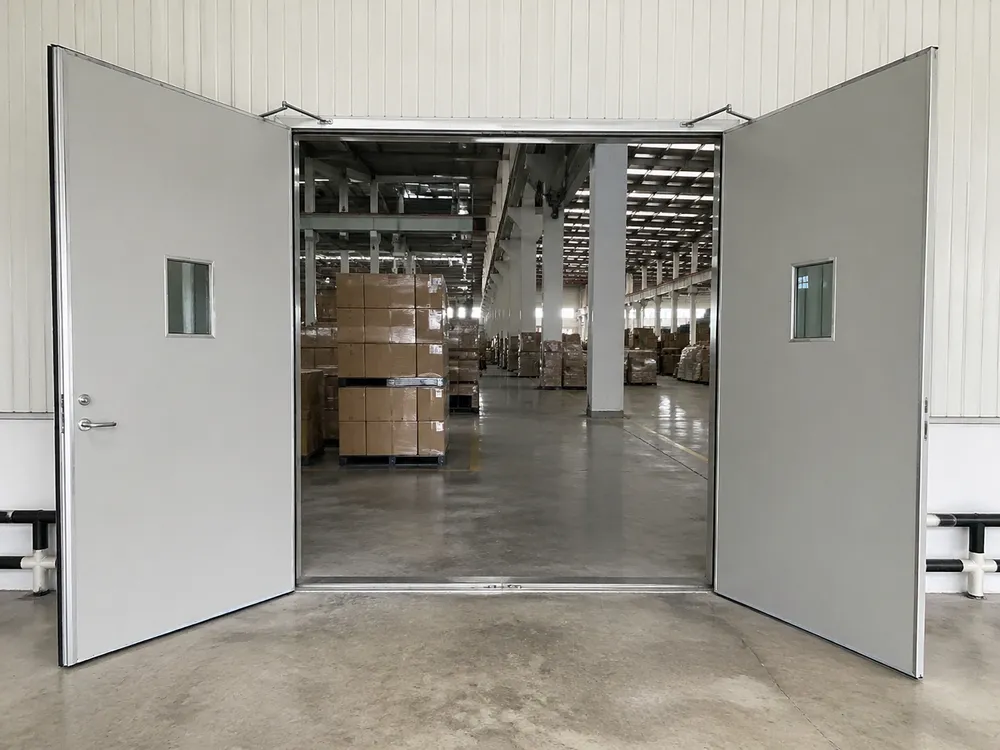

Wide-Opening Configs
Single leaf up to 1500mm, double leaf up to 1800mm clear width
500,000+ Cycle Hinges
Heavy-duty weld-in 3-hinge configuration rated for loading dock volumes
1.2–1.5mm SPCC Body
Cold-rolled steel gauge that survives equipment contact without core penetration
5-Stage QC + 100% Inspection
Every unit inspected before container loading — no surprises on arrival
Technical Specifications
These are industry-standard values for this product type. Actual specifications may vary by configuration and customization requirements — contact us for a detailed product data sheet.
| Parameter | Standard Specification | Heavy-Duty Option |
|---|---|---|
| Body material | SPCC cold-rolled steel | |
| Body gauge | 1.2mm | 1.5mm |
| Door leaf thickness | 50mm | 60mm |
| Core | Mineral wool | |
| Standard single-leaf width | 900–1200mm | 900–1200mm |
| Wide-opening single-leaf width | Up to 1500mm | Up to 1500mm |
| Double-leaf clear width | Up to 1800mm | Up to 1800mm |
| Standard height | 2100–2400mm | 2100–2400mm |
| Frame material | Cold-rolled steel, 1.5mm | Cold-rolled steel, 2.0mm |
| Frame profile depth | 120–160mm | 120–160mm |
| Hinge configuration | 3-hinge heavy-duty weld-in | 3-hinge heavy-duty weld-in |
| Hinge cycle rating | 500,000+ cycles | 1,000,000+ cycles |
| Threshold options | Flat / low-profile / forklift-clearance | |
| Surface finish | Powder coat, 60–80μm | Powder coat, 60–80μm |
| Salt spray rating | 500 hours | 500 hours |
| Lock prep | Mortise lock, deadbolt, panic bar | |
| Certifications |
ISO 9001:2015 CE SGS
|
|
| MOQ | 50 units (standard) | 100 units |
| Lead time | 25–35 days from deposit | Quoted individually |
Specifications shown are industry-standard values for this product type. Contact us for exact product data sheets and configuration-specific parameters.
High-Cycle Hardware: The Specification That Determines Your Warranty Exposure
This is the section most product pages skip, so we'll be direct about it.
A loading dock door in an active distribution center opens and closes 80–150 times per day. At 100 cycles per day, that's 36,500 cycles per year. A standard 2-hinge butt hinge configuration — the kind used on office and residential steel doors — is typically rated to 250,000–500,000 cycles. That sounds like a lot until you do the math: at 100 cycles per day, a standard hinge configuration reaches its rated life in 7–14 years under ideal conditions.
In a warehouse environment, where doors take lateral impact from pallet jacks, are propped open with equipment, and operate in temperature extremes, that rated life compresses significantly.

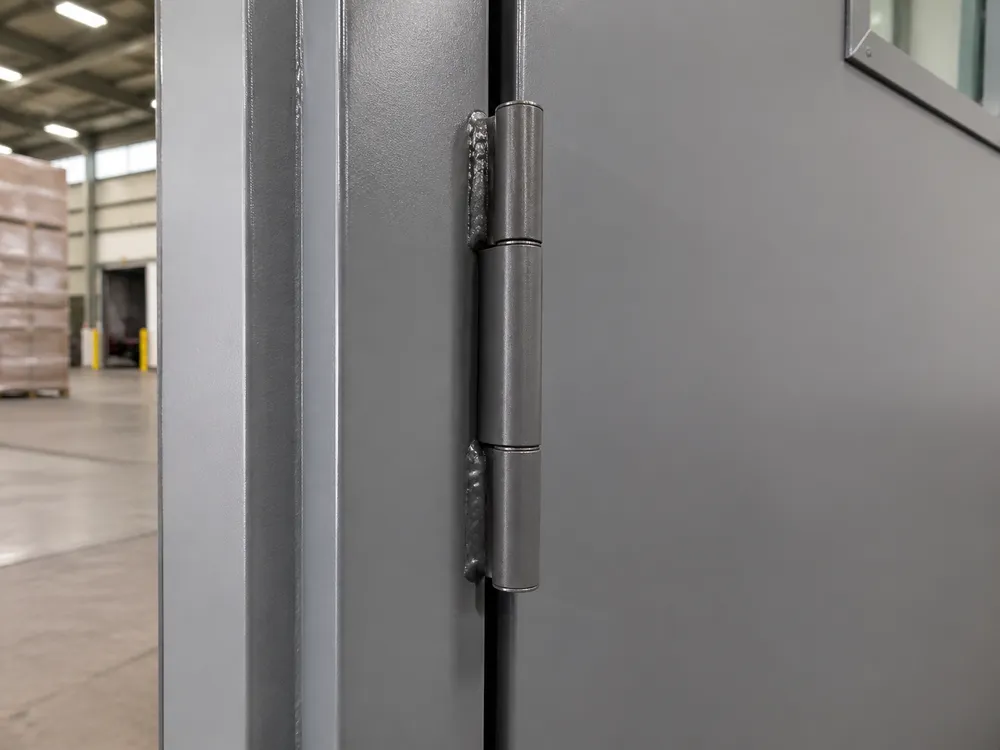

We spec 3-hinge heavy-duty weld-in hinges as standard on warehouse steel doors. The third hinge distributes the door weight and lateral load across a longer span of the door body, which reduces the stress concentration at each hinge point. The weld-in mounting — as opposed to a through-bolt or screw-fixed hinge — means the hinge plate is structurally integrated into the door body, not just attached to the skin.
Standard Configuration
3-hinge heavy-duty weld-in setup rated to 500,000+ cycles. Distributes door weight and lateral load across a longer span, reducing stress concentration at each hinge point.
Standard SpecHeavy-Duty Option
Upgraded heavy-duty weld-in hinges rated to 1,000,000+ cycles. Specified for distribution centers and logistics facilities with the highest daily cycle counts.
Recommended for High-VolumeStructural Integration
The hinge reinforcement plate is welded into the door body at the forming stage, before the door skin is assembled — it's not a retrofit. A reinforcement plate added after assembly is only as strong as its attachment to the skin. Ours is part of the door structure.
Why This Matters for Buyers Supplying Logistics Facilities
We made the weld-in reinforcement plate a standard feature after seeing hinge pull-through failures on competitor products that buyers brought to us for comparison — the failure mode was consistent and entirely predictable from the construction method.
For buyers supplying logistics facilities, distribution centers, or manufacturing plants, this hardware specification is the difference between a door that performs for 10+ years and one that generates a warranty call in year two. Specify it correctly from the start — the per-unit cost difference is modest; the downstream service cost difference is not.

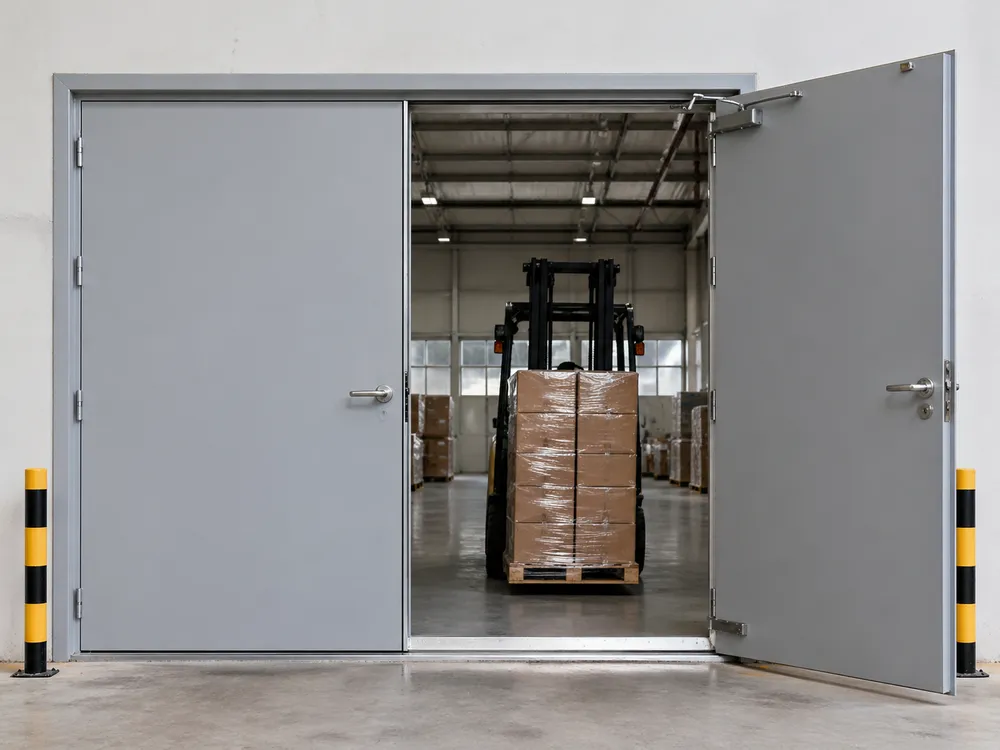

Threshold and Clearance Configurations for Forklift Traffic
The threshold is the detail that separates a door designed for warehouse use from a standard commercial door adapted to the application. Standard commercial door thresholds — even low-profile ones — create a bump that a loaded pallet jack or forklift will hit on every pass. Over time, that impact transfers to the door frame, the floor anchor, and the door leaf itself. In high-traffic facilities, threshold damage is one of the most common reasons doors need early replacement.
Three Threshold Configurations
Flat Threshold
Flush with the finished floor surface, no raised lip. Suitable for facilities where forklifts and pallet jacks cross the threshold multiple times per hour. Requires a proper floor seal detail at installation to maintain weather resistance where applicable.
High-Frequency Forklift TrafficLow-Profile Threshold
8–12mm raised lip, standard for most warehouse perimeter doors where some weather resistance is needed but forklift clearance is still a requirement. The most common configuration in our warehouse door orders.

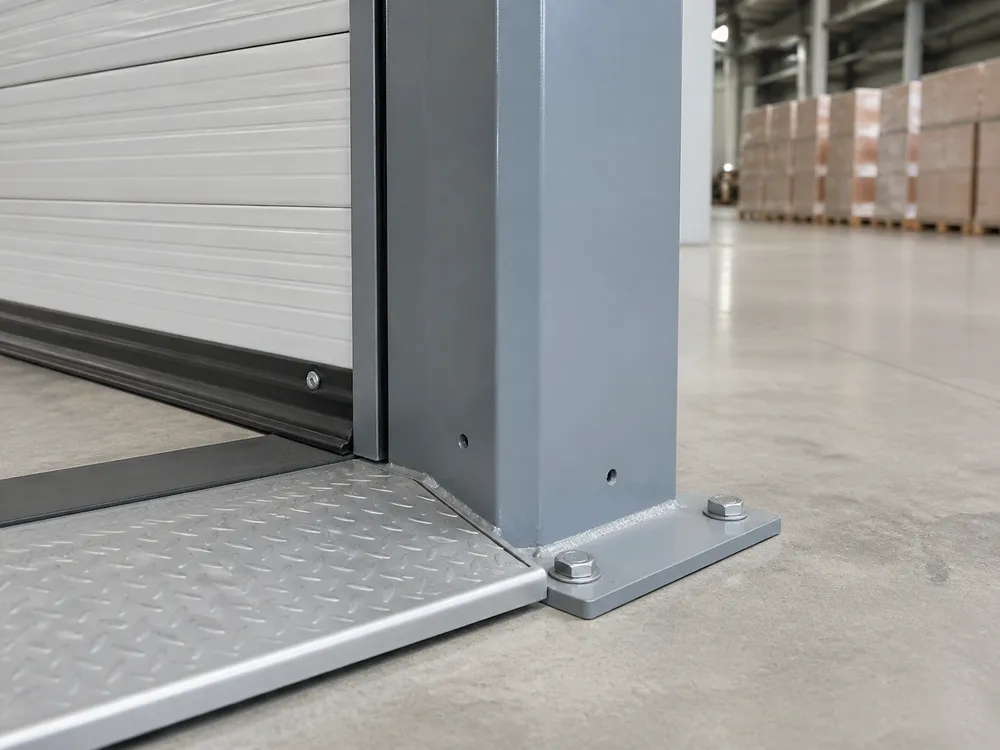

Most Common ConfigurationForklift-Clearance Threshold
Custom-profiled to your facility's forklift wheel base and load height specification. Built for cold storage facilities and pharmaceutical warehouses where the floor-to-threshold transition is a compliance requirement, not just a convenience.
This configuration requires your facility drawings at the quoting stage.
Cold Storage / Pharma / Compliance
Frame Anchor Detail
The frame anchor detail matters as much as the threshold profile. Warehouse door frames take lateral load from equipment contact that standard commercial frames aren't designed for.
- 2.0mm cold-rolled steel with welded corner construction
- Floor anchor plate distributes load across a wider footprint than standard frames
- New construction: rough opening spec and anchor bolt pattern available for your structural engineer
Market Segments: Where Warehouse Steel Doors Generate Repeatable Orders
Understanding which segments drive volume — and which drive margin — helps you build inventory and account strategy around the right buyers.
Logistics and Distribution Centers
The highest-volume segment. A mid-size distribution center — 20,000–50,000 m² — typically requires 30–80 warehouse perimeter doors depending on dock configuration and internal zoning.
Developers and general contractors building these facilities order in project quantities, and the same developer often builds multiple facilities on a rolling schedule. If you're supplying building material distributors or contractors in markets with active logistics construction — Southeast Asia, the Gulf, North America — this is a segment worth building inventory for.
Cold Storage and Food Processing
Requires warehouse doors with specific performance characteristics: thermal break frames to prevent condensation, gasket seals rated for temperature differential, and in some cases stainless hardware for wash-down environments.
These projects are smaller in unit count but higher in per-unit value and less price-competitive than standard warehouse door supply. Contractors and facility developers in this segment reorder as facilities expand, making them high-lifetime-value accounts.
Manufacturing Plant Fit-Out and Expansion
Generates steady replacement and new-installation demand. Manufacturing facilities replace warehouse doors on a rolling basis as doors reach end of life or as production areas are reconfigured.
A distributor with relationships in the manufacturing sector can build a reliable reorder stream from this segment — the order sizes are modest (10–30 units per order) but the frequency is high and the buyer relationship is sticky once you've established a reliable supply.
Industrial Park Development
Particularly active in Southeast Asia and the Middle East. Large-scale construction of multi-tenant industrial units where warehouse steel doors are a standard specification item. Developers and their procurement teams order in bulk across multiple buildings, and the spec is typically standardized across the development.
Getting specified into one project in a development pipeline often means repeat orders across subsequent phases.
Ready to discuss project volume?
Whether you're sourcing for a single facility fit-out or building distributor inventory for a regional market, we can quote by segment and volume tier.

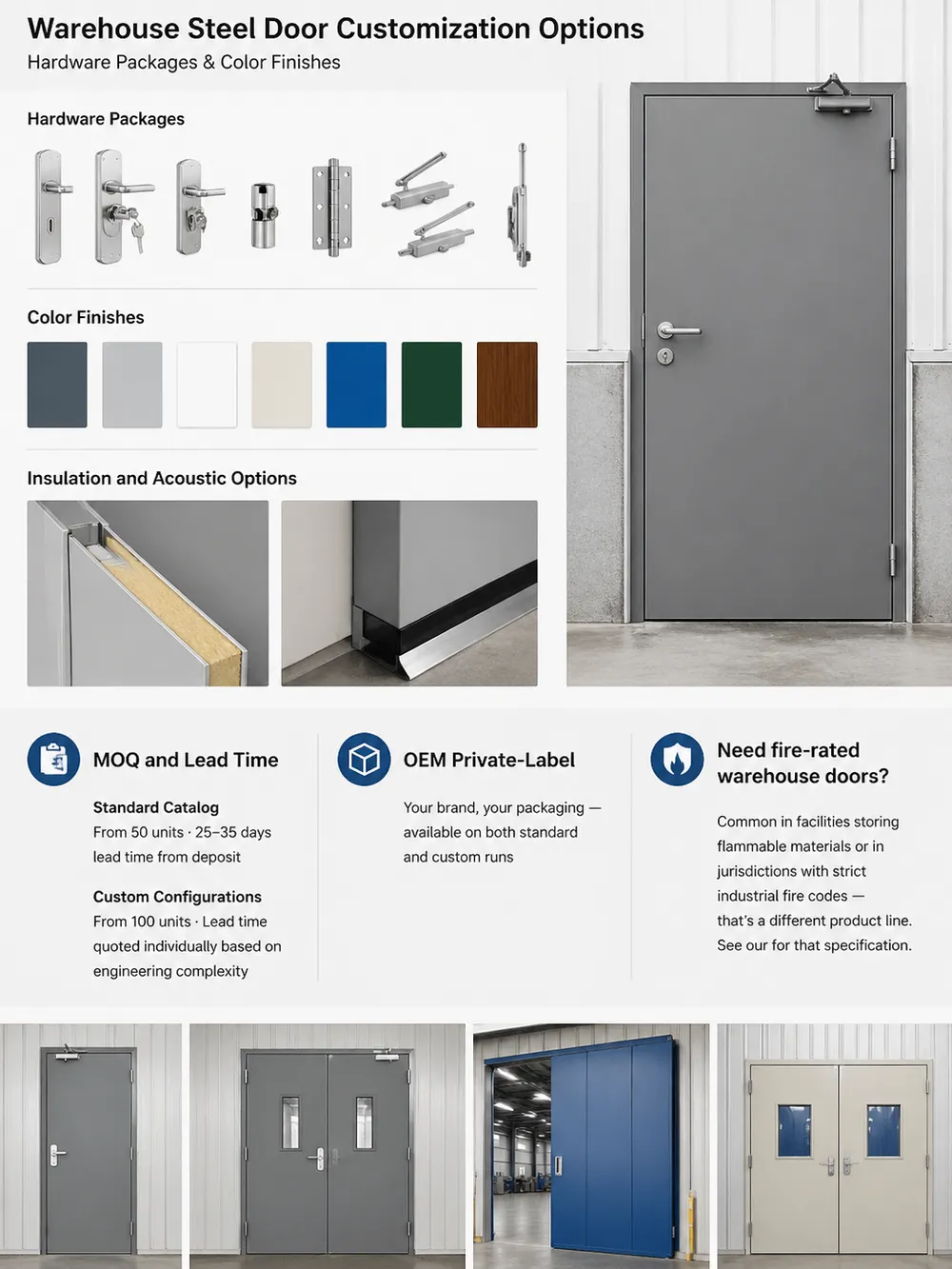

Customization Options for Warehouse Steel Doors
Standard catalog configurations cover most warehouse applications, but the nature of warehouse construction means dimensional and hardware customization is common. Here's what we can do and where the practical limits are.
Dimensional Customization
Door leaf width from 700mm to 1800mm (single leaf), height from 1800mm to 3000mm. Double-leaf configurations up to 3600mm total clear width.
Outside these ranges, the structural engineering of the door body changes and we'd need to review your application before quoting. Frame dimensions are matched to the door leaf as standard; custom frame profiles for non-standard wall thicknesses are available.
Hardware Packages
Lock prep options include mortise lock, deadbolt, panic bar (push bar), and electromagnetic hold-open. Closer prep is standard on all configurations.
Kick plates and protection plates on the push side are standard on warehouse configurations. Vision panels are useful for facilities where visibility through the door is a safety requirement.
Surface Finish and Color
60+ standard RAL colors on runs of any size. Custom colors (outside the standard RAL range) are available on runs of 100 units or more — the powder line changeover for a non-standard color requires a minimum batch to be cost-effective for both sides.
Galvanized finish is available as an alternative to powder coat for exterior applications in high-humidity environments.
Insulation and Acoustic Options
Mineral wool core is standard on warehouse doors for its combination of thermal performance and non-combustibility. Polyurethane foam core is available for applications where thermal insulation is the primary requirement — cold storage ante-rooms, temperature-controlled areas.
Acoustic performance is a secondary benefit of mineral wool core — relevant for facilities adjacent to residential areas or where noise control is a planning requirement.
MOQ and Lead Time
Standard Catalog
From 50 units · 25–35 days lead time from deposit
Custom Configurations
From 100 units · Lead time quoted individually based on engineering complexity
OEM Private-Label
Your brand, your packaging — available on both standard and custom runs
Need fire-rated warehouse doors?
Common in facilities storing flammable materials or in jurisdictions with strict industrial fire codes — that's a different product line. See our industrial steel door for that specification.
| Option Category | Standard | Custom / Extended | MOQ Trigger |
|---|---|---|---|
| Dimensions (single leaf) | 700–1800mm W × 1800–3000mm H | Outside range: engineering review required | 50 units (standard) |
| Double-leaf clear width | Up to 3600mm total | Custom frame profiles for non-standard wall thickness | 50 units |
| Color (powder coat) | 60+ standard RAL colors | Custom (non-RAL) colors available | 100 units for custom color |
| Core insulation | Mineral wool (standard) | Polyurethane foam for cold storage applications | 50 units |
| Surface finish | Powder coat | Galvanized (high-humidity exterior) | 50 units |
| OEM / private-label | Available on standard runs | Available on custom runs | 50 units (standard) / 100 units (custom) |

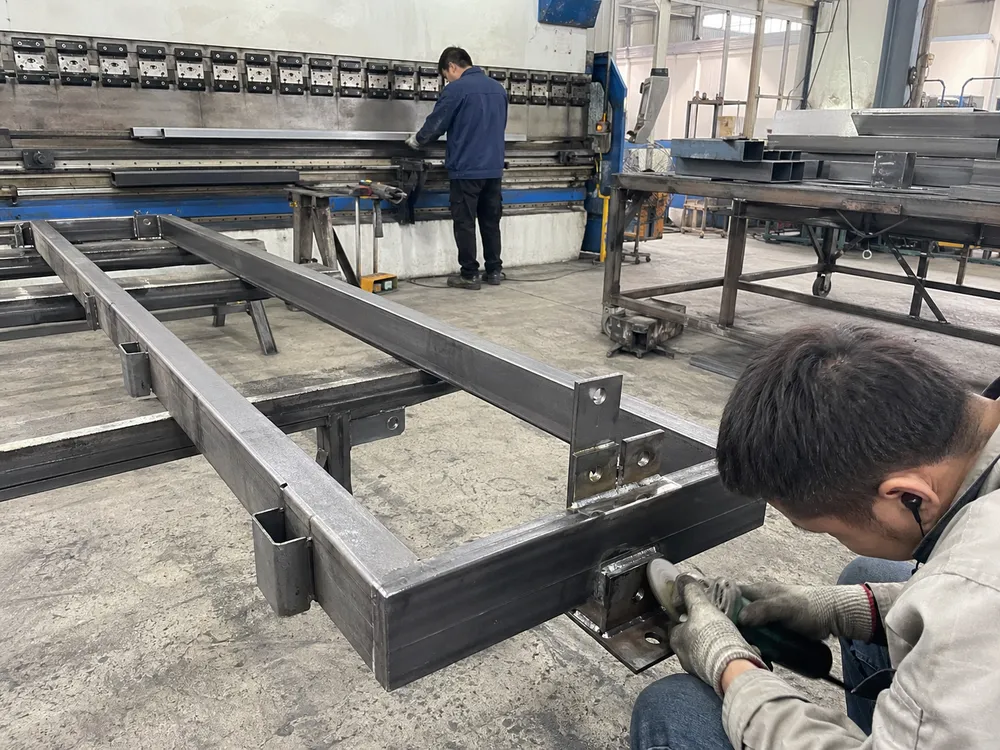

How We Build Warehouse Steel Doors: Process Details That Affect Your Product's Field Performance
The manufacturing decisions that matter for warehouse door performance are different from those that matter for office or residential doors. Here's what we do differently on this product line.
Body Gauge and Forming
Warehouse doors run at 1.2mm standard, 1.5mm heavy-duty. The 1.2mm spec is formed on our CNC press brake to tighter bend radii than our standard commercial line — the tighter radius gives a crisper edge profile and increases the panel's resistance to lateral deflection under impact.
At 1.5mm, the forming parameters change: the bending radius opens slightly to prevent micro-cracking at the bend, and the press brake tonnage increases. We run these as separate forming programs, not a single program with gauge substitution.
Weld Seam Treatment
Every weld seam on a warehouse door body is ground flush and dressed before pre-treatment. This is not standard practice across the industry — many manufacturers leave weld seams proud and rely on the powder coat to bridge the surface irregularity.
Powder coat over an undressed weld seam is thinner at the seam edges and more prone to delamination under thermal cycling and mechanical stress. In a warehouse environment, where doors operate in temperature extremes and take regular impact, this failure mode shows up within 2–3 years. Grinding the seam adds process time, but it's the reason our warehouse doors don't generate finish warranty claims.
Zinc Phosphate Pre-Treatment
All doors go through our zinc phosphate bath before coating — the same process described on our steel door category page. For warehouse doors specifically, the zinc phosphate is critical at the threshold and frame base, where moisture contact is highest.
We run a specific inspection check on pre-treatment coverage at these areas before doors enter the coating line.
Powder Coat Thickness at Edges
Edge coverage is the most common failure point on powder-coated steel doors. We check film thickness at panel edges as a specific inspection step — not just on flat surfaces.
Doors that show thin edge coverage (below 50μm at any edge) go back to the coating line. The 60–80μm spec applies to edges, not just faces.
Frame Anchor Fabrication
Warehouse door frames are fabricated with a welded floor anchor plate as standard — not a field-drilled anchor detail. The plate is dimensioned to our standard anchor bolt pattern, which we provide with every frame shipment.
This eliminates the field variation that comes from installers drilling their own anchor patterns, which is a common source of frame movement and door alignment problems over time.
Packaging, Container Loading, and Landed Cost Factors
Warehouse steel doors are larger and heavier than standard commercial doors, which affects container loading efficiency and landed cost in ways that are worth understanding before you finalize your order quantity.
Standard Single-Leaf
W900–1200mm × H2100mm
KD flat-pack format. Varies by door width and hardware configuration.
Wide-Opening Single-Leaf
W1200–1500mm
KD flat-pack format. Wider leaf reduces container density vs. standard single-leaf.
Double-Leaf
Varies by total width
KD flat-pack format. Total width determines exact loading density.
KD Flat-Pack Format
KD format means door leaf, frame sections, and hardware are packed separately in reinforced cartons. The frame sections are bundled and strapped; the door leaf is wrapped in protective film and packed face-to-face in pairs to prevent surface contact during transit. Hardware is bagged and labeled per door set.
This packing method survives port handling without requiring wooden crating, which keeps your import costs clean in markets with strict phytosanitary requirements for wood packaging.
Most of our warehouse door buyers opt for KD format and handle assembly on-site or at their distribution warehouse.
Pre-Hung Assembly Option
For projects requiring pre-hung assemblies (door leaf pre-fitted to frame, hardware pre-installed), we can ship in foam-lined protective crates. Pre-hung assemblies reduce installation labor on-site but load at significantly lower container density.
vs. 150–200 sets for standard KD single-leaf
Factor the lower container density into your landed cost calculation when evaluating pre-hung vs. KD format for your project.
Batch Traceability
Every carton carries a barcode linked to our production batch record. If there's a quality question on arrival, you can trace the unit back to its production date, line, and inspection record within minutes.
We provide exact loading data with every quote — the numbers your freight team needs for landed cost calculations.
Certifications and Compliance
EUWOO holds ISO 9001:2015, CE, SGS, and NFPA 80 certifications across our product range. Below is what each certification covers for warehouse steel door applications and what documentation is available for your import compliance files.
ISO 9001:2015
Quality ManagementQuality management system certification
Covers our documented process governing incoming material inspection, in-process dimensional checks, weld inspection, coating inspection, and final assembly verification.
For buyers: SGS audit reports are available on request for buyers who need third-party documentation for their own import compliance files.
CE Marking
EU MarketEuropean structural steel door certification
Covers structural steel door products for the European market. If you're importing into the EU or supplying projects with EU-standard specifications, CE documentation is included in the standard export package.
Included automatically: CE documentation ships with every EU-bound order — no separate request required.
NFPA 80
Fire DoorFire door certification — separate product line
Standard warehouse steel doors are not fire-rated. If your project requires a fire-rated warehouse door — common in facilities storing flammable materials or in jurisdictions with strict industrial fire codes — that specification falls under our industrial fire door product line.
Note: Fire-rated warehouse door requirements are handled under our industrial fire door product line, which carries NFPA 80 certification.
ANSI/SDI
North AmericaNorth American steel door construction standards
For buyers importing into North America, ANSI/SDI standards for steel door construction apply to commercial and industrial steel doors. Our manufacturing process and dimensional tolerances are consistent with ANSI/SDI requirements.
On request: ANSI/SDI compliance documentation available for North American import files.
Need Certification Documentation?
ISO 9001:2015 audit reports, CE documentation, and ANSI/SDI compliance files are available on request. Include your import compliance requirements in your RFQ and we'll include the relevant documentation package.
Frequently Asked Questions
Specification decisions that affect field performance, warranty exposure, and landed cost. These answers reflect what experienced buyers ask before committing to a configuration.
What steel gauge should I specify for a warehouse steel door?
For standard warehouse perimeter doors — loading dock access, personnel doors in warehouse walls — 1.2mm SPCC cold-rolled steel is the correct starting spec. It handles normal forklift-adjacent traffic, takes hardware well, and keeps door weight manageable for standard closer configurations.
For doors in high-abuse zones — directly adjacent to loading dock levelers, in facilities with heavy forklift traffic through the doorway, or in environments with regular equipment contact — specify 1.5mm.
Field reality: The gauge difference is visible within 2–3 years. 1.2mm doors in high-abuse zones show denting and hinge wear; 1.5mm doors don't. The per-unit cost difference is modest relative to the warranty and replacement cost difference.
What hinge configuration is correct for a high-cycle warehouse door?
Specify 3-hinge heavy-duty weld-in as the minimum for any warehouse door that will see more than 50 cycles per day. Standard 2-hinge butt configurations are rated for residential and light commercial use — they're not the right spec for loading dock doors.
The third hinge distributes load across a longer span; the weld-in mounting integrates the hinge plate into the door body structure rather than attaching it to the skin.
100+ cycles/day: Specify the 1,000,000-cycle hinge rating. The upfront cost difference between standard and high-cycle hardware is small; the cost of a hinge failure in an active warehouse — door out of service, emergency repair, potential damage to goods — is not.
Can warehouse steel doors be customized for cold storage applications?
Yes, with specific configuration requirements. Cold storage warehouse doors need:
- —Thermal break frames to prevent condensation on the frame interior
- —Gasket seals rated for the temperature differential between the cold room and ambient space
- —Hardware that operates reliably at low temperatures
0°C to ambient: Standard customization. Below -10°C: Hardware selection and seal specification require a separate engineering review — send us your temperature differential and cycle frequency and we'll spec the configuration.
How many warehouse steel doors fit in a 40HQ container?
KD flat-pack format loading estimates per 40HQ:
| Configuration | Width Range | Sets / 40HQ |
|---|---|---|
| Standard single-leaf | W900–1200mm × H2100mm | 150–200 sets |
| Wide-opening single-leaf | W1200–1500mm | 100–140 sets |
| Double-leaf | Varies by total width | 60–90 sets |
Use these figures for initial landed cost estimates. Exact loading data is provided with every quote — confirm with the quote-specific loading plan before finalizing your freight booking.
What is the lead time for a warehouse steel door order?
Standard Catalog
25–35 days
From deposit confirmation
Custom Configuration
35–45 days
Quoted individually
Custom configurations — non-standard dimensions, special hardware packages, cold storage specs — are quoted individually depending on engineering complexity and current line loading.
Fixed installation schedules: Tell us your required delivery date at the quoting stage and we'll confirm whether it's achievable before you commit. We provide a firm lead time commitment with your quote.
Do warehouse steel doors require fire rating?
Standard warehouse steel doors are not fire-rated. Whether your application requires a fire-rated door depends on your jurisdiction's building code and the occupancy classification of the facility.
In many markets, warehouse doors separating storage areas from office or public spaces require a fire rating — typically 60 or 90 minutes.
Fire rating required? That specification falls under our industrial fire door product line, which carries NFPA 80 certification. If you're unsure whether your application requires a fire rating, send us the project details and we'll flag the relevant specification.
Other Steel Doors in This Category
If the warehouse steel door configuration doesn't match your application, these sibling products may be a better fit.
Industrial Steel Door
Heavier-gauge construction (1.5mm standard, 2.0mm available) for manufacturing plants and utility spaces where the door takes daily equipment contact. The industrial door is the right spec when the primary requirement is impact resistance rather than wide-opening clearance.
View Industrial Steel DoorSteel Door
The core catalog product for standard commercial applications. If your project is an office building, retail space, or light commercial facility rather than a warehouse or logistics facility, the standard steel door is the correct spec and the more cost-effective choice.
View Steel DoorStainless Steel Door
For warehouse applications in food processing, pharmaceutical, or coastal environments where corrosion resistance is the primary specification. Powder-coated carbon steel is not the right spec for food processing wash-down environments regardless of coating quality.
View Stainless Steel DoorGet a Quote for Warehouse Steel Doors
Send us your project details — door count, configuration requirements, target delivery port, and any customization needs. Our engineering team reviews every inquiry and responds with a detailed quote and, where relevant, a 3D rendering of the configuration. No charge for the consultation.
Most new buyers in this category start with a sample order of 2–4 units to verify the spec against their project requirements before committing to a full production run. We can ship samples within the standard lead time.
2–4
Units for sample orders
3D
Rendering included with quote
$0
Engineering consultation fee
50
Unit MOQ for production runs
EUWOO — Luoyang Huahui Door Industry Co., Ltd. | Luoyang Industrial Park, Henan, China
