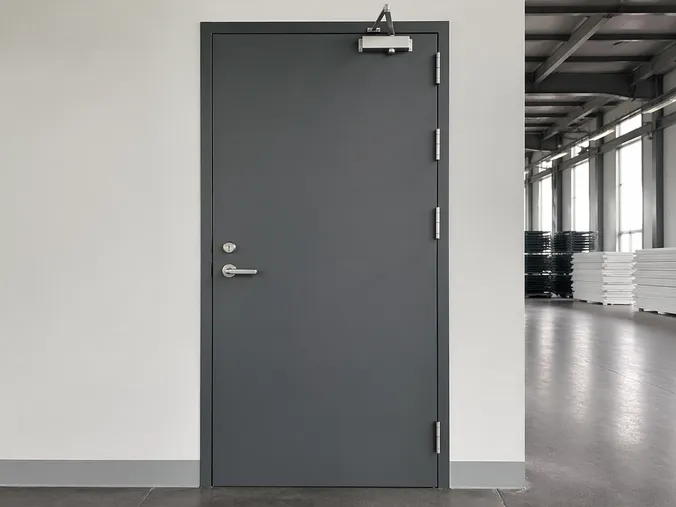

Heavy Duty Commercial Doors Built to Outlast Standard Spec
Reinforced-frame heavy duty commercial doors — engineered for the environments that destroy standard doors.
1.5mm steel body, welded corner gussets, 4-bearing hinges rated for 500,000+ cycles. Built for logistics hubs, industrial facilities, correctional facilities, and any application where a standard commercial door fails within two years.
What Makes a Door "Heavy Duty" — and Why the Spec Gap Matters
The term gets used loosely. We've seen competitor catalogs label a 1.0mm door "heavy duty" because it has a thicker frame than their base model. That's not what we mean, and it's not what your downstream buyers mean when they specify it for a loading dock or a correctional facility.
Our heavy duty commercial doors are built around a different structural logic than our standard commercial line. The body panel runs 1.5mm cold-rolled SPCC steel — 50% heavier gauge than the 1.0mm spec that covers most institutional applications. The frame is 1.8mm minimum, with welded corner gussets rather than mechanical fasteners at the corners.
The hinge prep is 4-bearing, 89mm × 89mm minimum leaf, and we design the hinge reinforcement plate into the door skin rather than surface-mounting it. The threshold is reinforced to handle repeated impact from carts, forklifts, and foot traffic without deforming the frame geometry.
Why the spec gap matters commercially:
A standard commercial door installed in a high-abuse environment generates warranty claims at 18–24 months. Panel denting, frame distortion, hinge wear, powder coat failure at impact points — these are predictable failure modes when the wrong door goes into the wrong application. Your downstream customer replaces the door, blames the supplier, and you absorb the relationship damage.
The heavy duty spec eliminates that failure pattern. The unit cost is higher, but the total cost of ownership across a 10-year installation is lower — and that's the argument your sales team can make to justify the price premium.
We've had buyers come to us specifically after a competitor's "heavy duty" product failed in a warehouse application within 18 months. The first question we ask is always: what gauge was the body panel? If they don't know, the door probably wasn't built to a real heavy duty spec.
1.5mm Body Panel
Cold-rolled SPCC steel — 50% heavier gauge than the 1.0mm standard institutional spec. 1.8mm available on request.
Welded Corner Gussets
1.8mm minimum frame with welded gussets at every corner — not mechanical fasteners that loosen under repeated impact.
4-Bearing Hinges
89mm × 89mm minimum leaf, reinforcement plate integrated into the door skin — not surface-mounted. Rated 500,000+ cycles.
Reinforced Threshold
Handles repeated impact from carts, forklifts, and foot traffic without deforming frame geometry over the installation lifetime.
Technical Specifications
Standard parameters for our heavy duty commercial door line. Exact specifications vary by configuration — contact us for a detailed product data sheet.
Heavy Duty Commercial Door — Standard Parameters
| Parameter | Specification |
|---|---|
| Body panel gauge | 1.5mm cold-rolled SPCC steel (standard); 1.8mm available on request |
| Frame gauge | 1.8mm minimum cold-rolled steel |
| Door thickness | 50mm standard; 60mm available for acoustic or thermal configurations |
| Standard leaf sizes | W800–1200mm × H2000–2400mm (single leaf) |
| Double-leaf configuration | Up to W2400mm total opening width |
| Core fill | Mineral wool (standard); polyurethane foam (thermal option); honeycomb paper (weight-optimized option) |
| Hinge specification | 4-bearing, 89mm × 89mm minimum leaf, welded reinforcement plate |
| Cycle rating | 500,000+ open-close cycles (standard hinge configuration) |
| Surface finish | Automated powder coat, 60–80μm, 60+ color options; zinc-rich primer undercoat available for coastal markets |
| Salt spray resistance | 500 hours standard; 1000-hour spec available with zinc-rich primer undercoat |
| Hardware prep | ANSI, EN, AS/NZS standards; mortise and cylindrical lock prep; multi-point locking available |
| Frame corner construction | Welded gussets (not mechanical fasteners) |
| Weight (typical) | 45–70kg depending on size and core fill (contact us for exact figures by configuration) |
| Certifications |
ISO 9001:2015
CE
SGS
NFPA 80
|
| MOQ | 50 units (standard configurations); 100 units (custom dimensions or finishes) |
Specifications shown are standard values for this product line. Actual specifications may vary by configuration. Contact us for detailed product data sheets and exact parameters.
Request a Spec Sheet
Get the full product data sheet with exact parameters for your target configuration — including custom dimensions, core fill options, and hardware prep standards.
Request Spec SheetConfiguration Options at a Glance
- Body gauge: 1.5mm standard · 1.8mm on request
- Thickness: 50mm standard · 60mm acoustic/thermal
- Core fill: Mineral wool · PU foam · Honeycomb
- Hardware: ANSI · EN · AS/NZS · Multi-point locking
- Finish: 60+ powder coat colors · Zinc-rich primer for coastal
- Salt spray: 500h standard · 1000h with zinc-rich undercoat
- Leaf config: Single up to W1200mm · Double up to W2400mm
MOQ Summary
Where Heavy Duty Commercial Doors Sell: High-Value Market Segments
The commercial value of this product line comes from the application segments it serves — environments where the spec is non-negotiable and buyers pay for performance, not just price.

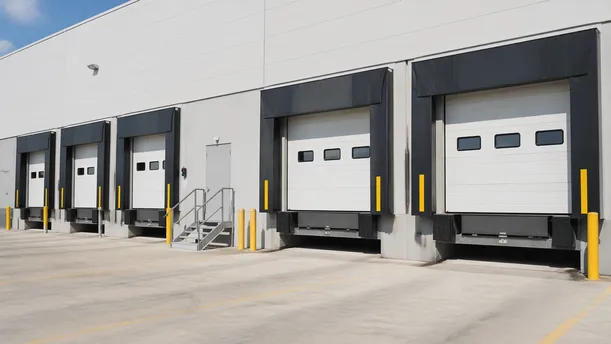

Logistics and Distribution Centers
A mid-size distribution center runs 50–150 door cycles per door per day across dock doors, internal zone separators, and office-to-warehouse transitions. At that frequency, a standard commercial door accumulates 18,000–55,000 cycles per year — well past the failure threshold of undersized hinges and 1.0mm panels.
Facility managers in this segment have been burned before; they specify heavy duty by gauge and cycle rating, not by marketing language. Our 500,000-cycle rating and 1.5mm body spec give your sales team a defensible answer when the spec question comes up.
Typical Order Volume
A new facility fit-out runs 80–200 doors, with replacement orders following on a predictable cycle as the facility ages.

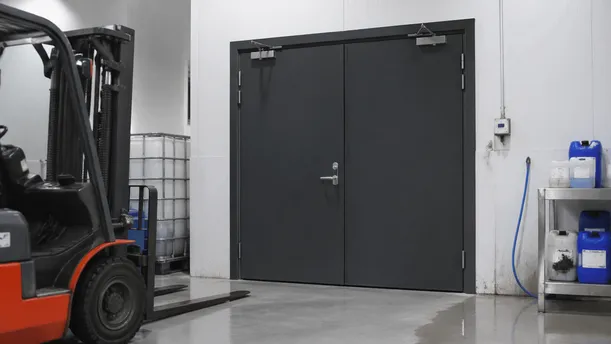

Manufacturing and Industrial Plants
Manufacturing and industrial plants need doors that survive forklift proximity, chemical splash, and the general abuse of a production environment. The frame distortion failure mode is particularly costly here — a door that won't close properly in a food processing plant or pharmaceutical facility creates compliance problems, not just inconvenience.
Our 1.8mm welded frame with corner gussets holds geometry under repeated lateral impact.
Chemical Exposure Option
For plants with chemical exposure, we can specify a galvanized substrate before powder coating, adding a corrosion barrier that standard SPCC steel doesn't provide.
Correctional and Secure Facilities
Correctional and secure facilities specify heavy duty as a baseline, not an upgrade. Anti-pry resistance, panel rigidity under impact, and hardware prep for multi-point locking are the spec drivers. This segment buys through government procurement channels — long sales cycles, but large orders and minimal price sensitivity once the spec is met.
200–500
Doors per facility order
ISO 9001
Quality documentation for vendor qualification
Certifications That Matter Here
The correctional and secure facility segment has grown significantly in the Middle East and Southeast Asia over the past three years — government infrastructure investment in those regions is driving consistent volume.
Healthcare and Institutional Corridors
Hospital service corridors, emergency department entries, and loading dock access see the same abuse profile as logistics facilities — but with the added requirement of acoustic performance and cleanability.
STC 35–40
Acoustic rating on 50mm door
Mineral Wool
Core fill for acoustic performance
Cleanability
The powder coat surface is cleanable with standard hospital-grade disinfectants without coating degradation — satisfying infection control requirements without special surface treatment.
How We Build the Heavy Duty Spec: Manufacturing Decisions That Protect Your Margin
Here's what's specific to the heavy duty line and why it matters for your downstream warranty exposure.

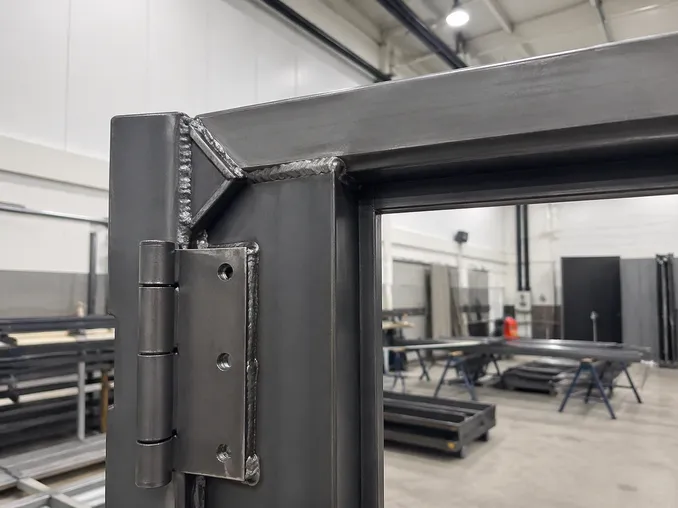

MIG-Welded Corner Gussets
On standard lines, frame corners are typically assembled with mechanical fasteners — faster to produce, adequate for low-cycle applications. On the heavy duty line, every frame corner is MIG-welded and fitted with a welded gusset plate.
The weld penetration is checked visually and by pull test on a sample basis — we pull 5% of frames per batch and test corner rigidity before they move to the coating line. A frame that fails the pull test gets scrapped, not reworked.
Why It Matters
This adds cost, but it's the only way to guarantee the frame geometry holds under the lateral loads a heavy-use door sees over its service life.
Dedicated 1.5mm Press Cell
The 1.5mm body uses a different press sequence than our standard line. The heavier gauge requires higher tonnage on the bending press, and the bend radius is tighter — we run the heavy duty panels on a dedicated press cell rather than mixing them with standard production.
Structural Difference
The edge profile on a 1.5mm panel is structurally different from a 1.0mm panel: the tighter bend creates a stiffer edge that resists panel oil-canning (surface waviness) that shows up on heavy gauge panels bent on equipment calibrated for lighter stock.
Stamped Pocket, Welded Backing Plate
Hinge reinforcement is built into the door skin during panel fabrication, not added as a surface plate after assembly. We stamp a recessed reinforcement pocket into the panel at the hinge locations, then weld the hinge backing plate into the pocket flush with the panel surface.
The result is a hinge attachment that distributes load across a larger area of the panel skin rather than concentrating stress at four bolt holes.
5-Year
Hinge life at 200 cycles/day
2-Year
Standard hinge at same load

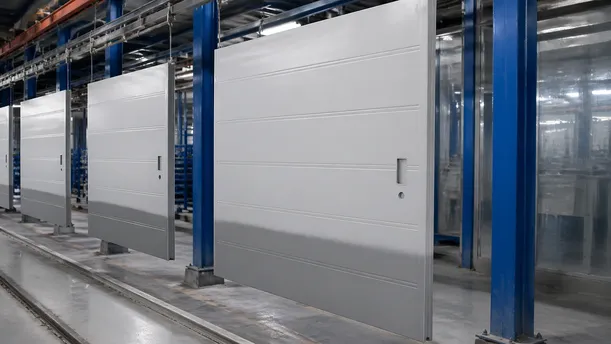

Impact Primer at High-Contact Zones
Powder coat pre-treatment on the heavy duty line follows the same weld pre-treatment sequence — grind, secondary phosphate treatment at weld zones, then the full automated coating sequence.
On the heavy duty line, we add an impact primer at the lower third of the door leaf and at the frame base — the zones that take the most cart and forklift contact.
Film Thickness Gain
The impact primer adds approximately +20μm of additional film thickness in the high-contact zones without affecting the overall finish appearance.
Customization Parameters for Heavy Duty Commercial Doors
The heavy duty line supports the same customization scope as our standard commercial range, with a few constraints specific to the heavier construction.
Dimensional Customization
Non-standard opening sizes available on runs of 100 units or more. Press brake handles widths up to 1400mm on a single leaf without a tooling surcharge at that MOQ.
- Heights up to 2800mm achievable
- Above 2400mm: intermediate hinge + reinforced frame stile
- Double-leaf up to 2800mm total width — standard
Gauge Options
Standard heavy duty spec is 1.5mm body / 1.8mm frame. For correctional facilities and high-security industrial applications, a 1.8mm body option is available.
Above 1.8mm body thickness, the bending radius changes enough to affect the edge profile. We discuss the trade-off with buyers before committing that spec.
Core Fill Options
- Mineral wool — standard fill
- Polyurethane foam — exterior applications; U-value ~1.6 W/m²K on 60mm door
- Honeycomb paper core — weight-sensitive applications (overhead); reduces acoustic and impact-resistance performance
Finish and Color
- 60+ standard powder coat colors — no MOQ premium
- Custom RAL or proprietary brand colors on runs of 100+ units
Coastal upgrade: Zinc-rich primer undercoat upgrades salt spray resistance from 500 hrs to 1000 hrs. Recommended for Gulf, Southeast Asian coastal, and Australian markets.
Hardware Prep
- Full ANSI, EN, and AS/NZS hardware prep available
- Multi-point locking prep (3-point and 5-point) — standard on heavy duty line
- Lock case pocket routed and lock stile reinforced during panel fabrication
- Pre-hung assemblies with hardware supplied — complete unit option available
OEM / ODM
- Private-label branding and custom packaging
- Proprietary finish specifications
- Most North American and Australian distributor partners run this line under their own brand
- Free 3D rendering and design consultation for custom configurations
Send us your project drawings — our R&D team returns a production-ready spec within 3 business days.
Discuss Your Custom Configuration
Share your project drawings and spec requirements. Our R&D team will return a production-ready configuration with 3D rendering included — no charge.

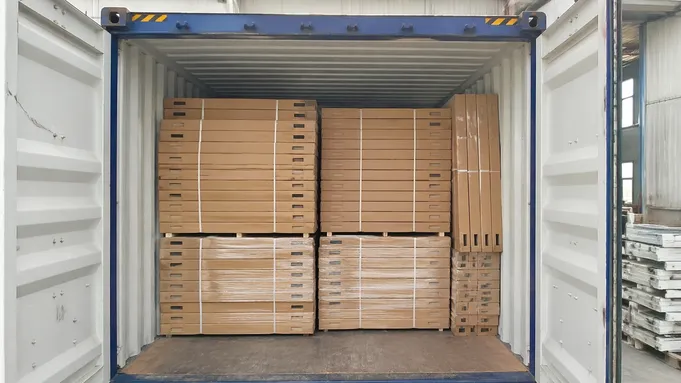

Container Loading and Export Packaging
Heavy duty doors ship differently from standard commercial doors — the heavier gauge and reinforced construction add weight and require more robust packaging to survive port handling.
Container Loading Density
A 40HQ container loads approximately 280–380 heavy duty single-leaf doors in flat-pack KD configuration, depending on door thickness and whether frames are included.
KD flat-pack is the right call for most export markets. The assembly is straightforward and the container efficiency improvement is meaningful at scale. Pre-hung assemblies eliminate on-site assembly labor but reduce loading density significantly.
Packaging Specification
Standard Export Carton
Double-wall corrugated carton with foam corner protection, edge guards on panel faces, and stretch-wrap outer layer.
Rough Port Handling Upgrade
For West Africa and certain Southeast Asian ports: wooden pallet base and additional corner reinforcement added. Packaging passes a 1.5m drop test on all four faces — a step up from standard commercial packaging given the higher unit value.
Container Loading Plan (200+ Units)
For orders of 200+ units, we provide a container loading plan with exact CBM calculations before order confirmation — useful for landed cost modeling and freight booking. We can include a freight estimate from our regular forwarders to your destination port.
Drop Test Performance
All four faces tested. Heavy duty line packaging exceeds standard commercial spec — reflecting the higher per-unit value of this product range.
Landed Cost Modeling Support
For orders of 200+ units, we provide a container loading plan with exact CBM calculations before order confirmation. This is useful for landed cost modeling and freight booking. We can include a freight estimate from our regular forwarders to your destination port.
Frequently Asked Questions
Specification and sourcing questions answered directly — with the technical detail procurement teams and project specifiers need to make confident decisions.
What steel gauge qualifies as "heavy duty" for a commercial door?
Industry practice puts the threshold at 1.2mm body gauge for heavy duty classification, but the meaningful spec for genuinely demanding applications starts at 1.5mm.
At 1.2mm, you get meaningful improvement over standard 0.8–1.0mm construction for institutional high-traffic use. At 1.5mm with a 1.8mm frame and welded corner construction, you have a door that handles the abuse profile of logistics, industrial, and correctional applications without panel deformation or frame distortion over a 10-year service life.
If a supplier calls a 1.0mm door "heavy duty," ask for the frame gauge and corner construction method — those are the structural elements that determine real-world durability, not just the panel spec.
Heavy duty commercial doors vs. industrial commercial doors: which do I need?
The distinction is primarily about the operating environment.
Designed for high-cycle, high-abuse environments within a building — loading dock access, warehouse zone separators, institutional corridors.
- Interior high-traffic corridors
- Loading dock zone separators
- Institutional access points
Designed for the building perimeter in manufacturing and processing environments — chemical exposure, extreme temperature differentials, and potential forklift impact from the exterior.
- Exterior manufacturing plant openings
- Processing facility perimeter
- Chemical / temperature exposure
If your application is interior high-traffic, heavy duty is the right spec. If your application is an exterior opening on a manufacturing plant or processing facility, see our Industrial Commercial Doors line.
What cycle rating should I specify for a warehouse or distribution center door?
A warehouse door cycling 100 times per day accumulates 36,500 cycles per year. Over a 10-year service life, that's 365,000 cycles. Specify a minimum 500,000-cycle rating to have meaningful service life margin — doors that are rated exactly to their expected cycle count fail at the worst possible time.
For high-frequency dock doors cycling 200+ times per day, specify continuous hinges (piano hinges) rather than butt hinges — the load distribution across the full door height eliminates the hinge-point stress concentration that causes butt hinge failure in high-cycle applications. We can prep any door in our heavy duty line for continuous hinges.
Cycle Load Reference
100 cycles/day
36,500/yr → 365,000 over 10 years
Specify: 500,000-cycle min
200+ cycles/day
73,000+/yr → 730,000+ over 10 years
Specify: continuous hinges
Key principle
Doors rated exactly to expected cycle count fail at the worst possible time. Build in margin.
What certifications are required for heavy duty commercial doors in North American projects?
For non-fire-rated heavy duty commercial doors in North American projects, ANSI/SDI A250.8 compliance is the standard construction reference, and CE marking satisfies most import documentation requirements.
For fire-rated assemblies, NFPA 80 governs installation and maintenance requirements, and the door assembly needs UL or Intertek listing to ANSI/UL 10C (positive pressure fire test). Our NFPA 80 certification covers the assembly standard. For specific UL listing documentation on fire-rated configurations, contact us — we can provide current listing documentation for the applicable configurations.
Non-Fire-Rated
- ANSI/SDI A250.8 — standard construction reference
- CE marking — satisfies most import documentation requirements
Fire-Rated Assemblies
- NFPA 80 — governs installation and maintenance
- UL or Intertek listing to ANSI/UL 10C (positive pressure fire test)
- EUWOO NFPA 80 certification covers the assembly standard
For specific UL listing documentation on fire-rated configurations, contact us — we can provide current listing documentation for the applicable configurations.
What is the MOQ for heavy duty commercial doors, and how does the custom order process work?
MOQ is 50 units for standard catalog configurations and 100 units for custom dimensions, colors, or hardware prep.
Custom Order Process
- 1 Send specs or project drawings to our team
- 2 R&D reviews and returns a production-ready spec with 3D rendering within 3 business days
- 3 Align on specs and pricing
- 4 Pre-production sample produced for your approval before committing the full run
Standard Config
30–40 days
confirmed order to shipment
Custom Config
40–50 days
subject to line loading
Can heavy duty commercial doors be supplied pre-hung with hardware?
Yes. We supply complete pre-hung assemblies — door leaf, frame, hinges, and specified lockset — for buyers whose downstream customers need a complete unit. Pre-hung assemblies are particularly useful for project contractors who want to reduce on-site labor and eliminate hardware compatibility issues.
Pre-Hung vs. KD Flat-Pack
Buyer Guidance
In markets with low installation labor costs, KD flat-pack is usually the better landed cost choice. Discuss the labor cost profile of your target market with us before deciding.
Related Products in the Commercial Door Line
If the heavy duty spec is more than your application requires, or if you need a different construction type for a specific project, these are the closest alternatives in our line.
Commercial Steel Door
0.8–1.2mm body gauge, the standard workhorse for institutional and commercial applications where heavy duty spec isn't required. Lower unit cost, same powder coat and QC process.
View productIndustrial Commercial Doors
Heavy-gauge construction optimized for manufacturing plant perimeter applications, with chemical-resistant finish options and forklift-impact-resistant frame engineering.
View productHollow Metal Commercial Doors
ANSI/SDI A250.8 compliant construction for North American institutional projects where hollow metal specification is required by the project architect or code.
View productWarehouse Commercial Doors
High-cycle rated, optimized specifically for distribution and logistics facility applications where door cycling frequency is the primary spec driver.
View productStart Your Heavy Duty Door Sourcing Conversation

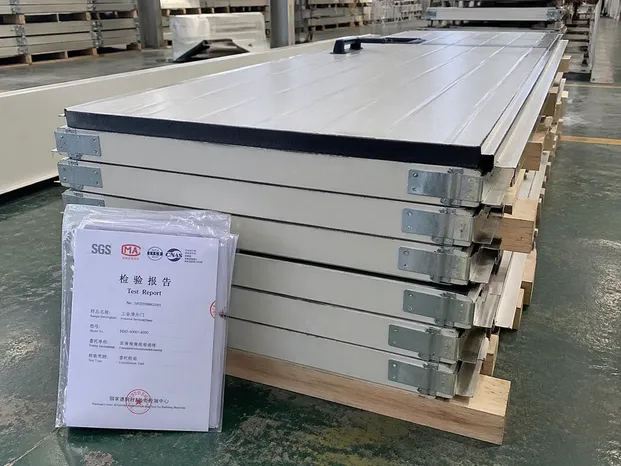

The most useful first step for most buyers is a sample order — 2–4 units across the configurations you're evaluating, so you can test against your project spec or show your downstream customers before committing volume.
