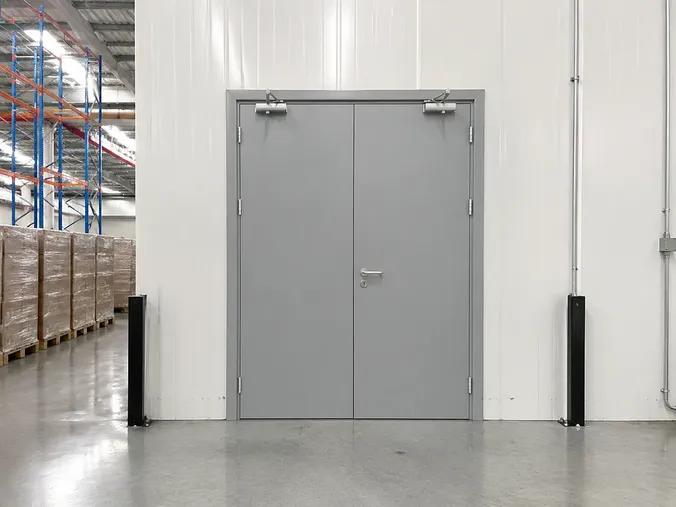

Industrial Fire Door Built for the Floor
Heavy-gauge industrial fire doors — built for the abuse loads, cycle counts, and compliance requirements of factories, warehouses, and logistics facilities. 1.5mm SPCC body as standard. FD30 to FD120 ratings. NFPA 80 and CE certified. Factory-direct from Luoyang, China.
Where This Door Fits — and Where the Commercial Fire Door Doesn't
The industrial fire door is the heavy end of our fire door line. The distinction isn't cosmetic — it's structural. Our commercial fire door runs at 1.2mm SPCC body gauge, which is the right spec for office buildings, hotels, and retail fit-outs. The industrial version runs at 1.5mm as standard, with reinforced hinge pockets, heavier-duty mortise hardware, and a door leaf construction designed for environments where forklifts pass close, loading dock traffic is constant, and the door takes incidental impact on a daily basis.
If you're sourcing for warehouses, manufacturing plants, cold storage facilities, logistics hubs, or any industrial occupancy where fire compartmentation is required by code, this is the product. The fire rating — FD30 through FD120 — is the same certification framework as the rest of our fire door line. What changes is the physical durability spec underneath that rating.
A door that holds its fire integrity for 60 minutes but develops frame distortion from daily abuse after 18 months is a compliance liability. We build the industrial version to hold both.
Industrial vs. Commercial — Key Differences
Warehouses
High-cycle traffic, forklift proximity, constant loading dock use.

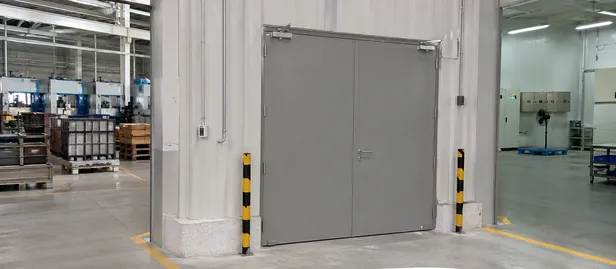

Manufacturing Plants
Fire compartmentation in active production environments.
Cold Storage
Thermal cycling and heavy-use conditions alongside fire code compliance.
Logistics Hubs
High-volume throughput facilities with mandatory fire compartmentation.
Why Buyers Regret the 1.2mm Spec in Industrial Settings
- Panel denting from cart and forklift contact becomes permanent — 1.2mm absorbs impact, 1.5mm resists it.
- Hinge screw pull-through under repeated heavy-cycle use — no backing plate means hardware failure over time.
- Frame-to-leaf gap drift — thinner panels flex and deform, compromising the 3–4mm perimeter gap the fire rating depends on.
- Re-inspection failure — intumescent seal contact compromised by panel deformation means full door replacement, not a repair.

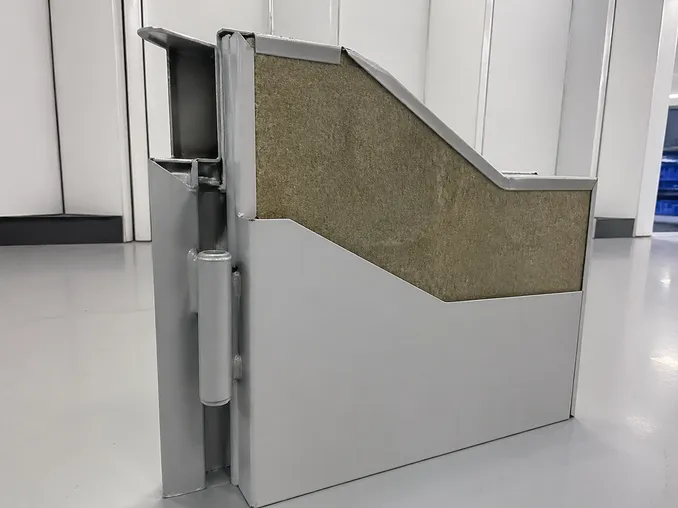

Steel Body Construction: Why 1.5mm Is the Industrial Threshold
The body gauge decision on an industrial fire door is the one that determines long-term performance in the field — and it's where a lot of sourcing mistakes happen. Buyers spec a standard commercial fire door into an industrial application because the fire rating matches, then deal with denting, hinge pull-out, and frame distortion within two years.
We run the industrial fire door body at 1.5mm SPCC cold-rolled steel — 25% thicker than our standard commercial line. That gauge change affects three things that matter commercially:
Panel Rigidity
A 1.5mm panel resists the localized denting from cart and forklift contact that a 1.2mm panel absorbs permanently. The surface stays true over years of daily industrial use.
Hinge Pocket Integrity
We reinforce the hinge zones with a welded backing plate on the industrial model, so the hinge screws don't pull through the panel face under repeated heavy-cycle use.
Frame-to-Leaf Fit Stability
Thicker panels hold their geometry better over time, which means the 3–4mm perimeter gap that the fire rating depends on stays consistent rather than drifting as the door body flexes.
Core construction note: The fire-rated build follows the same system as the rest of our line — mineral wool board for FD30/FD60, perlite composite for FD90/FD120 — but the outer shell is built to survive the environment it's installed in. The 1.5mm spec is the insurance against a re-inspection failure caused by panel deformation compromising intumescent seal contact.
Technical Specifications
| Parameter | Industrial Fire Door — Standard Values |
|---|---|
| Steel Body Gauge | 1.5mm SPCC cold-rolled steel (standard) |
| Door Leaf Thickness | 54mm (FD30/FD60) · 64mm (FD90/FD120) |
| Fire Resistance Rating | FD30 FD60 FD90 FD120 |
| Core Material | Mineral wool board (FD30/FD60) · Perlite composite (FD90/FD120) |
| Frame Construction | 2.0mm welded steel frame with continuous intumescent seal |
| Standard Door Width | 800–1200mm single leaf · up to 2400mm double leaf |
| Standard Door Height | 2000–2400mm · custom heights available |
| Hinge Specification | Heavy-duty stainless steel ball-bearing hinges, 3 per leaf minimum · reinforced hinge pockets |
| Lock | Heavy-duty mortise lock, stainless or zinc-alloy body |
| Closer | Overhead door closer, EN 1154 rated (standard on all configurations) |
| Push Bar Option | Fire-rated panic exit device, EN 1125 listed |
| Surface Finish | Powder coat, 60–80μm · 60+ RAL colors · primer-only available |
| Frame Seal | Continuous perimeter intumescent seal, recessed channel (not surface-applied) |
| Certifications | NFPA 80 CE (EN 1634-1) ISO 9001:2015 SGS |
| Dimensional Tolerance | ±0.5mm on panel and frame (CNC forming) |
Specifications shown are standard values for this product. Actual specifications may vary by configuration. Contact us for detailed product data sheets and project-specific confirmation.
Market Segments: Where Industrial Fire Doors
Generate Repeatable Volume
Industrial fire door demand is driven by building code enforcement, not discretionary spending — which means the order patterns are predictable and the buyer base is less price-sensitive than general commercial door segments. Here's where the volume concentrates.
Manufacturing and Processing Facilities
Core Segment
Any factory with fire compartmentation requirements between production zones, storage areas, and electrical rooms needs fire-rated doors at those boundaries. A mid-size manufacturing plant typically requires 20–80 fire door sets depending on floor plan complexity and occupancy classification.
Contractors and facility developers sourcing for this segment specify heavy-gauge product because the doors are in active production environments — standard commercial gauge doesn't hold up. This segment reorders on facility expansion and renovation cycles, making it a repeatable account for distributors who establish themselves as the industrial fire door source.

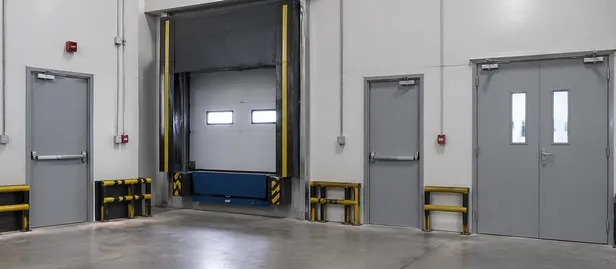

Logistics and Warehousing
Fastest-Growing Segment +40% in 2 years
The fastest-growing segment in our active markets — order volume from Gulf and Southeast Asian logistics developers has roughly doubled over the past three years as e-commerce fulfillment infrastructure has expanded. A large distribution center can require 50–200 fire door sets, concentrated at dock areas, between-zone fire walls, and electrical/mechanical rooms.
The spec is consistently heavy-duty: FD60 minimum, 1.5mm body, panic hardware on egress routes. Buyers who position themselves as the fire door supplier for logistics developers in their market are capturing a high-volume, low-price-sensitivity segment.
Cold Storage and Food Processing
Premium Spec · Higher Unit MarginsThese facilities require fire doors at the boundary between refrigerated and ambient zones, and at electrical rooms adjacent to processing areas. The spec here often includes stainless hardware to survive the cleaning and humidity cycles — we offer stainless mortise locks and hinges as a standard option on the industrial line.
A cold storage facility of 5,000–10,000 m² typically requires 15–40 fire door sets, with a premium spec that supports higher unit margins.
Industrial Park and Multi-Tenant Factory Developments
Southeast Asia · Middle East · AfricaIndustrial parks in Southeast Asia, the Middle East, and Africa are being built at scale, and fire door compliance is enforced at certificate of occupancy. Developers sourcing factory-direct for multi-building projects get consistent product across all buildings and a single compliance documentation package.
300–600 fire door sets
per 10-building industrial park development — single procurement cycle

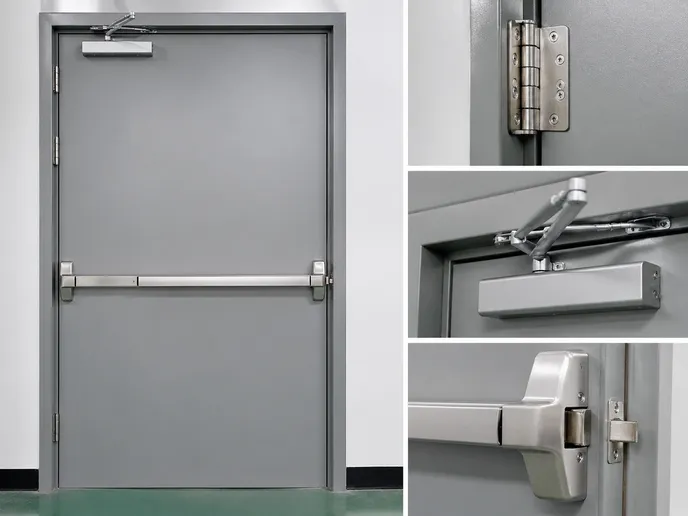

Hardware Configuration for High-Cycle Industrial Use
The hardware package on an industrial fire door is where the long-term cost of ownership is determined. A door body that lasts 20 years with the wrong closer or hinges will generate service calls and warranty claims within 3–5 years. We configure the industrial line specifically for high-cycle environments.
Hinges
Three heavy-duty stainless steel ball-bearing hinges per leaf, minimum. The ball-bearing spec matters in industrial environments — plain-bearing hinges develop play under high cycle counts, which causes the door to sag and the bottom corner to drag.
Sag of more than 2–3mm changes the perimeter gap geometry and can compromise the intumescent seal contact. We weld a backing plate behind each hinge pocket on the industrial model so the hinge screws bear against a 3mm steel plate rather than the 1.5mm door skin.
Door Closer
EN 1154-rated overhead closer, standard on all industrial fire door configurations. We size the closer to the door leaf weight — a 1.5mm body door at 64mm thickness runs 15–20% heavier than a standard commercial door, and an undersized closer won't reliably return the door to the latched position.
Every closer is cycled 50 times during final assembly inspection before the door ships. The most common field failure we see isn't the closer mechanism — it's incorrect installation torque on the arm bracket. We include a torque specification card in every shipment.
Panic Exit Hardware
Fire-rated push bar (panic exit device) listed to EN 1125, available as a standard option on the industrial line. For NFPA 80 markets, UL-listed panic hardware can be sourced and integrated on request.
The push bar must be fire-rated and listed to the same standard as the door — a non-rated push bar voids the door's certification, which is a compliance risk your downstream customers can't afford.
Lock
Heavy-duty mortise lock body, stainless or zinc-alloy. For industrial environments with access control requirements, we can integrate electric strike or electromagnetic lock configurations.
Send us your access control spec and we'll confirm compatibility before production.
Hardware Compliance Note
Every hardware component on a certified fire door must be listed to the same standard as the door assembly. Mixing a non-rated push bar with a rated door body voids the door's certification — a compliance exposure that flows directly to your downstream customer.
We supply hardware packages pre-matched to the door's fire resistance class. If you're integrating third-party access control hardware, send us the spec sheet before production so we can confirm listing compatibility.

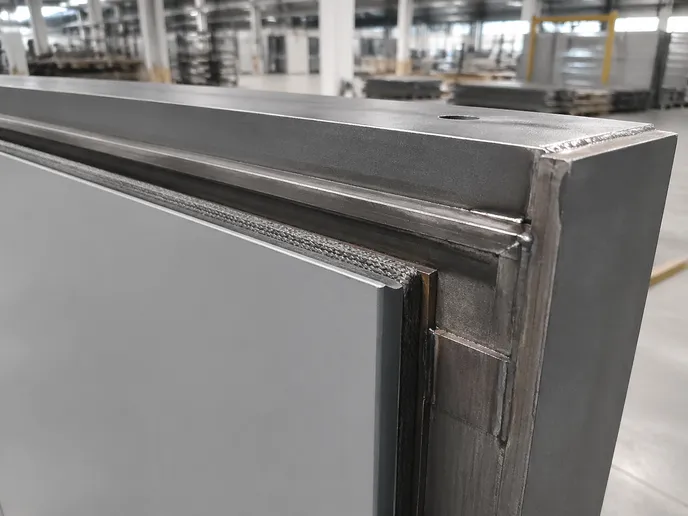

Intumescent Seal and Frame Construction: The Compliance Detail That Matters
The fire rating on any fire door is only as good as the intumescent seal and the frame-to-leaf fit. This is where industrial fire doors fail in the field — not from the steel body, but from seal degradation and frame distortion over time.
Intumescent Seal: Recessed Channel vs. Surface-Applied
We use a continuous perimeter intumescent seal on the industrial fire door frame, recessed into a machined channel rather than surface-applied with adhesive. Surface-applied seals are the industry shortcut — they're faster to install and cheaper to produce, but they delaminate in humid environments and in facilities with temperature cycling (cold storage, processing plants).
The recessed channel keeps the seal mechanically retained regardless of what the ambient environment does to adhesive bonds. The seal is rated to the door's fire resistance class — FD60 doors get a seal rated to 60-minute integrity, not a generic strip that happens to be in the channel.
| Seal Type | Retention | Humid / Thermal Cycling |
|---|---|---|
| Surface-applied (adhesive) | Adhesive bond only | Delamination risk |
| Recessed channel (EUWOO industrial) | Mechanically retained | Stable regardless of adhesive |
Frame Construction: 2.0mm Welded Steel
The frame itself runs at 2.0mm welded steel on the industrial line — heavier than our standard commercial frame — because industrial door frames take incidental impact from the same traffic that hits the door. A frame that deforms from a forklift brush contact changes the perimeter gap geometry and can fail a re-inspection.
We CNC-form the frame to ±0.5mm tolerance and test-fit every door with its frame before packing. The 3–4mm perimeter gap that the fire rating depends on is confirmed at the factory, not assumed.
Welded steel frame, heavier than standard commercial spec to absorb incidental forklift and traffic impact without deforming.
Every frame CNC-formed to ±0.5mm. Every door test-fitted with its frame before packing — gap confirmed at factory.
The perimeter gap the fire rating depends on is confirmed at the factory, not assumed on-site during installation.
Seal rated to match the door's fire resistance class. FD60 doors receive a 60-minute rated seal — not a generic strip.
Why Frame Integrity Is a Re-Inspection Risk
A frame that deforms from a single forklift brush contact changes the perimeter gap geometry. If the gap opens beyond the rated tolerance, the door fails re-inspection — even if the door body and seal are undamaged. The frame is the structural anchor of the fire rating, not a secondary component.
Our 2.0mm welded frame spec is designed to absorb the incidental contact loads common in warehouse and industrial environments without permanent deformation. This is the spec difference between a door that holds its certification through a 10-year service life and one that generates re-inspection failures at year 3.
View All Fire Door Certifications and Standards
Customization: Non-Standard Dimensions, Hardware Packages, and OEM Programs
Standard catalog industrial fire doors cover the majority of project requirements. When your project or product line needs something outside the standard range, our 15-engineer R&D team handles it in-house — no subcontracting, no third-party design lag.
Dimension Customization
Heights above 2400mm and widths outside the 800–1200mm single-leaf range are available. Industrial facilities often have non-standard opening dimensions — oversized equipment access, mezzanine-level doors, or architectural openings that don't conform to standard door sizing. Send us the rough opening dimensions and we'll confirm the door and frame spec.
Double-Leaf Configurations
Wide openings in industrial facilities — loading dock access, between-zone fire walls with equipment movement — often require double-leaf fire doors. We produce coordinated double-leaf assemblies with active/passive leaf sequencing hardware. See our double leaf fire door page for configuration details.
Hardware Packages
Specific lock brands, access control integration, electromagnetic hold-open with fire alarm release (see automatic fire door), stainless hardware for wet or corrosive environments — all available as configured options. Tell us your hardware spec and we'll confirm availability and lead time.
Surface Finish
60+ RAL colors on the powder line, or primer-only for site finishing. For facilities with specific color-coding requirements (fire exit routes, hazard zone marking), we can match any RAL specification. Minimum order for custom colors is 50 units — below that, the powder line changeover cost doesn't make sense for either side.
OEM / Private Label
Custom branding, packaging, and labeling for buyers building a private-label industrial fire door line. MOQ for OEM programs is 100 units. Free design consultation and 3D rendering before you commit.
Standard Catalog
50 units
Minimum order for standard catalog configurations, including custom RAL powder coat colors.
Custom Dimensions / Hardware
100 units
Minimum order for non-standard dimensions, custom hardware packages, or OEM branding programs.
OEM / Private Label
100 units
Free design consultation and 3D rendering included before commitment. Custom branding, packaging, and labeling.

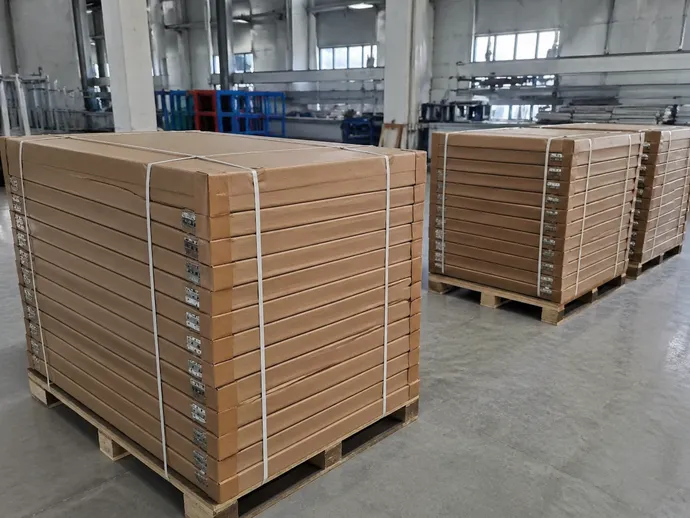

Container Loading and Export Logistics for Industrial Fire Doors
Industrial fire doors are heavier than standard commercial doors — the 1.5mm body and heavier frame add 15–20% to the per-unit weight, which affects both container loading quantities and freight cost calculations.
KD (Knock-Down) Format
Standard single leaf, industrial spec
CBM per set
0.22–0.28 m³ (size-dependent)
40HQ loading
Approximately 130–160 KD sets
Packaging
Reinforced carton, foam corner protection, hardware packed separately
Standard format for export orders — maximizes container utilization and eliminates alignment risk in transit.
Pre-Hung Assemblies
Door + frame assembled
CBM per set
0.40–0.50 m³
40HQ loading
Approximately 70–90 pre-hung sets
Packaging
Foam-lined wooden crate, cross-braced frame, corner guards
Available for ready-to-install requirements — trade-off is roughly half the container loading efficiency versus KD format.
Traceability and Documentation
Every carton carries a barcode linked to our production batch record. If there's a quality question on arrival, you can trace the unit back to its production date, line, and inspection record.
Documentation Package
Cleared for Customs In
Lead Time
25–35 days for standard catalog configurations from deposit confirmation. Custom configurations are quoted individually.
Frequently Asked Questions
Specification, compliance, and sourcing questions answered directly — no sales language.
What steel gauge should I specify for an industrial fire door versus a standard commercial fire door?
1.5mm SPCC is the threshold for industrial applications — manufacturing plants, warehouses, logistics facilities, anywhere the door takes regular incidental impact from equipment or high-traffic use. The 1.2mm gauge on our commercial fire door is the right spec for office buildings, hotels, and retail, where the door sees pedestrian traffic only. The weight difference between 1.2mm and 1.5mm adds roughly 8–12 kg per door set, which affects freight cost — don't over-specify for low-abuse applications, but don't under-specify for industrial environments either. If you're unsure, send us your end-use description and we'll recommend the gauge.
What fire resistance rating do industrial fire doors typically require in warehouses and manufacturing facilities?
FD60 is the most common specification for industrial occupancies in North America and the Gulf — required for openings in fire-rated walls separating occupancies, plant rooms, and stairwells in mid-rise industrial buildings. FD90 and FD120 are specified for high-risk compartments: electrical rooms, server rooms, chemical storage areas, and high-rise stairwells. FD30 is generally insufficient for industrial applications unless the opening is in a low-risk interior partition. Confirm the required rating with your local authority having jurisdiction (AHJ) or the project's fire engineer before specifying.
How does the intumescent seal hold up in high-humidity or temperature-cycling environments like cold storage facilities?
Our intumescent seal is recessed into a machined channel in the door frame — not surface-applied with adhesive. That mechanical retention means the seal stays in place regardless of humidity cycling or temperature differentials. For cold storage applications specifically, we recommend specifying stainless hardware throughout (hinges, lock, closer arm) to prevent corrosion from the condensation cycles at the cold/ambient boundary. The seal material itself is rated to the door's fire resistance class and is not affected by the temperature ranges typical of cold storage operations.
What is the MOQ for industrial fire doors, and can I mix FD60 and FD90 ratings in one order?
Standard catalog industrial fire doors: 50 units MOQ. Custom configurations (non-standard dimensions, special hardware, OEM branding): 100 units. You can mix fire ratings (FD60, FD90, FD120) and configurations (single leaf, double leaf) within a single order as long as each line item meets the individual MOQ. For mixed orders below the per-SKU MOQ, contact us — we can often accommodate smaller quantities on existing production runs.
Does the industrial fire door meet NFPA 80 requirements for the US market?
Yes. Our fire door line, including the industrial configuration, is certified to NFPA 80 — the US standard governing fire door assemblies, installation, and labeling. NFPA 80 requires that the door, frame, and hardware all be listed components from a recognized certification body. Our NFPA 80 certification covers the door and frame assembly; for panic exit hardware on NFPA 80 projects, we specify UL-listed panic devices. CE certification (tested to EN 1634-1) covers European and EU-aligned markets. SGS third-party audit documentation is available for markets requiring independent verification.
What lead time should I plan for a 100-unit industrial fire door order with standard specifications?
Standard catalog configurations: 25–35 days from deposit confirmation. A 100-unit order of standard FD60 industrial fire doors falls within our normal production scheduling — no extended queue. Custom configurations add 10–15 working days for engineering review and first-article approval. Contact us with your timeline and we'll confirm production availability before you commit.
Other Fire Door Configurations Worth Considering
If the industrial fire door spec is close but not exactly right for your application, here are the most relevant alternatives in our line.
Commercial Fire Door
Standard commercial gauge for office buildings, hotels, and retail — pedestrian traffic only.
Double Leaf Fire Door
Wide opening with double-leaf configuration for high-traffic industrial corridors and loading areas.
Automatic Fire Door
Automatic hold-open with fire alarm release for high-traffic industrial corridors.
Electrical Room Fire Door
Electrical room or data center application with tight sealing requirements and FD90/FD120 ratings.
Single Fire Door
Standard single-leaf configuration for general commercial use and lower-traffic openings.
View the Full Fire Door Product Line
Browse all fire door configurations, ratings, and specifications available from EUWOO.
Start Your Industrial Fire Door Sourcing
The fastest path is to send us your target spec: fire rating, door dimensions, hardware requirements, quantity, and destination market. Our engineering team reviews it and comes back with a detailed quote, 3D rendering if custom work is involved, and the relevant certification documentation for your market.
What to Include in Your First Message
If you're building a distribution catalog for industrial and logistics customers and aren't sure which SKUs to lead with, tell us your target market and volume expectations. FD60 at 1.5mm gauge is the volume SKU for most industrial distribution businesses, but the hardware package and finish spec shift depending on whether you're serving contractors, developers, or facilities managers. We see enough order patterns across our active markets to give you a useful read on what moves.
-
Fire rating
FD30, FD60, FD90, or FD120 — and the certification standard required for your market (CE, NFPA 80, GB, or other).
-
Door dimensions
Clear opening width and height. Note if you need non-standard sizes or double-leaf configurations.
-
Hardware requirements
Closer type, lock grade, panic hardware, vision panel, or any site-specific hardware spec.
-
Quantity and destination market
Order volume and the country or region you're importing into — this determines which certification package applies.
Get a Quote
Send your spec and we'll respond with a detailed quote, 3D rendering for custom work, and the relevant certification documentation.
Request a QuoteContact Our Engineering Team
