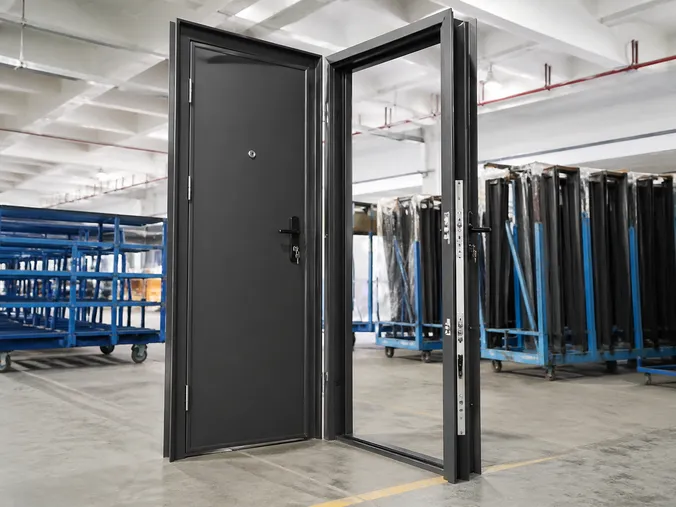

Heavy Duty Security Door Direct From Factory
1.5mm+ steel body, multi-point locking, reinforced frame — built for perimeters that can't fail.
Engineered for institutional, government, and high-security commercial applications where the door is the primary barrier. Factory-direct from our 18,000 m² facility in Henan, China.
What Makes This Door Different from the Standard Security Door Range
The heavy duty security door is not a marketing tier — it's a distinct engineering configuration. Understanding the difference determines whether this product qualifies for your project or distribution channel.
Where our standard steel security door runs 1.2mm SPCC body gauge with single or 3-point locking, the heavy duty configuration starts at 1.5mm body gauge and is built around multi-point locking as standard, not an upgrade. The internal reinforcement structure is heavier, the hinge plates are thicker, and the anti-pry edge profile is a formed feature of the door body rather than an add-on strip.
The distinction matters commercially because the buyer segments are different. Standard security doors move in residential and light commercial distribution — high volume, price-sensitive, spec-driven by building codes. Heavy duty security doors move into institutional procurement, government contractor supply chains, embassy and consulate projects, correctional facilities, data centers, and high-security commercial builds.
These buyers are not comparing on price per unit — they're comparing on specification compliance, certification documentation, and the supplier's ability to hold tolerances across a large run. If your distribution business or project sourcing touches any of these segments, this is the configuration that qualifies.
Standard Security Door
- 1.2mm SPCC body gauge
- Single or 3-point locking (standard)
- Anti-pry strip as add-on
- Residential & light commercial distribution
- Price-sensitive, building-code spec-driven
Heavy Duty Security Door
This Product- 1.5mm+ SPCC body gauge (2.0mm available)
- 5-point multi-point locking as standard
- Formed anti-pry rebate profile — part of door body
- Institutional, government, high-security commercial
- Spec compliance, certification docs, tolerance consistency
View the full security door range to compare configurations across the product line.
Who Buys Heavy Duty Security Doors

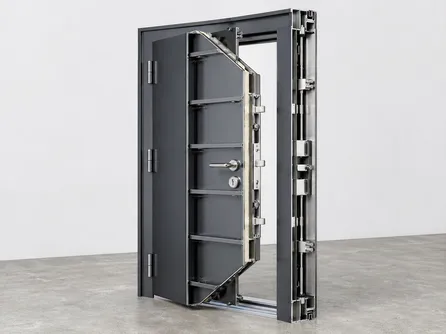

Technical Specifications
Standard parameters for the heavy duty security door configuration. Custom dimensions, gauge upgrades, and hardware configurations are available — contact us with your project spec for exact details.
| Parameter | Specification |
|---|---|
| Body Material | Cold-rolled SPCC steel |
| Body Gauge | 1.5mm standard · 2.0mm available on request |
| Door Leaf Thickness | 70mm – 100mm (infill dependent) |
| Internal Reinforcement | Full-perimeter steel channel frame + horizontal cross-bracing |
| Anti-Pry Edge | Formed rebate profile, 20mm overlap on lock side |
| Standard Door Sizes | 900×2100mm, 1000×2100mm, 1200×2100mm; custom sizes available |
| Frame Material | Cold-rolled steel, 2.0mm gauge |
| Frame Depth | 100mm – 160mm adjustable |
| Hinge Configuration | 4 hinges standard · 3mm plate (standard) · 4mm plate (reinforced option) |
| Hinge Weld | Full-perimeter weld, 100% inspection before coating |
| Lock System | 5-point multi-point locking standard · 7-point available |
| Lock Standard | ANSI Grade 1 / EN 12209 (specify at order) |
| Deadbolt Throw | 25mm minimum |
| Surface Treatment | Zinc phosphate pre-treatment + electrostatic powder coat |
| Powder Coat Thickness | 60–80μm |
| Salt Spray Rating | 500 hours (standard) · 1,000 hours available with epoxy primer |
| Color Options | 60+ standard RAL colors; custom color matching on runs ≥100 units |
| Certifications | ISO 9001:2015 CE SGS |
| MOQ (standard config) | 50 units |
| MOQ (custom config) | 100 units |
Specifications shown are standard values for this configuration. Actual specifications may vary by order. Contact us for detailed product data sheets and project-specific quotes.
Key Specification Highlights
Need the Full Data Sheet?
Request a specification sheet or project-specific quote directly from our engineering team.
Request Spec Sheet / Quote
How We Build It: The Engineering Decisions That Protect Your Margin
Most security door manufacturers describe what their product is. We'll describe how we make this one, because the process decisions are where the commercial risk lives for your buyers.

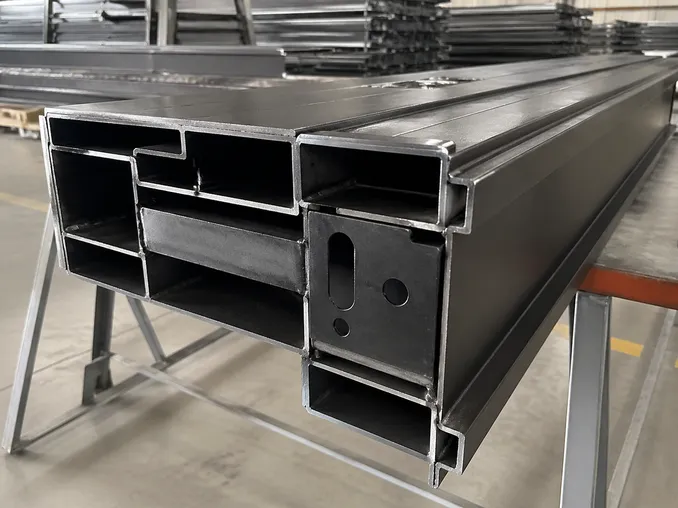

1.5mm SPCC Cold-Rolled Steel Body
The body gauge starts at 1.5mm SPCC cold-rolled steel — 25% thicker than the 1.2mm spec used for standard commercial doors. At 1.5mm, the door body resists the localized deformation that happens when a pry bar is worked into the lock-side gap. A 1.2mm body will deflect enough under that load to disengage a 3-point lock; a 1.5mm body with a formed anti-pry rebate won't. We've tested both configurations against forced-entry attempts and the failure mode difference is significant. For end customers in government or institutional applications, that's the difference between a door that holds and a security incident.
Full-Perimeter Steel Internal Frame
The internal frame is a full-perimeter steel channel welded to the body skin, with horizontal cross-bracing at the lock zone and mid-door. We don't use foam or honeycomb infill in the structural zone — those materials are fine for acoustic and thermal performance in standard doors, but they contribute nothing to forced-entry resistance. The structural zone of this door is steel throughout. We do use mineral wool infill in the non-structural zones for thermal performance where the spec requires it — but the lock zone and hinge zone are solid steel channel.
4mm Hinge Plates with Full-Perimeter Welds
Hinge plates are 4mm on the reinforced configuration, welded with full-perimeter welds and ground flush before the door enters the zinc phosphate bath. The weld-to-plate attachment is the failure point on most security door hinges — a fillet weld on three sides looks fine until someone applies sustained lateral force, at which point the unwelded side peels. Full-perimeter welds eliminate that failure mode. Every hinge weld is visually inspected before coating and every door is cycled through open/close testing at final QC.
Zinc Phosphate Pre-Treatment
The zinc phosphate pre-treatment before powder coating is not standard practice across the industry — most manufacturers use iron phosphate, which is cheaper and faster but gives inferior corrosion resistance at the substrate level. We switched to zinc phosphate across the heavy duty line after seeing finish failures on early export shipments to Gulf markets. The zinc phosphate layer gives the powder coat a better mechanical bond and provides its own corrosion barrier if the coating is scratched. For buyers in coastal or high-humidity environments, this is the spec detail that prevents finish warranty claims 18 months after installation.
Construction Spec at a Glance
Why the pre-treatment difference matters
Iron phosphate is the industry default. Zinc phosphate costs more and takes longer — but it's the spec detail that prevents finish warranty claims 18 months after installation in coastal or high-humidity markets.
Market Segments: Where Heavy Duty Security Doors Generate Repeatable Volume
The segments below are where this configuration moves consistently in our export markets. Each has distinct procurement patterns worth understanding if you're building or expanding your product line.

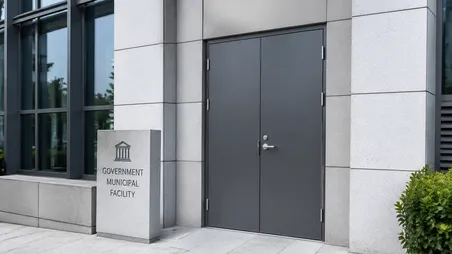

Government & Municipal
Courthouses, police stations, municipal offices, border control posts. Procurement cycles are longer (6–18 months from spec to order), but once your product is approved on a project spec, the order is locked. Government contractors who carry an approved heavy duty security door SKU have a significant advantage because the approval process is a barrier to entry for competitors.

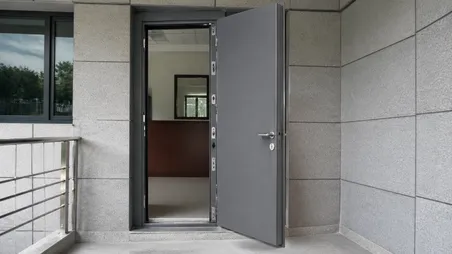

Embassy & Consulate
A specialized segment with high unit value and strict specification requirements. Embassy security doors typically require multi-point locking, reinforced frames, and in some cases blast-resistance or ballistic-resistance ratings. The 1.5mm body with 5-point or 7-point locking satisfies most embassy security specifications for non-critical zones — offices, storage, staff areas. This segment has grown in the Middle East and Africa.
Data Centers & Server Rooms
A growing segment driven by the global expansion of cloud infrastructure. Data center operators specify heavy duty security doors for server room access points, with requirements for anti-pry construction, multi-point locking, and access control pre-wiring. The access control pre-wiring capability — conduit runs and junction boxes installed at the factory — is a meaningful differentiator because data center operators don't want field modification of their security doors.

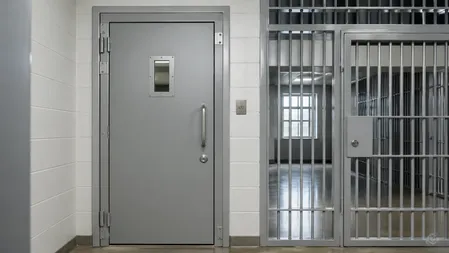

Correctional & Detention
Requires the heaviest specification in the range — 2.0mm body gauge, 7-point locking, and reinforced frame with additional anchor points. This is a specialized procurement segment with long approval cycles, but the order sizes are large and the spec is highly standardized once approved. Limited competition from standard security door distributors.

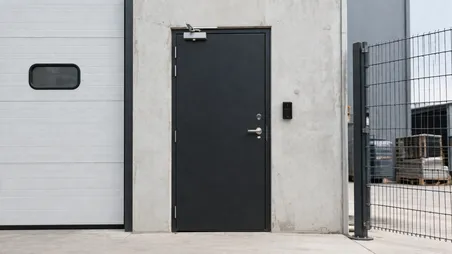

Industrial & Logistics
Warehouses, distribution centers, manufacturing plants — use heavy duty security doors at perimeter access points and secure storage areas. More price-sensitive than government or institutional, but order volumes are consistent and reorder frequency is high as facilities expand or replace aging doors. The 1.5mm standard configuration with 5-point locking is the right spec for most industrial applications.
Which segment fits your current distribution network?
Government, embassy, data center, correctional, and industrial segments each have distinct procurement cycles, certification requirements, and order sizes. Our team can help you identify the right configuration and documentation package for your target market.

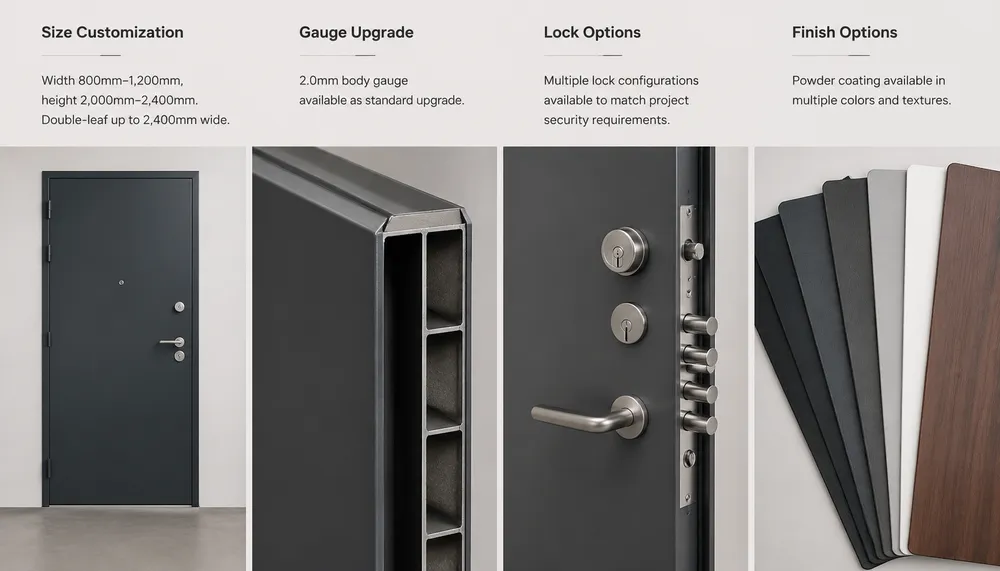

Customization: What This Configuration Supports and Where the Limits Are
The heavy duty security door supports meaningful customization within the constraints of the structural design. Here's what's available and what isn't, so you can scope your inquiry accurately.
Size Customization
Width from 800mm to 1,200mm, height from 2,000mm to 2,400mm as standard custom range. Double-leaf configurations available for openings up to 2,400mm wide.
Beyond these dimensions, the structural engineering changes and we need to review the spec before quoting — send us the opening dimensions and we'll confirm feasibility.
Gauge Upgrade
2.0mm body gauge is available as a standard upgrade. Above 2.0mm, the bending radius changes and the edge profile requires tooling adjustment — possible, but it adds lead time and cost.
Most institutional applications are satisfied by 1.5mm or 2.0mm.
Lock Configuration
5-point locking is standard. 7-point is available as a standard option. We can configure to ANSI Grade 1, EN 12209, or other market standards — specify at order.
If you have an approved lock brand you want us to use, we can work with supplied hardware or source from your approved supplier.
Vision Panels
Laminated safety glass panels available in standard sizes (150×600mm, 200×800mm). Wire glass and polycarbonate options available for applications requiring impact resistance.
Vision panels reduce the structural steel area in the door face — for maximum forced-entry resistance, specify without vision panel or with the smallest panel that meets your application requirement.
Access Control Prep
Conduit runs, junction boxes, and electric strike or magnetic lock prep installed at the factory. Specify the hardware system model and we configure the prep accordingly.
This is cleaner than field modification and doesn't compromise the door's structural integrity.
Surface Finish
60+ standard RAL colors, custom color matching on runs of 100 units or more. Powder coat is standard; epoxy primer undercoat available for coastal and high-humidity applications where the 1,000-hour salt spray rating is required.
What Can't Be Customized Without Significant Tooling
The anti-pry rebate profile, the internal frame geometry, and the hinge plate attachment method are fixed features of the structural design.
These are the elements that define the door's forced-entry resistance — modifying them would require re-engineering the product, not just adjusting a parameter.
Minimum Order Quantities
50 units — standard configurations with color or hardware changes
100 units — size customization or non-standard lock configurations
Custom panel profiles or structural modifications — quoted individually

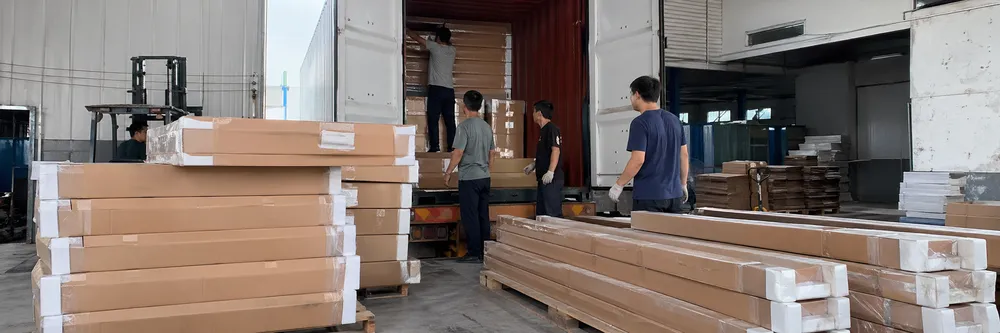

Packaging, Container Loading, and Landed Cost
Heavy duty security doors ship KD (knock-down) flat-pack as standard — door leaf, frame sections, and hardware packed separately in reinforced double-wall corrugated cartons with foam corner protection.
Why KD Flat-Pack Format
The KD format serves two purposes: it eliminates the racking problem that causes lock misalignment in pre-hung assemblies during transit, and it maximizes container utilization.
Most buyers who have a choice use KD format for the freight cost advantage and switch to pre-hung only when the installation environment requires it — high-rise projects where on-site assembly is impractical, for example.
Documentation Package
Commercial invoice, packing list, bill of lading, certificate of origin, CE declaration of conformity, and test certificates ship with every order. SGS audit reports available on request.
Documentation package covers customs clearance requirements for North America, the EU, the Gulf, Southeast Asia, Africa, and Australia.
Lead Times
Standard Configurations
30–40 days
from deposit confirmation
Custom Configurations
35–45 days
non-standard sizes, 2.0mm gauge, 7-point locking — quoted individually
Container Loading Density
40HQ — KD Flat-Pack
40HQ — Pre-Hung (timber crates)
20GP — KD Flat-Pack
Typical format for trial orders and initial project samples.
Note on Loading Density
The heavier gauge and thicker leaf reduce loading density compared to standard security doors — factor this into your landed cost calculation when comparing freight per unit.
Certifications and Compliance for Institutional Procurement
The heavy duty security door carries ISO 9001:2015, CE, and SGS certification — the documentation set that satisfies most institutional and government procurement requirements in our active export markets.
ISO 9001:2015
Covers the quality management system at the factory level — the processes, inspection protocols, and documentation controls that ensure consistency across production runs.
For institutional buyers who require supplier quality audits, the ISO certificate is the starting point. We can also provide SGS audit reports and support third-party factory inspections.
CE Marking
Covers compliance with EU construction products regulation, including structural performance and hardware standards.
For buyers supplying into European markets or projects with EU-standard specifications, the CE declaration of conformity ships with every order.
SGS Certification
A third-party audit of both the facility and the product. SGS reports are available on request.
Accepted by procurement offices in most markets as evidence of independent verification.
North American Projects
ANSI/BHMA Grade 1There is no single mandatory federal certification for heavy duty security doors in the US (unlike fire doors, which require NFPA 80 listing). Most commercial and institutional projects specify ANSI/BHMA Grade 1 hardware, which we configure as standard on the heavy duty line.
For projects with specific state or local code requirements, send us the spec and we'll confirm compliance or identify what modifications are needed.
Government & Embassy Projects
For projects with security rating requirements beyond standard forced-entry resistance — ballistic ratings (UL 752), blast resistance (GSA standards), or forced-entry ratings (ASTM F476) — contact us with the specific standard.
Some of these ratings require third-party testing of the specific door configuration. We can discuss the testing process and cost as part of the project quote.
ISO certificate, CE declaration of conformity, and SGS audit reports available on request.
Buyer FAQs: Heavy Duty Security Door Sourcing
Direct answers to the specification, compliance, and procurement questions we receive most often from institutional and commercial buyers.
What is the difference between a heavy duty security door and a standard commercial security door?
The structural differences are specific: 1.5mm body gauge vs. 1.2mm, 4-hinge configuration vs. 3-hinge, 5-point or 7-point multi-point locking vs. single or 3-point, full-perimeter internal steel channel frame vs. lighter internal bracing, and a formed anti-pry rebate profile on the lock side.
These aren't cosmetic upgrades — each addresses a specific forced-entry attack vector. The commercial security door is the right spec for office buildings and retail; the heavy duty configuration is the right spec for government, institutional, and high-security applications where the door is a primary perimeter barrier.
What lock standard should I specify for embassy or government projects?
For US government and embassy projects, the GSA specification typically references ANSI/BHMA Grade 1 hardware as a minimum, with additional requirements for multi-point locking and specific deadbolt throw dimensions. For European government projects, EN 12209 Class 6 or higher is the relevant standard.
We configure to either standard — specify at order. For projects with classified security requirements (SCIF construction, for example), the door specification will be defined by the project security officer and we work to that spec directly.
How do I prevent heavy duty security door failures in high-humidity or coastal environments?
The two failure modes in humid environments are powder coat adhesion failure at weld seams and frame corrosion at the anchor points. Our zinc phosphate pre-treatment addresses the first — it gives the powder coat a better bond at the substrate level than iron phosphate, which is the industry standard.
Standard Spec
500hr salt spray
Zinc phosphate pre-treatment
Coastal Option
1,000hr salt spray
Epoxy primer undercoat
For frame anchor points in masonry, we supply stainless steel anchor bolts on request — the standard carbon steel anchors are adequate for most environments but the stainless option eliminates the corrosion risk entirely.
What is the MOQ for custom-sized heavy duty security doors?
100 units for non-standard sizes. Standard sizes (900×2100mm, 1000×2100mm, 1200×2100mm) are available from 50 units.
Standard Sizes
MOQ: 50 units
900×2100 / 1000×2100 / 1200×2100mm
Custom Sizes
MOQ: 100 units
Non-standard dimensions
For project quantities below 100 units on a custom size, the setup cost makes the per-unit price uncompetitive — we'll tell you that directly. If your project requires fewer than 100 units of a custom size, the better approach is usually to design the opening around one of our standard sizes, which is often feasible at the rough opening stage.
Can heavy duty security doors be supplied with access control integration?
Yes. We pre-install conduit runs, junction boxes, and hardware prep for electric strike, magnetic lock, and access control reader mounting during factory assembly. Specify the hardware system model or the access control brand and we configure the prep accordingly.
Factory pre-wiring is significantly cleaner than field modification — it doesn't require drilling through the door body after coating, which can compromise both the finish and the structural integrity of the door at the penetration point.
How does the guard security door configuration differ from the standard heavy duty spec?
Guard security doors — used at security checkpoints, guard booths, and controlled access points — typically add a vision panel (for guard visibility), a pass-through slot or intercom prep, and sometimes a reinforced frame with additional anchor points for high-traffic cycling.
We configure guard security door variants on the heavy duty base platform. If you're sourcing for a guard booth or checkpoint application, send us the layout and we'll spec the configuration — the base door is the same, but the hardware and panel configuration changes.
Have a specification question not covered here?
Send us the project spec, procurement requirement, or technical question. We respond with direct answers — not a sales pitch. If your requirement is outside what we can supply, we'll tell you that too.
Source Heavy Duty Security Doors Direct from the Manufacturer

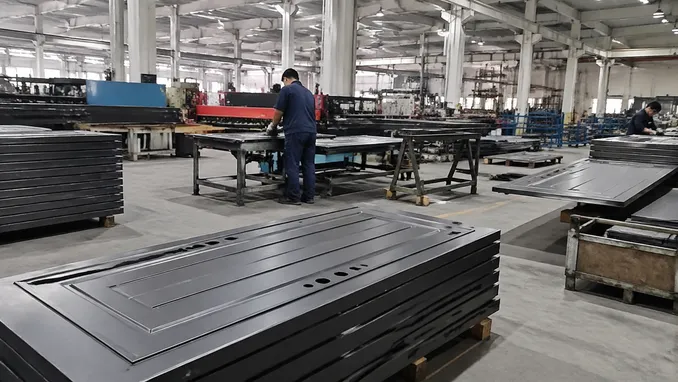

We've been manufacturing security doors since 2008. The heavy duty configuration is one of our most technically demanding products — 1.5mm body gauge, multi-point locking, reinforced hinge plates, zinc phosphate pre-treatment — and it's the configuration we're most particular about in QC because the end applications don't tolerate field failures.
How to Get a Quote
If you're evaluating this product for your distribution line or a specific project, the fastest path is to send us your spec. Our engineering team reviews every inquiry and comes back with a detailed quote and, for custom configurations, a 3D rendering.
-
Door size and gauge requirement
-
Lock standard and finish specification
-
Access control prep if needed
-
Target volume and delivery timeline
Most buyers in this segment start with a 2–5 unit sample order to verify against their project spec or test with their own customers before committing to a container.
Ready to Evaluate the Heavy Duty Configuration?
Send us your spec — door size, gauge, lock standard, finish, access control prep, and target volume. Engineering reviews every inquiry and responds with a detailed quote. Custom configurations include a 3D rendering.
