Metal Security Door Direct From Factory
Galvanized steel construction, reinforced internal framing, corrosion-resistant finish — metal security doors built for commercial and light industrial sourcing.
EUWOO manufactures metal security doors from our 18,000 m² facility in Henan, China. Factory-direct supply, OEM/ODM available, ISO 9001:2015 and CE certified. Your spec, your brand, your container.
What Positions This Door in the Security Range
The metal security door sits between the standard cold-rolled steel security door and the heavy-duty institutional configurations in our lineup. The defining characteristic is the material specification: galvanized steel or cold-rolled SPCC with a galvanized coating layer, combined with reinforced internal framing channels that add structural rigidity without the weight penalty of a full 1.5mm body gauge.
That combination targets a specific procurement need — applications where corrosion resistance is a hard requirement (coastal markets, humid climates, light industrial environments) but where the full heavy-duty spec would push the price point above what the market will bear.
We run this door on a dedicated line alongside our steel security door range. The galvanized substrate goes through the same zinc phosphate pre-treatment and powder coating process as the rest of the range, which means the corrosion protection is layered: galvanized base metal, phosphate conversion coating, and 60–80μm powder topcoat.
For buyers sourcing into coastal Southeast Asia, the Gulf, or tropical African markets, that layered system is what keeps warranty claims off your desk. A single-layer powder coat on bare cold-rolled steel in a salt-air environment will show rust bleed at weld seams within 18–24 months. The galvanized substrate pushes that failure timeline out significantly.

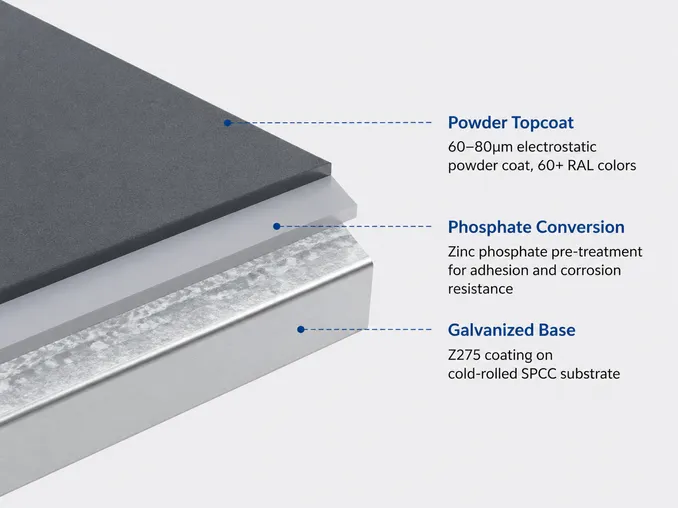

Galvanized Base
Z275 coating on cold-rolled SPCC substrate
Phosphate Conversion
Zinc phosphate pre-treatment for adhesion and corrosion resistance
Powder Topcoat
60–80μm electrostatic powder coat, 60+ RAL colors

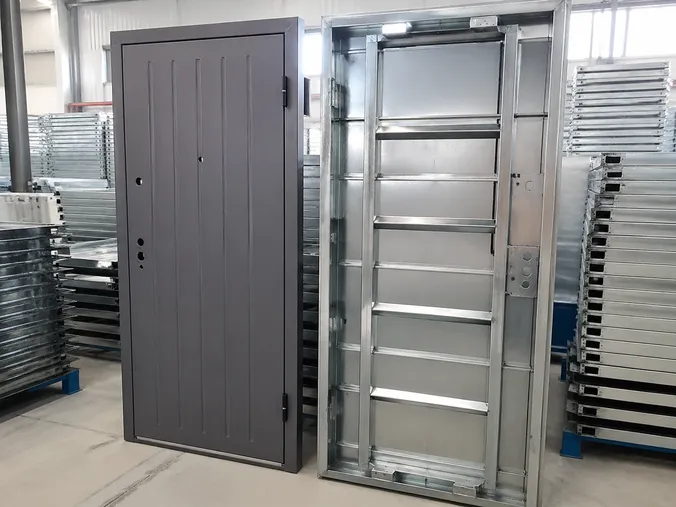

Reinforced Internal Framing
The internal framing is the other differentiator from the standard steel security door. We run horizontal and vertical reinforcement channels inside the door leaf — 1.2mm cold-rolled steel, spot-welded to the inner face of the door skin.
This adds panel rigidity and anti-pry resistance without increasing the door's overall weight to the point where hinge loading becomes a concern. The reinforced framing adds roughly 3–4 kg to a standard 900×2000mm door, which is within the load rating of our standard 3-hinge setup.
Technical Specifications
These are the standard parameters for the metal security door. Custom sizes, gauges, and hardware configurations are available — contact us to confirm exact specs for your order.
| Parameter | Standard Specification |
|---|---|
| Body Material | Galvanized steel (Z275 coating) or cold-rolled SPCC with galvanized treatment |
| Body Gauge | 1.2mm (standard); 1.0mm and 1.5mm available on request |
| Internal Framing | 1.2mm cold-rolled steel reinforcement channels, horizontal and vertical |
| Door Leaf Thickness | 45mm – 55mm (standard); up to 70mm with insulation infill |
| Standard Door Sizes | 800×2000mm, 900×2000mm, 960×2100mm, 1000×2100mm |
| Frame Material | Cold-rolled steel, 1.5mm gauge |
| Frame Depth | 90mm – 140mm adjustable |
| Surface Treatment | Zinc phosphate pre-treatment + electrostatic powder coat |
| Powder Coat Thickness | 60–80μm |
| Salt Spray Rating | 500 hours (standard finish on galvanized substrate) |
| Color Options | 60+ standard RAL colors; custom color matching available |
| Lock Options | Single-point (standard); 3-point and 5-point multi-point available |
| Hinge Configuration | 3-hinge standard; 4-hinge available for heavier configurations |
| Hardware Standard | ANSI Grade 1/2 or EN 12209 as specified |
| Certifications | ISO 9001:2015 CE SGS |
| MOQ (standard) | 50 units |
| MOQ (custom) | 100 units |
Specifications shown are standard values for this product configuration. Actual specifications may vary by order. Contact us for detailed product data sheets and confirmation of exact parameters.
Request Spec Sheet
Get the full product data sheet with dimensional drawings, hardware options, and finish samples for your sourcing review.

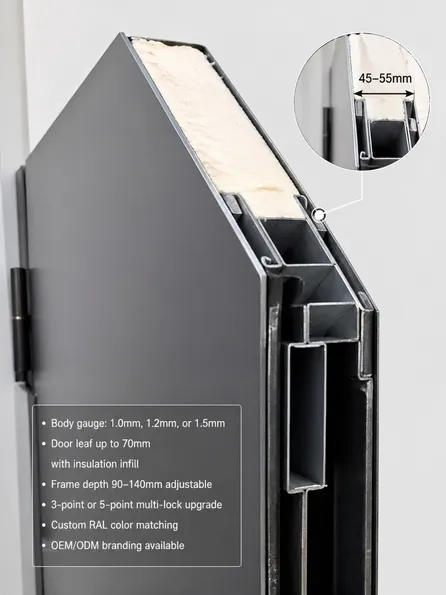

Request Specification SheetCustom Configuration
- Body gauge: 1.0mm, 1.2mm, or 1.5mm
- Door leaf up to 70mm with insulation infill
- Frame depth 90–140mm adjustable
- 3-point or 5-point multi-lock upgrade
- Custom RAL color matching
- OEM/ODM branding available
Corrosion Resistance as a Sourcing Advantage
Where the metal security door earns its place in a distribution catalog versus the standard steel security door — and why the substrate difference matters more than the finish.
The Z275 Galvanized Substrate
Galvanized steel starts with a zinc coating bonded to the steel surface at the mill — Z275 grade, meaning 275 g/m² of zinc coating weight. That zinc layer is the first line of corrosion defense.
When the powder coat eventually weathers or gets scratched in the field (and it will, over years of use), the zinc layer underneath continues to protect the base steel through sacrificial corrosion. The zinc oxidizes preferentially, slowing rust progression at the damaged area rather than letting it spread.
Weld Seam Grinding & Re-Treatment
Every weld seam is ground smooth and re-treated before the door enters the phosphate bath. This is the step most manufacturers skip because it adds labor time — and it's the step that causes the bubbling and peeling at weld lines that shows up in the field.
We learned that lesson early, before we added the pre-treatment step to our standard process. The evidence was in the replacement orders.

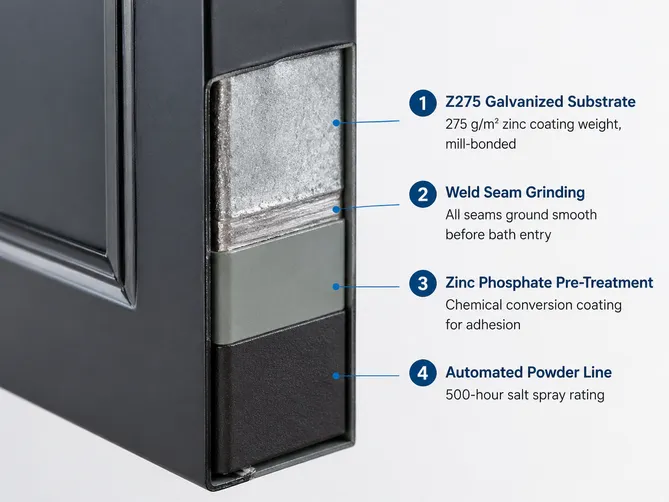

Surface Treatment Stack
Z275 Galvanized Substrate
275 g/m² zinc coating weight, mill-bonded
Weld Seam Grinding
All seams ground smooth before bath entry
Zinc Phosphate Pre-Treatment
Chemical conversion coating for adhesion
Automated Powder Line
500-hour salt spray rating
Real-World Outcome: Southeast Asian Coastal Markets
Buyers in Southeast Asian coastal markets switched from our standard steel security door to this configuration specifically because the finish failure rate on the standard door in their climate was generating too many callbacks. The galvanized substrate solved it. For distributors and importers, this translates directly to fewer warranty claims and replacement orders — the kind of after-sales cost that quietly erodes margin on a product line.
Market Segments Where This Door Moves
Four distinct buyer segments drive volume on this SKU. Understanding the order patterns and procurement logic in each helps you position inventory and build reorder cycles.

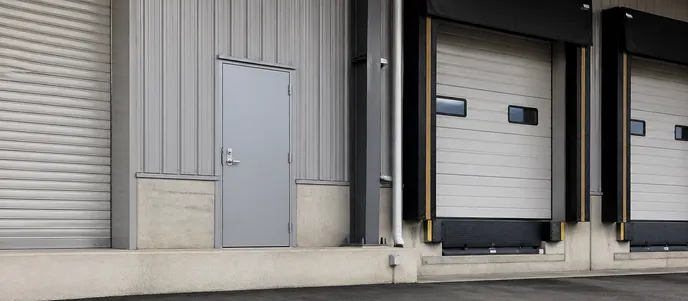

Light Industrial & Commercial Facilities
Warehouses, light manufacturing plants, logistics centers, and commercial storage. These environments combine moderate security requirements with real corrosion exposure: loading dock areas, facilities near water, buildings without climate control.
The 1.2mm galvanized body with reinforced framing hits the right spec for this application without over-engineering the door. Distributors who serve industrial property developers or facilities management companies can build a reliable reorder cycle around this SKU.
Typical Order Size
50–200 units per project
Pattern
Repeat as facilities expand

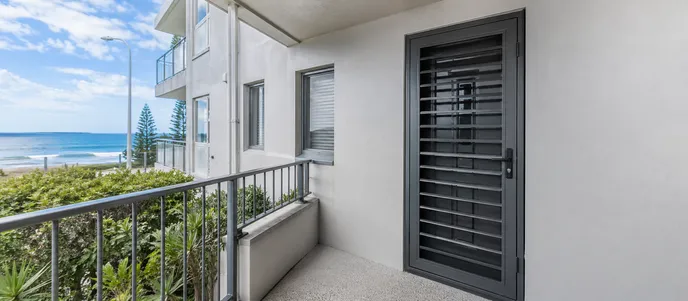

Coastal Residential & Mixed-Use Construction
Developers building apartment blocks or mixed-use projects in coastal cities — Southeast Asian port cities, Gulf coastal developments, Australian coastal markets — need a door that holds up in salt air without requiring premium pricing.
The metal security door sits at a price point that works for mid-range residential projects while delivering the corrosion resistance the environment demands. A developer sourcing 300 units for a coastal apartment block doesn't want to be fielding finish complaints from residents two years after handover.
Typical Order Size
100–300 units per project
Key Markets
SEA, Gulf, Australia

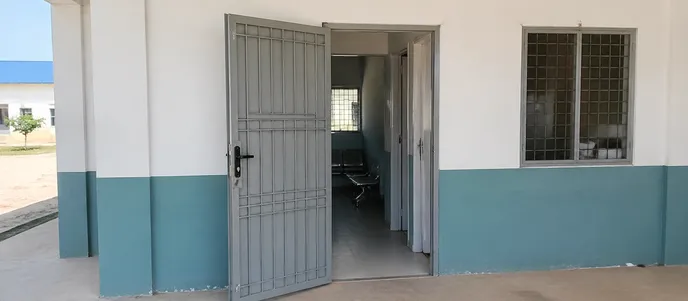

Institutional & Government Light-Security
Schools, clinics, government offices, utility facilities — primarily in Middle Eastern and African export markets. These buyers need a door that meets basic security requirements, handles institutional use patterns (moderate cycling, occasional rough handling), and doesn't require specialized maintenance.
The reinforced internal framing provides the anti-pry resistance that institutional procurement specs typically require, and the galvanized substrate handles the variable maintenance environments common in these facilities.
Typical Order Size
100–500 units per project
Cycle
Longer, but repeat across projects

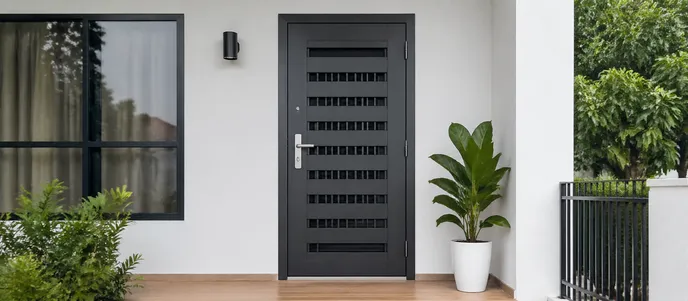

Import Distribution for Hardware & Building Materials Channels
Distributors building a private-label security door line need a product that can carry their brand, hold up in their target market's climate, and be sourced consistently from a single factory.
The metal security door's corrosion resistance profile makes it a defensible SKU in markets where buyers are comparing it against cheaper bare-steel alternatives — you can justify the price premium with a concrete technical argument, which is more sustainable than competing on price alone.
Advantage
Defensible price premium
Source
Single-factory consistency
Ready to Source for Your Market?
Whether you're building a private-label line, stocking for a coastal residential project, or qualifying a supplier for institutional procurement — get factory-direct pricing and lead times from EUWOO.
Customization: What Can Be Specified, What Can't
The metal security door is one of the more customizable configurations in our range because the galvanized substrate is available in standard coil widths that accommodate a broad range of door sizes without special tooling.
Size
Standard sizes run 800–1000mm wide and 2000–2100mm tall. Custom widths from 700mm to 1200mm and custom heights up to 2400mm are available within our press brake forming capacity.
- Double-leaf configurations for openings up to 2400mm wide
- Non-standard sizes require 100-unit MOQ
Body Gauge
Three gauge options to match application requirements and budget position.
- 1.0mm — price-sensitive markets; galvanized substrate provides sufficient corrosion protection
- 1.2mm — standard balance of weight and protection
- 1.5mm — higher forced-entry resistance; affects hinge selection and frame spec
Gauge changes don't require new tooling but do affect lead time for material procurement.
Infill & Leaf Thickness
Standard 45–55mm leaf with air gap. Thermal or acoustic insulation infill available.
- Mineral wool or polyurethane foam infill options
- Insulated leaf thickness: 60–70mm
- Relevant for climate-controlled facilities and thermal-performance markets
Lock Configuration
Single-point is standard. Multi-point locking available without significant lead time impact — hardware is stocked.
- 3-point locking
- 5-point multi-point locking
- 7-point on request — at this spec level, the heavy-duty security door is usually the better fit
Vision Panels
Small vision panels can be added to the door leaf — a common request for commercial and institutional applications where visual access is a functional requirement.
- 150×300mm tempered glass
- 200×400mm tempered glass
Hardware Standard
Pre-installed to your specified standard. Supplied-component programs available for buyers with approved hardware suppliers.
- ANSI Grade 1
- ANSI Grade 2
- EN 12209
What Can't Be Customized
The galvanized substrate is fixed — this is the defining material characteristic of this product. If your application doesn't require corrosion resistance and you want a lower-cost option, the steel security door is the right product.
Panel embossing profiles can be modified on runs of 200+ units where tooling investment is justified; below that, you're choosing from our standard panel profiles.
How We Build It: Process Details That Affect Your Order
Every step in the production sequence has a direct bearing on the door you receive. Here's what happens between raw coil and packed pallet.
Coil Sourcing & Incoming Inspection
Galvanized coil comes from approved mills — we dual-source to avoid supply disruptions. Every incoming coil is checked for coating weight and surface condition before it enters the cutting line. Z275 is our standard spec; Z350 is available for buyers in particularly aggressive corrosion environments (marine industrial, chemical processing adjacent facilities).
CNC Laser Cutting
CNC laser cutting holds ±0.5mm on panel blanks. This matters for the galvanized material specifically because the zinc coating adds a small amount of dimensional variability compared to bare cold-rolled steel — our cutting parameters are calibrated for the coated material to maintain the same tolerance.
Press Brake Forming & Assembly
After cutting, panels go to the CNC press brake for forming. The reinforcement channels are formed separately and spot-welded to the inner door skin before the outer skin is applied and the perimeter is seam-welded.
Weld Seam Treatment
This is the step that separates a door that holds its finish from one that doesn't. Every external weld seam is ground flush and re-treated with zinc-rich primer before the door enters the phosphate bath.
The zinc phosphate conversion coating bonds to both the galvanized substrate and the zinc-rich primer at the weld areas, giving a continuous corrosion-resistant surface before the powder coat goes on.

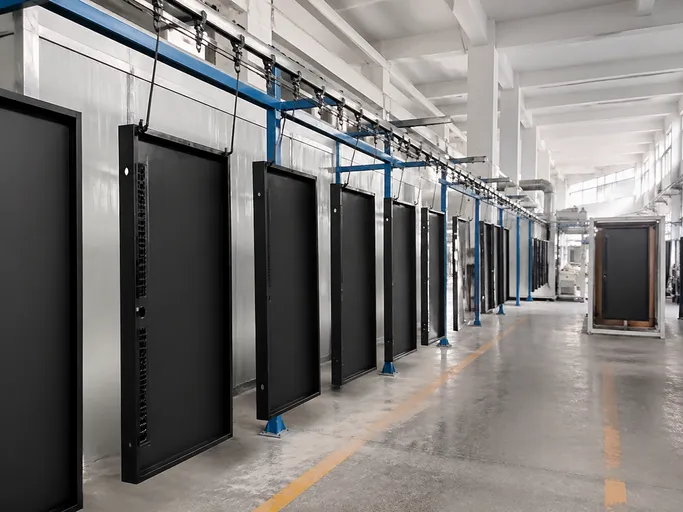

Powder Coat Application
Applied electrostatically at 60–80μm. Film thickness is checked with a digital gauge on every door at the coating inspection stage — not sampled, every door.
Final Assembly & Fit Test
Final assembly includes hardware pre-installation and a full open/close cycle test. Every door is test-fitted against its frame before packing.
The frame-to-leaf fit is checked for gap consistency — we hold a 3–4mm perimeter gap as standard, which is the tolerance range that allows for field installation variation without affecting door operation or security performance.

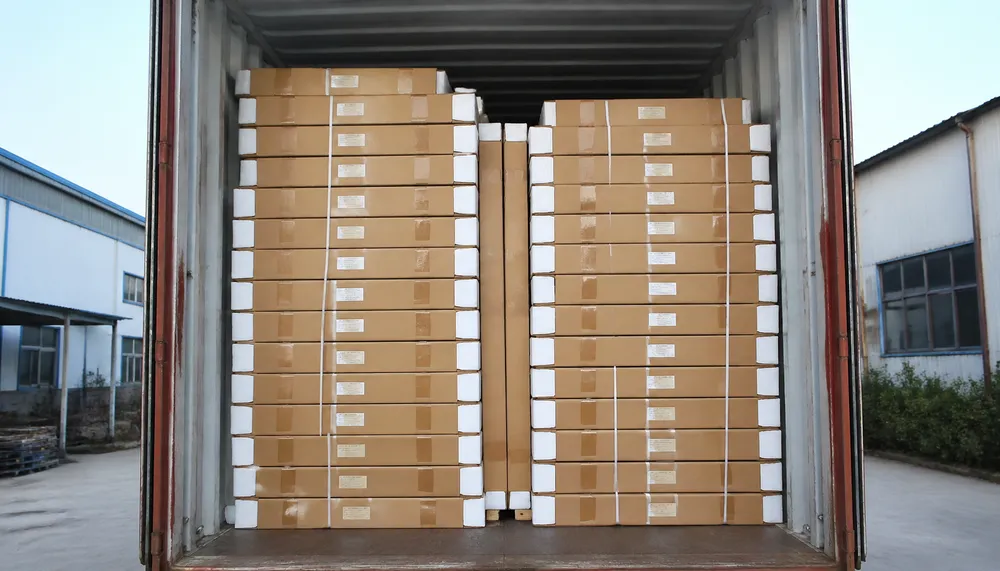

Container Loading and Landed Cost Data
Metal security doors ship in KD (knock-down) flat-pack format as standard — door leaf, frame, and hardware packed separately in double-walled corrugated cartons with foam corner protection. This format maximizes container utilization and eliminates the racking and lock misalignment issues that come with shipping pre-hung assemblies.
Standard 900×2000mm Single-Leaf
45–55mm leaf thickness
Thicker configurations (60–70mm insulated leaf) load at the lower end of those ranges. Double-leaf configurations are quoted individually based on leaf width.
Crated Option Available
For buyers who need pre-hung format
Shipped in foam-lined crates with corner guards. Container utilization drops versus KD format. Most buyers who have a choice use KD format.
Standard Documentation Package
Ships with every order. Clears customs in North America, the EU, the Gulf, Southeast Asia, Africa, and Australia without supplementary documentation in most cases.
- Commercial invoice
- Packing list
- Bill of lading
- Certificate of origin
- Test certificates
- SGS audit reports (on request)
Lead Times
From deposit confirmation to ready-to-ship.
Certifications and Compliance
The metal security door ships under EUWOO's ISO 9001:2015 quality management certification, CE marking, and SGS third-party audit. These cover the manufacturing process, structural performance, and material compliance.
ISO 9001:2015
Quality management certification covering manufacturing process, structural performance, and material compliance.
CE Marking
Covers structural and material compliance for EU and Gulf markets. EN 12209 hardware configuration available.
SGS Third-Party Audit
Independent third-party audit documentation. SGS reports available on request with every order.
Zero-VOC Powder Coating
No solvent emissions, no off-gassing after installation. Relevant for occupied buildings and indoor air quality regulations.
North America
ISO 9001:2015 and SGS audit documentation satisfy most commercial import compliance requirements. Hardware is configurable to ANSI Grade 1 or Grade 2 as your project or market requires.
There is no single mandatory federal certification for standard security doors in the US market. If your project specification calls for a specific standard, send us the requirement and we'll confirm whether our product qualifies.
EU & Gulf Markets
CE marking covers structural and material compliance. EN 12209 hardware configuration is available for EU specifications.
For Gulf Cooperation Council markets, our SGS certification and CE marking are accepted by most project specification authorities.
Indoor Air Quality
For buyers whose downstream customers have VOC or indoor air quality requirements: our powder coating line uses zero-VOC powder chemistry.
No solvent emissions, no off-gassing after installation — relevant for occupied buildings and markets with indoor air quality regulations.
Sourcing This Door vs. Sibling Products: Where Each Fits
The security door range covers 18 product lines. Use this comparison to position the metal security door correctly against the most commonly evaluated alternatives — and avoid specifying the wrong product for your market.
The steel security door uses bare cold-rolled SPCC without galvanized treatment. It's the right choice for dry interior environments and price-sensitive markets where corrosion resistance isn't a procurement requirement.
The metal security door costs more per unit but eliminates corrosion-related warranty claims in humid, coastal, or industrial environments.
The right choice depends on where your end customers are installing the door.
The heavy-duty door runs 1.5mm+ body gauge with multi-point locking as standard and reinforced hinge plates designed for institutional and high-security applications.
If your market is government facilities, embassies, or correctional applications, the heavy-duty is the right spec. The metal security door is the right choice for commercial and light industrial applications where the heavy-duty spec would price the door out of the market.
The commercial security door is configured specifically for office buildings and retail — vision panels, access control prep, and architectural finish options are the focus.
The metal security door prioritizes corrosion resistance and structural rigidity over architectural finish options.
If your buyer needs a door for a commercial lobby with design requirements, the commercial security door is the better fit. If they need a door for a back-of-house or industrial application in a corrosive environment, this is the right product.
The exterior security door is specifically engineered for outdoor exposure — weather-sealed perimeter, heavy-duty threshold, and a coating system designed for direct weather contact.
The metal security door handles humid and corrosive indoor environments well but is not the right spec for direct outdoor exposure in rain or standing water.
If the application is a main building entrance or perimeter door with direct weather exposure, the exterior security door is the correct product.
Not sure which product fits your application? Send us the installation environment, security requirement, and target price point — we'll confirm the right spec from the range and quote accordingly.
View Full RangeBuyer FAQs: Metal Security Door Sourcing
Decision-support answers for importers, distributors, and project buyers evaluating this product for the first time or comparing it against alternatives in the range.
What is the difference between a metal security door and a steel security door?
In our range, the distinction is the substrate material and corrosion protection system. The steel security door uses bare cold-rolled SPCC steel with powder coat finish — adequate for dry interior environments.
The metal security door uses galvanized steel (Z275 zinc coating) as the base material, adding a sacrificial zinc layer beneath the powder coat. In humid, coastal, or light industrial environments, the galvanized substrate significantly extends the door's service life before corrosion becomes visible.
If your market is coastal Southeast Asia, the Gulf, or tropical Africa, the galvanized substrate is worth the price difference.
What steel gauge should I specify for light industrial applications?
1.2mm galvanized body with reinforced internal framing channels is the standard spec for light industrial — warehouses, logistics facilities, light manufacturing. It provides adequate forced-entry resistance for most commercial security requirements and keeps the door weight within the load rating of a standard 3-hinge setup.
Can I source metal security doors with my own brand and packaging?
Yes. OEM private-label is a standard part of our business — your logo on the door label, your brand name on the carton, your product codes in the documentation.
We provide free design consultation and 3D rendering before you commit to an order. Most buyers in this category start with a sample order of 2–5 units to verify the product against their spec before placing a container order.
What certifications do metal security doors need for import into Southeast Asian markets?
Requirements vary by country. For most Southeast Asian markets, ISO 9001:2015 and CE marking satisfy commercial import compliance.
Some markets (Singapore, Malaysia) have specific building code requirements for security doors in certain applications. If your project has a specific standard requirement, send us the spec and we'll confirm whether our product qualifies or what modifications are needed.
SGS audit reports are available on request and are accepted by most project specification authorities in the region.
What is the minimum order for custom sizes?
Custom sizes within our standard forming capacity (700–1200mm wide, up to 2400mm tall) require 100-unit MOQ.
If you're evaluating a custom size for a specific project, send us the dimensions and target volume — we'll confirm feasibility and quote lead time.
How does the galvanized substrate affect the powder coat color options?
It doesn't — the full 60+ RAL color range is available on the galvanized substrate. The zinc phosphate pre-treatment step bonds equally well to galvanized steel as to bare cold-rolled steel, so the powder coat adhesion and finish quality are the same across both substrates.
Custom color matching is available on runs of 100+ units. Standard RAL selections are available from 50-unit MOQ with no additional tooling charge.
Source Metal Security Doors Direct from the Factory
Six production lines, 450,000 units annual capacity, 18+ years manufacturing security doors for distributors and importers across North America, the Middle East, Southeast Asia, Africa, and Australia. The metal security door is a core SKU in our range — we carry galvanized coil stock and standard hardware inventory, so lead times are predictable.
The fastest way to evaluate fit is to send us your current sourcing spec: door size, gauge preference, lock grade, target market, and volume. Our engineering team reviews every inquiry and comes back with a detailed quote, a 3D rendering if it's a custom configuration, and a sample lead time. No charge for the consultation.
Most new buyers start with a 2–5 unit sample order to test the product with their own customers or verify against a project spec. We can ship samples on standard lead times.
Get in Touch
Phone
+86 189 3902 2227Address
Luoyang Industrial Park, Henan, China
Explore Related Products
