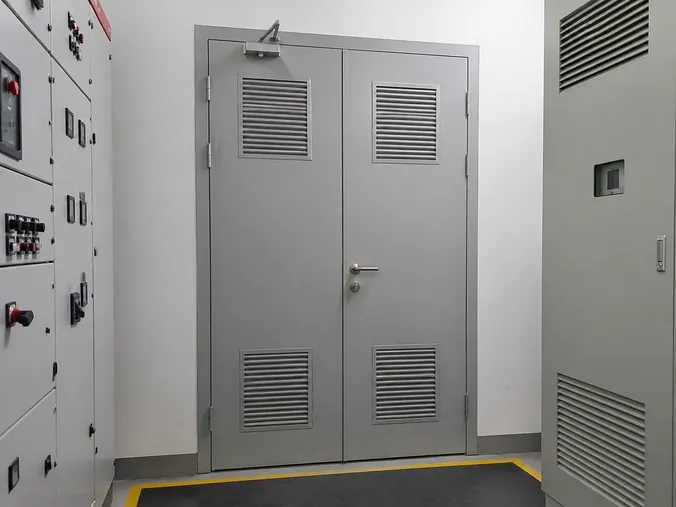

Electrical Room Fire Door
Purpose-built for electrical rooms — fire containment, ventilation, and EMI-safe hardware in one certified assembly. 60 to 120-minute fire ratings, louvered steel panels for thermal management, and anti-static powder coat as standard.
Built to the specs electrical contractors and M&E distributors actually need.
What Makes an Electrical Room Fire Door Different from a Standard Fire Door
Most fire doors are designed around one job: slow the spread of fire and smoke between compartments. An electrical room fire door has to do that — and also solve two problems that standard fire doors ignore entirely.
Problem 1: Electrical Rooms Generate Continuous Heat
Switchgear, transformers, and distribution panels run warm under normal load and hot under fault conditions. A solid-core fire door that seals perfectly is actually a liability here: it traps heat, accelerates equipment degradation, and can trigger thermal shutdowns before a fire event ever occurs. The door needs to breathe — in a controlled, fire-rated way.
Problem 2: The Hardware Environment Is Different
Standard lever handles and exposed steel hinges are fine for a stairwell. In a room full of live electrical equipment, you want non-sparking hardware, anti-static surface treatment, and no exposed ferrous components near sensitive switchgear. These aren't cosmetic preferences — they're the details that determine whether your downstream customer's facilities manager signs off on the installation.
We've had buyers come to us after sourcing a generic fire door for an electrical room and running into problems at the M&E inspection stage — the louvered panel wasn't intumescent-lined, so it failed the fire rating test. Getting that right from the start saves everyone a costly rework.
How Our Door Addresses Both
Allow airflow under normal conditions and seal automatically when temperatures reach the activation threshold — typically 150–180°C depending on the intumescent spec.
1.2mm SPCC cold-rolled steel with phosphate pre-treatment and anti-static powder coat — 60–80μm dry film thickness, consistent across the batch.
Non-sparking stainless lever sets, concealed hinges available, and no exposed zinc-plated components unless the buyer specifies otherwise.
Technical Specifications
Industry-standard values for this product type. Actual specifications may vary by order configuration. Contact us for detailed product data sheets and project-specific drawings.
| Parameter | Specification |
|---|---|
| Door Leaf Material | 1.2mm SPCC cold-rolled steel (Q235B grade) |
| Frame Material | 1.5mm cold-rolled steel, fully welded |
| Fire Rating |
60 min (FD60) 90 min (FD90) 120 min (FD120)
|
| Standard Door Size | W900 × H2100mm (single leaf); custom sizes available |
| Door Leaf Thickness | 50mm (standard); 55mm available for FD120 |
| Ventilation Panel | Louvered steel with intumescent lining, standard 200×400mm |
| Intumescent Seal | Perimeter intumescent strip + smoke seal, factory-fitted |
| Surface Finish | Anti-static powder coat, 60–80μm DFT |

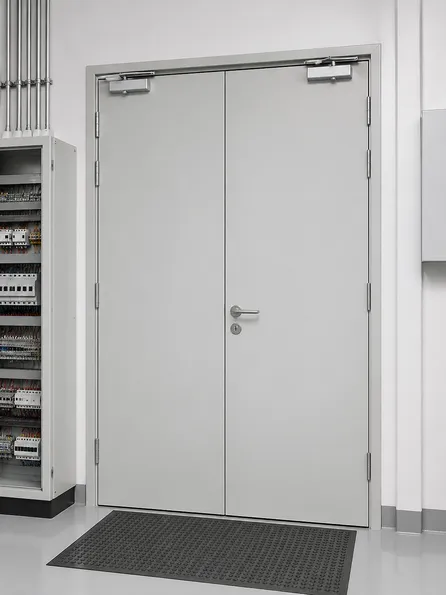

| Standard Color | RAL 7035 light grey (electrical room standard); 60+ RAL colors available |
| Hardware | Non-sparking stainless steel lever set, 3× stainless butt hinges |
| Door Closer | EN 1154-compliant overhead closer, size 3–5 (standard fit) |
| Locking | Mortise deadbolt + lever; panic bar available |
| Certifications |
ISO 9001:2015 CE NFPA 80
|
| Typical Weight | 45–65kg depending on size and rating |
Specifications shown are industry-standard values for this product type. Actual specifications may vary by order configuration. Contact us for detailed product data sheets and project-specific drawings.
Key Spec Highlights
Need Project-Specific Drawings?
We supply detailed product data sheets and CAD drawings for M&E specification packages. Request yours with your quote.
Request Detailed Specs & DrawingsIntumescent Ventilation: The Engineering Detail That Determines Compliance

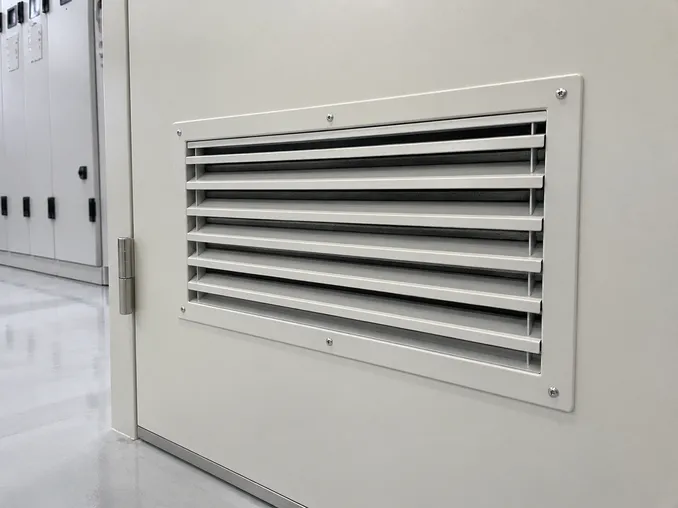

The louvered ventilation panel is what separates a compliant electrical room fire door from a door that fails its fire test. Under normal operating conditions, the louver blades sit open, allowing passive airflow through the door — keeping the electrical room at a stable operating temperature without requiring active ventilation through the ceiling or walls.
When a fire event raises the ambient temperature to the intumescent activation point — 150°C for standard commercial applications, 180°C for higher-temperature environments — the intumescent material expands and physically closes the louver blades. The expansion ratio is typically 3:1 to 5:1 by volume, which is enough to seal the gap completely and maintain the door's fire rating integrity.
Standard Louver Panel Specification
Lower louver placement matters: heat stratifies upward, so a lower position keeps intake air cooler under normal conditions and gives the intumescent material a slightly longer activation window during a fire event.
Buyers who need larger airflow capacity — data centers, large transformer rooms — can specify a second louver panel or a wider 200×600mm unit. Both configurations have been tested and maintain the FD60/FD90 rating.
Graphite vs. Vermiculite Intumescent
We use graphite-based compound across our fire door range — not the cheaper vermiculite-based material found in lower-cost doors.
More consistent activation temperature across production batches
Better long-term stability — doesn't degrade as quickly in humid environments
Critical for coastal and tropical markets where vermiculite compound fails prematurely
We switched to graphite compound across our full fire door range in 2021 after seeing inconsistent activation results on a batch destined for a Southeast Asian distributor. The material cost is higher, but the test consistency is worth it.
If your project spec calls for a specific intumescent compound or activation temperature, send us the spec sheet — we can match it or provide test data on our standard compound for comparison.
Certifications & Compliance for Electrical Room Applications
We don't claim certifications we haven't earned. Below is what we hold and what it means for your downstream customers' compliance requirements.
CE Marking
EN 13501-2 fire classification. Required for EU and Middle East projects.
NFPA 80
Standard for Fire Doors and Other Opening Protectives. Required for North American projects.
ISO 9001:2015
Manufacturing quality management system. Factory-level QC assurance for every production run.
SGS Audit
Third-party product audit. Available on request for distributor due diligence.
IEC 60364 / NEC Article 110
Electrical Enclosure ComplianceBoth standards specify that electrical room enclosures must maintain fire separation from adjacent spaces. A CE-marked or NFPA 80-compliant fire door satisfies this requirement directly.
Your customers don't need a separate fire barrier assessment for the door opening — the door certification covers it.
Building Regulations on Ventilation
Documentation IncludedIn most jurisdictions, the ventilation provision in an electrical room door must be documented as part of the building's fire strategy. Our intumescent louver panels come with test documentation showing the activation temperature and the door's fire rating with the louver installed.
That documentation is what the building inspector or fire engineer needs — we include it in the shipment package.
Need a Certification Not Listed Above?
If your target market requires a certification not listed above, contact us — we'll tell you honestly whether we hold it or whether we can pursue it for your volume. We don't claim certifications we haven't earned.
Market Segments Where This Door Moves Volume
Four distinct buyer segments drive consistent demand for electrical room fire doors — each with different specification priorities, order patterns, and margin profiles.
Commercial & Mixed-Use Construction
Every commercial building above a certain floor area has at least one electrical room — often several, one per floor for high-rises. Developers and M&E contractors on these projects specify fire-rated electrical room doors as a code requirement, not a preference.
A distributor stocking this product can expect repeat orders tied to project pipelines rather than one-off purchases. In markets like the Gulf, where high-rise construction runs in multi-year cycles, a single developer relationship can generate 200–500 units per project across multiple buildings.
Data Centers & Server Rooms
A growing segment with specific requirements that justify a premium SKU. The thermal management concern is acute here — server rooms run hotter than standard electrical rooms, and the door's ventilation capacity directly affects rack cooling efficiency.
Buyers in this segment often specify larger louver panels, higher fire ratings (FD120 is common), and anti-static surface treatment as a hard requirement rather than a standard feature. Data center construction is concentrated in North America, Southeast Asia, and the Middle East — all markets we currently supply.
This segment has grown significantly over the past three years — worth building into your product line if you're targeting infrastructure contractors.
Industrial Facilities
Manufacturing plants, processing facilities, and substations need utility room fire doors that can handle rougher environments. The specification here often shifts toward heavier gauge steel (1.5mm leaf available on request), impact-resistant frames, and simpler hardware that maintenance staff can operate with gloves on.
Industrial buyers tend to order in larger quantities per project and have longer reorder cycles, but the per-unit margin is stronger because the spec is more complex.
Overseas Manufacturers — OEM Programs
If you're building a product line for a specific market and need a fire door that carries your brand and meets local code, our OEM program covers private labeling, custom hardware specifications, and documentation packages tailored to your target market's inspection requirements.
OEM program includes: Private labeling, custom hardware specs, documentation packages for local inspection requirements.
Ready to discuss your market segment?
Tell us your target application and we'll match the right specification.

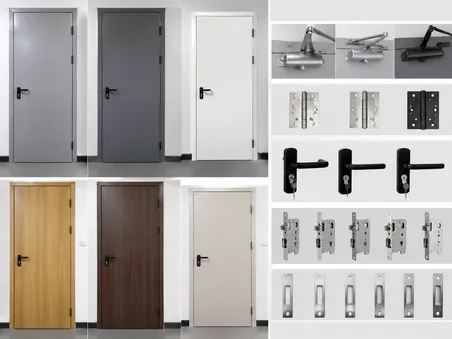

Customization Parameters and MOQ
Standard production runs at MOQ 50 units. Custom configurations start at MOQ 100 units. Every parameter below can be specified at order — no hidden tooling charges for standard size adjustments within the ranges listed.
Size
Standard W900×H2100mm. Width adjustable from W750mm to W1200mm; height from H2000mm to H2400mm.
Double-leaf configurations available for equipment access openings up to W2000mm.
Fire Rating
Standard intumescent seal
Standard intumescent seal
Additional mineral wool infill
Heavier intumescent seal
Ventilation Panel
Standard 200×400mm single louver. All louvered configurations maintain the stated fire rating.
Surface Finish
Standard Finish
Options
Custom colors on runs over 100 units — below that, the powder line changeover cost doesn't make sense for either of us. For standard RAL 7035, there's no minimum color surcharge.
Hardware Upgrades
Lead time note: Hardware upgrades affect lead time by 5–7 days depending on component sourcing.
OEM / Private Label
Free 3D rendering provided before production confirmation.
MOQ Summary
Standard sizes, default hardware, RAL 7035
Non-standard sizes, alternative hardware, OEM labeling, custom RAL colors
FD120 Lead Time
The FD120 configuration uses a 55mm leaf with additional mineral wool infill and a heavier intumescent seal.
Custom configurations available from MOQ 100 units — including OEM labeling, non-standard sizes, and alternative hardware packages.
Quick Spec Checklist
- Door size (W × H)
- Fire rating (FD60 / FD90 / FD120)
- Ventilation panel size / type
- Surface finish & color
- Hardware upgrades required
- OEM / private label (Y/N)
- Quantity & delivery market
Send your specification for a quote
Use the checklist above — we'll confirm pricing and lead time within one business day.
Container Loading & Landed Cost Planning
Accurate container utilization figures for FD60, FD90, and FD120 electrical room fire doors — based on standard single-leaf W900×H2100mm in flat-pack knock-down format.
20GP Container
Standard single-leaf, W900×H2100mm
Flat-pack KD format. Wider or double-leaf configurations reduce per-container unit count proportionally.
40HQ Container
Standard single-leaf, W900×H2100mm
KD packaging reduces shipping volume by roughly 35% vs. pre-hung assembly and eliminates frame distortion risk during long-haul freight.
Intumescent Seals
Pre-fitted perimeter strip and smoke seal included with every door. No field fitting required.
Hardware Pack
Hinges, closer, and lever set in a labeled poly bag. Matched to the door assembly and test certificate.
Installation Template
Frame anchor positions marked on the frame. Installation template included — no field measuring for standard openings.
CE / NFPA Documentation
Fire test certificate and declaration of performance shipped with every container. Ready for site inspection.
FD120 Site Handling Note
FD120 door leaf weight increases to approximately 60–70 kg. Factor this into your site handling plan if your projects involve upper-floor electrical rooms without freight elevator access. Coordinate with your installation contractor before delivery scheduling.
Frequently Asked Questions
Decision-support answers for specifiers, procurement managers, and project engineers sourcing electrical room fire doors at volume.
What fire rating do I need for an electrical room door?
FD60 (60-minute) satisfies most commercial building codes for standard electrical rooms in low-to-mid-rise construction.
FD90 is typically required for electrical rooms adjacent to high-risk areas (plant rooms, fuel storage) or in buildings over a certain height threshold — the exact cutoff varies by jurisdiction.
FD120 is specified for critical infrastructure: data centers, hospitals, substations where continuity of power supply is a life-safety concern.
If your project spec references EN 13501-2 or NFPA 80, the fire strategy document will state the required rating explicitly. When in doubt, specify FD90 — it covers the majority of commercial applications and the cost difference over FD60 is marginal at volume.
Does a fire-rated door with a louvered panel maintain its full fire rating?
Yes, provided the louver is intumescent-lined and the door assembly has been tested as a complete unit with the louver installed.
A louver panel added to a door that was tested without it voids the fire rating — this is the most common compliance error we see in the field.
Our doors are tested and certified with the louvered panel as part of the assembly. The test certificate covers the complete door, frame, hardware, and louver configuration.
What is the difference between an electrical room fire door and a utility room fire door?
Functionally, the terms are often used interchangeably in procurement documents. The distinction, where it exists, is in the ventilation requirement.
Electrical rooms housing live switchgear typically require a louvered fire door for thermal management, while utility rooms (boiler rooms, plant rooms) may use a solid-leaf fire door with separate mechanical ventilation.
If your spec says "utility room fire door," confirm whether the room contains electrical equipment that generates continuous heat — if it does, specify the louvered configuration.
What is the minimum order quantity for a custom size or color?
Standard sizes (W900×H2100mm) in RAL 7035: MOQ 50 units.
Custom sizes or non-standard RAL colors: MOQ 100 units.
OEM/private label programs: MOQ 100 units with free 3D rendering before production confirmation.
Can this door be fitted with access control hardware?
Yes. We supply doors pre-prepped for card reader or keypad mounting — the door leaf includes a reinforced steel plate at the standard access control mounting position (typically 1000mm from floor, latch side).
The hardware cutout and conduit chase are done at the factory, so your installer doesn't need to field-modify a fire-rated assembly.
Electromagnetic hold-open with fire alarm release (EN 1155 compliant) is available as a factory-fitted option.
How do I verify the fire rating certification for my market's inspection?
Each shipment includes the fire test certificate (EN 13501-2 or NFPA 80 as applicable), the declaration of performance, and the CE marking documentation.
For markets requiring third-party audit reports, SGS documentation is available on request.
If your local building authority requires a specific format or additional test data, contact us before order confirmation — we can prepare the documentation package to match your inspection requirements.
Related Fire Doors in This Range
Not sure this configuration is the right fit? Here are the closest alternatives from the EUWOO fire door range.
Industrial Fire Door
Heavier gauge construction (1.5mm+ leaf), impact-resistant frames, suited for manufacturing plant and substation environments where the door takes physical abuse alongside fire rating requirements.
Commercial Fire Door
Standard commercial specification without the electrical room-specific ventilation and anti-static features; lower cost per unit for applications where those features aren't required.
Automatic Fire Door
Electromagnetic hold-open with automatic release on fire alarm signal; suited for electrical rooms with high-frequency access where a self-closing door creates operational friction.
Steel Fire Door
The base range; covers standard fire compartmentation requirements across commercial and residential applications.
Get a Quote for Your Electrical Room Fire Door Project
Send us your project specs — door quantity, required fire rating, room dimensions, and target market — and we'll come back with a detailed quote, CAD drawings for the configuration, and the relevant certification documentation for your market. Most quotes turn around within 24 hours.
If you're new to sourcing fire doors from China and want to understand the compliance documentation before committing to an order, that's a reasonable starting point. Send us your market and we'll walk you through what the inspection process looks like and what paperwork ships with the doors.
What to Include in Your Enquiry
-
Door Quantity
Total units required and whether this is a single project or ongoing supply arrangement.
-
Required Fire Rating
60-minute, 90-minute, or 120-minute — and the applicable standard for your market (GB, EN, UL, NFPA 80, AS).
-
Room Dimensions
Clear opening width and height, wall thickness, and whether the opening is single or double leaf.
-
Target Market
Destination country and any specific certification or documentation requirements for your end client or AHJ.
Typical Quote Includes
