Self Closing Fire Door Direct From Factory
Self closing fire doors with EN 1154-certified overhead closers — built to close, latch, and hold rating under real fire conditions.
FD30 to FD120 ratings. CE and NFPA 80 certified. Factory-direct from Luoyang, China — 18+ years manufacturing fire-rated steel doors.
The Mechanism That Makes a Fire Door Actually Work
A fire door without a reliable self-closing mechanism is a rated panel that depends entirely on human behavior to function. In a real fire event, that's not a system — it's a gamble. The self closing fire door exists specifically to remove that variable: the door closes and latches every time, regardless of whether the last person through remembered to pull it shut.
We've been manufacturing self-closing fire door assemblies long enough to know where the failure points are, and they're almost never in the door leaf itself. The leaf is steel, mineral wool, and intumescent seal — straightforward to get right. The failure points are in the closer mechanism, the arm bracket installation, and the coordination between closer force and door weight.
A closer that's under-specified for the door's weight won't pull a 60kg leaf reliably against a frame seal. A closer that's over-specified creates a door that slams and damages hardware over time. Getting that calibration right is the part that separates a functional self-closing assembly from one that generates warranty calls six months after installation.

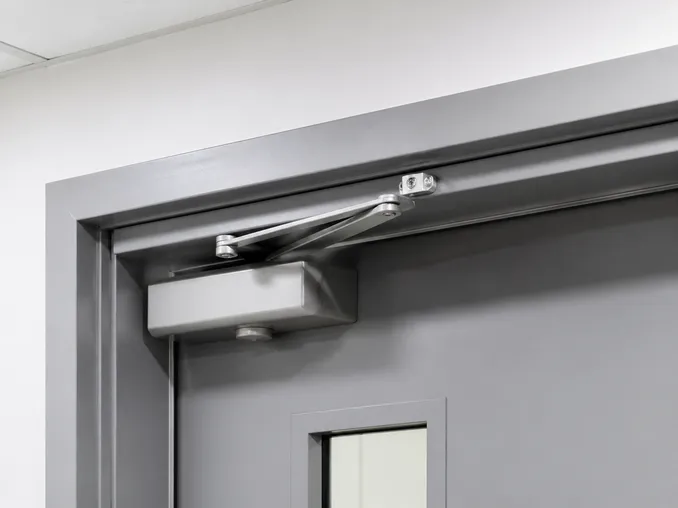

EN 1154 — The Governing Standard
Our standard self closing fire door ships with an overhead closer rated and tested to EN 1154 — the European standard governing controlled door closing for fire door applications. EN 1154 specifies closing force, closing speed, and latching performance across the full temperature range the door will encounter in service.
Every closer we fit is matched to the door leaf weight and fire rating, and every assembled unit is cycled 50 times during final inspection before it leaves the line. That 50-cycle check catches bracket torque issues and arm geometry problems before they become your customer's problem on-site.
For NFPA 80 markets — North America primarily — we can integrate UL-listed closer hardware on request. The door assembly and frame remain the same; the closer specification changes to meet the listing requirement. Confirm your destination market when you inquire and we'll spec the correct closer package.
Get a Quote With the Right Closer Specification
Closer Force Matched
EN size 2–6 matched to door leaf weight and width
50-Cycle Inspection
Every unit cycled before leaving the production line
NFPA 80 Option
UL-listed closer hardware available for North American markets
Technical Specifications
These are the standard parameters for our self closing fire door line. Exact specifications vary by fire rating and door size — contact us for a detailed data sheet on the specific configuration you're evaluating.

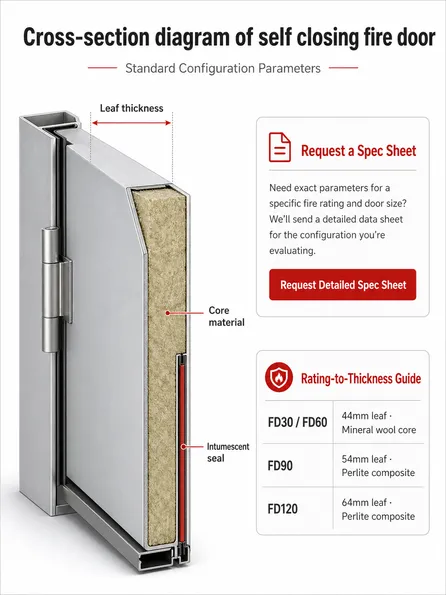

Standard Configuration Parameters
| Fire Resistance Rating |
FD30 FD60 FD90 FD120
|
| Door Leaf Thickness | 44mm (FD30/FD60) · 54mm (FD90) · 64mm (FD120) |
| Steel Body Gauge | 1.2mm SPCC (standard commercial) · 1.5mm (heavy-duty) |
| Core Material | Mineral wool board (FD30/FD60) · Perlite composite (FD90/FD120) |
| Standard Width | 700–1000mm single leaf |
| Standard Height | 2000–2200mm |
| Frame Type | Welded steel with recessed intumescent seal · KD frame available |
| Door Closer | Overhead closer, EN 1154 compliant · UL-listed option for NFPA 80 markets |
| Closer Size Rating | EN 2–6 (matched to door weight and width) |
| Closing Speed | Adjustable — compliant with EN 1154 closing and latching speed requirements |
| Latch Hardware | Mortise latch, stainless or zinc-alloy · anti-panic option available |
| Hinge Specification | 3× stainless steel or zinc-alloy hinges, fire-rated |
| Intumescent Seal | Continuous perimeter, recessed channel, rated to door's fire resistance class |
| Surface Finish | Powder coat 60–80μm · 60+ RAL colors · primer-only available |
| Certifications |
CE NFPA 80 ISO 9001:2015 SGS
|
Specifications shown are standard values for this product configuration. Actual specifications may vary by order. Contact us for detailed product data sheets and confirmation of exact parameters.
Request a Spec Sheet
Need exact parameters for a specific fire rating and door size? We'll send a detailed data sheet for the configuration you're evaluating.
Request Detailed Spec SheetRating-to-Thickness Guide
Where Self Closing Fire Doors Generate Consistent Order Volume
The self-closing mechanism isn't an upgrade — in most markets, it's a code requirement for any fire door in a means of egress or compartmentation wall. That mandatory status makes demand predictable and the buyer base less price-sensitive than general commercial door segments.

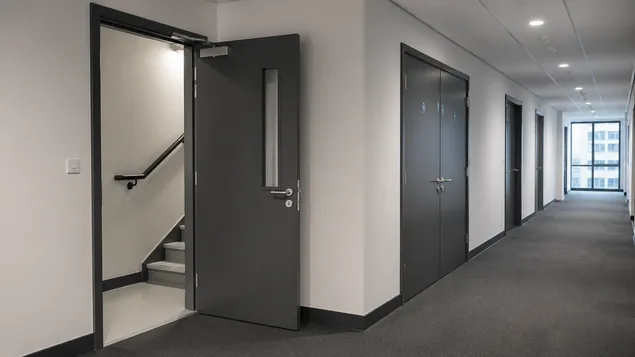

Commercial Office & Hospitality Construction
Building codes in North America, Europe, and the Gulf require self-closing hardware on fire doors in stairwells, corridors, and plant rooms. A mid-size office tower or hotel project specifies 150–400 self closing fire door sets. Contractors sourcing direct from a manufacturer rather than through a local distributor protect meaningful margin on that volume, and the compliance documentation travels with the product.

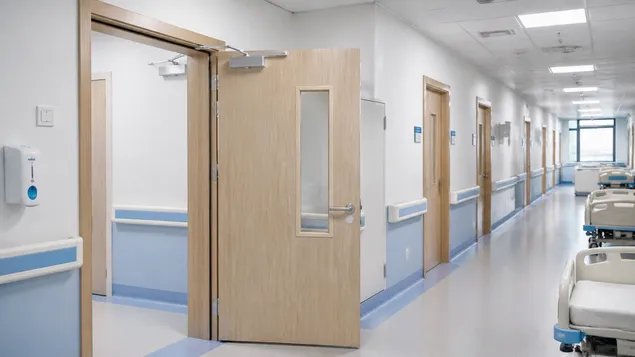

Healthcare and Education Facilities
Hospitals and schools are among the highest-density fire door environments in commercial construction. Both segments require self-closing hardware on virtually every fire door, and both operate on institutional procurement cycles with defined annual budgets. A regional hospital expansion can require 300–600 fire door sets; a school district building program runs similar numbers across multiple sites.
Growing segment in Southeast Asia and the Middle East
Residential High-Rise & Mixed-Use Development
Building regulations in most markets require self-closing fire doors on every apartment entrance in high-rise residential buildings. A 200-unit residential tower requires 200+ self closing fire door sets for apartment entries alone, plus additional sets for stairwells and service areas. Developers sourcing factory-direct for multi-building projects get consistent product and a single compliance documentation package across all buildings.
Facilities Management & Retrofit
Existing buildings undergoing fire safety upgrades or change-of-use conversions frequently need to upgrade standard fire doors to self-closing assemblies. This segment values fast lead times and the ability to match existing frame dimensions. Our custom sizing capability and 25–35 day standard lead time serve retrofit procurement well.
Industrial & Logistics Facilities
Warehouses and manufacturing plants require self-closing fire doors at compartmentation walls, electrical rooms, and between fire zones. These buyers specify heavier-gauge product; our 1.5mm SPCC option with EN 2–6 rated closers handles the heavier leaf weights in industrial configurations.
EN 1154 Compliance and What It Means for Your Market
EN 1154 is the European standard for controlled door closing devices used on fire doors. It governs closing force, closing speed, latching performance, and durability — specifically, the closer must function correctly after 500,000 operating cycles. For a fire door in a busy commercial corridor, that's roughly 10–15 years of daily use.
Assembly-Level CE Marking
Our self closing fire door assemblies ship with EN 1154-compliant overhead closers as standard. The CE marking on the door assembly covers the full unit — door leaf, frame, intumescent seal, and closer — tested and certified as an assembly, not as individual components.
Why this matters for your project inspector: A CE-marked assembly certificate is cleaner than a collection of individual component certificates. One document covers the complete fire door system.
North American NFPA 80 Configuration
For North American projects under NFPA 80, the closer specification changes to a UL-listed unit. The door leaf and frame assembly remain CE and NFPA 80 certified; we swap the closer to the UL-listed equivalent.
Specify your destination market at inquiry and we'll confirm the correct hardware package and provide the relevant certification documentation.
Market Compliance Summary
| Market | Applicable Standard | Our Certification Coverage |
|---|---|---|
|
Europe / EU-aligned
|
EN 1634-1 (door) + EN 1154 (closer) | CE marking — full assembly |
|
North America
|
NFPA 80 (door) + UL-listed closer | NFPA 80 + UL closer on request |
|
Gulf / Middle East
|
EN-aligned codes in most markets | CE + SGS documentation |
|
Southeast Asia / Australia
|
Market-specific; CE accepted as equivalent in most | CE + SGS; confirm with local AHJ |
SGS third-party audit reports are available on request for markets requiring independent verification beyond CE and NFPA 80.
Confirm Certification Requirements for Your Target Market
Tell us your destination market and project type. We'll confirm the correct hardware package, provide the relevant certification documentation, and flag any local AHJ requirements we're aware of.
Confirm Certification RequirementsHow We Build the Closer Assembly — and Why the Details Matter
The closer arm bracket is the most failure-prone component in a self-closing fire door assembly, and it's almost always an installation issue rather than a product defect.
Bracket Torque Specification
The bracket must be torqued to specification — under-torqued and it walks loose over time; over-torqued and you strip the thread and lose the mechanical connection. We include a torque specification sheet in every shipment, and for buyers distributing to contractors, we can provide installation guidance documentation in your preferred language.

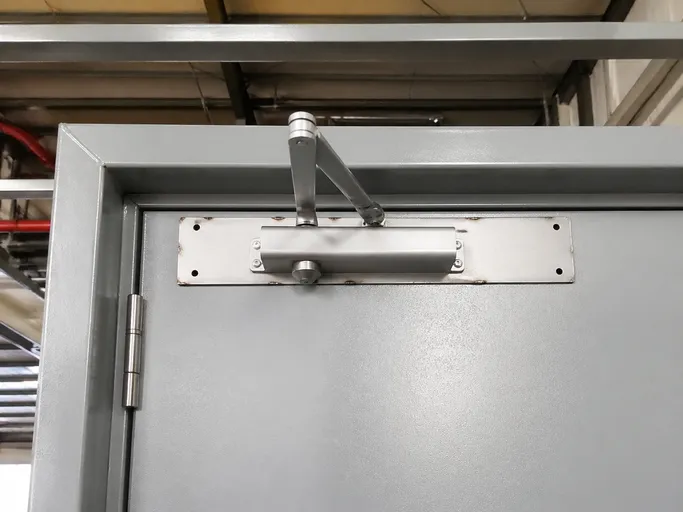

Welded Backing Plate — Not Screwed to Skin
The closer body is mounted to the door face using a reinforced backing plate welded to the door skin — not just screwed into the panel. On a 1.2mm steel door skin, a closer mounted directly to the skin without a backing plate will pull through under repeated use.
We weld a 3mm backing plate at the closer mounting position during door fabrication, before powder coating. It's not visible in the finished product, but it's the difference between a closer that stays put for 500,000 cycles and one that starts to pull away from the door face after 50,000.
Closer Size Matched Per Order
Closer size selection is matched to door weight and width at the time of order. EN 1154 defines closer sizes EN 1 through EN 6 by closing force — a 900mm-wide FD60 door at 1.2mm gauge runs approximately 55–65kg and requires an EN 3–4 closer minimum.
We don't ship a standard closer on every door regardless of size; the closer is specified per order based on the door configuration. We've seen what happens when a distributor sources doors and closers separately and mismatches the size — the door either won't latch reliably or slams hard enough to damage the frame seal over time.
Pre-Ship Performance Test
Every assembled self closing fire door is tested for closing and latching performance before packing: the door is opened to 90° and released, and we verify it closes fully and latches within the EN 1154 speed parameters. Units that don't pass are adjusted or the closer is replaced before the door ships.
Customization Options for Self Closing Fire Door Orders
The self-closing mechanism adds one customization dimension beyond the standard fire door spec: closer specification. Everything else — dimensions, finish, hardware, glazing — follows the same customization parameters as our fire door line.
Closer Configuration
- EN 1154 overhead closer (standard) — sizes EN 2 through EN 6, matched to door weight
- UL-listed overhead closer — for NFPA 80 markets, specified at order
- Slide-channel arm (parallel arm) — for doors opening into a narrow corridor
- Hold-open arm — non-fire-rated only; fire-rated hold-open requires electromagnetic release (automatic fire door configuration)
Door Dimensions
- Width: 700–1000mm standard single leaf; up to 1200mm on request
- Height: 2000–2200mm standard; custom heights available
- Non-standard dimensions: available from 100 units MOQ
Surface Finish
- Powder coat: 60+ RAL colors, 60–80μm thickness
- Primer-only: for site finishing or painting to match interior scheme
- Stainless steel cladding: available on select configurations for high-hygiene environments
Vision Panel
- No vision panel (standard)
- Fire-rated glazing panel: available in standard sizes; custom glazing positions from 100 units
Hardware
- Mortise latch: stainless or zinc-alloy
- Anti-panic latch: available for egress applications
- Access control preparation: conduit routing and strike plate preparation available
MOQ by Configuration
- 50 units Standard catalog configurations
- 100 units Custom dimensions or non-standard closer specification
- 100 units OEM/private label — free design consultation and 3D rendering included
Send Your Spec for a Free Customization Consultation and Quote
Share your door dimensions, closer requirements, finish preference, and target market. We'll confirm the configuration, closer size match, and lead time — no commitment required.
Self Closing vs. Automatic Fire Door: Which Configuration Fits Your Project
These two mechanisms are frequently confused at the specification stage, and ordering the wrong one creates a costly correction.
Self Closing Fire Door
Uses a mechanical overhead closer — the door closes automatically under spring tension every time it's opened and released. No power, no signal, no integration with the building's fire alarm system. It's always in the closed position unless someone is actively holding it open.
Correct specification for:
- Stairwells
- Plant rooms
- Compartmentation walls
- Apartment entries
No power connection required. No fire alarm integration. Correct for the vast majority of fire door applications.
Automatic Fire Door
Uses an electromagnetic hold-open device that keeps the door open during normal building operation and releases it to close when the fire alarm activates. Specified for high-traffic openings where a constantly-closing door creates an operational problem.
Correct specification for:
- Main corridors in hospitals
- Hotel lobbies
- School hallways
- High-traffic public corridors
Requires a power connection and integration with the fire alarm panel. Door stays open during normal operation, closes on alarm activation.
The Practical Decision Rule
If the door can be closed during normal operation without disrupting building function, specify a self closing fire door. If the door needs to stay open during the day and only close on alarm, specify an automatic fire door. Misspecifying costs you a hardware swap and potentially a re-inspection.
If you're unsure which configuration your project requires, send us the opening location and occupancy type — we'll confirm the correct specification.
Packaging, Container Loading, and Export Documentation
Self closing fire doors ship in the same KD (knock-down) format as our standard fire door line, with one addition: the closer assembly is packed separately in a labeled hardware kit, with the torque specification sheet and installation guide included in the kit.
KD Self Closing Fire Door
Standard Single Leaf
Closer hardware packed in separate labeled kit. Torque spec sheet and installation guide included.
Pre-hung Assembly
Door + Frame Assembled, Closer Fitted
Eliminates on-site alignment. Higher CBM per set; factor into container planning.
Why KD Is the Standard Export Format
KD is the standard format for export orders — it maximizes container utilization and eliminates alignment risk in transit. The closer is straightforward to fit on-site with the included installation guide; most installers familiar with overhead closers complete the fitting in under 20 minutes per door.
Export Documentation Included With Every Shipment
Full Batch Traceability
Every carton carries a barcode linked to our production batch record for traceability on arrival. Full documentation chain from factory floor to destination port.
On-Site Closer Installation
Installers familiar with overhead closers complete fitting in under 20 minutes per door using the included torque specification sheet and installation guide.
Frequently Asked Questions
Technical and procurement questions from distributors, contractors, and project specifiers.
Does a self closing fire door need to be CE marked as an assembly, or can the door and closer be certified separately?
For CE compliance, the door assembly — leaf, frame, intumescent seal, and closer — must be tested and certified as a complete unit. A CE-marked door leaf combined with a separately CE-marked closer does not constitute a CE-marked fire door assembly. Our self closing fire door ships with CE marking covering the full assembly, which is what building inspectors and project certifiers require. If you're sourcing doors and closers separately from different suppliers, confirm that the combined assembly has been tested — not just the individual components.
What EN 1154 closer size do I need for a standard FD60 self closing fire door?
For a standard 900mm-wide FD60 door at 1.2mm SPCC gauge, the door weight runs approximately 55–65kg. That requires an EN 3 closer minimum; EN 4 is our standard recommendation for that configuration to provide reliable latching across the full temperature range. For wider doors (950–1000mm) or heavier-gauge (1.5mm) configurations, specify EN 4–5. We match the closer size to your door configuration at the time of order — you don't need to specify the closer size separately.
Can a self closing fire door be held open legally?
A fire door must not be held open by a wedge, hook, or any non-compliant device — doing so voids the fire rating and creates a liability issue for the building owner. If an opening requires a door that stays open during normal operation, the correct specification is an electromagnetic hold-open device integrated with the fire alarm system — that's our automatic fire door configuration. Self closing fire doors can only be held open by a compliant electromagnetic hold-open device that releases on alarm activation.
What is the minimum order quantity for self closing fire doors, and can I mix FD30 and FD60 in one order?
Standard catalog self closing fire doors: 50 units MOQ. You can mix fire ratings (FD30, FD60, FD90) and door sizes within a single order as long as each line item meets the individual MOQ. For mixed orders where individual line items fall below MOQ, contact us — we can often accommodate smaller quantities on existing production runs. Custom configurations (non-standard dimensions, special closer specification, OEM branding) start at 100 units.
How do I verify that a self closing fire door will pass inspection in my target market?
The key documents are: the CE test certificate (for European and EU-aligned markets), the NFPA 80 certificate (for North America), and the EN 1154 closer compliance documentation. For markets where local authorities require third-party verification beyond CE, our SGS audit reports provide independent confirmation. We provide the full documentation package with every shipment. If your project specifies a particular listing body or local standard we haven't mentioned, contact us before ordering — we can advise on whether our existing certifications satisfy the requirement.
What lead time should I plan for a 200-unit self closing fire door order?
Standard catalog configurations: 25–35 days from deposit confirmation. A 200-unit order of standard FD60 self closing fire doors falls within our normal production scheduling. Custom configurations — non-standard dimensions, special hardware, OEM branding — add 10–15 working days for engineering review and first-article approval. Contact us with your timeline and we'll confirm production availability before you commit.
Get a Quote for Self Closing Fire Doors
Send us your target specification: fire rating, door dimensions, destination market, and volume. Our engineering team will confirm the correct closer specification for your configuration, provide the relevant certification documentation, and come back with a detailed quote.
If you're evaluating self closing fire doors for a distribution catalog and aren't sure which configurations to start with, tell us your target market. FD60 single-leaf self closing fire doors are the volume SKU in most commercial construction markets, but the mix shifts depending on whether you're serving contractors, developers, or facilities managers — and we see enough order patterns across our active markets to give you a useful read.
