Kitchen Fire Door Direct From Factory
Steel fire doors engineered for commercial kitchen environments — grease-resistant finish, stainless hardware, and fire ratings from FD30 to FD90.
Built for the heat, humidity, and daily abuse of food service operations. Factory-direct supply from a certified manufacturer with 18+ years on the production floor.
What Makes a Kitchen Fire Door Different from a Standard Fire Door
A standard fire door is designed to hold a rating in a controlled test environment. A kitchen fire door has to hold that same rating while surviving daily exposure to cooking grease, steam, chemical cleaning agents, and the kind of physical abuse that comes from a busy service kitchen.
The difference isn't just the fire rating. It's the surface specification, the hardware selection, and the structural choices that determine whether the door still functions correctly — and still closes and latches — after two years in a commercial kitchen environment.

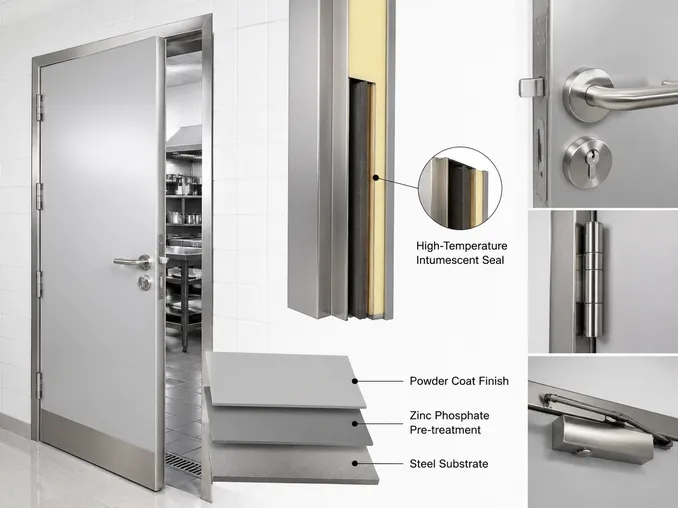

Grease-Resistant Powder Coat Finish
Applied at 60–80μm over a zinc phosphate pre-treatment layer. The pre-treatment is what most suppliers skip or underspec — it determines whether the coating bonds to the steel or starts lifting at the edges after six months of daily cleaning with alkaline degreasers.
Stainless Steel Hardware Throughout
Hinges, strike plates, and closer arm brackets — all stainless. Zinc-alloy hardware corrodes in the presence of cleaning chemicals and steam cycling, and corroded hardware is the first thing a health inspector notices. Stainless is the right call for kitchen environments.
1.2mm SPCC Cold-Rolled Steel Body
Standard kitchen fire door uses 1.2mm SPCC cold-rolled steel body panels with mineral wool core for fire resistance. The structural integrity holds up to carts, trolleys, and staff moving fast through a door that gets opened and closed hundreds of times a day.
High-Temperature Intumescent Seal
Continuous perimeter intumescent seal recessed into a machined channel in the door edge. Kitchen doors use a higher-temperature-rated intumescent compound because the ambient temperature in a commercial kitchen is already elevated — the seal needs to perform reliably from a higher baseline.
The fire rating is maintained through the same continuous perimeter intumescent seal construction used across the full fire door category. What's specific to the kitchen configuration is the seal grade and the surface and hardware specification described above.
Kitchen vs. Standard Fire Door — Key Differences
Technical Specifications
Standard configurations for commercial kitchen fire door supply. Contact us for detailed product data sheets and custom sizing.
| Parameter | Specification |
|---|---|
| Fire Resistance Rating | FD30 · FD60 · FD90 (rating-dependent construction) |
| Door Leaf Thickness | 44mm (FD30) · 54mm (FD60) · 64mm (FD90) |
| Steel Body Gauge | 1.2mm SPCC cold-rolled steel (standard) · 1.5mm available |
| Core Material | Mineral wool board (FD30/FD60) · Perlite composite (FD90) |
| Door Width | 800–1100mm single leaf · up to 2000mm double leaf |
| Door Height | 2000–2400mm standard · custom heights available |
| Surface Finish | Grease-resistant powder coat, 60–80μm · stainless steel cladding option |
| Finish Colors | 60+ RAL colors standard · custom RAL on request |
| Hardware | Stainless steel hinges · stainless strike plate · mortise lock · overhead closer |
| Intumescent Seal | Continuous perimeter, recessed channel, high-temperature grade |
| Frame | Welded steel frame with intumescent seal · KD frame available |
| Vision Panel | No vision panel (standard) · fire-rated glass panel available on FD30/FD60 |
| Certifications |
NFPA 80 CE (EN 1634-1) ISO 9001:2015 SGS
|
Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets and custom sizing.
FD60 — Most Common
FD60 is the most common rating shipped for commercial kitchen applications. It's the standard requirement for kitchen-to-dining compartmentation in most building codes, and the SKU that moves in volume for distributors serving the food service construction segment.
FD90 comes up for kitchen-to-service-corridor openings in high-rise hospitality projects where the fire compartment rating is elevated.
Not sure which rating you need?
Send us the building type and jurisdiction — we can point you to the right spec.
Get a Quote for This ConfigurationFire Rating and Compliance for Commercial Kitchen Applications
Commercial kitchens sit at the intersection of two regulatory frameworks: fire safety codes and food service health codes. The fire door has to satisfy both.
Fire Safety Code Requirements
The kitchen-to-dining opening is typically required to be FD60 in most commercial building codes — the kitchen is classified as a higher-risk fire compartment, and the door separating it from the dining area or corridor must maintain integrity for 60 minutes.
In high-rise hospitality (hotels above a certain floor count, large convention facilities), FD90 is increasingly specified.
Food Service Health Code Requirements
The door surface and hardware must be cleanable and non-porous. This is where standard fire doors fail in kitchen environments — the surface finish isn't rated for repeated chemical cleaning, and the hardware corrodes.
Our kitchen fire door specification addresses this directly: the grease-resistant powder coat passes 500-hour salt spray testing, and all exposed hardware is stainless steel grade 304.

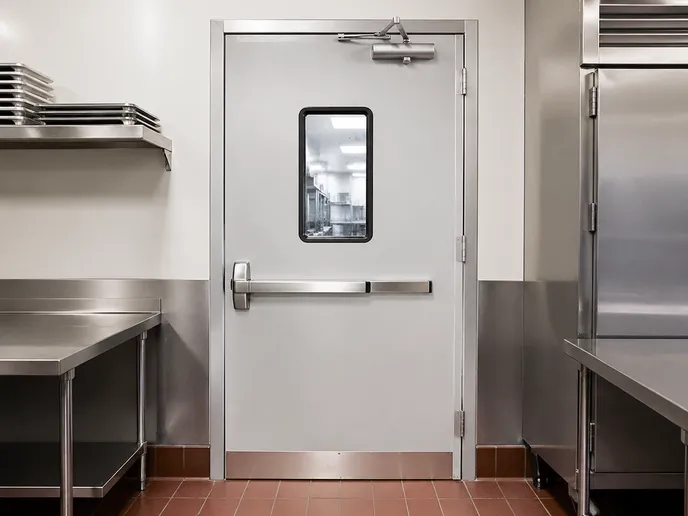

NFPA 80 Assembly Listing — Critical for North American Buyers
NFPA 80 requires that the door assembly — door, frame, hardware, and closer — be listed as a complete unit. We supply the complete assembly with NFPA 80 listing documentation.
Don't mix our door with unlisted hardware from another source; it voids the listing.
Certification Coverage by Market
| Market | Certification | Standard | Typical Rating |
|---|---|---|---|
| United States | NFPA 80 | NFPA 80 (complete assembly listing) | FD60 |
| Europe | CE | EN 1634-1 | FD60 / FD90 |
| Gulf / Middle East | CE | EN 1634-1 (EU-aligned) | FD90 increasingly specified |
Where Kitchen Fire Doors Move — Market Segments Worth Building Into Your Catalog
Four distinct buyer segments drive kitchen fire door volume. Each has different order patterns, compliance requirements, and margin profiles — understanding them helps you position inventory and target accounts effectively.

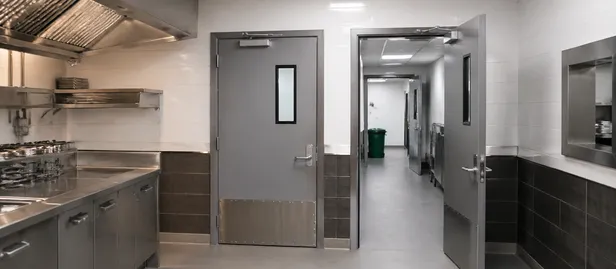

Restaurant Chains & Food Service Fit-Out Contractors
A mid-size restaurant chain rolling out 20–50 new locations per year needs 2–4 kitchen fire doors per location — that's 40–200 units annually from a single chain account. Fit-out contractors serving multiple chains consolidate their fire door sourcing with one supplier to keep compliance documentation consistent across projects.
Standard SKU Profile

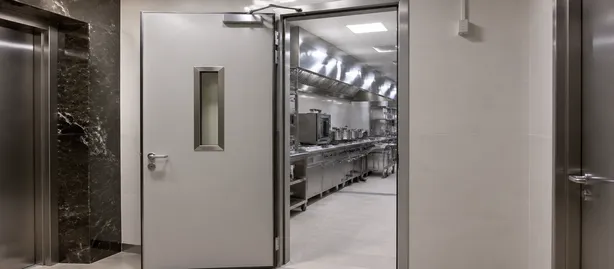

Hotel & Hospitality Construction
A full-service hotel with a commercial kitchen, banquet facilities, and staff corridors can specify 15–30 kitchen fire doors per property. Hospitality projects in the Middle East and Southeast Asia increasingly specify FD90 for kitchen compartmentation. These are higher-value units with less price sensitivity.
Why CE Certification Matters Here
The CE certification requirement (EN 1634-1 for Gulf markets) is a barrier that filters out lower-tier suppliers. This segment has grown meaningfully over the last three years — worth building into your catalog if you're serving Gulf or Southeast Asian construction markets.
Healthcare & Institutional Food Service
Hospital kitchens, university dining facilities, and large institutional cafeterias are specified to the same fire code requirements as commercial restaurants, but procurement runs through facilities management or institutional purchasing departments rather than fit-out contractors.
These buyers tend to order in larger batches and value consistent product across multiple buildings. Our ability to match dimensions and finish across repeat orders makes this segment workable for distributors.
Ghost Kitchen & Cloud Kitchen Operators
The rapid buildout of shared commercial kitchen facilities in urban markets — particularly in North America and Southeast Asia — has created a new category of buyer: real estate developers converting warehouse and retail space into multi-tenant kitchen facilities.
Each tenant unit requires its own fire-compartmented kitchen space, which means multiple kitchen fire doors per building. These projects move fast and the buyers are often sourcing for the first time — they need a supplier who can provide compliant product with clear documentation, not just a low price.
Key buyer need: Compliant product with clear documentation. First-time sourcers prioritize certainty over price.
Build Your Kitchen Fire Door Catalog
Whether you're targeting restaurant fit-out contractors, hospitality construction, or institutional procurement — we can supply the right SKU mix with the compliance documentation your buyers require. Request a catalog with full specifications and pricing guidance.
Construction Details That Protect Your Downstream Margin
The failure modes for kitchen fire doors in the field are predictable, and they're almost always surface or hardware failures rather than structural ones. Here's what we engineer against, and why it matters for your warranty exposure.

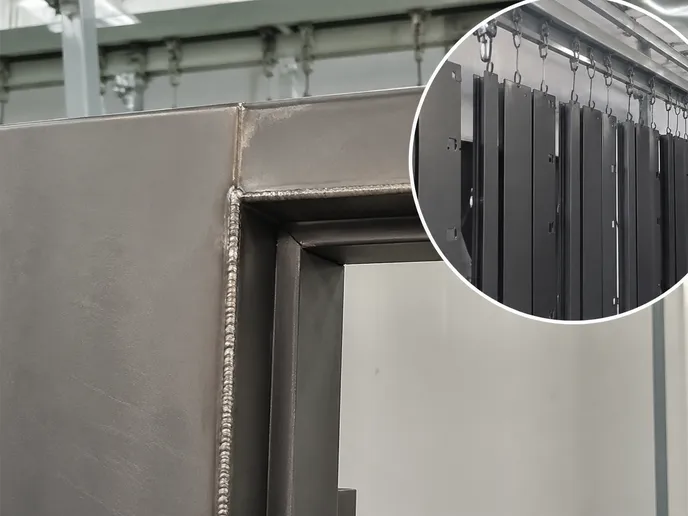

Powder Coat Adhesion in Grease Environments
The failure pattern we see most often on competitor product in the field: coating delamination starting at the door edges and weld seams after 12–18 months of kitchen use. The root cause is almost always inadequate pre-treatment — the steel wasn't properly phosphated before coating, so the bond between coating and substrate is mechanical rather than chemical.
When alkaline degreasers penetrate a micro-crack at the edge, they undercut the coating and it lifts.
Our Process
- Zinc phosphate bath covering full door surface including weld zones
- Powder application at 60–80μm
- Every weld seam ground flush before pre-treatment
- 500-hour salt spray verified — zero delamination at seams or edges
Hardware Corrosion
Zinc-alloy hinges and strike plates corrode in kitchen environments within 18–24 months — the combination of steam, grease, and cleaning chemicals is aggressive. Corroded hardware is a health code violation in most jurisdictions, and it's a warranty claim that comes back to you.
Our Standard
Stainless steel grade 304 for all exposed hardware on kitchen fire doors as standard. The unit cost difference is modest; the warranty claim prevention is significant.
Grade 304 stainless is specified as standard — not an upgrade option — because the downstream warranty exposure from zinc-alloy hardware in kitchen environments is not worth the unit cost saving.
Closer Performance Under Heat
Standard overhead closers are rated to operate in ambient temperatures up to 40–50°C. Commercial kitchen environments regularly exceed this near cooking equipment.
Our Specification
- Closers with higher temperature rating for kitchen applications
- Closer positioned on the non-kitchen face of the door where possible
This detail matters for long-term performance but rarely appears in competitor product descriptions. We started specifying this after seeing closer hydraulic fluid degradation on doors installed directly above commercial ranges — the heat cycling was shortening the closer service life significantly.
Frame-to-Leaf Gap Maintenance
Kitchen environments involve significant humidity cycling — the kitchen is hot and humid during service, cooler and drier overnight. This cycling can cause dimensional changes in poorly constructed frames.
Our Tolerance Control
- CNC-formed frames hold ±0.5mm tolerance
- Every door test-fitted with its frame before packing
- 3–4mm perimeter gap verified at the factory, not assumed
Why It Matters
Factory-Verified, Not Field-Assumed
Every construction detail above addresses a real failure mode we've observed in the field on competitor product. The 500-hour salt spray test, the grade 304 hardware spec, the high-temperature closer rating, and the factory test-fit are not marketing claims — they're the engineering responses to specific warranty exposure patterns.
When you specify EUWOO kitchen fire doors, you're specifying a product where the failure modes have been identified and engineered against before the door leaves the factory.

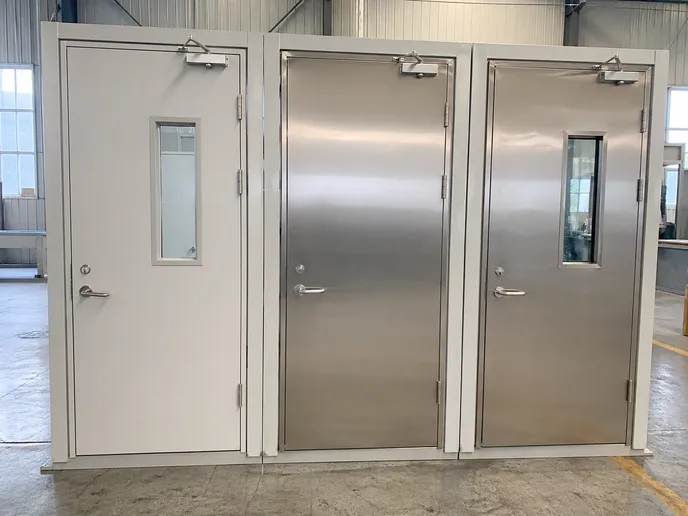

Customization Options for Kitchen Fire Door Projects
Standard catalog kitchen fire doors ship from 50 units MOQ. Custom configurations start at 100 units — that's where the engineering review and any tooling cost makes sense for both sides.
What Can Be Customized
Dimensions
Width 700–1200mm single leaf, up to 2000mm double leaf; height 2000–2400mm standard, custom heights available for non-standard openings.
Fire Rating
FD30, FD60, or FD90 — specify based on your project's compartmentation requirement.
Surface Finish
Any RAL color from our 60+ standard palette; custom RAL on runs of 100+ units; stainless steel cladding on the kitchen-face panel for high-hygiene applications.
Vision Panel
Fire-rated glass panel available on FD30 and FD60 configurations — useful for kitchen-to-dining visibility in restaurant layouts.
Hardware Package
Mortise lock, push bar (panic exit device, fire-rated to EN 1125), electromagnetic hold-open for high-traffic service doors, access control integration.
OEM / Private Label
Custom branding, labeling, and packaging for distributors building a private-label product line.
What Affects Lead Time
Standard Catalog Configurations
Ships from deposit confirmation.
Custom Dimensions or Non-Standard Hardware
Adds engineering review and first-article approval time.
OEM Branding
Label and packaging production.
Free Design Consultation
We offer free design consultation and 3D rendering for custom projects. Send us your opening dimensions, fire rating requirement, and any hardware spec, and our engineering team will come back with a detailed quote. No charge for the consultation.
Send Your Spec for a Free Design ConsultationRelated Fire Door Products
Packaging and Container Loading
Kitchen fire doors ship in the same KD (knock-down) format as our standard fire door line — door leaf, frame, and hardware packed separately in reinforced cartons with foam corner protection.
| Format | CBM per set | 40HQ loading |
|---|---|---|
| KD single-leaf kitchen fire door | 0.18–0.22 m³ | ~160–200 sets |
| KD double-leaf kitchen fire door | 0.32–0.38 m³ | ~90–110 sets |
| Pre-hung assembly (door + frame) | 0.35–0.45 m³ | ~80–100 sets |
KD Format — Standard for Export
KD is the standard format for export orders — it maximizes container utilization and eliminates hardware alignment risk in transit. Pre-hung assemblies are available for buyers whose end customers require ready-to-install product; the trade-off is roughly half the container loading efficiency.
Batch Traceability and Documentation
Every carton carries a barcode linked to our production batch record. If there's a quality question on arrival, you can trace the unit back to its production date, line, and inspection record. The documentation package — commercial invoice, packing list, bill of lading, CO, NFPA 80 / CE test certificates — is complete for customs clearance in all active export markets.
Frequently Asked Questions
Decision-support answers for importers, distributors, and project specifiers sourcing kitchen fire doors.
What fire rating is required for a commercial kitchen fire door?
FD60 is the standard requirement for kitchen-to-dining and kitchen-to-corridor openings in most commercial building codes — the kitchen is classified as a higher-risk fire compartment. FD90 is specified for kitchen openings in high-rise hospitality projects or where the adjacent compartment has an elevated fire rating requirement. FD30 is generally insufficient for commercial kitchen applications in most jurisdictions. Confirm the requirement with your local authority having jurisdiction (AHJ) or the project's fire engineer before specifying.
Does a kitchen fire door need special certification beyond standard fire door certification?
The fire rating certification (NFPA 80 for the US, CE/EN 1634-1 for Europe and Gulf markets) applies to the complete door assembly regardless of application. There is no separate "kitchen fire door" certification category. However, the door must be installed and maintained as a listed assembly — mixing listed door components with unlisted hardware voids the certification. Our kitchen fire door assemblies are supplied as complete listed units.
What surface finish is suitable for a commercial kitchen fire door?
The surface must withstand repeated cleaning with alkaline degreasers and exposure to cooking grease and steam. Our grease-resistant powder coat at 60–80μm over zinc phosphate pre-treatment passes 500-hour salt spray testing and is compatible with standard commercial kitchen cleaning protocols. For high-hygiene applications (hospital kitchens, food processing facilities), we offer a stainless steel cladding option on the kitchen-face panel — this is the most cleanable surface available and satisfies the strictest food service hygiene codes.
Can a kitchen fire door have a vision panel (window)?
Yes, on FD30 and FD60 configurations. Fire-rated glazing panels are available in standard sizes and positions. Vision panels are common in restaurant kitchen-to-dining doors where staff need line-of-sight visibility. FD90 configurations with vision panels are technically possible but add significant cost — most buyers at FD90 specify solid-panel doors. Confirm glazing requirements when requesting a quote.
What is the MOQ for kitchen fire doors, and can I mix FD60 and FD90 in one order?
Standard catalog kitchen fire doors: 50 units MOQ. Custom configurations: 100 units. You can mix ratings (FD60 and FD90) and configurations (single leaf, double leaf, vision panel) within a single order as long as each line item meets the individual MOQ. For mixed orders below the per-SKU MOQ, contact us — we can often accommodate smaller quantities on existing production runs.
How do I specify the right hardware for a high-traffic kitchen fire door?
For doors that see 200+ open-close cycles per day (typical in a busy restaurant kitchen), specify: overhead closer rated to EN 1154 with a high-cycle arm bracket, stainless steel hinges with a minimum of three per leaf, and a mortise lock with a stainless strike plate. For doors on emergency exit routes, add a fire-rated push bar (panic exit device) to EN 1125. We supply all hardware as part of the door package — don't source hardware separately and risk voiding the fire listing.
Get Kitchen Fire Doors Quoted
The fastest path is to send us your spec. Our engineering team will review it and come back with a detailed quote and, for custom configurations, a 3D rendering.
What to Include in Your Spec
- Fire rating — FD60, FD90, or local equivalent
- Opening dimensions — width × height in mm or inches
- Hardware requirements — closer, panic bar, vision panel, etc.
- Destination market — determines applicable certification standard
New to sourcing kitchen fire doors from China? Tell us your target market and volume expectations — we can suggest a starter SKU mix based on what's moving for our existing distributors in that region.
