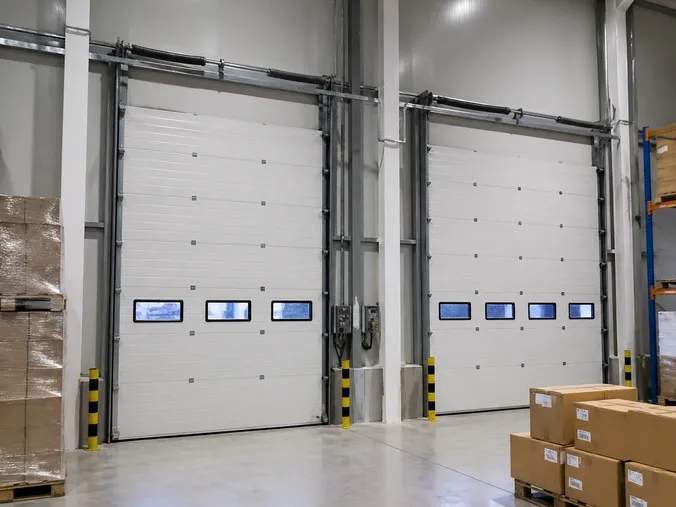

Warehouse Commercial Doors Built for Active Operations
High-cycle warehouse commercial doors — built for the open-close frequency of active distribution and logistics operations.
Factory-direct from Luoyang, China. 1.2–1.5mm cold-rolled steel body, 500,000-cycle rated hardware, and a 5-stage QC process that means your containers arrive right the first time.
Why Warehouse Doors Fail — and How We Engineer Against It
A warehouse door in an active distribution center cycles 150–300 times per day. That's 55,000–110,000 cycles per year. Most commercial door failures in logistics environments aren't material failures — they're engineering failures: hinges sized for office use, frames built to residential tolerances, powder coat applied over unground weld seams. The door looks fine in a showroom photo and starts generating problems at month eight.
We've been making doors for warehouses, distribution centers, and manufacturing plants since 2008. The failure modes are predictable, and we engineer against each one at the production stage rather than handling warranty claims after the fact.
Hinge Failure
The most common high-cycle failure. A door cycling 200 times a day accumulates 70,000+ cycles per year — undersized hinges develop lateral play within 18 months, which accelerates frame wear and eventually prevents the door from closing flush.
Our Engineering Response
We spec 4-bearing hinges with a minimum 89mm × 89mm leaf on all warehouse door configurations. For highest-frequency applications — cold storage, cross-dock, busy receiving bays — we recommend continuous hinge (piano hinge) prep, available on any door in this line. The bearing surface is larger, and load distributes across the full door height rather than three hinge points.
Frame Distortion
The failure that generates the most serious downstream complaints. A distorted frame means a door that won't close, gaps that compromise any fire or thermal rating, and hardware that binds. It comes from undersized frame steel and inadequate corner reinforcement.
Our Engineering Response
We run 1.5mm minimum on door frames — heavier than the door leaf — with welded corner gussets rather than mechanical fasteners. The frame is what the building opening sees for the life of the installation; the door leaf can be replaced, the frame usually can't.
Powder Coat Delamination
In warehouse environments, delamination is accelerated by forklift exhaust, cleaning chemicals, and humidity cycling. The failure almost always starts at weld seams, where inadequate pre-treatment leaves the heat-affected zone poorly bonded.
Our Engineering Response
Our process: grind all weld seams flush, apply a secondary phosphate treatment to weld zones specifically, then run the full automated coating sequence. Standard finish passes 500-hour salt spray. For cold storage and food distribution facilities where cleaning chemicals are aggressive, we offer a 1000-hour salt spray spec with a zinc-rich primer undercoat — ask us when you inquire.
We learned the weld pre-treatment lesson the hard way — three containers of returns from a Gulf distributor in 2016 before we added the dedicated weld zone treatment step. It's been standard process since then.
Engineering Against Failure at the Production Stage
Every specification decision above — hinge sizing, frame gauge, weld pre-treatment — is locked into our production process, not left to per-order discretion. When you order warehouse doors from us, you're getting the accumulated failure-mode knowledge from 15+ years of high-cycle commercial door production.
Get a Quote for Warehouse Commercial DoorsTechnical Specifications
These are industry-standard values for this product type. Actual specifications may vary by configuration — contact us for detailed product data sheets.
| Parameter | Specification |
|---|---|
| Body material | Cold-rolled SPCC steel, 1.2mm standard / 1.5mm reinforced option |
| Frame material | Cold-rolled steel, 1.5mm minimum |
| Door thickness | 45mm standard / 50mm available |
| Standard leaf sizes | W800–1200mm × H2000–2400mm (single leaf) |
| Double-leaf width | Up to W2400mm |
| Custom sizing | Available on runs ≥100 units; non-standard heights and widths handled on our press brake |
| Core fill | Honeycomb paper (standard) / mineral wool (acoustic/fire-rated option) |
| Surface finish | Powder coat, 60–80μm, 60+ standard colors; 1000-hour salt spray spec available |
| Hinge spec | 4-bearing, 89mm × 89mm minimum; continuous hinge prep available |
| Hardware prep | ANSI, EN, AS/NZS standards; mortise and cylindrical lock prep |
| Cycle rating | 500,000 cycles (hardware-tested) |
| Frame corner reinforcement | Welded gussets standard |
| Certifications | ISO 9001:2015 CE SGS NFPA 80 |
| MOQ | 50 units (standard) / 100 units (custom configurations) |
When to Specify the 1.5mm Reinforced Option
The 1.2mm body spec is our standard recommendation for most warehouse and distribution applications. If your end customer is running a high-abuse environment — cold storage with frequent forklift contact, correctional facility receiving, heavy manufacturing — ask us about the 1.5mm reinforced option. The price delta is smaller than most buyers expect, and it eliminates the denting complaints that generate warranty claims.
1000-Hour Salt Spray Spec
For cold storage and food distribution facilities where cleaning chemicals are aggressive, we offer a 1000-hour salt spray spec with a zinc-rich primer undercoat. Ask us when you inquire.
Need the Full Data Sheet?
Request a detailed spec sheet with tolerances, finish options, and hardware prep drawings for your project.
Request a Detailed Spec SheetMarket Segments: Where Warehouse Commercial Doors Generate Repeat Business
The commercial value of this product line isn't in a single project order — it's in the repeat cycle. Warehouses expand, facilities replace worn units, and logistics operators standardize on a door spec across multiple sites. Here's where our existing distributor and contractor network is active.

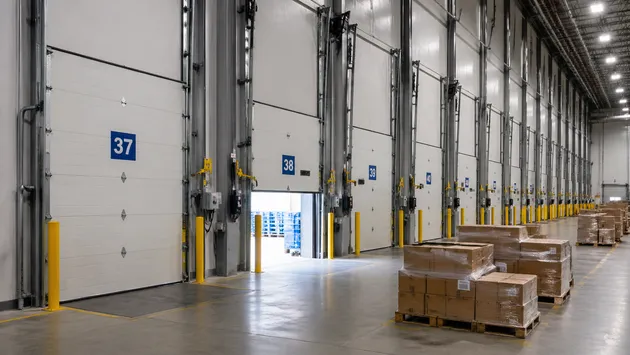

Distribution & E-Commerce Fulfillment Centers
A mid-size fulfillment center runs 20–60 dock doors and interior passage doors; a large regional DC can run 150+. These facilities are being built and expanded continuously across North America, Southeast Asia, and the Middle East.
The spec driver is cycle durability — operators have been burned by low-cycle doors and will pay a premium for documented cycle ratings. Our 500,000-cycle hardware rating is a direct answer to that procurement question, and it gives your sales team a specific number to put in front of a facilities manager.

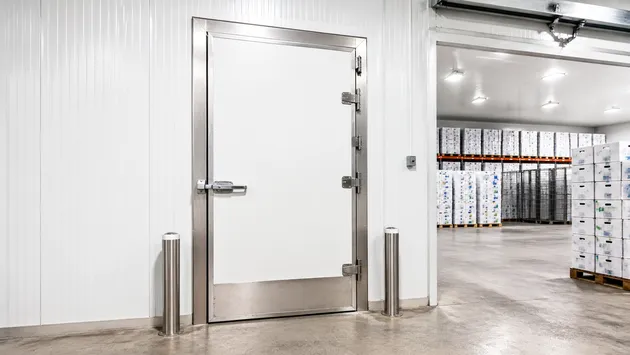

Cold Storage & Food Distribution
Worth building into your product line if you're serving markets with growing food logistics infrastructure — Southeast Asia, the Gulf, and parts of Africa. The door spec here is more demanding: aggressive cleaning chemicals, humidity cycling between ambient and refrigerated zones, and frequent forklift contact.
We address all three with the 1.5mm reinforced body, 1000-hour salt spray finish, and continuous hinge prep. Buyers in this segment tend to standardize on a supplier once they find one that doesn't generate warranty claims — the switching cost is high because the spec is specific.

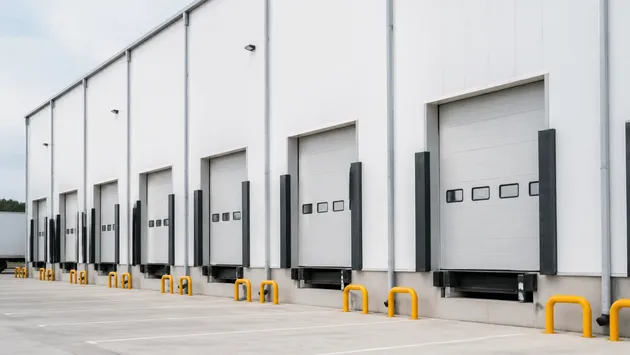

Manufacturing Plants & Processing Facilities
Order in smaller quantities per site but across more locations. A regional industrial contractor might be fitting out 8–12 facilities per year, each needing 15–40 warehouse-grade doors. The value proposition here is consistency: same spec, same finish, same hardware prep across every site, so the contractor's installation crews aren't adapting to different products.
Our OEM program lets contractors run our doors under their own brand with consistent documentation — useful when they're building a preferred vendor relationship with a large industrial client.

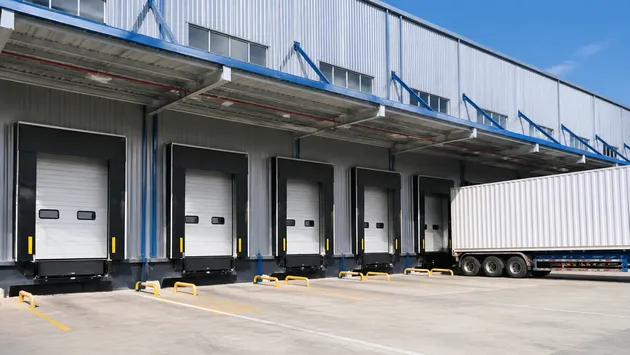

Third-Party Logistics (3PL) Operators
An underserved segment for most door distributors. 3PL facilities change tenants and reconfigure layouts regularly, which means door replacement and addition cycles are shorter than owner-occupied warehouses. A 3PL operator managing 5–10 facilities is a recurring buyer, not a one-time project.
If you're building a distribution business in markets with active 3PL growth — Southeast Asia, Eastern Europe, parts of Latin America — this is a segment worth targeting specifically.
Market note: This segment has grown significantly over the past two years as e-commerce logistics infrastructure has expanded in Southeast Asia and the Middle East — worth paying attention to if you're building your product line for those markets.
High-Cycle Engineering: What 500,000 Cycles Actually Means for Your Supply Chain
The 500,000-cycle rating on our warehouse door hardware isn't a marketing number — it's a tested specification that translates directly into your warranty claim rate and your downstream customer's total cost of ownership.
The Commercial Mechanism
A warehouse door cycling 200 times per day reaches 500,000 cycles in approximately 6.8 years. A door rated at 200,000 cycles reaches its design limit in under 3 years — at which point hinges develop play, the door starts binding, and your customer is calling you about a replacement.
That replacement conversation is a warranty claim, a logistics cost, and a relationship risk. The 500,000-cycle spec pushes that conversation out past the typical 5-year distribution relationship horizon, which means your customer's first experience with the product is durability, not failure.
At 200,000 cycles, hinges develop play, the door starts binding, and your customer is calling you about a replacement — a warranty claim, a logistics cost, and a relationship risk.
Three Engineering Choices Behind the Rating

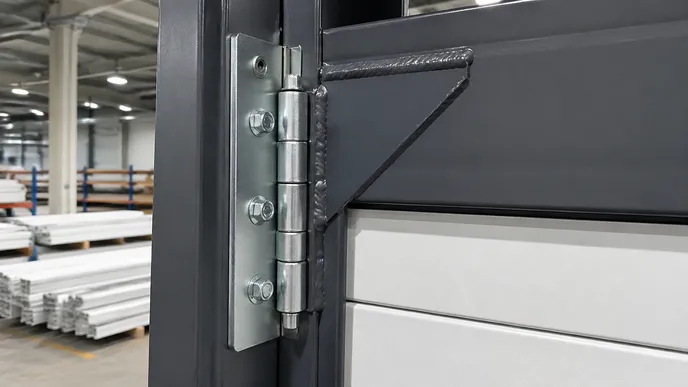

4-Bearing Hinge — 89mm × 89mm Leaf
The bearing surface distributes load across four contact points instead of two, which reduces wear rate at each point. This is the primary mechanism behind the extended cycle life.
1.5mm Minimum Frame Steel with Welded Corner Gussets
The frame maintains its geometry under repeated door impact and closure force, so the hinge alignment stays true over time. Frame deformation is the second most common cause of premature cycle failure.
1.2mm Minimum Door Leaf Body
Heavy enough to resist panel deformation from incidental forklift contact, which is the most common cause of premature door replacement in active warehouse environments.
Request Cycle Test Data for Your Product Listings
For buyers sourcing for high-frequency applications, we can provide hardware test documentation on request. Most of our distributors in North America and Australia include this documentation in their product listings — it's a differentiator when your downstream customer is comparing you against a competitor who can only offer a cycle rating without supporting data.

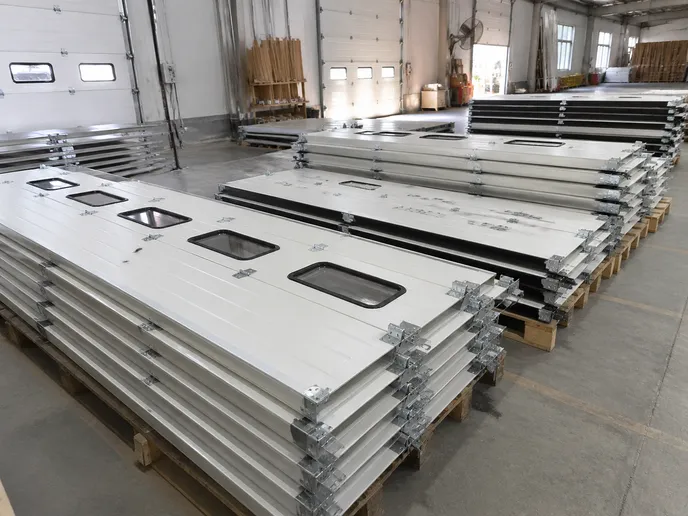

Customization Options for Warehouse Door Programs
Standard catalog configurations cover most warehouse applications. Here's what we can adjust for buyers building a specific product program or sourcing for a defined project spec.
Dimensional Customization
The most common request from warehouse and logistics buyers. Non-standard opening heights for mezzanine levels, oversized widths for wide-load access, reduced-height doors for equipment bays — all handled on our press brake.
Runs of 100+ units: standard tooling economics. Below 100 units: we discuss tooling costs before quoting.
Finish and Color Programs
For distributors running a branded product line: 60+ standard RAL colors with no MOQ premium. Custom proprietary colors available on runs of 100+ units with a color match sample before production.
Our automated powder line holds ΔE < 1.5 across a full production run — consistent enough for distributors running the same SKU across multiple warehouse clients who expect color-matched replacements.
Hardware Prep and Lock Configuration
ANSI, EN, and AS/NZS hardware standards all available. Common warehouse requests include heavy-duty lever handle prep, panic hardware prep for emergency egress doors, and electric strike prep for access-controlled receiving areas.
Doors can be supplied pre-hung with hardware if your downstream customers need a complete assembly.
Vision Panel Options
Warehouse passage doors frequently need vision panels for pedestrian safety in forklift traffic areas. Wire glass and tempered glass panel options in standard sizes.
Custom panel sizes available on runs of 100+ units.
OEM Branding
Brand plates, custom packaging, and private-label documentation are standard for our distributor partners. Most of our North American and Australian distributors run our warehouse doors under their own brand.
Free 3D rendering and design consultation included for custom programs. Our 15-engineer R&D team turns your spec into a production-ready drawing within 3 business days.
Build Your Warehouse Door Program
Whether you're sourcing for a defined project spec or building a branded distributor program, we work from your requirements — not a catalog page. Send us your spec and we'll return a production-ready drawing within 3 business days.
Send Us Your Warehouse Door SpecCertifications and Compliance for Your Target Markets
Our warehouse commercial doors ship with ISO 9001:2015, CE, SGS, and NFPA 80 certification coverage. Here's what that means for your specific market.
CE Marking
EU / Middle EastEuropean and Middle Eastern markets
Covers export into European and Middle Eastern markets where CE is a procurement requirement or a customs expectation. For warehouse and industrial applications in the EU, CE marking on the door assembly signals conformity with the Construction Products Regulation — useful when your buyer is a general contractor or facilities manager who needs to document compliance for a building permit or insurance requirement.
NFPA 80
North AmericaFire door assembly installation standard
The relevant standard for fire door assembly installation in North American projects. If your warehouse door application involves a fire-rated opening — stairwell access, electrical room, hazmat storage — NFPA 80 compliance is the baseline requirement. For UL listing on specific fire-rated configurations, ask us for current listing documentation when you inquire.
SGS Audit Reports
On RequestThird-party factory audit documentation
Available on request — useful for buyers who need third-party factory audit documentation for their own supplier qualification process or for downstream customers who require it.
Import Documentation
All Export MarketsMarket-specific compliance paperwork
For markets with specific import requirements — material safety documentation (RoHS, REACH), country-of-origin certification, or fumigation certificates for wooden packaging components — we handle these routinely for our export markets and can provide the relevant documentation with your shipment.
Full Certification Coverage at a Glance
Every warehouse door shipment is backed by our standard certification package. Additional market-specific documentation is available on request — ask when you inquire.
Manufacturing Capabilities and CertificationsContainer Loading and Export Packaging

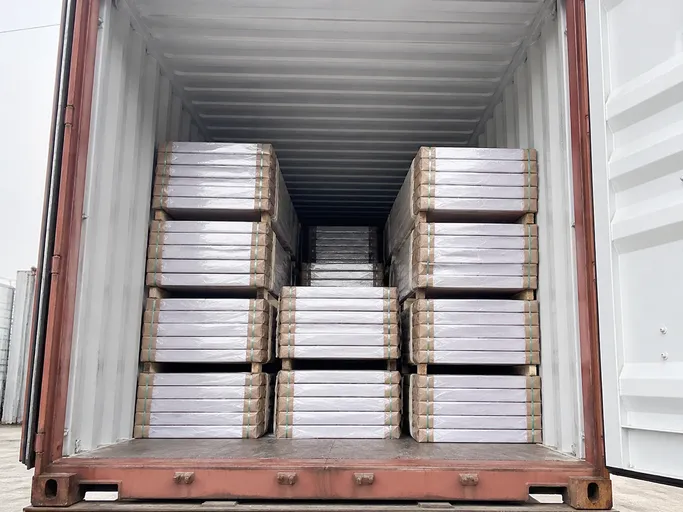

Flat-pack engineering that maximizes container utilization — with packaging specs built for rough port handling worldwide.
Flat-Pack KD Configuration
Warehouse doors ship flat-pack KD (knocked down) as standard. A 40HQ container loads approximately 350–500 standard single-leaf warehouse doors in flat-pack configuration, depending on door thickness and whether frames are included.
Pre-hung assemblies (door + frame + hardware) reduce loading density by 30–35% but eliminate on-site assembly labor. The right choice depends on your market's labor cost profile and your downstream customer's installation capability.
Standard Packaging Spec
Each door ships in a corrugated carton with foam corner protection and stretch-wrap outer layer. Our standard packaging passes a 1.2m drop test on all four faces.
For markets with rough port handling — West Africa, some Southeast Asian ports — we add a wooden pallet base and additional corner reinforcement.
Large Program Container Planning
For large warehouse door programs (300+ units), we provide a container loading plan with exact CBM calculations before you confirm the order. This is useful for landed cost modeling and freight booking.
Send us your destination port and we'll include a freight estimate from our regular forwarders.
Frequently Asked Questions
Specification decisions, material trade-offs, and ordering process — answered with the detail your procurement team needs.
What cycle rating should I specify for a warehouse commercial door?
It depends on the door's position in the facility and the operation's throughput.
Dock doors and main receiving bay doors in active distribution centers: specify 500,000 cycles minimum. These doors cycle 150–300 times per day in busy operations.
Interior passage doors in lower-traffic areas of the same facility: 300,000 cycles is typically sufficient.
Cold storage and food distribution where door cycling combines with aggressive cleaning and humidity stress: specify 500,000 cycles plus a 1000-hour salt spray finish.
The combination of mechanical and environmental stress is what shortens door life in cold storage environments.
What is the difference between a warehouse commercial door and a heavy-duty commercial door?
The distinction is primarily in the engineering emphasis:
Built for impact resistance and abuse tolerance — reinforced panels, heavier gauge body steel, anti-pry frame construction.
Built for cycle durability — high-cycle rated hinges, frame geometry that maintains alignment over hundreds of thousands of open-close cycles.
In practice, the highest-demand warehouse applications benefit from both. We can configure a door with heavy-duty panel reinforcement and high-cycle hardware. Tell us the specific application and we'll recommend the right combination.
Compare Heavy Duty Commercial DoorsWhat steel gauge is appropriate for warehouse doors in forklift environments?
1.2mm SPCC cold-rolled steel body is the standard spec for most warehouse applications — it resists incidental forklift contact and panel denting without adding unnecessary weight.
For facilities with frequent direct forklift contact (loading dock doors, cross-dock pass-through doors), specify 1.5mm body with a reinforced panel insert.
Past 1.5mm body thickness, the bending radius changes and you lose the crisp edge profile — so we don't push heavier gauge as a blanket upgrade.
The 1.5mm spec adds roughly 10–15% to unit cost but eliminates the panel deformation complaints that generate warranty claims in high-abuse environments.
Can warehouse commercial doors be fire-rated?
Yes. We offer mineral wool core fill on warehouse door configurations, which provides fire resistance on the following configurations:
Important: The fire rating applies to the complete assembly (door leaf, frame, hardware, and seals), not just the door leaf. Confirm that frame and hardware selections are compatible with the rating. Ask us for fire-rated configuration documentation when you inquire.
What is the MOQ for warehouse commercial doors, and what does the ordering process look like?
Send us your spec or project drawings
Our team reviews and sends back a production-ready quote with 3D rendering within 3 business days
Align on specs and pricing, then produce a pre-production sample for your approval before committing the full run
Standard lead time: 25–35 days (standard) / 35–45 days (custom), depending on current line loading
Related Products in the Commercial Door Line
If the warehouse door configuration doesn't match your specific requirement, these sibling products may be a better fit.
Heavy Duty Commercial Doors
Reinforced panel and frame construction for high-abuse environments where impact resistance is the primary spec driver, rather than cycle durability.
Industrial Commercial Doors
Heavy-gauge construction for manufacturing plants and processing facilities; forklift-impact-resistant frames and heavier body steel for the most demanding industrial environments.
Exterior Commercial Doors
Weather-sealed and thermally broken options for building perimeter applications where air infiltration and water ingress ratings are the spec requirement.
Start Your Warehouse Door Program
Most buyers sourcing warehouse commercial doors for the first time start with a 2–4 unit sample order across the configurations they're considering — standard 1.2mm body, reinforced 1.5mm body, with and without vision panel — so they can test against their own project spec or show their downstream customers before committing volume.
Send us your target market, the facility type you're sourcing for, and your rough volume expectations. We'll recommend the right configuration based on what's moving for our existing distributors in your region, and send back a detailed quote with CAD drawings and a sample lead time within 3 business days.
What to Include in Your Inquiry
-
Target marketCountry or region you're distributing into, so we can confirm applicable certifications.
-
Facility typeDistribution center, cold storage, logistics hub, or other — helps us recommend the right body gauge and hardware spec.
-
Volume expectationsRough annual unit volume or project quantity so we can structure the right pricing tier.
-
Configuration preferencesStandard 1.2mm or reinforced 1.5mm body; vision panel or solid; any finish or hardware requirements.
