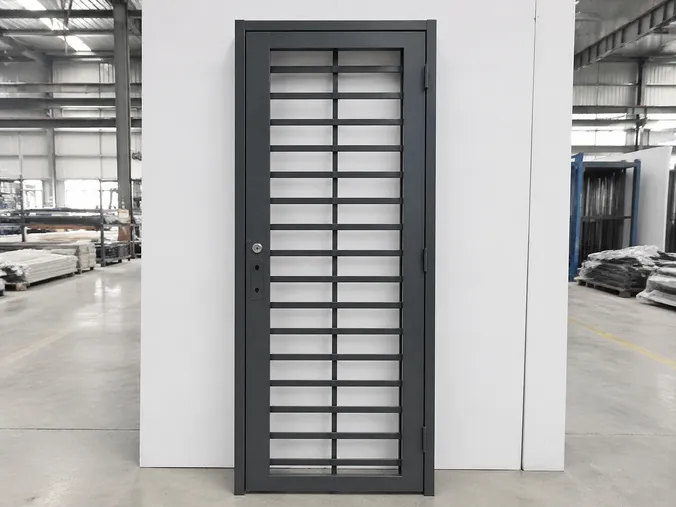

Security Grill Door Direct From Factory
Steel security grill doors — open airflow, full perimeter security, built for tropical and high-ventilation markets. Single and double-leaf configurations from our 18,000 m² facility in Henan, China. Factory-direct supply, OEM/ODM available.

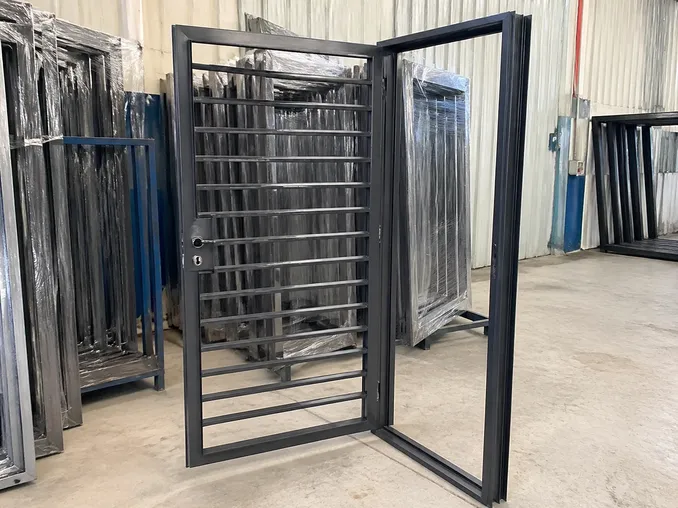

What a Security Grill Door Is — and Where It Fits in Your Catalog
A security grill door is a steel-framed door where the infill panel is an open grill pattern rather than a solid sheet. The frame carries the structural load and the lock hardware; the grill provides the physical barrier while allowing air to pass freely through the opening.
That combination — security performance plus unobstructed ventilation — is what defines the product's market position and why it moves in specific geographies and applications where a solid steel door would be the wrong spec.
Grill Door vs. Mesh Security Door
The distinction from our mesh security door is worth clarifying upfront: mesh doors use a fine expanded or welded wire infill that provides ventilation but limits visibility. Grill doors use heavier-gauge steel bars or flat bar patterns with larger open spacing.
- Heavier-gauge steel bars or flat bar
- Larger open spacing — more visible
- More architectural in appearance
- Stronger per bar than fine mesh
- Reads as substantial — visible architectural element
- Fine expanded or welded wire infill
- Provides ventilation but limits visibility
- Finer visual texture
- Lower security rating per bar
- Better for applications prioritizing privacy
If your buyer is choosing between the two, the decision usually comes down to aesthetics and the security rating they need: grill doors read as more substantial and are easier to specify for applications where the door is a visible architectural element.
Where This Product Moves
As a security door manufacturer since 2008, we've shipped grill door configurations to distributors across Southeast Asia, the Middle East, and Africa — the markets where this product consistently moves.
The demand pattern is predictable: warm climates, buildings without central air conditioning, and buyers who need a door that doesn't turn an entry into a heat trap.
Why Buyers Specify Grill Over Solid
Open grill pattern allows free air passage — critical for tropical climates and buildings without mechanical ventilation.
Steel frame carries structural load and lock hardware. The grill provides the physical barrier — security performance is not compromised by the open infill.
More visible and architectural in appearance than mesh. Easier to specify for applications where the door is a prominent design element.
Consistent demand across Southeast Asia, Middle East, and Africa. Predictable sell-through for distributors in warm-climate territories.

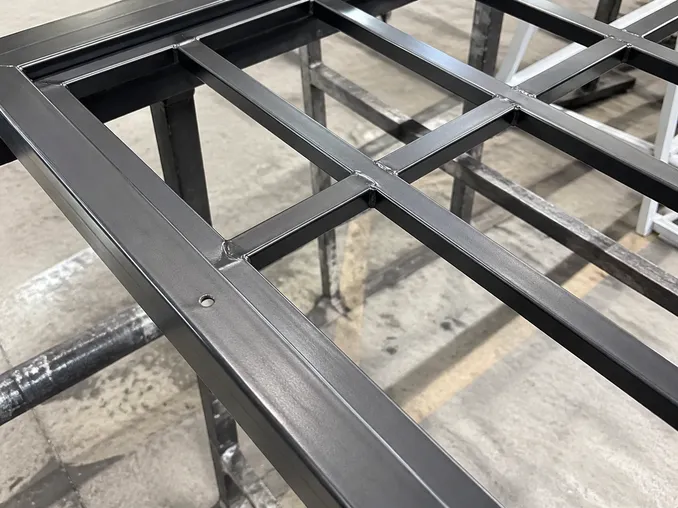

Steel Grill Construction: How We Build It
The structural logic of a grill door is different from a solid panel door, and the manufacturing decisions reflect that. On a solid door, the panel itself contributes to rigidity — the sheet steel acts as a stressed skin. On a grill door, the frame has to carry all the structural load because the grill infill doesn't contribute meaningfully to torsional stiffness.
Outer Frame
Cold-rolled SPCC steel, 1.5mm gauge
The outer frame is cold-rolled SPCC steel, 1.5mm gauge, formed into a box section profile. We account for the absence of panel rigidity by running heavier section on the frame members than we would on a comparable solid door.
Top and bottom rails are welded to the vertical stiles with full-penetration welds — not tack welds, which is where cheaper grill doors fail. This is the critical structural difference between a door that holds and one that doesn't.
Grill Infill
12mm × 4mm flat bar steel
The grill infill is fabricated from 12mm × 4mm flat bar steel, welded at every intersection point. We switched from round bar to flat bar on the standard configuration several years ago — flat bar gives a cleaner weld joint at the intersections and a more architectural appearance that our Middle Eastern buyers specifically requested.
Wider patterns also available for decorative applications where the security function is secondary.
Surface Treatment Process
Applied across the entire welded assembly. The pre-treatment step matters more on grill doors than on solid doors because there are more weld points — each intersection is a potential adhesion failure point if the pre-treatment doesn't reach it.
We run the assembled grill through the phosphate bath fully submerged, not sprayed, to ensure full coverage at every weld joint. This is the critical difference from spray-only pre-treatment lines.
Applied at 60–80μm thickness. Same process as our full security door range. Consistent film build across all bar surfaces and weld joints.
The threshold that matters for coastal and high-humidity accounts. Our surface treatment process is validated to this standard.
Construction Specification Summary
| Component | Specification | Notes |
|---|---|---|
| Outer Frame Material | Cold-rolled SPCC steel, 1.5mm gauge | Box section profile; heavier than comparable solid door frame |
| Frame Welds | Full-penetration welds | Rails to stiles; not tack welds |
| Grill Infill Bar | 12mm × 4mm flat bar steel | Welded at every intersection; flat bar preferred over round bar |
| Standard Grill Spacing | 100mm × 100mm clear opening | 80×80mm available for higher intrusion resistance |
| Pre-Treatment | Zinc phosphate, full submersion bath | Full assembly submerged — not sprayed; covers all weld joints |
| Topcoat | Electrostatic powder coat, 60–80μm | Passes 500-hour salt spray test |
Explore the Security Door Range
Technical Specifications
Standard values for this configuration. Actual specifications may vary by order. Contact us for detailed product data sheets and custom configuration quotes.
| Parameter | Standard Specification |
|---|---|
| Frame Material | Cold-rolled SPCC steel, 1.5mm gauge box section |
| Grill Infill Material | 12mm × 4mm flat bar steel |
| Grill Pattern Spacing | 100mm × 100mm clear (standard); custom spacing available |
| Door Leaf Thickness | 40–50mm overall frame depth |
| Standard Sizes (Single) | 800×2000mm, 900×2000mm, 960×2100mm, 1000×2100mm |
| Double Leaf Sizes | 1200×2000mm, 1500×2000mm, 1800×2100mm; custom widths available |
| Frame Gauge | 1.5mm cold-rolled steel |
| Frame Depth | 90–120mm (adjustable for wall thickness) |
| Surface Treatment | Zinc phosphate pre-treatment + electrostatic powder coat |
| Parameter | Standard Specification |
|---|---|
| Powder Coat Thickness | 60–80μm |
| Salt Spray Rating | 500 hours |
| Color Options | 60+ standard RAL colors; custom color matching available |
| Lock Options | Single-point deadbolt (standard); multi-point (3-point) available |
| Hinge Configuration | 3 hinges standard; 4-hinge on double-leaf configurations |
| Leaf Configuration | Single leaf or double leaf |
| Certifications | ISO 9001:2015 CE SGS |
| MOQ (standard) | 50 units |
| MOQ (custom) | 100 units |
Specifications shown are standard values for this configuration. Actual specifications may vary by order.
Request Specification SheetMarket Segments: Where Security Grill Doors Generate Repeatable Volume
The grill door's ventilation function defines its geography. This is not a product that moves evenly across all markets — it concentrates in specific climates and building types. Here's where the volume is.

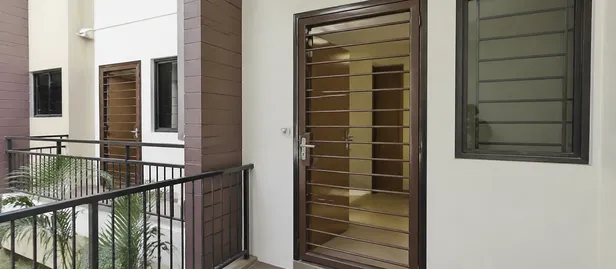

Tropical Residential Construction
Core Segment
Southeast Asia — Indonesia, the Philippines, Vietnam, Malaysia — and coastal West Africa are the primary markets. Residential developers specify grill doors for ground-floor entries, service entrances, and internal courtyard doors where airflow is a functional requirement.
A typical mid-rise residential project in this segment runs 100–300 grill door units alongside a larger quantity of solid security doors. Distributors who serve residential contractors in these markets can build a reliable reorder cycle — the spec tends to be standardized within a developer's portfolio once they've approved a supplier.

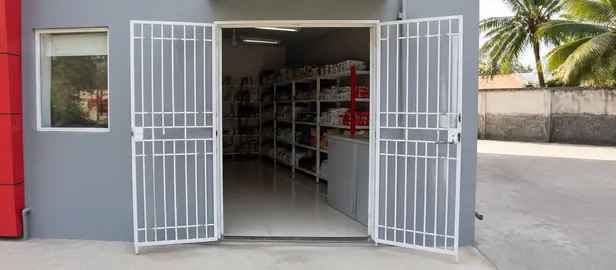

Commercial & Retail in Warm Climates
Double-Leaf Volume Driver
Shopfronts, market stalls, storage rooms, and back-of-house commercial entries in tropical markets use double-leaf grill doors as a standard closure — the door can be locked at night while still allowing air circulation during the day when the space is occupied.
Order patterns in this segment are smaller per project (20–80 units) but the segment is broad and the reorder frequency is high as commercial construction continues in Southeast Asia and Africa.

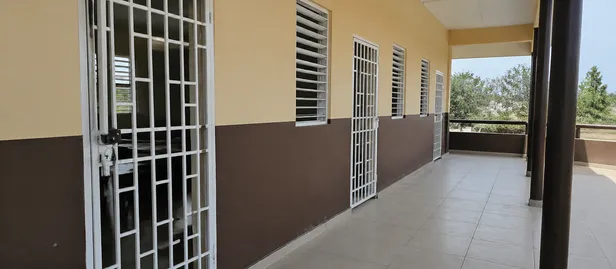

Institutional & Government Buildings
Longer Cycle, Larger Orders
Schools, clinics, government offices in tropical regions specify grill doors for corridors, storage rooms, and secondary entries. These buyers often work through government contractors or institutional procurement offices, which means longer sales cycles but larger and more predictable order quantities.
A single school project can run 50–150 grill door units. This segment has grown in West Africa over the past three years — worth building inventory depth if you're serving government contractors in that region.

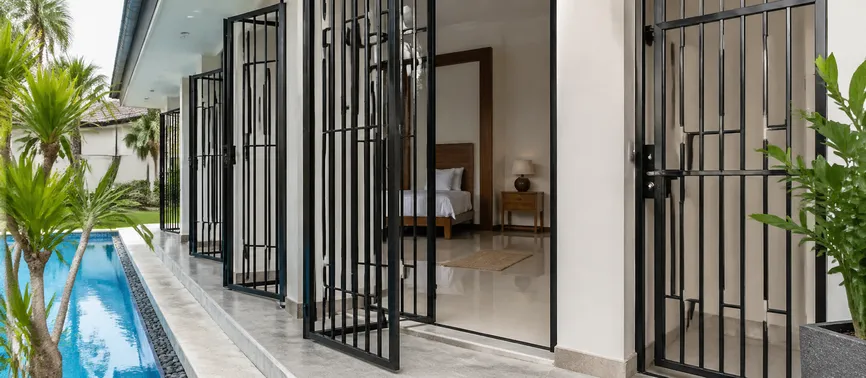

Hospitality & Resort Properties
Lower Volume, Higher Margin
Tropical destination properties use grill doors for villa entries, pool enclosures, and service corridors where the architectural appearance of the grill pattern is as important as the security function.
This is a lower-volume but higher-margin segment — buyers in hospitality are willing to pay for custom grill patterns and premium powder coat colors, and the per-unit value is meaningfully higher than standard residential.
Serving distributors in these markets?
We can provide market-specific product data sheets, container loading plans, and pricing tiers matched to your target segment.
Single Leaf vs. Double Leaf: Matching Configuration to Opening
The choice between single and double leaf is straightforward once you know the opening width, but it affects MOQ planning and container loading — both worth understanding before you commit to a SKU mix.

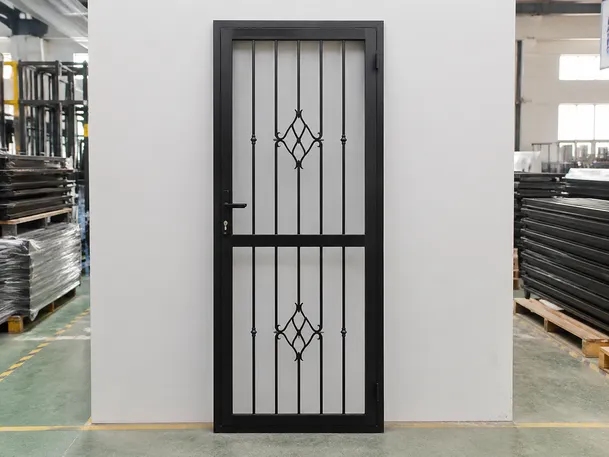

Single Leaf
Covers openings up to approximately 1,000mm wide. Standard residential and light commercial format — the most common SKU in most distribution catalogs.
Loads efficiently in KD flat-pack format. A 40HQ container holds approximately 220–260 sets for standard 900×2000mm single-leaf grill doors.
Better container utilization than solid doors of the same size — the grill infill is lighter than a solid panel.
Standard Size
900 × 2000mm
Container (40HQ)
220–260 sets

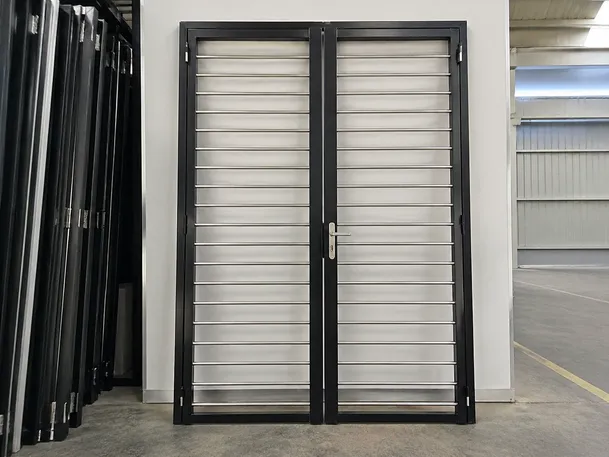

Double Leaf
Covers openings from 1,200mm to 1,800mm wide (standard range). Each leaf is independently hung and latched.
Astragal bar on the active leaf, flush bolt on the passive leaf. Standard spec for commercial shopfronts and institutional main entries in tropical markets.
Container loading approximately 120–160 sets per 40HQ depending on leaf width — the larger carton footprint reduces utilization compared to single-leaf.
Standard Size
1200 × 2000mm
Container (40HQ)
120–160 sets
Starter SKU Mix Recommendation
For a new market, stock 900×2000mm single-leaf as your primary SKU and 1200×2000mm double-leaf as your secondary. That covers the majority of residential and light commercial openings in most tropical markets.
Custom sizes are available at 100-unit MOQ.

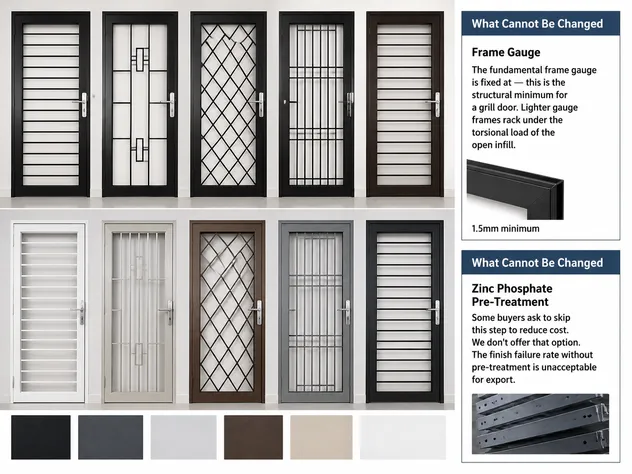

Customization: What Can Be Changed and What Can't
The grill door's open construction makes it more customizable than a solid panel door in some dimensions and less flexible in others. Here's the honest breakdown.
Grill Pattern
The most commercially significant customization. We can modify bar spacing, bar profile (flat bar, round bar, square bar), and pattern geometry (square grid, diamond, vertical bar only).
Process Note
Custom patterns require a 100-unit minimum and a tooling review. Some patterns that look straightforward in a drawing require jig fabrication that adds lead time. Send us a sketch or reference image — we'll confirm feasibility and tooling cost within 48 hours.
Size
Fully customizable within our press brake and welding equipment's capability. Non-standard sizes run at 100-unit MOQ.
Renovation Projects
For buyers sourcing for a specific project with non-standard rough openings, we can match the door size to the opening. This is common on renovation projects where the existing opening doesn't match standard dimensions.
Color
60+ standard RAL colors available. Custom color matching (Pantone or physical sample) is also available.
50 units
Standard RAL MOQ
100 units
Custom color MOQ
The powder line changeover cost is the constraint below 100 units on a non-standard color.
Lock Hardware
We can configure single-point deadbolt, 3-point multi-point lock, or supply the door prepped for a specific lock brand if you have an approved hardware supplier.
Factory Pre-Installation
Pre-installation at the factory is standard. We don't recommend field lock installation on grill doors — the frame alignment is set during factory assembly.
What Cannot Be Changed
Frame Gauge
The fundamental frame gauge is fixed at 1.5mm minimum — this is the structural minimum for a grill door. Lighter gauge frames rack under the torsional load of the open infill.
Zinc Phosphate Pre-Treatment
Some buyers ask to skip this step to reduce cost. We don't offer that option. The finish failure rate without pre-treatment is unacceptable for export.
| Customization | Options | MOQ | Notes |
|---|---|---|---|
| Grill Pattern | Flat bar, round bar, square bar; square grid, diamond, vertical bar | 100 units | Tooling review required; feasibility confirmed within 48 hrs |
| Size | Any size within press brake / welding capability | 100 units | Non-standard sizes; renovation project matching available |
| Color | 60+ standard RAL; Pantone / physical sample matching | 50 units (RAL) 100 units (custom) | Powder line changeover cost drives custom color MOQ |
| Lock Hardware | Single-point deadbolt, 3-point multi-point, brand-specific prep | Standard | Factory pre-installation standard; field install not recommended |
| Frame Gauge | Fixed at 1.5mm minimum | Not available | Structural minimum; lighter gauge racks under torsional load |
Certifications and Compliance for Your Target Markets
The security grill door carries EUWOO's standard certification package. These cover the compliance requirements for most of our active export markets — Southeast Asia, the Middle East, Africa, and Australia.
ISO 9001:2015
ISOQuality management system certification. Satisfies import compliance for most active export markets and is accepted as a baseline credential by North American buyers without a specific code requirement.
CE Marking
CECovers the door as a construction product under the relevant EU directives. Valid for EU buyers and markets that accept CE as an import compliance signal. Test reports available on request.
SGS Audit
SGSThird-party factory audit certification from SGS. Provides independent verification of manufacturing processes and quality controls. Reports available on request for buyer due diligence.
North American Buyers
US & CanadaThere is no single mandatory federal certification for security grill doors in the US or Canada. Most import compliance is satisfied by our ISO 9001:2015 and SGS certifications.
If your project or jurisdiction has a specific code requirement, send us the spec and we'll confirm whether our product qualifies.
EU & CE-Accepting Markets
CE RequiredOur CE marking covers the door as a construction product under the relevant EU directives. Test reports are available on request for buyers who need documentation for their import process or project specifications.
Markets that accept CE as an import compliance signal are covered by the same documentation package.
Material Compliance Note for Retail Channels
Our powder coat system is VOC-compliant and our steel sourcing meets RoHS material requirements. If your downstream market or retail channel — including Amazon or major home improvement retailers — requires material safety documentation, we can provide it.
This is increasingly a requirement for North American and European retail channels and worth confirming before your first container ships.

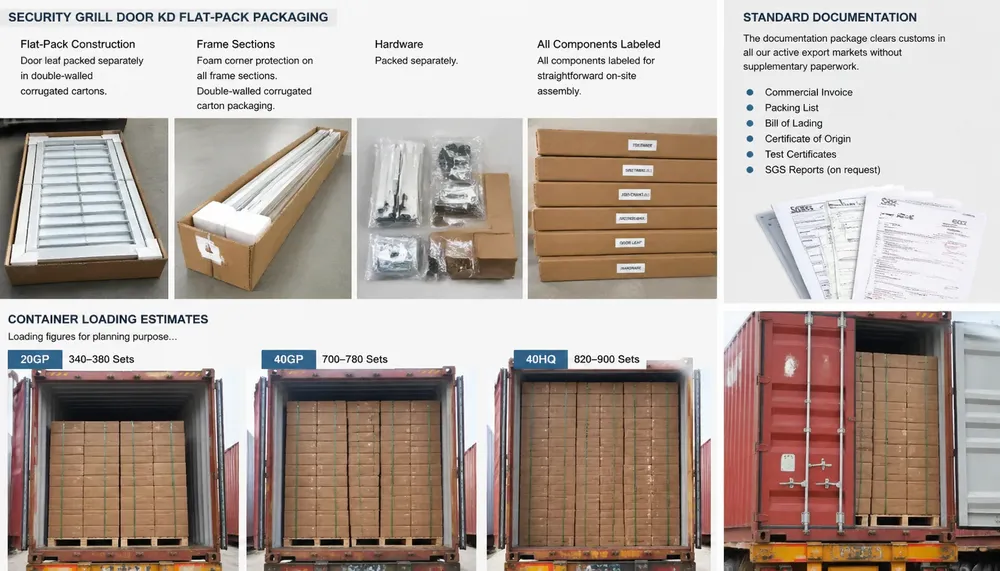

Packaging, Container Loading, and Landed Cost
Security grill doors ship in KD (knock-down) flat-pack format as standard. The grill infill is lighter than a solid panel — lower carton weight and a higher stacking limit per pallet, a practical advantage for warehouse handling at your end.
Flat-Pack Construction
Door Leaf
Packed separately in double-walled corrugated cartons.
Frame Sections
Foam corner protection on all frame sections. Double-walled corrugated carton packaging.
Hardware
Packed separately. All components labeled for straightforward on-site assembly.
Standard Documentation
The documentation package clears customs in all our active export markets without supplementary paperwork.
Container Loading Estimates
Loading figures for planning purposes. Actual figures depend on frame depth and hardware configuration — we provide exact loading calculations with every order confirmation.
Configuration
20GP
40HQ
Single Leaf
900×2000mm
90–110 sets
220–260 sets
Single Leaf
1000×2100mm
80–100 sets
200–240 sets
Double Leaf
1200×2000mm
40–55 sets
110–140 sets
Double Leaf
1500×2000mm
30–45 sets
90–120 sets
Estimates based on standard KD flat-pack. Exact loading calculations provided with every order confirmation.
Lead Times
Standard catalog configurations
25–35 days from deposit confirmation
Custom grill patterns or non-standard sizes
Add 7–14 days for tooling and first-article inspection
Buyer FAQs: Security Grill Door Sourcing
Common questions from importers, distributors, and project buyers — answered with the technical specifics you need to make a confident sourcing decision.
What steel specification should I require for a security grill door in a high-humidity coastal market?
Specify 1.5mm SPCC cold-rolled steel frame with zinc phosphate pre-treatment before powder coat — not iron phosphate, which is the cheaper alternative that fails above 300 hours salt spray. The grill infill should be 12mm × 4mm flat bar minimum; thinner bar profiles look similar in photos but deflect under lateral force. Ask your supplier for the salt spray test result — 500 hours is the threshold for coastal applications. Below that, you'll see finish failure within 12–18 months in high-humidity environments, which generates warranty claims from your downstream customers.
Security grill door vs. mesh security door: which is better for tropical residential distribution?
They serve different buyer needs. Grill doors have larger open spacing (typically 80–100mm clear), which gives better airflow and a more architectural appearance — preferred for main entries and visible facades. Mesh doors have finer infill (typically 20–50mm clear), which provides better intrusion resistance at the infill level and is preferred for secondary entries, storage rooms, and applications where the buyer wants to limit what can be passed through the door. For a residential distribution catalog in a tropical market, stocking both gives you coverage across the full range of applications. If you're starting with one SKU, grill doors move faster in the residential main entry segment.
What is the maximum custom size for a security grill door?
Our standard equipment handles single-leaf widths up to 1,200mm and heights up to 2,400mm. Double-leaf configurations can cover openings up to 2,400mm wide (two 1,200mm leaves). Beyond these dimensions, the frame section needs to be upsized to maintain rigidity — we can quote on oversized configurations but they require an engineering review. For most residential and commercial applications, standard sizes cover the full range of rough openings.
What MOQ applies to custom grill patterns?
100 units for any custom grill pattern that requires jig fabrication. If you want a modified version of our standard square grid — different spacing, different bar profile — and it can be produced on existing jigs, we can sometimes accommodate at 50 units. Send us the pattern spec and we'll confirm the MOQ and any tooling cost before you commit.
How do I verify a security grill door supplier is manufacturing in-house and not trading?
Ask for a factory video walkthrough showing the welding stations where grill infills are fabricated — this is the most labor-intensive step and a trading company can't fake it. Ask for the SGS audit report, which documents the facility and production process through third-party inspection. Also ask for a photo of the zinc phosphate pre-treatment tank — it's a significant capital investment that trading companies don't have. We offer factory video tours and have SGS audit reports available on request.

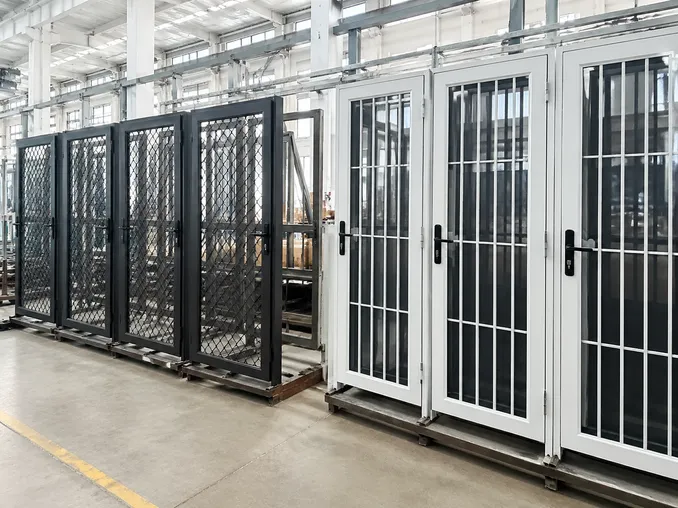

Source Security Grill Doors Direct from the Manufacturer
We've been manufacturing steel grill security doors for export since the early years of the business — the product has been refined through enough container shipments to tropical markets to know where the failure points are and how to engineer against them.
If you're evaluating whether our grill door fits your catalog or project spec, the fastest path is to send us your target configuration: opening size, single or double leaf, grill pattern preference, color, lock spec, and target volume. Our engineering team will review it and come back with a detailed quote and, for custom configurations, a 3D rendering. Most buyers in this category start with a 2–5 unit sample order to test with their own customers before committing to a container — we can ship samples on standard lead times.
Not sure which door fits your market?
Our mesh security door covers the finer-infill ventilation segment, and our steel security door is the right spec when ventilation isn't a requirement. We can help you spec the right SKU mix for your distribution catalog or project.
