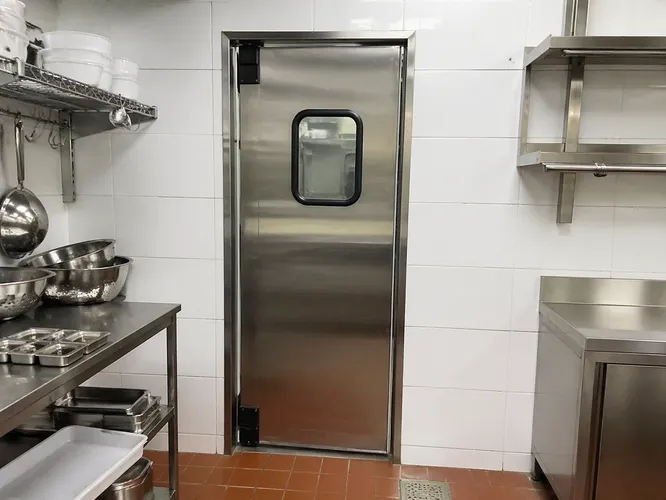

Restaurant Commercial Doors Built for Food Service
Stainless steel and galvanized restaurant commercial doors — built for food service environments where hygiene, cycle durability, and corrosion resistance are non-negotiable specs.
EUWOO manufactures food service doors direct from our Luoyang facility — 18+ years in commercial door production, ISO 9001:2015 and CE certified, with stainless and galvanized surface options that satisfy health authority requirements in your target markets.
What Makes a Restaurant Door Different from a Standard Commercial Door
Most commercial doors are engineered around structural performance and cycle durability. Restaurant commercial doors carry those same requirements — and add a layer that standard commercial lines don't address: the door surface is in a food-preparation environment, which means it faces daily chemical cleaning, steam exposure, grease accumulation, and health authority inspection.
The failure mode we see most often when buyers spec a standard powder-coated steel door into a commercial kitchen is surface degradation at the 18–24 month mark. Commercial kitchen cleaning chemicals — quaternary ammonium compounds, chlorine-based sanitizers, alkaline degreasers — attack standard powder coat at a pH range that the coating wasn't designed for. The finish starts lifting at edges and weld seams, which creates crevices that trap bacteria and fail health inspections. The door itself is structurally fine; the surface is the problem.
Our restaurant commercial doors address this at the material selection stage, not the coating stage. The two primary construction options are 304 stainless steel body panels and galvanized steel with a food-safe epoxy or polyester powder coat formulated for chemical resistance. Both options are specified based on the end application's cleaning protocol and the health authority requirements in your target market — we'll walk through the decision logic below.
We've shipped food service doors to commercial kitchen fit-out contractors in the Middle East and Southeast Asia for several years now. The spec conversation almost always starts with "what surface can we clean with [specific chemical]" — if you send us your cleaning protocol, we can confirm the right material choice before you commit.

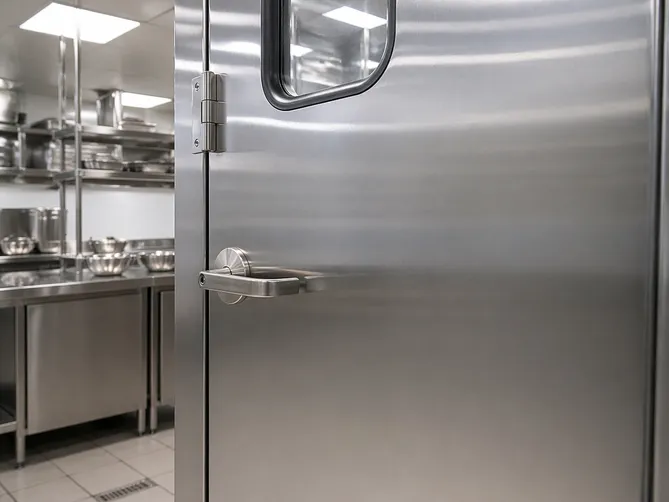

Chemical Attack
Quaternary ammonium, chlorine sanitizers, and alkaline degreasers degrade standard powder coat within 18–24 months.
Hygiene Failure
Lifted finish at edges and weld seams creates crevices that trap bacteria — a direct health inspection failure point.
Material-Level Fix
EUWOO addresses this at material selection — 304 stainless or food-safe chemical-resistant coating — not as an afterthought.
Technical Specifications
Request Spec Sheet| Parameter | Standard Option | Heavy-Duty / High-Hygiene Option |
|---|---|---|
| Body material | Galvanized steel (DX51D+Z, 0.8–1.0mm) | 304 stainless steel (2B finish, 1.0–1.2mm) |
| Frame material | Galvanized steel, 1.5mm minimum | 304 stainless steel, 1.5mm |
| Door thickness | 45mm (standard) | 50mm (available) |
| Standard leaf sizes | W700–1000mm × H1900–2200mm | Custom sizing available |
| Core fill | Honeycomb paper (standard) | Mineral wool (acoustic/fire upgrade) |
| Surface finish | Chemical-resistant polyester powder coat | Stainless 2B brushed or mirror polish |
| Hardware prep | ANSI / EN standard mortise lock prep | Stainless hardware available |
| Vision panel | Optional — tempered glass, stainless frame | Optional |
| Kick plate | Stainless steel kick plate, 300mm height | Full-height stainless cladding available |
| Hinge spec | 4-bearing stainless hinges, 89×89mm | Heavy-duty continuous hinge option |
| Swing configuration | Single-action or double-action (café swing) | Double-action with hydraulic closer |
| Fire rating | Non-rated standard; FD30/FD60 available | On request |
| Certifications |
ISO 9001:2015 CE SGS
|
— |
| MOQ | 50 units (standard) / 100 units (custom) | — |
Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets and confirmation of exact parameters.
Request a Spec SheetSurface Material Decision: Stainless Steel vs. Galvanized with Chemical-Resistant Coating
This is the question that determines your product's compliance profile in the end market, and it's worth getting right before you place an order.

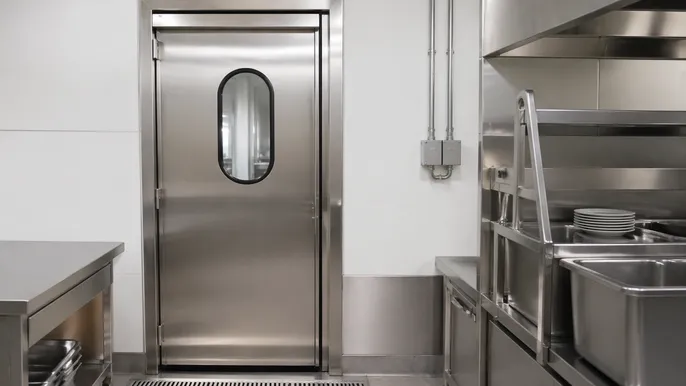

304 Stainless Steel
2B Finish — Ra ≤ 0.8μm surface roughness
The correct choice when the door will be in a zone classified as a food-contact or food-preparation area under local health codes — commercial kitchen pass-throughs, walk-in cooler doors, meat processing facility doors, and any application where the health authority inspector will be looking at the door surface as part of a hygiene audit.
- 2B finish Ra ≤ 0.8μm — doesn't harbor bacteria in surface micro-crevices
- Tolerates full range of commercial kitchen sanitizers without surface degradation
- Satisfies health authority hygiene audits in North America, Australia, and EU markets
- Keeps downstream customers compliant and warranty claims off your desk
Unit cost premium — justified for food-safety enforcement markets

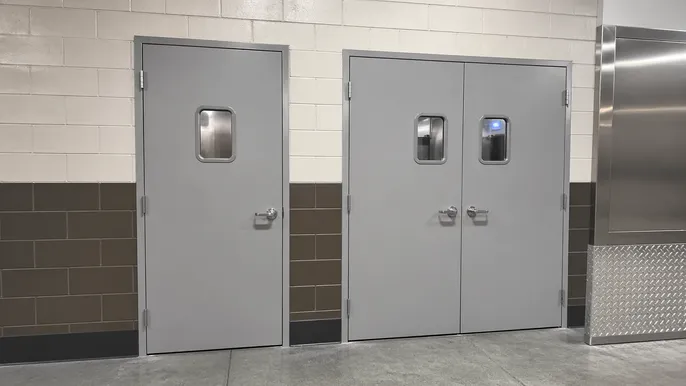

Galvanized + Chemical-Resistant Powder Coat
Polyester or epoxy powder coat — chemical-resistance formulated
The right call for food service applications that are adjacent to food preparation but not in direct contact zones — dining room doors, service corridor doors, back-of-house utility doors, and restaurant entrance doors. The galvanized substrate provides corrosion resistance at the base metal level.
- Galvanized substrate — corrosion resistance at the base metal level
- Polyester or epoxy powder coat handles routine cleaning without surface degradation
- Standard SKU stocked by most food service distributor partners
- Significantly lower price point than stainless — preferred for front-of-house volume
Non-contact zones — most distributor partners' standard SKU
Mixed Orders Ship Together — No Lead Time Penalty
We run both configurations on the same production lines, so mixed orders (stainless for kitchen zones, galvanized for front-of-house) ship together without lead time complications.
Market Segments: Where Restaurant Commercial Doors Generate Repeat Volume
Four buyer segments drive consistent reorder volume in this product category. Each has a distinct procurement pattern, spec profile, and order size range worth understanding before you build your distribution strategy.

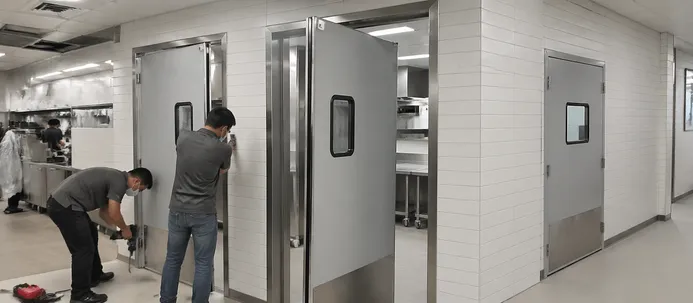

Commercial Kitchen Fit-Out Contractors
Highest-Volume ChannelA single restaurant build-out typically requires 8–20 doors across kitchen pass-throughs, walk-in cooler entries, dry storage, and back-of-house corridors. Contractors working on chain restaurant rollouts — fast food, casual dining, hotel F&B — order in batches of 50–200 units per project cycle.
The spec is consistent across locations, which means once you're qualified as a supplier for a chain's fit-out contractor, reorders follow the same spec without re-qualification. This segment has grown steadily in Southeast Asia over the past three years — regional restaurant chains expanding into secondary cities are a reliable source of repeat volume.

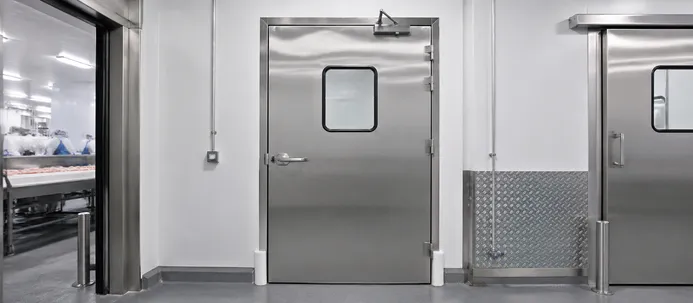

Food Processing & Cold Storage Facility Developers
Higher-Spec, Higher-MarginMeat processing plants, seafood processing facilities, and commercial cold storage operations require doors that meet HACCP facility design standards — stainless steel surfaces, no exposed fasteners that trap debris, self-closing mechanisms, and in some cases antimicrobial surface treatments.
Order volumes per project run 30–100 units, but the unit value is higher and the buyer is less price-sensitive than a restaurant fit-out contractor. If you're distributing into markets with active food processing investment (Southeast Asia, Middle East, Africa), this is a segment worth building a specific SKU for.
Hotel & Hospitality Back-of-House
Standardized Spec, Predictable ReorderLarge hotels run commercial kitchens, laundry facilities, and service corridors that require the same hygiene-grade door spec as standalone restaurants. A 300-room hotel typically needs 40–80 food service doors across its F&B and service infrastructure.
Hotel management companies that operate multiple properties across a region often standardize their fit-out spec, which creates a procurement pattern similar to chain restaurants — consistent spec, predictable reorder cycle, relationship-driven sourcing.
Institutional Food Service
Annual Budgets, Compliance-DrivenHospital cafeterias, university dining halls, and correctional facility kitchens operate on annual procurement budgets and often require compliance documentation — certifications, material safety data — as part of the bid process.
Our ISO 9001:2015 and CE certifications, combined with SGS audit reports available on request, satisfy most institutional procurement documentation requirements. Institutional buyers reorder on a predictable replacement cycle as facilities age.
Ready to Qualify for Your Target Segment?
Whether you're entering the chain restaurant fit-out channel or building a SKU for food processing facility developers, we can provide the spec sheet, compliance documentation, and sample units your procurement team needs to move forward.
Get a Quote for Your Target Market SegmentSegment Quick Reference
How We Build the Kitchen Door: Process Details That Affect Your Downstream Warranty Rate
The double-action café swing door has a specific failure mode that we've engineered against. Here's what we changed and why it matters to your warranty exposure.

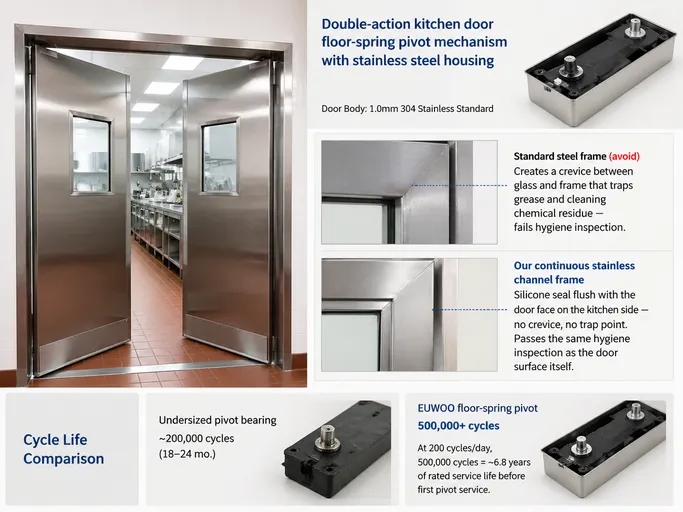

Pivot Bearing: The Core Failure Point
150–300 cycles/day in commercial kitchensThe pivot mechanism on a double-action door takes the full door weight on every cycle, in both directions. At 150–300 cycles per day, an undersized pivot bearing wears out in 18–24 months — generating lateral play that causes the door to drag on the floor seal and eventually fail to close fully.
Compliance risk: Health inspectors flag open gaps between kitchen and dining areas as a pest entry risk. This is a compliance issue, not just a maintenance issue.
Our Floor-Spring Pivot Specification
500,000-cycle minimum rating- Floor-spring pivot rated for 500,000 cycles minimum
- Stainless steel pivot housing resists corrosive cleaning environments
- Concealed overhead closer with adjustable closing speed and hold-open position
- Welded steel backing plate at pivot attachment points — load distributes across the panel, not concentrated at fastener holes
Door Body: 1.0mm 304 Stainless Standard
Why we moved up from 0.8mmWe run 1.0mm 304 stainless on the standard kitchen door configuration. We've tested 0.8mm — it's adequate structurally, but the thinner gauge shows surface deflection under impact from service carts. The dent doesn't affect function, but it fails a visual hygiene inspection because it creates a surface irregularity that's harder to clean.
Field note: We switched from 0.8mm after a batch of returns from a Gulf hotel project. The denting wasn't structural, but the hotel's hygiene auditor flagged it. We haven't had that complaint since. The 1.0mm spec holds flat under cart impact and wipes clean without surface trapping.
Vision Panel Frame Detail
Vision panels on kitchen pass-through doors are a common request, and the frame detail matters more than most buyers realize.
Standard steel frame (avoid)
Creates a crevice between glass and frame that traps grease and cleaning chemical residue — fails hygiene inspection.
Our continuous stainless channel frame
Silicone seal flush with the door face on the kitchen side — no crevice, no trap point. Passes the same hygiene inspection as the door surface itself.
Cycle Life Comparison
At 200 cycles/day, 500,000 cycles = ~6.8 years of rated service life before first pivot service.
Customization Options for Food Service Applications
Restaurant and food service buyers almost always have customization requirements — opening sizes in commercial kitchens are rarely standard, and the hardware spec varies by market and application.
Dimensional Customization
- Non-standard leaf widths: W600–1100mm
- Heights: H1800–2400mm
- Handled on press brake without dedicated tooling on runs of 100+ units
- Below 100 units: non-standard dimensions still available — economics discussed upfront
- Double-leaf configurations up to W2000mm combined, with center astragal seal

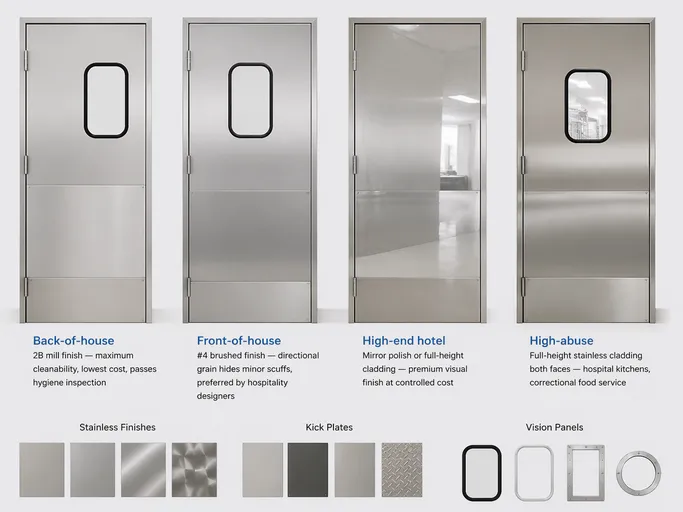

Surface & Finish Options
- 304 stainless, 2B mill finish (standard)
- 304 stainless, #4 brushed finish (front-of-house preferred)
- 304 stainless, mirror polish (high-end hospitality)
- Galvanized + chemical-resistant polyester powder coat (60+ colors; RAL custom on runs ≥100 units)
- Full-height stainless cladding on galvanized substrate (cost-effective alternative to full stainless)
Hardware Configurations
- Double-action floor spring with adjustable closing speed (standard kitchen)
- Single-action with overhead closer (service corridor & storage)
- Stainless steel kick plates, 300mm or 400mm height
- Vision panel with flush stainless frame and silicone seal
- Stainless lever handle or push/pull bar
- Magnetic door holder for hold-open positions
Kick Plate & Impact Protection
Stainless steel kick plates are standard on our food service line — 300mm height covers the impact zone from service carts and foot traffic.
High-abuse applications
For hospital kitchens and correctional facility food service, we offer full-height stainless cladding on both faces — effectively a stainless door at a lower cost than full stainless construction.
MOQ & Lead Time
- Free design consultation and 3D rendering included
- Send your opening schedule — detailed quote returned within 3 business days
- RAL custom colors available on runs ≥100 units
Finish Selection by Application
Practical guidance for specifiers
Compliance and Certification for Food Service Environments
Our ISO 9001:2015, CE, and SGS certifications cover manufacturing quality and structural performance. For food service applications, compliance extends into your end market's food safety and building codes — here's what applies by region.
North America
Commercial kitchen doors in the US and Canada fall under NSF/ANSI 2 (food equipment) for surfaces in food-contact zones, and local health department codes for kitchen design. Stainless steel 304 with a smooth, non-porous finish satisfies NSF/ANSI 2 surface requirements.
Our stainless doors are manufactured to these surface specifications. We can provide material certification (mill test reports confirming 304 grade) and surface finish documentation on request. For fire-rated kitchen doors, NFPA 80 compliance applies — we hold NFPA 80 certification on our fire-rated lines.
Middle East & Gulf
GCC food safety standards (GSO) and local municipality health codes govern commercial kitchen design in Gulf markets. Stainless steel surfaces are the standard specification for kitchen zones, and our CE certification is recognized in most GCC import documentation requirements.
SGS audit reports are available for buyers who need third-party documentation for their import compliance files.
Southeast Asia & Australia
Food safety regulations in these markets — Australia's Food Standards Code, Singapore's NEA requirements, Malaysia's Food Act — specify smooth, impervious, and easily cleanable surfaces for food preparation areas. Our stainless 2B finish meets these surface requirements.
CE marking is accepted as a conformity reference in most Southeast Asian markets, simplifying import documentation across the region.
Need compliance documentation for your import file?
Mill test reports, surface finish documentation, SGS audit reports, and CE certificates available on request.

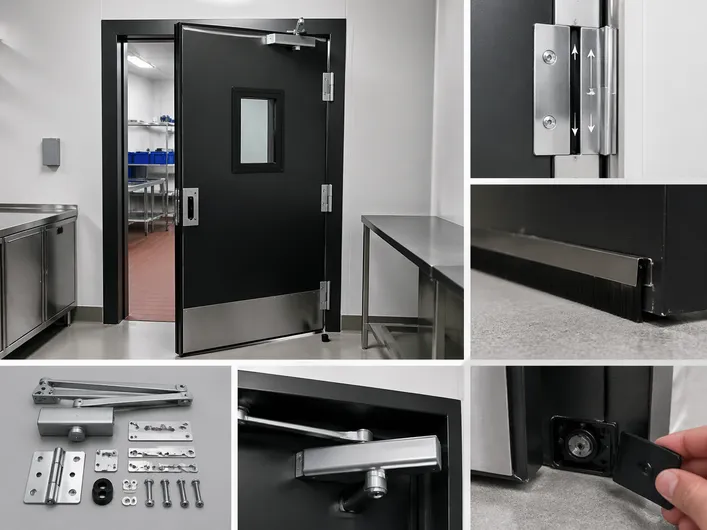

Installation Considerations That Affect Your Total Cost of Ownership
Details that experienced buyers factor into their sourcing decision — and that directly affect the warranty claim rate after installation.
Frame-to-Opening Fit
Masonry & Concrete Block WallsCommercial kitchen openings are often in masonry or concrete block walls, and rough opening dimensions are rarely precise. Our door frames are manufactured with a 10mm adjustment range on each side, which accommodates typical masonry tolerance without shimming or cutting.
Frames ship with a temporary spreader bar to maintain squareness during transit and installation. Remove it after the frame is set in the opening — not before.
Floor Seal Clearance
Double-Action Swing ArcDouble-action kitchen doors need a floor seal that maintains contact through the full swing arc. We supply a brush-type floor seal as standard — it maintains contact on uneven floors and doesn't create a trip hazard.
For cold storage applications where an airtight seal is required, we offer a drop-seal mechanism that deploys when the door closes and retracts when it opens.
Hardware Pre-Installation
Pre-Hung vs. Flat-Pack KDWe can ship doors pre-hung with hardware installed and adjusted — hinges set, closer adjusted to the specified closing speed, vision panel glazed. Pre-hung assemblies reduce on-site installation labor significantly, which matters in markets where skilled installation labor is expensive.
The trade-off is a 30–35% reduction in container loading density versus flat-pack KD. For most food service fit-out projects, the labor saving justifies the freight premium — but it depends on your market's labor cost profile.
Pre-Hung
Lower install labor
−30–35% container density
Flat-Pack KD
Max container density
Higher on-site labor cost
Maintenance Access
3–5 Year Post-InstallationThe floor spring pivot on double-action doors requires periodic adjustment as spring tension changes with use. We design the pivot housing with a removable access cover so the spring can be adjusted or replaced without removing the door from the opening.
This is a detail that matters to facility managers 3–5 years post-installation, and it's the kind of thing that generates positive word-of-mouth from your downstream customers.
Installation Summary
Four Details That Reduce Post-Installation Claims
- 10mm frame adjustment range — no shimming or cutting in masonry openings
- Brush-type floor seal standard — full-arc contact, no trip hazard; drop-seal upgrade for cold storage
- Pre-hung option available — hardware set, closer adjusted, vision panel glazed before shipping
- Removable pivot access cover — spring adjustment without door removal, 3–5 year serviceability
Frequently Asked Questions
Specification and procurement questions we answer regularly for distributors, contractors, and facility buyers.
What is the difference between a restaurant commercial door and a standard commercial steel door?
The core difference is surface specification and hardware configuration. A standard commercial steel door uses SPCC cold-rolled steel with standard powder coat — adequate for most commercial applications but not designed for the chemical cleaning environment of a commercial kitchen. Restaurant commercial doors use either 304 stainless steel or galvanized steel with a chemical-resistant coating, and are configured with double-action swing hardware, stainless kick plates, and vision panels with hygiene-compliant frames. The surface spec is what determines whether the door passes a health authority inspection in a food service environment.
What stainless steel grade should I specify for a commercial kitchen door?
304 stainless (18/8 chromium-nickel) is the standard specification for commercial kitchen doors and satisfies food safety surface requirements in North America, Australia, the EU, and most Gulf markets. 316 stainless (with molybdenum addition) offers better resistance to chloride-based sanitizers and is the correct spec for seafood processing, coastal food production facilities, and any application where the cleaning protocol uses high-concentration chlorine compounds.
18/8 chromium-nickel. Satisfies food safety surface requirements in North America, Australia, EU, and most Gulf markets. Sufficient for the majority of restaurant applications.
Molybdenum addition for chloride resistance. Correct spec for seafood processing, coastal facilities, and high-concentration chlorine sanitizer protocols. ~20–30% cost premium over 304.
The cost premium for 316 over 304 is approximately 20–30%. For most restaurant applications, 304 is sufficient. If your buyer is in seafood processing or uses aggressive chlorine sanitizers, specify 316.
Can restaurant commercial doors be fire-rated?
Yes. We offer FD30 and FD60 fire-rated configurations on our restaurant commercial door line, using mineral wool core fill and intumescent seals. The fire-rated configuration is compatible with stainless steel surface cladding, so you can meet both fire code and food safety surface requirements in the same door assembly.
This is a common requirement for commercial kitchen doors that are also fire compartment boundaries — hotel kitchens and hospital food service areas frequently require this combination. Confirm the required fire rating with the project's fire engineer before ordering.
What is the MOQ for custom-sized restaurant commercial doors?
Standard catalog configurations
Non-standard dimensions, custom finishes, or custom hardware configurations
Below 50 units — qualification samples at higher per-unit cost
Send us your opening schedule and target configuration; we'll confirm the MOQ and lead time for your specific requirement.
How do I prevent corrosion on galvanized restaurant doors in high-humidity kitchen environments?
The galvanized substrate handles base metal corrosion well, but the weak points are cut edges and fastener holes where the zinc coating is interrupted. Our manufacturing process applies a zinc-rich primer to all cut edges before powder coating, which extends the corrosion barrier to the most vulnerable points.
Coating Chemistry Matters
For the powder coat itself, specify a chemical-resistant polyester or epoxy formulation — standard TGIC polyester degrades under repeated exposure to alkaline degreasers.
Supplier Qualification Check
Ask your supplier specifically about their edge treatment process and coating chemistry. If they can't answer both questions, the door probably won't hold up in a commercial kitchen environment.
Other Commercial Doors Worth Considering
If restaurant commercial doors aren't the right fit for your specific application, these sibling products may be closer to what you need.
Heavy Duty Commercial Doors
For food processing or industrial facilities requiring impact-resistant construction beyond standard restaurant spec. Reinforced frame and panel construction rated for forklift-adjacent environments.
View ProductSecurity Commercial Doors
For restaurant or hospitality back-of-house applications where access control is a requirement alongside hygiene spec. Combines multi-point locking with commercial-grade construction.
View ProductSliding Commercial Doors
Where swing clearance is a constraint in tight kitchen layouts, sliding commercial doors eliminate the swing arc entirely. Available in stainless steel for food service environments.
View ProductDouble Commercial Doors
For wide kitchen pass-throughs or main service corridor openings requiring double-leaf configuration with center astragal seal.
View ProductLooking for a different configuration? Browse the complete range to find the right door for your application.
View Full Commercial Door RangeGet a Quote for Restaurant Commercial Doors
Most food service buyers start with a sample order — 2–4 units across the configurations you're considering (stainless kitchen door, galvanized service corridor door) — to test against your project spec or show your downstream customers before committing volume. We can ship samples within the standard lead time on catalog configurations.
What to Include in Your Inquiry
Send us your opening schedule, target market, and the cleaning protocol your end customers use. Our engineering team will confirm the right surface spec, send back a 3D rendering of the configuration, and include a detailed quote with container loading calculations for your destination port.
-
Opening Schedule Door count, sizes, swing direction, and frame type per opening
-
Target Market Destination country, end-use segment (QSR, institutional, hospitality)
-
Cleaning Protocol Chemical agents, frequency, and pressure-wash exposure your end customers use
-
What You Get Back Surface spec confirmation, 3D rendering, detailed quote with container loading calculations
Contact Our Sales Team
Sample orders ship within the standard lead time on catalog configurations. Test against your project spec or show downstream customers before placing a full container order.
Explore More Commercial Door Solutions
