Glass Steel Door — Steel Frame Precision, Glass Panel Versatility
Factory-direct glass steel doors built for commercial and architectural projects — steel body rigidity with configurable glass panel options.
Sourced direct from our 18,000 m² Luoyang facility. Every unit passes 5-stage QC before it loads into your container.
What a Glass Steel Door Is — and Where It Sits in Your Product Line

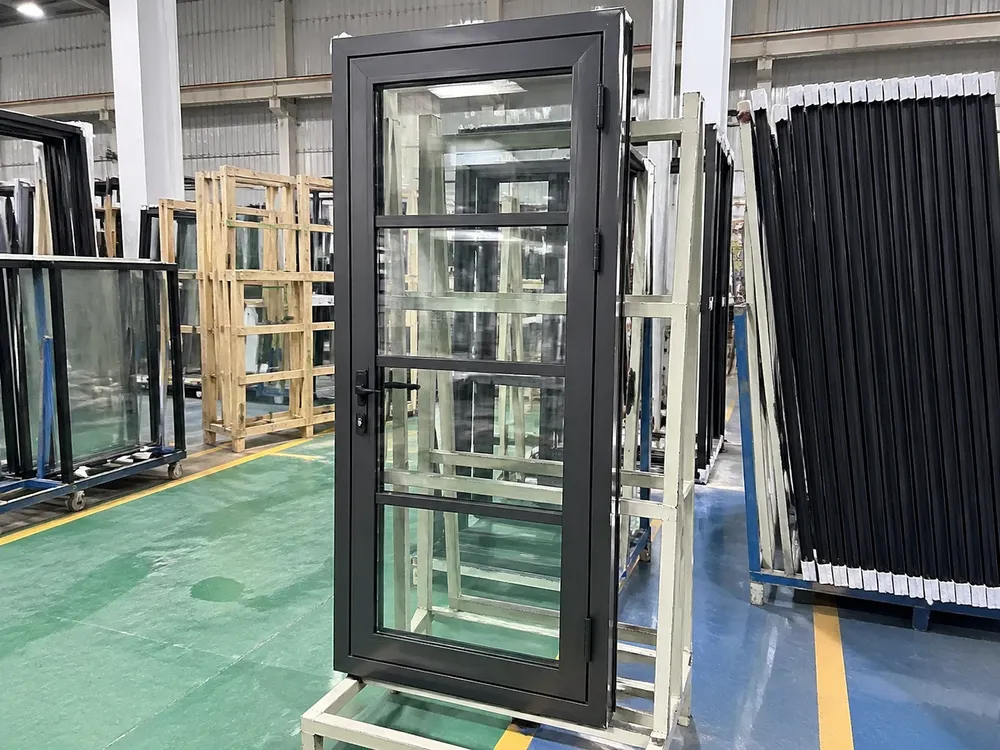

A glass steel door combines a cold-rolled steel body — frame, leaf, and reinforcement channels — with one or more glazed panels set into the door leaf. The steel structure carries the load and provides the dimensional stability buyers expect from a steel door. The glass panel introduces light transmission and visual openness that a solid steel door can't offer, which opens up a different set of project types and end-user specifications.

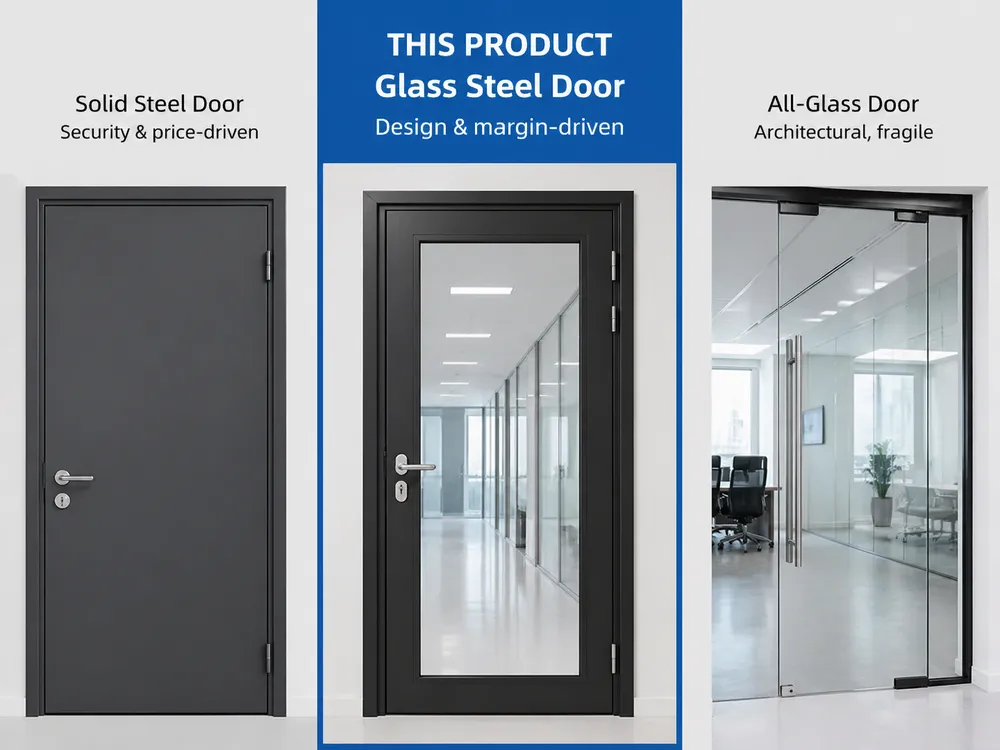

This product sits between a fully solid steel security door and an all-glass architectural door. It's not trying to be either. The steel frame gives you the weld integrity, hinge load capacity, and dimensional consistency of our standard steel door line. The glass insert is a design and functional variable — size, position, glass type, and framing profile can all be configured to match your project spec or your downstream customer's aesthetic requirement.
For your product line, that positioning matters commercially. Solid steel doors sell on security and price. Glass steel doors sell on design flexibility and light — they command a higher per-unit price point in most markets, and the customization angle gives you a reason to hold margin rather than compete purely on cost.
We see this consistently with our Middle East and Southeast Asia distributors — glass panel variants typically retail 20–35% above equivalent solid-panel models in the same door series. The customization angle gives you a reason to hold margin rather than compete purely on cost.
Technical Specifications
These are industry-standard values for this product type. Actual specifications vary by configuration — contact us for a detailed product data sheet on your specific requirement.
| Parameter | Standard Specification |
|---|---|
| Door leaf thickness | 45mm (typical) |
| Steel body gauge | 1.0–1.2mm SPCC cold-rolled steel |
| Frame material | 1.2–1.5mm SPCC cold-rolled steel |
| Standard door sizes | W700–1000mm × H2000–2200mm (single leaf) |
| Double leaf sizes | W1200–1800mm × H2000–2400mm |
| Glass panel options | Clear float, frosted, tempered, laminated, wired |
| Minimum glass thickness | 5mm tempered (standard); 6.38mm laminated (available) |
| Glass panel position | Upper third, full-length sidelight, centered insert, custom |
| Surface finish | Powder coat, 60+ RAL colors, 60–80μm film thickness |
| Hardware | Mortise lock, 3-hinge configuration (standard); multipoint lock available |
| Fire rating | Non-rated standard; FD30/FD60 fire-rated glass door available on request |
| Weight (single leaf, typical) | 35–55kg depending on glass panel size and configuration |
Gauge Selection Note
We run the door panel at 1.0mm minimum on the glass steel door line — thinner than that and the rebate profile around the glass insert loses its edge definition after powder coating. The 1.2mm option is our recommendation for any application where the door sees regular traffic.
Fire-Rated Option
FD30 and FD60 fire-rated glass door configurations are available on request. Specify at order stage — fire-rated glass and intumescent seals are sourced and fitted at the factory, not retrofitted.
Weight Range
Single leaf units run 35–55kg depending on glass panel size and configuration. Factor this into your hinge spec and installation labor cost when quoting downstream.

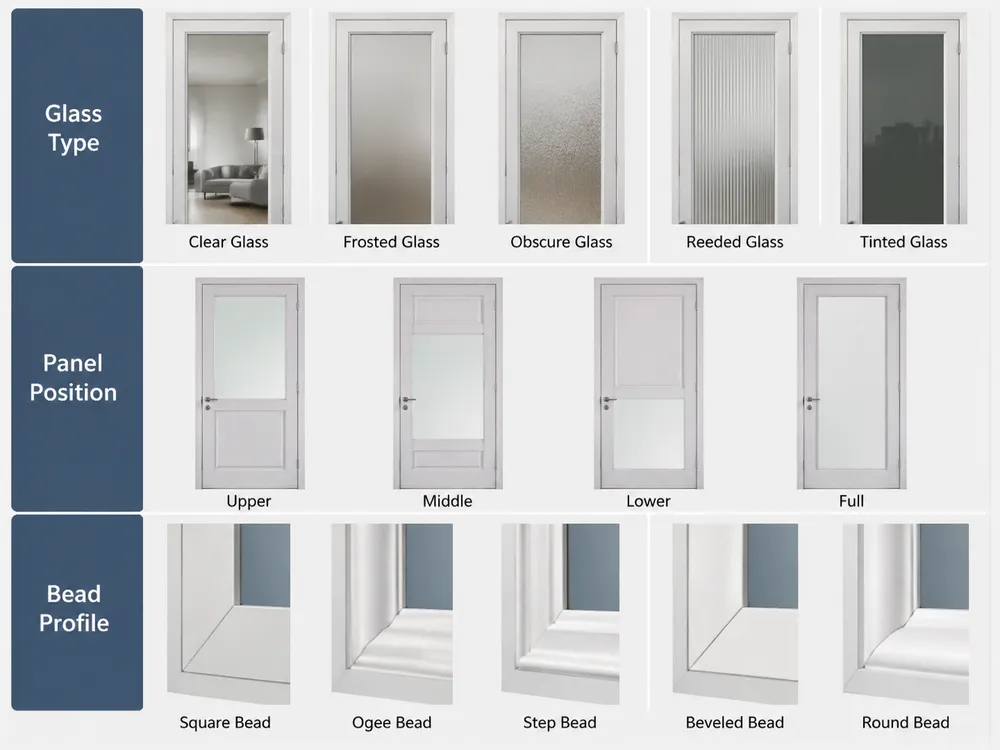

Glass Panel Configuration: The Variable That Drives Your Margin
The glass insert is where this product's commercial flexibility lives. Understanding the configuration options in detail before you spec an order determines both your price point and your application fit.
Glass Type Selection
- Clear float glass — entry-level option for interior office partitions and low-traffic corridors where security is not a concern.
- Tempered glass (min. 5mm) — standard recommendation for exterior or high-traffic applications. Four to five times stronger than annealed glass; breaks into small blunt fragments rather than large shards.
- Frosted and patterned glass — privacy layer without blocking light. Moves well in hospitality, healthcare, and office fit-out projects.
- Laminated glass (6.38mm min., two plies) — specification for forced-entry resistance or acoustic performance. Interlayer holds glass in frame even after impact.
Panel Size and Position
Panel size and position affect both the door's structural integrity and its visual weight.
Structural Limit
Maximum glass panel area is set at ~40% of the door leaf surface on standard configurations. Beyond that, the steel frame sections between glass and door edge become too narrow to maintain rigidity under hinge load.
Important Note
Buyers pushing for larger glass areas are accommodated, but we recommend a heavier frame gauge when panel area exceeds 35%. We're honest about the structural trade-off.
Full-length sidelights — a narrow glass panel running the full door height on one side — are popular for reception and lobby applications. They maximize light without compromising the central lock zone.
Glass Framing Profile
The detail most buyers overlook until they're in the field. The glass is set into a steel rebate channel welded into the door leaf, then secured with a glazing bead on the interior face.
Flat bead profile
Clean, flush finish
Stepped bead profile
Defined shadow line
Radius bead profile
Softer, architectural finish
The bead profile affects finished appearance and ease of glass replacement in the field. Custom profiles available on runs of 100+ units.
Build a Product Line Without Tooling Investment
For buyers building a product line around glass steel doors, the configuration matrix — glass type × panel position × bead profile — is where you create SKU differentiation without tooling investment.
We can produce multiple configurations off the same base door body, which keeps your inventory logic simple.
Application Segments and the Commercial Logic Behind Each
Each segment has its own procurement logic, specification cycle, and volume profile. Understanding these differences helps you prioritize where to build relationships and how to position the product.

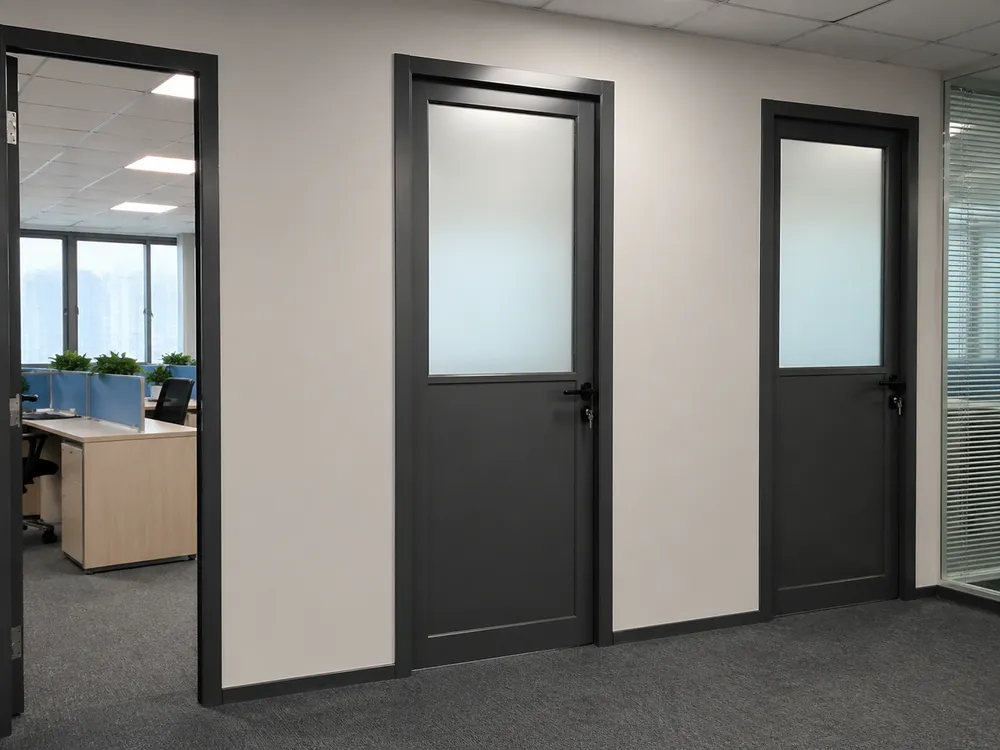

Commercial Office and Corporate Fit-Out
Office fit-out is the highest-volume segment for glass steel doors in most markets. Interior office doors with upper-panel frosted glass are a standard specification in open-plan office builds — they provide visual separation between spaces while maintaining the open feel that modern office design requires.
80–200
Interior doors per mid-size office building
Significant share
Glass panel variants of total door count
Repeatable reorders
Tied to construction cycles
For distributors supplying fit-out contractors, this is a repeatable, project-driven segment with predictable reorder patterns tied to construction cycles.
Hospitality: Hotels, Serviced Apartments, and Resorts
Hotel corridor doors are a high-volume, specification-driven segment. Full-panel or upper-panel glass inserts in hotel room doors are common in mid-to-upper tier properties — they signal design quality and allow housekeeping to check room status without a key.
200–250
Door sets per 200-room hotel including connecting doors and service entries
Commercial Priority
Specification is locked at the design stage. Winning the spec early is the key commercial move in this segment.
This segment has grown significantly in the Gulf and Southeast Asia over the past three years. Worth building relationships with hospitality fit-out contractors if you're in those markets.

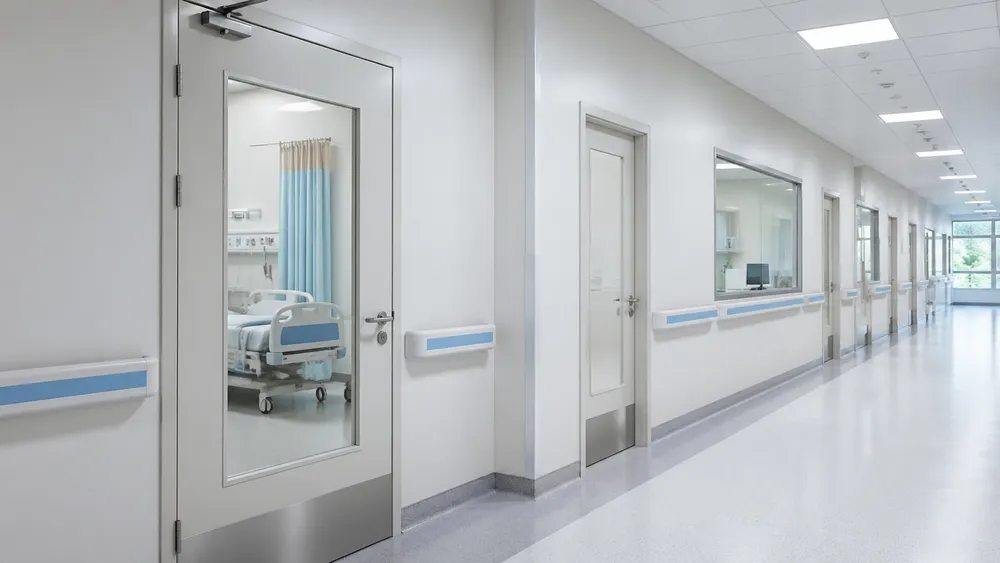

Healthcare and Education Facilities
Hospitals and clinics use glass panel doors extensively in corridor and ward applications — clinical staff need visual access to patient areas without opening doors. The specification here typically requires tempered or wired glass and a door body that can withstand frequent trolley and equipment contact.
Schools and universities use glass panel doors in classroom and administrative areas.
Procurement Profile
Both segments operate on institutional procurement cycles — large orders, longer lead times, but predictable and repeatable. For distributors with public-sector relationships, these are high-volume, low-churn accounts.

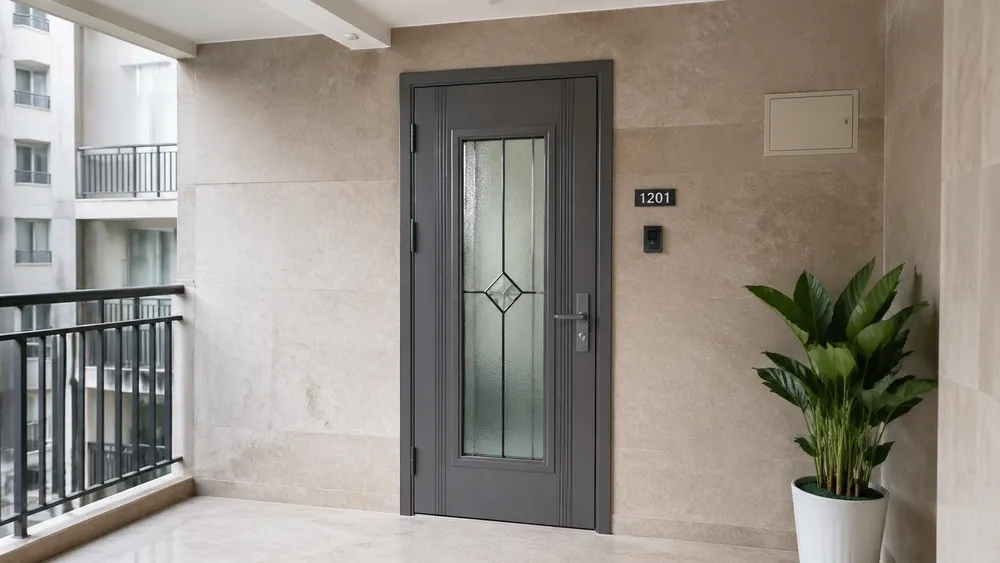

Residential Compound and High-End Apartment Entry
In markets where steel doors are the standard for apartment entry — the Middle East, Southeast Asia, parts of Africa — glass panel variants serve the upper-tier residential segment. A frosted or decorative glass insert on an apartment entry door signals a premium product and supports a higher retail price point.
Specification Win Logic
Residential compound developers typically specify 1–2 door models across an entire project. A single specification win translates to hundreds of units.
Office Fit-Out
80–200 doors per project. Repeatable reorder cycles.
Hospitality
200–250 door sets per hotel. Win the spec early.
Healthcare & Education
Institutional cycles. High volume, low churn.
Residential Compound
1–2 models per project. Hundreds of units per spec win.
Explore related product lines for your target segment — from standard steel doors to specialist industrial and interior variants.
Customization Parameters and MOQ
Glass steel doors are one of our more customizable product lines — the base manufacturing process accommodates a wide range of configuration changes without requiring dedicated tooling for most options.
| Customization Dimension | Options | MOQ Impact |
|---|---|---|
| Door size | Width 700–1200mm, height 2000–2400mm (single leaf) | No MOQ change for standard size range |
| Glass type | Clear, frosted, tempered, laminated, wired, decorative | No MOQ change for standard glass types |
| Glass panel position | Upper, center, full-length, sidelight, custom layout | Custom layout: 100 units minimum |
| Frame profile | Standard, slim-line, heavy-duty | Slim-line and heavy-duty: 100 units minimum |
| Surface finish | 60+ RAL powder coat colors | No MOQ change within standard color range |
| Custom color (RAL match) | Any RAL color | 100 units minimum (powder line changeover) |
| Hardware | Mortise lock, multipoint lock, panic bar, electric strike | Hardware upgrades: no MOQ change |
| OEM/private label | Brand name, logo, custom packaging | 100 units minimum |
| Fire-rated configuration | FD30, FD60 with fire-rated glass | Quoted individually |
Standard Catalog Configurations
Start at 50 units. Covers all standard sizes, standard glass types, standard frame profiles, and any of the 60+ RAL powder coat colors.
Custom & Private-Label Programs
Start at 100 units. Applies to custom glass layouts, slim-line or heavy-duty frame profiles, custom RAL color matches, and OEM/private-label packaging — where powder line changeover and any custom tooling cost makes sense for both sides.
OEM Buyers: Private-Label Door Line
For OEM buyers building a private-label door line, our R&D team handles the design consultation at no charge. Send us your target spec or a reference product — we'll come back with a 3D rendering and a detailed quote within 15–20 working days.

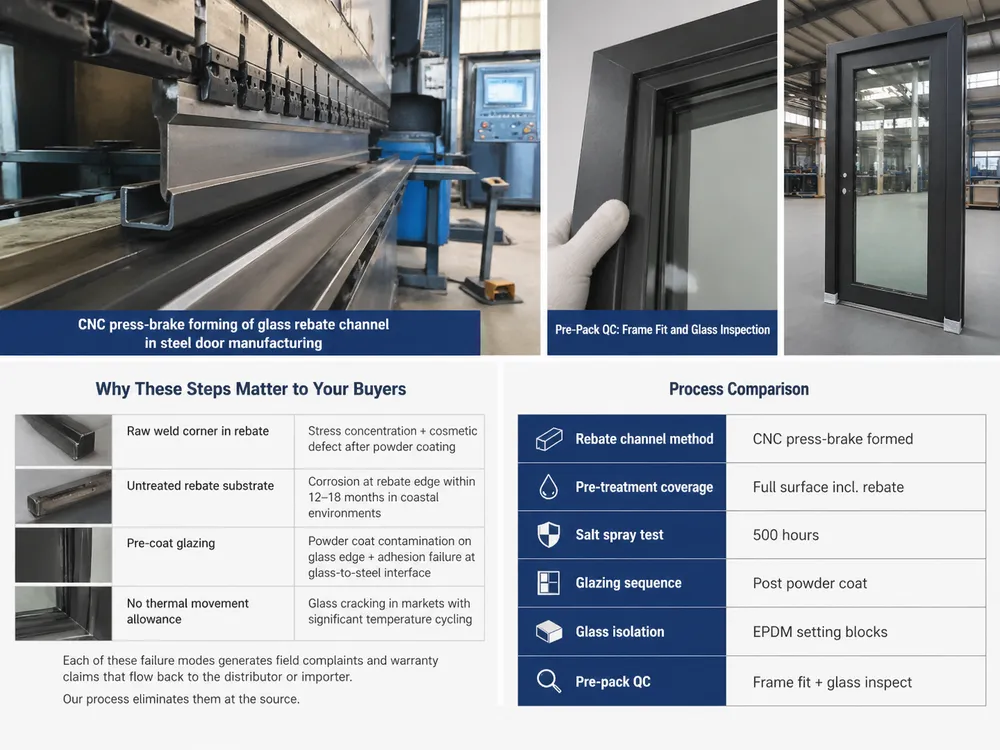

How We Build the Glass Insert: Process Details That Affect Your Product Quality
The glass panel integration is the manufacturing step that separates a well-built glass steel door from a product that generates field complaints. Here's what we do differently and why it matters for your downstream customers.
CNC Press-Brake Formed Rebate Channel
The glass rebate channel is CNC press-brake formed as part of the door leaf blank — it's not a secondary weld-in insert. Forming the rebate into the panel blank means the channel geometry is consistent across every door in the batch, and there's no weld seam inside the glass zone that could telegraph through the powder coat finish.
After forming, the rebate edges are deburred and the corners are TIG-welded and ground flush before the door goes to pre-treatment. This is the step most factories skip — leaving a raw weld corner inside the rebate is faster, but it creates a stress concentration point and a cosmetic defect that shows up after powder coating.
Full-Surface Zinc Phosphate Pre-Treatment
The zinc phosphate pre-treatment covers the full door body including the interior of the rebate channel. This matters because the rebate is a moisture trap in exterior applications — if the substrate isn't properly treated before coating, you'll see corrosion starting at the rebate edge within 12–18 months in coastal or high-humidity environments.
Our 500-hour salt spray test result covers the full door surface, including the rebate zone.
Post-Coat Glazing with EPDM Setting Blocks
Glass is installed after powder coating, not before. Some manufacturers glaze before coating to save a handling step — the result is powder coat contamination on the glass edge and adhesion failure at the glass-to-steel interface.
We glaze post-coat, set the glass on EPDM setting blocks to isolate it from direct steel contact, and secure it with the glazing bead. The EPDM blocks also provide a small amount of thermal movement accommodation, which prevents glass cracking in markets with significant temperature cycling.
Pre-Pack QC: Frame Fit and Glass Inspection
Every completed door is test-fitted with its frame and the glass panel is checked for rattle, gap consistency around the bead, and surface condition before packing. Glass panels that show any edge chipping or surface defect are replaced — they don't get packed.
Why These Steps Matter to Your Buyers
Raw weld corner in rebate
Stress concentration + cosmetic defect after powder coating
Untreated rebate substrate
Corrosion at rebate edge within 12–18 months in coastal environments
Pre-coat glazing
Powder coat contamination on glass edge + adhesion failure at glass-to-steel interface
No thermal movement allowance
Glass cracking in markets with significant temperature cycling
Each of these failure modes generates field complaints and warranty claims that flow back to the distributor or importer. Our process eliminates them at the source.
Process Comparison
Certifications and Compliance for Your Target Markets
EUWOO holds ISO 9001:2015, CE, SGS, and NFPA 80 certifications across our steel door production. Here is what each certification covers for glass steel doors specifically, and what you need to specify at the order stage.
CE Certification
Covers the structural door assembly for European market import. If your buyers are in the EU or markets that reference EN standards, the CE mark on the door assembly is your compliance baseline.
SGS audit reports are available on request for buyers who need third-party documentation for their own import files.
ISO 9001:2015
Quality management system certification covering our full steel door production process. Applies to all glass steel door configurations.
Certification documentation available with shipment on request.
Fire-Rated Configurations
FD30 and FD60 fire-rated glass door options are available. These use fire-rated glazing — typically borosilicate or intumescent-interlayer laminated glass — and a fire-rated door body.
NFPA 80 documentation available for fire-rated configurations. Confirm fire rating requirement at inquiry stage — these are quoted and documented separately.
Glass Panel Compliance by Market
Tempered glass panels in our standard configurations meet EN 12150 (European) and GB 15763.2 (Chinese national standard) for thermally toughened safety glass. These are covered in standard configurations without additional specification.
For North American projects requiring ANSI Z97.1 or CPSC 16 CFR 1201 compliance on the glass component, specify this at the order stage. We source compliant glass from approved suppliers and can provide the glass manufacturer's compliance documentation with your shipment.
Market-Specific Building Code Requirements
For buyers entering markets with specific building code requirements, send us the applicable standard reference and we'll confirm compliance or flag what needs to be addressed before the order.

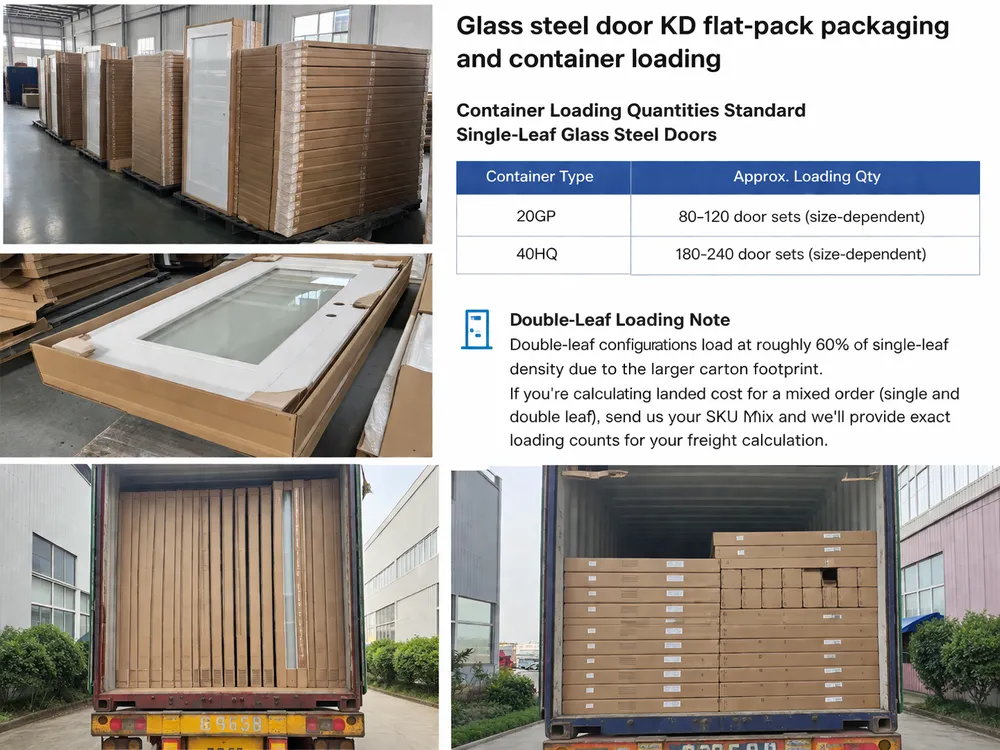

Packaging, Container Loading, and Landed Cost
Glass steel doors ship in reinforced KD (knock-down) flat-pack format — door leaf, frame sections, glass panel (separately wrapped), and hardware packed in a single carton set per door.
Packaging Design
KD Flat-Pack Format
Door leaf, frame sections, glass panel (separately wrapped), and hardware packed in a single carton set per door. Designed for efficient container loading and minimal handling damage.
Glass Protection
Glass panel ships with foam corner protection and a rigid cardboard interleave between the glass face and the door leaf. Tested through simulated port handling — glass arrival damage rate on standard configurations is under 0.5%.
Batch Traceability
Every carton carries a barcode linked to our production batch record. If there's a quality question on arrival, you can trace the unit back to its production date, line, and inspection record within minutes.
Amazon FBA & Warehouse-Direct
For buyers running Amazon FBA or warehouse-direct programs, we can apply your FBA labels and barcode format at the packing stage.
Container Loading Quantities
Standard Single-Leaf Glass Steel Doors
| Container Type | Approx. Loading Qty |
|---|---|
| 20GP | 80–120 door sets (size-dependent) |
| 40HQ | 180–240 door sets (size-dependent) |
Double-Leaf Loading Note
Double-leaf configurations load at roughly 60% of single-leaf density due to the larger carton footprint. If you're calculating landed cost for a mixed order (single and double leaf), send us your SKU mix and we'll provide exact loading counts for your freight calculation.
Frequently Asked Questions
Technical and commercial questions we receive most often from B2B buyers specifying glass steel doors.
What glass thickness should I specify for exterior glass steel doors?
For exterior applications, minimum 5mm tempered glass is the baseline. In high-wind-load environments (coastal, high-rise above 10 floors) or where forced-entry resistance is a requirement, specify 6.38mm laminated (two-ply with PVB interlayer). The laminated option holds the glass in the frame after impact — relevant for insurance and building code compliance in some markets. For interior doors in standard commercial use, 5mm tempered is sufficient and keeps the door weight manageable.
Can glass steel doors be fire-rated?
Yes, but the fire rating applies to the complete assembly — door body, glass panel, frame, and hardware must all be fire-rated components. Standard glass panels are not fire-rated. FD30 and FD60 configurations use fire-rated glazing (borosilicate or intumescent-interlayer laminated glass) combined with a fire-rated door body and frame. These are quoted separately. If your project specifies a fire rating, confirm the rating and the applicable standard (NFPA 80, EN 1634, or local equivalent) at the inquiry stage.
What is the maximum glass panel size for a standard single-leaf door?
On a standard 900 × 2100mm single-leaf door, we set the maximum glass panel area at approximately 35–40% of the door leaf surface — roughly 350 × 700mm for a centered insert, or a full-height sidelight at 150mm wide. Beyond 40% panel area, the steel frame sections flanking the glass become narrow enough to affect rigidity under hinge load. We can engineer larger glass areas on request, but we'll recommend a heavier frame gauge (1.5mm body) and we'll be upfront about the structural trade-off.
What is the MOQ for custom glass panel layouts?
Standard catalog configurations (upper-panel, centered insert, full-length sidelight in standard sizes) start at 50 units. Custom glass panel layouts — non-standard positions, custom panel shapes, or multiple inserts in a single leaf — start at 100 units. Custom frame profiles and OEM/private-label programs also start at 100 units.
How do glass steel doors perform in high-humidity or coastal environments?
The zinc phosphate pre-treatment on our full door body — including the glass rebate channel — combined with 60–80μm powder coat passes a 500-hour salt spray test. The EPDM setting blocks isolating the glass from direct steel contact prevent galvanic interaction and allow for thermal movement. For coastal installations, we recommend specifying the 1.2mm body gauge and confirming the glass type is tempered or laminated (not annealed float) — annealed glass is more susceptible to thermal stress cracking in environments with high daily temperature variation.
What certifications does EUWOO hold for glass steel doors?
ISO 9001:2015, CE, and SGS cover the door assembly. Tempered glass panels meet EN 12150 and GB 15763.2. Fire-rated configurations carry NFPA 80 documentation. For market-specific compliance requirements, contact us with the applicable standard and we'll confirm what documentation we can provide.
Get a Quote for Glass Steel Doors
Send us your door size, glass type preference, quantity, and target market — our engineering team will review and respond with a detailed quote and 3D rendering. No charge for the design consultation.
Most new buyers in this category start with a sample order of 2–5 units to evaluate fit and finish with their own customers before committing to a full container. We can arrange samples; contact us to discuss.
What to Include in Your Inquiry
Door dimensions
Width × height in mm, single or double leaf, swing direction if known.
Glass type preference
Tempered, laminated, frosted, or fire-rated. Panel position if you have a preference.
Order quantity
Approximate units. Samples (2–5 units) available before full container commitment.
Target market / destination
Country and application type so we can confirm applicable certifications and compliance documentation.
Finish and hardware preferences
RAL color, surface texture, lock grade, and any OEM/private-label requirements.
