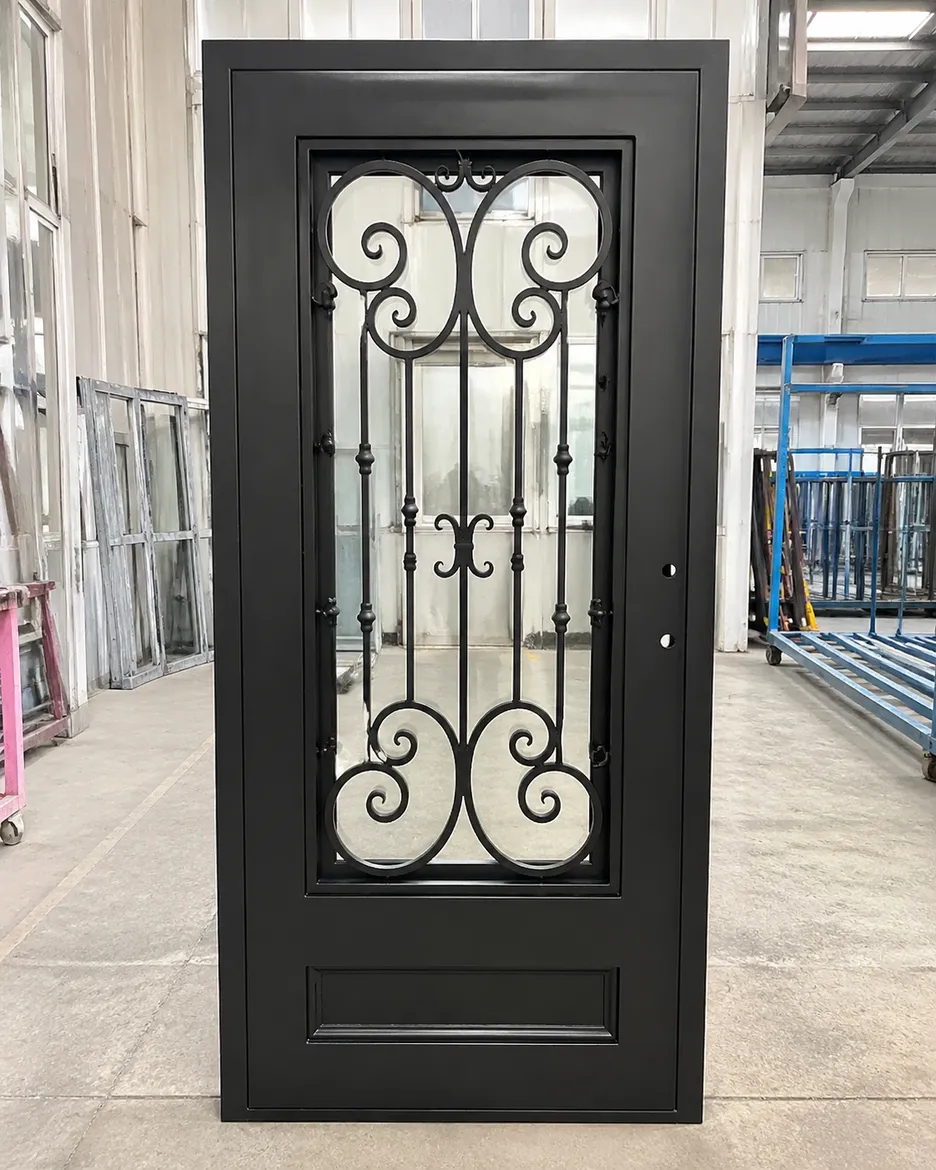

Ornamental wrought iron security doors — architectural presence with verified security performance, factory-direct from Henan, China.
Hand-finished iron scrollwork and panel profiles built over a structural steel core. The product your premium residential and hospitality buyers will pay a margin premium for — and that you can source at factory cost.
What Separates a Wrought Iron Security Door from the Rest of the Security Door Range
Most security doors in our catalog are built around a single design logic: maximize security performance per dollar of steel. The wrought iron security door operates on a different brief entirely. Your buyers in this segment — premium residential developers, hospitality procurement teams, high-end villa contractors — are not choosing between security ratings. They're choosing between doors that look like security doors and doors that look like architectural statements. The wrought iron security door is the latter, and it commands a price point to match.
The construction starts with a structural steel frame — 1.2mm cold-rolled SPCC body with internal reinforcement channels — which is the same security core we use across the commercial range. What's different is everything on top of that core: hand-bent iron scrollwork, cast iron decorative inserts, and embossed panel profiles that are fabricated separately and welded onto the door face before finishing. The ornamental elements aren't cosmetic additions bolted on at the end. They're integrated into the door structure during fabrication, which means they don't flex, rattle, or detach under the kind of handling that happens during shipping and installation.
Why this matters for your warranty exposure: We learned early on that ornamental ironwork attached with adhesive or mechanical fasteners after powder coating is a warranty problem waiting to happen — the thermal cycling in Middle Eastern climates alone will work those joints loose within a year. Welded-before-finishing integration is the structural answer.
Structural Integration
Ornamental elements welded before finishing — not bolted on after. No flex, rattle, or detachment under shipping and installation stress.
Same Security Core
1.2mm cold-rolled SPCC body with internal reinforcement channels — identical to the commercial range security core.
Finish Process
Zinc phosphate pre-treatment on every weld seam and scroll joint, then 60–80μm powder coat with manual touch-up on deep ornamental recesses.
Climate-Proven
500-hour salt spray rating. Engineered for Gulf and coastal markets where finish failures generate the most warranty claims.
The Finishing Process Difference
The finishing process on wrought iron doors is more involved than our standard powder coat line. After ornamental elements are welded and ground smooth, the entire door goes through our zinc phosphate pre-treatment bath — every weld seam, every scroll joint, every recessed profile.
Full bath immersion — every weld seam, scroll joint, and recessed profile treated before any coating is applied.
60–80μm film thickness. Ornamental doors run at reduced conveyor speed to allow electrostatic charge to reach shadow zones in deep scroll profiles.
Manual touch-up pass on deep recesses before cure. Result passes the same 500-hour salt spray test as standard doors.
Technical Specifications
Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets and custom spec confirmation.
Full Specification Table
| Body Material | Cold-rolled SPCC steel, 1.2mm gauge (standard); 1.5mm available |
| Ornamental Elements | Hand-bent wrought iron scrollwork; cast iron decorative inserts |
| Door Leaf Thickness | 45–55mm (standard); up to 70mm with insulation infill |
| Standard Door Sizes | 900×2000mm, 960×2100mm, 1000×2100mm; custom sizes available |
| Frame Material | Cold-rolled steel, 1.5–2.0mm gauge |
| Frame Depth | 100–160mm adjustable |
| Surface Treatment | Zinc phosphate pre-treatment + electrostatic powder coat |
| Powder Coat Thickness | 60–80μm (manual touch-up on ornamental recesses) |
| Color Options | 60+ standard RAL colors; antique bronze, matte black, and custom finishes available |
| Salt Spray Rating | 500 hours |
| Lock Options | Single-point, 3-point, 5-point multi-lock; mortise deadbolt standard |
| Hinge Configuration | 3-hinge standard; 4-hinge on double-leaf configurations |

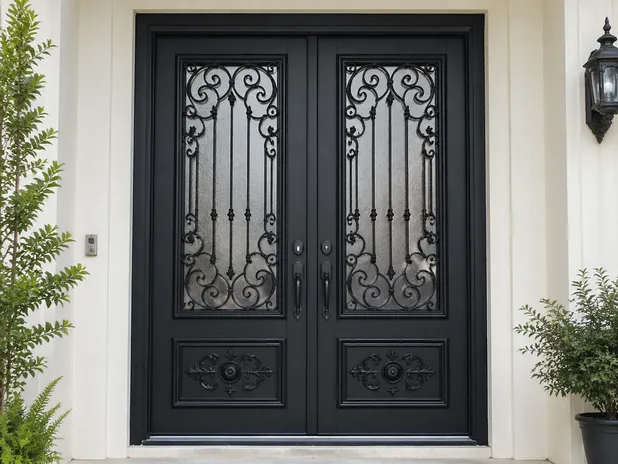

| Double Leaf | Available; matched panel profiles across both leaves |
| Glass Insert Options | Tempered, frosted, or decorative glass panels available |
| Certifications | ISO 9001:2015 CE SGS |
| MOQ (standard catalog) | 50 units |
| MOQ (custom profile) | 100 units |
Key Performance Figures
Request Full Specification Sheet
Get detailed product data sheets and custom spec confirmation for your project requirements.
Request Specification Sheet
The Ornamental Fabrication Process — Why It Affects Your Margin
This is the section most suppliers skip, and it's the one that actually explains why ornamental security doors vary so much in quality and price across the market.

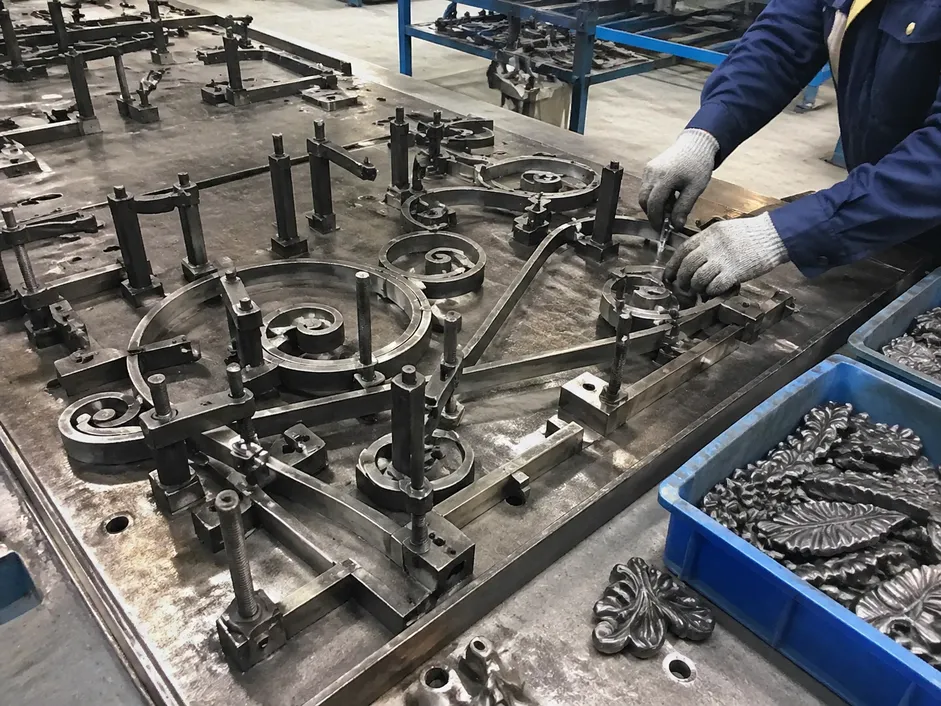

Hand-Bending Over Fixed Tooling Jigs

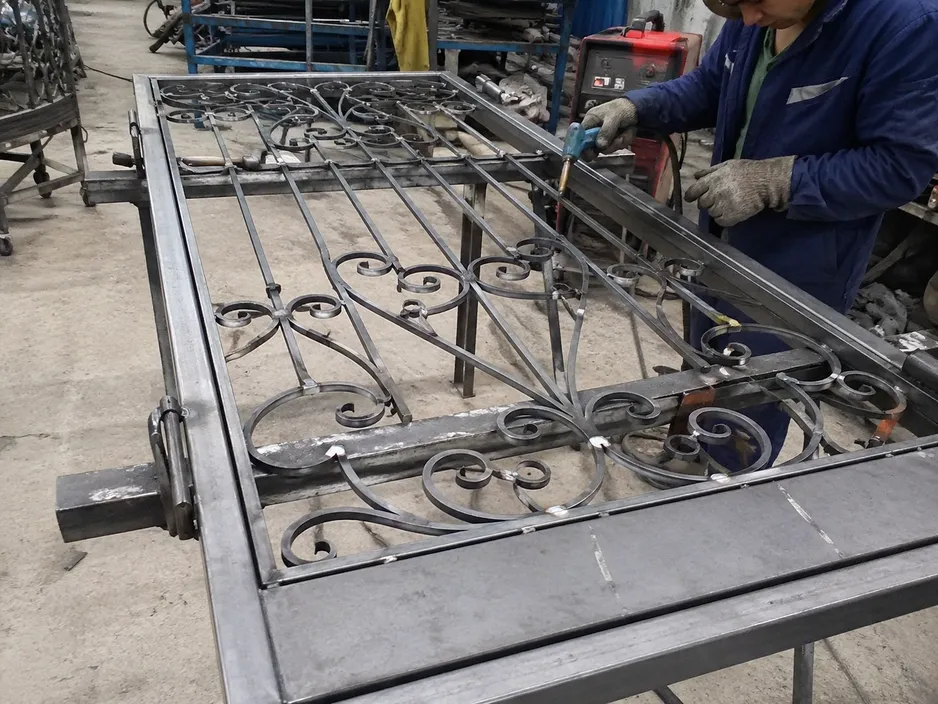

Wrought iron scrollwork is fabricated by hand-bending mild steel bar stock — typically 10–16mm round or square bar — over jigs to produce consistent scroll radii and profile shapes. The word "hand-bent" is accurate but can be misleading: in a production environment, the bending is done over fixed tooling jigs, not freehand, so the scroll geometry is repeatable across a production run.
What varies between manufacturers is the quality of those jigs and the skill of the fabricators. Poorly made jigs produce scrolls with inconsistent radii — the door looks fine in a photo but the mismatched curves are obvious when you're standing in front of it. We've had buyers send us competitor samples with exactly this problem, asking us to match the design but fix the geometry. The fix is straightforward — we just make better jigs — but it tells you something about how much attention the original manufacturer paid to the ornamental work.
Weld Grinding to Flush — Why It Matters for Finish
After bending, scroll elements are tack-welded to the door face in the pattern layout, then fully welded with MIG. Every weld joint is ground flush before pre-treatment — you shouldn't be able to feel the weld transition between the scroll and the door panel when you run your hand across it.
This matters for finish quality: a proud weld under powder coat creates a visible ridge that catches light and looks like a defect. We grind to flush, which adds time but eliminates that problem entirely.
Cast Iron Decorative Inserts — Inspection and Fastening
Cast iron decorative inserts — rosettes, corner pieces, center medallions — are sourced from approved foundries and inspected for dimensional consistency before assembly. We reject inserts with visible porosity or dimensional variation above ±1mm, because those defects telegraph through the powder coat.
The inserts are mechanically fastened and welded, not just glued, so they stay put through shipping and thermal cycling.
Fabrication Quality Checkpoints
Jig-controlled scroll geometry
Consistent radii across full production run — no mismatched curves visible at installation
MIG weld ground flush before pre-treatment
No proud weld ridges under powder coat — eliminates visible defects that catch light
Cast insert tolerance: ±1mm max
Inserts rejected for visible porosity or dimensional variation — defects don't telegraph through finish
Mechanical fastening + weld on all inserts
Not adhesive-only — inserts stay secure through shipping and thermal cycling
For your downstream customers, this level of fabrication detail is what justifies the price premium over a standard steel security door. For you, it's what prevents the warranty claims and replacement orders that erode margin on ornamental products. Distributors who've had problems with ornamental doors from other suppliers typically come to us after one bad container — the finish failures and loose ornamental elements are expensive to deal with in the field.
Market Segments: Where Wrought Iron Security Doors Generate Margin
Four distinct buyer segments drive volume and margin for ornamental security doors — each with different order patterns, unit values, and positioning requirements.

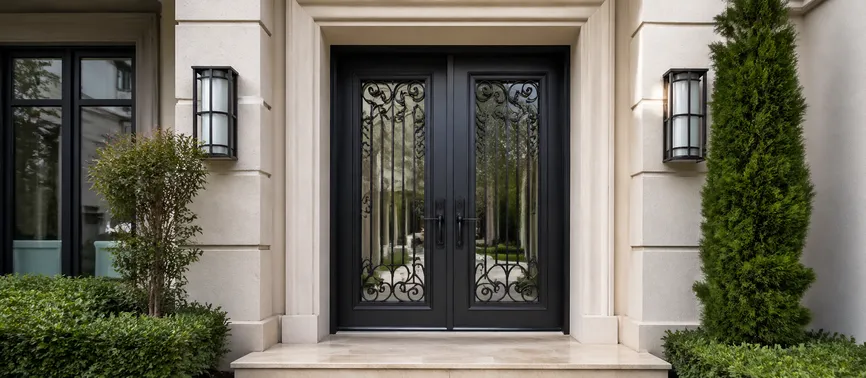

Premium Residential Development
Developers building mid-to-high-end apartment complexes, gated communities, and villa projects specify wrought iron security doors for main entrance units and show apartments — the door is a visible quality signal to end buyers.
Distributor pattern: We've seen distributors in the Gulf build a reliable quarterly reorder cycle around two or three wrought iron SKUs that their developer clients specify by name.

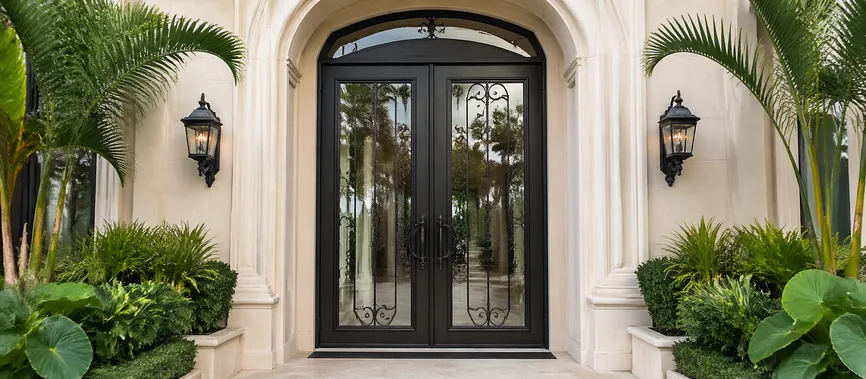

Hospitality — Hotels, Resorts & Serviced Apartments
The segment where double-leaf wrought iron configurations move most. Hotel entrance doors and villa-style resort room entries are specified for architectural impact as much as security.
Margin note: Margin per unit in this segment is strong — buyers are paying for the design, not just the door.
High-End Residential Renovation & Custom Home Building
Contractors and interior designers sourcing for individual custom homes typically order 2–10 units per project, which is below our standard MOQ for custom profiles. For this segment, our standard catalog ornamental profiles work well — the buyer gets the wrought iron aesthetic without the custom tooling cost, and you can stock a small inventory of the most popular profiles and sell from stock.
Stocking strategy: The markup potential here is significant — ornamental security doors in this segment retail at 40–60% above equivalent standard steel security doors in most markets.
Commercial & Institutional Prestige Applications
Embassy entrances, government buildings, luxury retail — occasionally specify ornamental security doors where the building's architectural language calls for it. These are lower-volume but high-specification orders, often requiring custom panel profiles and specific hardware grades.
Catalog advantage: Having wrought iron security doors in your catalog opens doors to project specifications that a standard steel door catalog won't reach.
Segment Summary: Order Patterns at a Glance
Each segment has a distinct order cadence. Understanding which segments your existing customer base maps to helps you decide whether to stock standard profiles, carry custom tooling, or position as a project-spec supplier.
| Segment | Order Size | Unit Value | Best Approach |
|---|---|---|---|
| Premium Residential Dev. | 50–300 units | Mid–High | Project spec lock |
| Hospitality | 20–80 units | Highest | Custom config + hardware |
| Custom Residential | 2–10 units | High markup | Stock catalog profiles |
| Commercial / Institutional | Low volume | High spec | Architect / contractor spec |

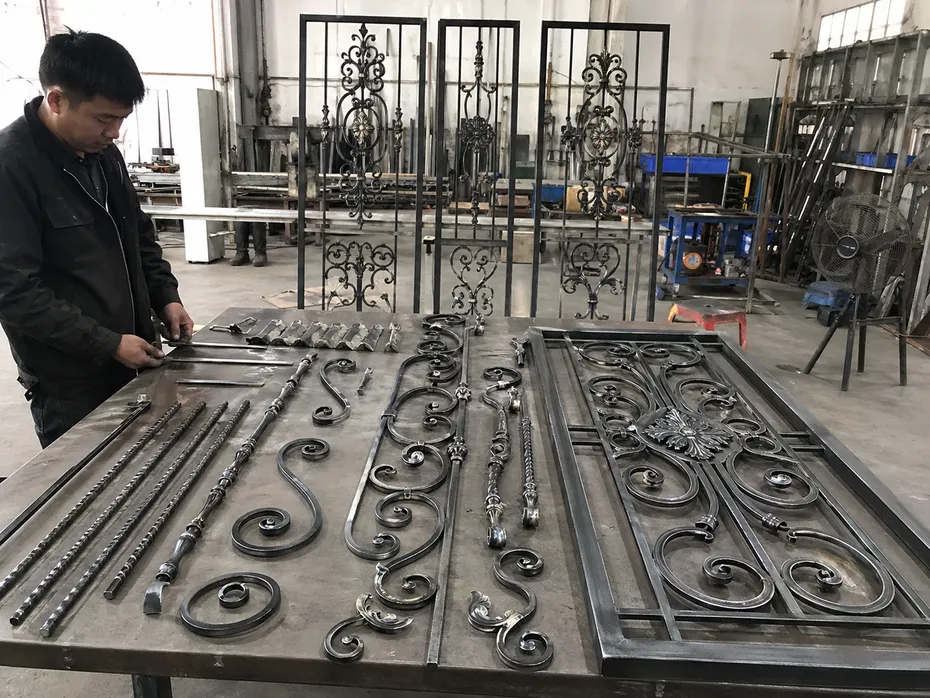

Customization: Panel Profiles, Finishes, and Hardware
The standard catalog covers three ornamental profile families — classic scroll, geometric lattice, and floral panel — available in single and double leaf, with or without glass inserts. These cover the majority of market demand and are available at 50-unit MOQ.
Beyond the catalog, the customization scope is broad. Our in-house R&D team (15 engineers) handles custom profile development from sketch or reference sample. The typical path: you send us a reference image or a sketch of the panel layout you want, we produce a 3D rendering and a fabrication cost estimate, you approve the rendering, and we produce a physical sample for your sign-off before committing to production.
Custom profile tooling is a one-time cost that we quote separately — for most ornamental profiles, the jig fabrication is straightforward and the tooling cost is modest relative to the order value.
Custom Design Process
- 1 Send reference image or panel layout sketch
- 2 Receive 3D rendering and fabrication cost estimate
- 3 Approve rendering
- 4 Sign off on physical sample before production commitment
What Can Be Customized
- Scroll geometry and density (open vs. tight scroll patterns)
- Panel insert profiles (cast iron rosettes, medallions, corner pieces)
- Glass insert shape and size (arched, rectangular, oval)
- Door proportions — width 800–1200mm, height 2000–2400mm standard range
- Hardware finish — matte black, antique bronze, brushed nickel, polished brass
- Lock grade — single-point to 7-point multi-lock
- Color — any RAL color; antique and distressed finishes available on request
What Affects MOQ and Lead Time
Standard catalog profiles
50 units MOQ — 25–35 days from deposit
Custom scroll profiles (new jig required)
100 units minimum — add 10–15 days for jig fabrication and sample approval
Custom hardware finishes
100 units minimum for non-standard finishes
Double-leaf configurations
Same MOQ as single-leaf for catalog profiles
If you're building a private-label line around a specific ornamental profile, the 100-unit custom MOQ is the entry point — below that, the jig cost makes the per-unit price uncompetitive for both sides. We'll tell you that directly rather than quote a number that doesn't work.

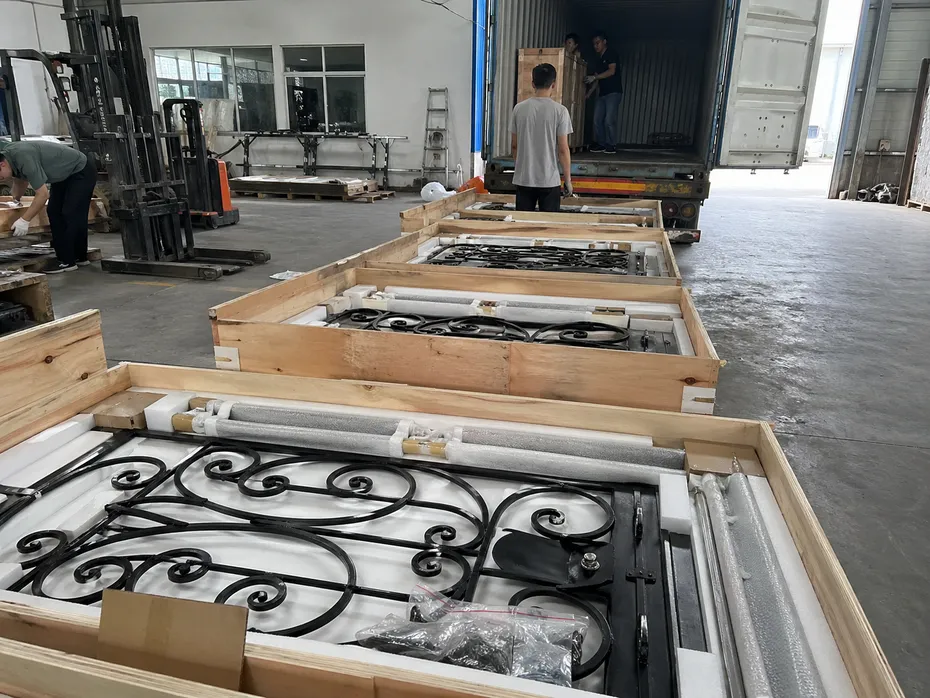

Packaging, Container Loading, and Landed Cost
Wrought iron security doors ship differently from standard flat-panel steel doors, and the packaging spec matters for your landed cost calculation.
The ornamental scrollwork creates protrusions that can't be flat-packed the same way a smooth-panel door can. We ship wrought iron doors in individual foam-lined crates with custom-cut foam inserts that cradle the scroll profiles and prevent movement in transit. Each crate has corner guards on the frame sections and cross-bracing to prevent racking.
The crating adds volume compared to KD flat-pack, which affects container utilization. The higher unit value of wrought iron doors typically absorbs the freight premium without compressing margin — but it's worth running the numbers for your specific market before finalizing your price point.
Hardware is packed separately inside the crate, bagged and labeled. Frame sections are bundled with foam wrap. Every crate carries a barcode linked to our production batch record, so any quality question on arrival can be traced back to production date, line, and inspection record within minutes.
Container Loading
Standard single-leaf, 900×2100mm
40HQ Container
High cube, standard configuration
80–120
units
20GP Container
General purpose
35–55
units
These figures are lower than standard steel security door loading (200–280 per 40HQ for flat-pack) due to crate volume. Factor this into your landed cost model.
Export Documentation
Complete for customs clearance in:
- Commercial invoice
- Packing list
- Bill of lading
- Certificate of origin
- Test certificates
Batch Traceability on Every Crate
Every crate carries a barcode linked to our production batch record. Any quality question on arrival can be traced back to production date, line, and inspection record within minutes.
Buyer FAQs: Wrought Iron Security Door Sourcing
Common questions from importers, distributors, and project buyers evaluating wrought iron security doors for the first time.
What is the difference between a wrought iron security door and a standard iron security door?
The distinction is in the fabrication method and the ornamental complexity. A standard iron security door uses solid iron construction with traditional flat or simple panel profiles — it's heavier, simpler in profile, and typically specified for markets where iron doors carry a security and status association (common in the Middle East and parts of Africa). A wrought iron security door uses a steel structural core with hand-bent iron scrollwork and cast decorative inserts applied to the face — the emphasis is on ornamental detail and architectural presence. The wrought iron version is lighter than solid iron, easier to hang and operate, and commands a higher price point in premium residential and hospitality markets. If your buyers are asking for ornamental security doors with scroll detailing, they want the wrought iron configuration. If they want solid iron with a traditional panel profile, see our Iron Security Door.
What finish options hold up best in coastal and high-humidity markets?
Matte black powder coat is the most durable finish for coastal environments — the dark pigment formulation has better UV stability than lighter colors, and the matte surface hides minor surface variation better than gloss. For Gulf markets specifically, the antique bronze finish with a clear topcoat has performed well in existing Gulf distribution accounts. All finishes go through the same zinc phosphate pre-treatment and 60–80μm powder coat process, so the base corrosion resistance is consistent — the finish choice affects UV stability and aesthetic longevity more than corrosion performance.
Can wrought iron security doors be specified with multi-point locking for high-security applications?
Yes. The standard configuration ships with a mortise deadbolt single-point lock, but 3-point and 5-point multi-lock configurations are available on all catalog profiles. The multi-point lock body runs vertically inside the door leaf — the ornamental scrollwork on the face doesn't interfere with the lock mechanism because the lock hardware is integrated into the internal steel structure, not the ornamental layer. For applications requiring higher security ratings, specify the 1.5mm body gauge option with 5-point locking and reinforced hinge plates.
What is the lead time for a custom ornamental profile?
For custom profiles requiring new jig fabrication: 10–15 working days for jig production and sample fabrication, then standard production lead time of 25–35 days from sample approval and deposit confirmation. Total from spec submission to first production shipment is typically 40–55 working days depending on complexity. For catalog profiles, standard lead time applies: 25–35 days from deposit.
What MOQ makes sense for a first order to test market demand?
Most new buyers in this segment start with a sample order of 2–5 units across two or three catalog profiles to test with their own customers or show to project clients before committing to a container. Samples ship on standard lead times. For a first stocking order, 50 units across two catalog profiles (25 units each) is a practical entry point — it fills roughly half a 20GP container and gives you enough inventory to show the product to multiple project clients without over-committing on a single profile.
How This Product Fits the Broader Security Door Range
The wrought iron security door occupies the premium ornamental position in our security door lineup. Here's how it relates to the products buyers most often compare it against.
Wrought Iron Security Door
Current page
Steel structural core with hand-bent iron scrollwork and cast decorative inserts. Premium ornamental position. Higher price point for residential and hospitality markets.
Iron Security Door
Solid iron construction
Heavier, simpler profile. Better for markets where iron door weight signals quality. Lower ornamental complexity, lower price point.
View ProductSteel Security Door
Standard cold-rolled SPCC body
No ornamental elements. The volume SKU for residential and commercial distribution. Lower unit cost, broader market applicability, but no premium positioning.
View ProductHeavy Duty Security Door
1.5mm+ body gauge, multi-point locking, institutional spec. If your buyer needs maximum forced-entry resistance over architectural presence, this is the right product.
View ProductResidential Security Door
Sized and configured for standard residential entry, available with decorative panel profiles at a lower price point than wrought iron. The middle ground for price-sensitive markets that still want aesthetic differentiation.
View ProductNot sure which product fits your market? Browse the complete lineup to compare specifications, price tiers, and target applications across all security door configurations.
View Full Security Door RangeSource Wrought Iron Security Doors Direct from the Manufacturer

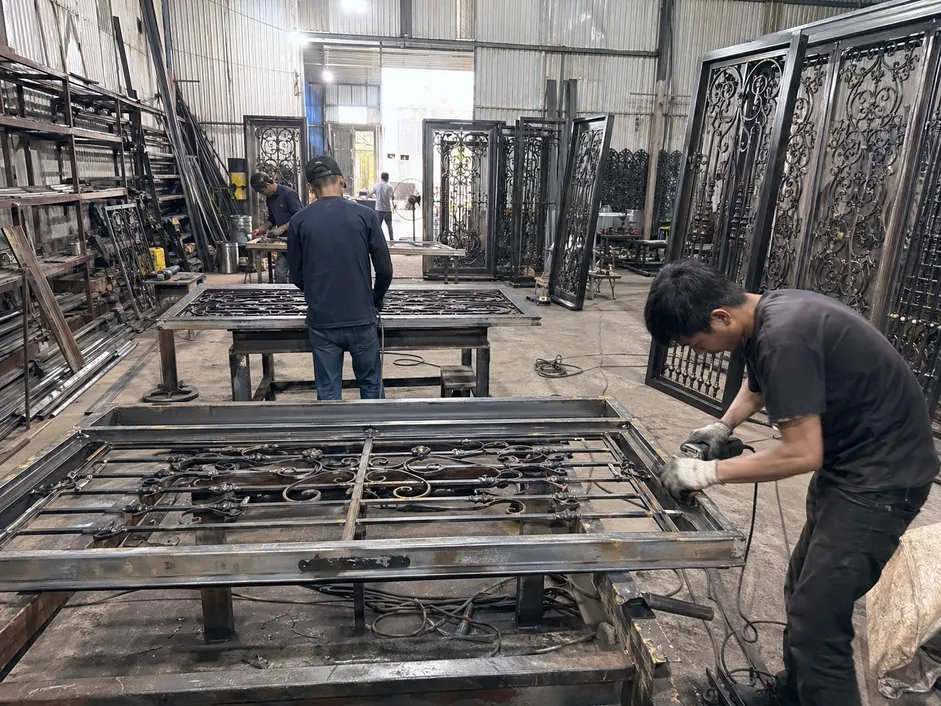

We've been manufacturing ornamental iron doors since the early years of the business — the Middle Eastern market pushed us into this category before we expected it, and we've refined the fabrication process through enough production runs to know where the quality problems hide.
Why Warranty Claims Stay Low
The ornamental work is genuinely more labor-intensive than standard steel door production, and the finishing process requires more attention. That's reflected in the price, and it's also reflected in the fact that our wrought iron doors don't generate the warranty claims that cheaper ornamental products do.
How to Get a Quote
If you're evaluating this product for your catalog or a specific project, the fastest path is to request samples of the catalog profiles you're considering. Send us your target market, your volume expectations, and any specific profile or hardware requirements — our engineering team will recommend the right configuration and send back a detailed quote.
-
Your target market and distribution channel
-
Volume expectations per order or per year
-
Specific panel profiles or hardware requirements
