Interior Security Doors Built for Internal Secure Zones
EUWOO manufactures commercial interior security doors configured specifically for server rooms, cash offices, evidence storage, and access-controlled internal corridors — with the lock grade, gauge, and frame spec to match the application.
What Makes an Interior Security Door Different from an Exterior One
Most buyers sourcing interior security doors for the first time ask whether they can just use a standard exterior security door inside the building. The short answer: you can, but you'll over-spec on weather resistance and under-spec on the things that actually matter indoors.
An interior security door is engineered around a different threat model. The perimeter has already been breached; the door's job is to protect a specific zone — a server room, a cash handling office, a pharmacy dispensary, an evidence locker, a records room. The attacker has time, tools, and no weather to contend with.
That changes the spec: you need a door body that resists sustained mechanical attack, a frame anchored to resist pry-out from the hinge side, and a lock system that can't be bypassed with a credit card or a bump key.
We build interior security doors from 1.0–1.5mm cold-rolled SPCC steel with internal reinforcement channels running the full door height. The frame runs 1.5–2.0mm gauge with a minimum of three anchor points per jamb — because a 1.5mm door body in a 1.0mm frame is security theater, and we've seen enough replacement orders from buyers who learned that the hard way.
Lock options run from standard multi-point to Grade 1 commercial deadbolt configurations, with access control prep available at the factory.
The Interior Threat Model
Interior vs. Exterior: Key Spec Differences
| Spec Area | Interior Door | Exterior Door |
|---|---|---|
| Weather sealing | Not required | Full perimeter seal |
| Frame anchoring | 3+ points per jamb | Standard 2-point |
| Lock grade | Grade 1 / multi-point | Grade 2 common |
| Access control prep | Factory conduit + J-box | Retrofit only |
| Acoustic performance | Configurable | Not prioritized |
Common Interior Secure Zone Applications

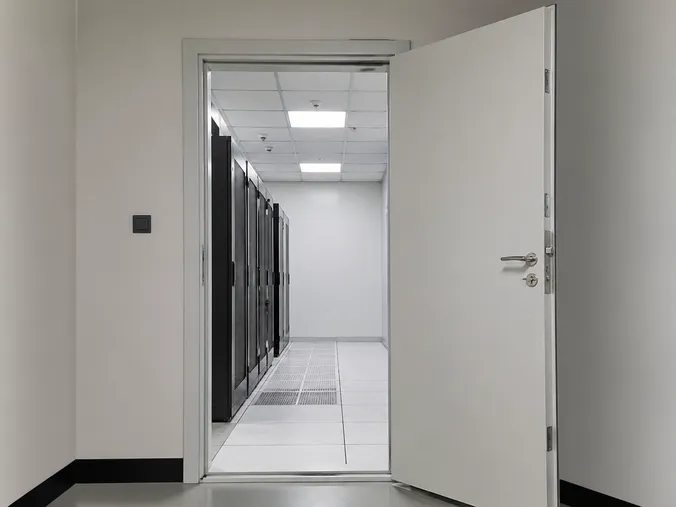

Server Rooms
Access-controlled entry with conduit prep for card readers. Sustained pry resistance on the hinge side.
Cash Offices
Multi-point locking with Grade 1 deadbolt. Frame anchored to resist forced entry from inside the building perimeter.
Evidence Storage
Chain-of-custody integrity requires a door that can't be shimmed or bumped. Full-height reinforcement channels standard.
Secure Corridors
Access-controlled internal corridors between zones. Acoustic performance configurable for open-plan environments.
Technical Specifications
Standard parameters for our interior security door line. Custom sizes, gauges, and hardware configurations are available — see the customization section below.
Standard Specification Table
| Parameter | Standard Specification |
|---|---|
| Door Leaf Material | Cold-rolled SPCC steel |
| Body Gauge | 1.0mm 1.2mm 1.5mm (specify at order) |
| Door Leaf Thickness | 45mm – 60mm (standard); up to 80mm on request |
| Standard Sizes | 800×2000mm 900×2100mm 1000×2100mm |
| Frame Material | Cold-rolled steel, 1.5–2.0mm gauge |
| Frame Depth | 90mm – 140mm adjustable |

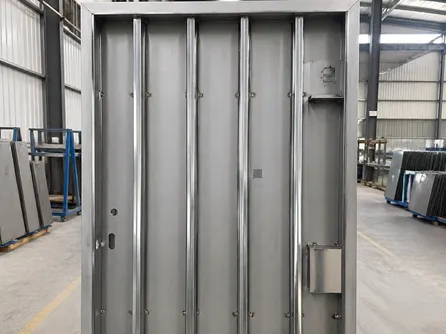

| Internal Reinforcement | Full-height steel channels, welded to door body |
| Hinge Configuration | 3-hinge standard; 4-hinge on 1.5mm gauge |
| Hinge Plate Thickness | 3mm standard; 4mm on heavy-duty |
| Multi-point 3-pt Multi-point 5-pt Single deadbolt ANSI Grade 1/2 | |
| Access Control Prep | Conduit run + junction box, factory-installed (specify system) |
| Surface Treatment | Zinc phosphate pre-treatment + electrostatic powder coat |
| Powder Coat Thickness | 60–80μm |
| Color Options | 60+ standard RAL colors; custom color matching available |
| Certifications | ISO 9001:2015 CE SGS |
| MOQ (standard) | 50 units |
| MOQ (custom) | 100 units |
Specifications shown are standard values for this product line. Actual specifications may vary by configuration. Contact us for detailed product data sheets and custom spec confirmation.
Gauge Selection Guide
Suitable for low-traffic internal corridors and records rooms where the primary requirement is access control rather than forced-entry resistance.
The most common spec for cash offices, pharmacy dispensaries, and IT closets. Balances cost and mechanical resistance for most commercial applications.
Specified for server rooms, evidence storage, and high-value secure zones. Paired with 4-hinge configuration and 4mm hinge plates. Highest pry resistance in the line.

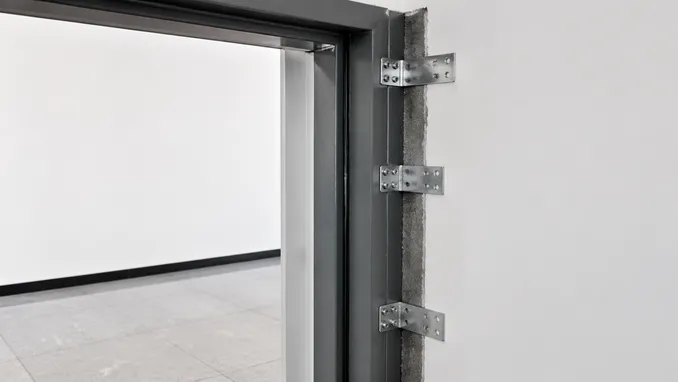

Frame Spec Note
A 1.5mm door body in a 1.0mm frame is security theater. Our frame runs 1.5–2.0mm gauge with a minimum of three anchor points per jamb. We've seen enough replacement orders from buyers who learned the mismatch the hard way.
Access Control Prep
Conduit run and junction box are factory-installed when specified at order. Specify your access control system type — we prep the door body before it ships, not on-site.
Where Interior Security Doors Move: Market Segments and Order Patterns
Each application has a distinct spec requirement and a distinct procurement pattern — worth understanding if you're building a distribution catalog or sourcing for a project pipeline.
IT Infrastructure & Data Centers
Highest GrowthServer rooms and network equipment rooms in commercial buildings, hospitals, and government facilities require access-controlled, forced-entry-resistant doors — and the spec is increasingly being written into building codes. A typical mid-size commercial building has 2–5 IT rooms; a data center campus can have dozens.
Procurement Channel
Electrical contractors and low-voltage integrators — the door is often specified alongside the access control system.
Cash Handling & Financial Services
Higher MarginBank branches, currency exchange offices, retail back-offices, ATM rooms — require doors that resist both opportunistic and planned forced entry. The buyer is less price-sensitive than in residential because the spec is more demanding.
Typical Spec
1.2mm or 1.5mm body gauge, multi-point locking, frame anchored to structural wall — not just the partition.
Healthcare & Pharmaceutical
Compliance-DrivenPharmacy dispensaries, controlled substance storage, medical records rooms — driven by regulatory compliance. In most markets, controlled substance storage rooms require a door meeting a specific forced-entry resistance standard, with documentation to prove compliance.
Documentation
CE certification and SGS audit reports satisfy most documentation requirements across markets.
Government, Institutional & Correctional
1.5mm Heavy-DutyEvidence storage rooms, armories, secure interview rooms — require the highest level of forced-entry resistance. Procurement cycles are longer and often require pre-qualification, but once on an approved supplier list, volume is predictable and the spec is locked.
Positioning
If you're positioned as a supplier to government contractors, the qualification investment is worth it for predictable long-term volume.
Commercial Office & Co-Working
Broadest SegmentExecutive offices, HR records rooms, IT closets in office buildings — the broadest segment by number of projects, though individual order sizes are small. The door is often part of a broader interior fit-out package rather than a standalone security procurement.
Typical Spec
1.0mm or 1.2mm with standard multi-point locking and access control prep. Move volume through fit-out contractors and office furniture dealers.
Distributor Positioning Note
Build Inventory Depth Where Growth Is Happening
The IT infrastructure segment has grown significantly in the Middle East and Southeast Asia over the past three years. Distributors who serve electrical contractors and low-voltage integrators are well-positioned — the integrator is the one writing the spec, and the door is specified alongside the access control system.
For financial services, distributors who serve security integrators and fit-out contractors in the financial sector can build a reliable niche — margin per unit is higher because the spec is more demanding and the buyer is less price-sensitive.
How We Build the Door Body: Process Details That Affect Your Warranty Claim Rate
The interior security door body starts as SPCC cold-rolled steel coil. Every process decision below has a direct downstream effect on field performance and warranty exposure.

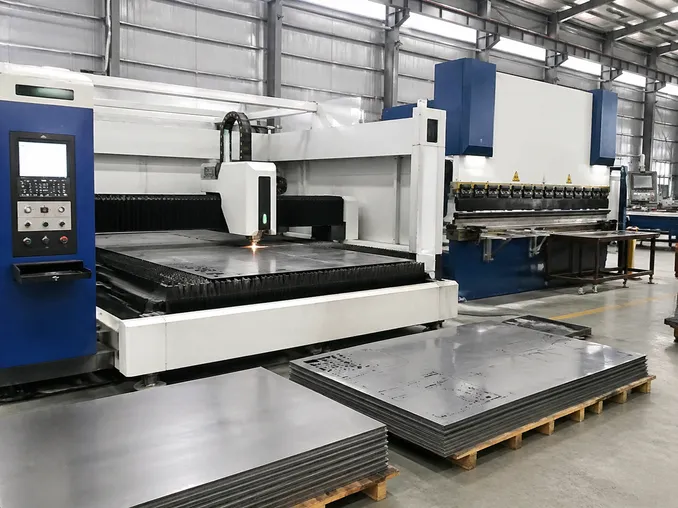

CNC Laser Cutting & Press Brake Forming
Panels cut to ±0.5mm tolerance on CNC laser equipment, then formed on CNC press brakes. Internal reinforcement channels are cut from the same coil stock and welded to the door body before the outer skin goes on.
Full-Perimeter Welds — Not Tack Welds
Full-perimeter welds on all reinforcement-to-body joints. Tack welds hold in a showroom but fail under sustained prying force — exactly the scenario an interior security door is designed to resist.
Zinc Phosphate Pre-Treatment (Switched 2020)
Every door body goes through a zinc phosphate pre-treatment bath before powder coating. Switched from iron phosphate in 2020 after seeing adhesion failures on weld seams in humid-environment installations. Better corrosion resistance at the substrate level — matters even for interior doors in hospital corridors and basement server rooms.
Powder Coat: 60–80μm, 500-Hour Salt Spray
Electrostatic application, convection oven cure, 60–80μm consistent thickness across the full panel surface. Passes a 500-hour salt spray test. For interior applications: the finish holds up to cleaning chemicals and humidity without peeling or bubbling — the most common finish warranty claim we see on interior doors from other suppliers.
Hinge Plate Welding: 3mm / 4mm Plate
Hinge plates welded with full-perimeter welds using 3mm plate on standard configurations and 4mm on the 1.5mm heavy-duty version. Every completed door is cycled through open/close testing at final inspection — hinge alignment issues are caught before the door packs, not after it arrives on site.

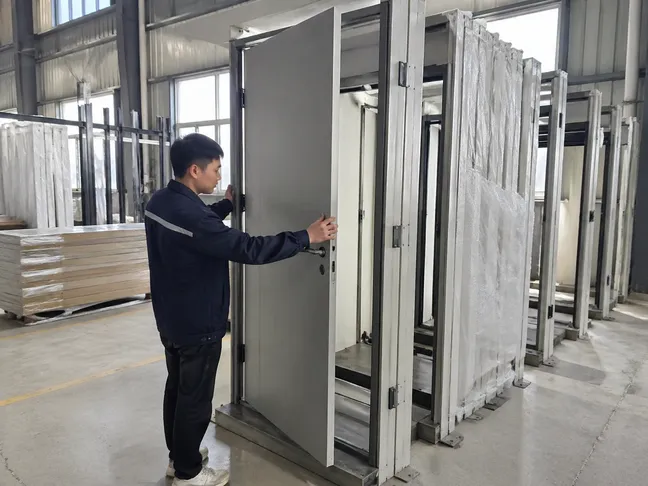

Frame-to-Leaf Fit: Tested on Every Unit
The frame-to-leaf fit is tested on every unit against its matched frame. Your installers get consistent fit across the full order — which matters when you're running a crew through a 50-door office fit-out on a schedule.
100% Unit Inspection — No Statistical Sampling
Every unit inspected before packing. No statistical sampling on outgoing product. That standard came from our QC manager's background in automotive stamping, where statistical sampling on safety-relevant parts isn't acceptable. We apply the same logic to security doors.
Automotive QC StandardWhy This Matters for Distributors
Process Decisions That Reduce Your Warranty Exposure
The zinc phosphate switch in 2020 was a direct response to field data — adhesion failures on weld seams in humid environments. The 100% inspection standard came from applying automotive QC logic to security-relevant products. These aren't marketing claims; they're process decisions with traceable rationale.
The most common finish warranty claim we see on interior doors from other suppliers is peeling or bubbling in high-humidity environments. Our pre-treatment and powder coat spec is designed specifically to eliminate that failure mode.
Customization Options for Interior Security Doors
Interior security door applications vary enough that catalog specs rarely fit exactly. Here's what we can configure at the factory, and where the practical limits are.
Door Size
Standard sizes cover most commercial opening dimensions. Custom sizes available within our press brake forming capability.
- —Width: 700mm to 1200mm
- —Height: 1900mm to 2400mm
- !Non-standard sizes: 100-unit MOQ minimum, +5–7 working days
Body Gauge
Three standard stock gauges. Selection depends on your threat model and operational requirements.
Past 1.5mm body thickness, door weight starts to affect hinge and closer selection significantly — worth a conversation before you spec it.
Lock Configuration
Hardware pre-installed at the factory to your spec. Approved hardware suppliers maintained for each major market.
- —3-point and 5-point multi-point locking
- —ANSI Grade 1 single deadbolt
- —Mortise lock configurations
- —Supplied components from your approved hardware supplier
Access Control Prep
Conduit runs and junction boxes installed at the factory. Specify the hardware system model and we configure the prep accordingly.
- —Electric strike mounting
- —Magnetic lock prep
- —Access control reader mounting
Factory pre-wiring is cleaner than field modification and eliminates the risk of structural warranty issues from post-installation drilling.
Vision Panels
Narrow vision panels available in tempered or laminated glass. One-way glass available for monitored secure zones.
- —100×400mm narrow panel
- —150×600mm narrow panel
- —Tempered or laminated glass
- —One-way glass for pharmacy dispensaries, server rooms
Surface Finish & Color
60+ standard RAL colors from our automated powder line. Custom color matching available on larger runs.
- —60+ standard RAL colors, stock
- —Custom color matching: 100+ unit runs
- —Submit RAL code or physical sample
Frame Configuration
Frame depth adjustable from 90mm to 140mm to match wall construction. Anchor configurations for masonry and steel stud framing are both standard.
If you're sourcing for a project with a specific wall type, tell us — we'll spec the frame depth and anchor pattern to match, which eliminates field shimming and reduces installation labor cost.
Certifications and Compliance Documentation
For buyers sourcing into regulated applications — healthcare, government, financial services — the documentation package matters as much as the product spec.
ISO 9001:2015
Covers the full quality management system — incoming material inspection, in-process dimensional checks, weld integrity inspection, coating adhesion testing, and 100% pre-shipment inspection on every unit.
Satisfies quality system documentation requirements across all major import markets.
CE Marking
Covers structural performance and material compliance for European market import. Required for commercial projects across EU member states.
Applicable to European commercial projects specifying EN 1627 resistance classes.
SGS Third-Party Audit
SGS audit reports available on request. Satisfy most import compliance documentation requirements for North American, Gulf, and Southeast Asian markets.
Available on request for buyer compliance documentation packages.
Forced-Entry Resistance Standards
For applications with specific forced-entry resistance requirements, we can provide test data and discuss whether our standard configurations meet the requirement or whether a modified spec is needed.
Send us the compliance requirement and we'll confirm directly rather than make a claim we can't back up.
EN 1627 Resistance Classes
Common in European commercial projects. Test data available on request.
ASTM F476 or Equivalent
Specified by some North American institutional projects. Confirm requirement before ordering.
Pre-shipment inspection on every unit
:2015 certified quality management
Marked for European market conformity
Third-party audited, reports on request
Packaging, Container Loading, and Landed Cost
Interior security doors ship in KD (knock-down) flat-pack format as standard — door leaf, frame, and hardware packed separately in reinforced double-wall corrugated cartons with foam corner protection. This format maximizes container utilization and eliminates the lock misalignment problem that affects pre-hung assemblies shipped assembled in containers.
Doors packed assembled and stacked in a container can rack slightly under load, shifting the lock bolt alignment enough that the door won't latch cleanly on arrival — KD format eliminates that entirely.
Container Loading: KD Flat-Pack Format
Standard 900×2000mm interior security doors in KD format:
| Container | KD Sets (45–60mm leaf) | KD Sets (80mm leaf) |
|---|---|---|
| 40HQ | 220–260 sets | 160–190 sets |
| 20GP | 85–110 sets | 65–80 sets |
Pre-Hung Assembly Option
For pre-hung assemblies where the application requires it, we ship in foam-lined crates with corner guards and cross-bracing. Container utilization drops to approximately 120–150 sets per 40HQ — the crating volume is the cost, and most buyers who have a choice opt for KD format.
Every carton carries a barcode linked to our production batch record. If there's a quality question on arrival, you can trace the unit back to its production date, line, and inspection record.
KD Flat-Pack Standard
Reinforced double-wall corrugated cartons with foam corner protection. Maximizes container utilization and prevents lock misalignment in transit.
Batch Traceability
Every carton barcode links to production batch records — date, line, and inspection data — for full traceability on any quality question post-arrival.
Lead Times
25–35 days for standard catalog configurations from deposit confirmation. Custom configurations quoted individually based on engineering complexity and current line loading.
Buyer FAQs: Interior Security Door Sourcing
Decision-support answers for the specification and procurement questions that come up most often in B2B sourcing conversations.
What steel gauge is right for a commercial server room door?
For a standard commercial server room — office building IT room, network closet, small data center — 1.2mm SPCC body with internal reinforcement channels and 3-point multi-point locking is the right spec. It meets the forced-entry resistance requirements of most commercial building codes and keeps the door weight manageable for a space that gets accessed frequently.
For high-security data center applications or government IT facilities where the threat model is more serious, specify 1.5mm body gauge with 5-point locking and a 2.0mm frame. The weight difference is meaningful (roughly 8–12kg per door depending on size), so factor that into your closer and hinge selection.
Can interior security doors be pre-wired for access control at the factory?
Yes. We install conduit runs and junction boxes for electric strike, magnetic lock, and access control reader mounting during factory assembly. Specify the hardware system model — or the mounting dimensions if you don't have a specific system yet — and we configure the prep accordingly.
Factory pre-wiring is significantly cleaner than field modification: no post-installation drilling through the door body, no risk of voiding the structural warranty, and no field labor cost for the conduit work. For projects where the access control system is being specified in parallel with the door, we can work from a hardware spec rather than a specific model number.
What's the difference between an interior security door and a standard interior door with a deadbolt?
The body gauge and frame construction. A standard interior door — hollow core or solid core wood, or a light-gauge steel door — is not designed to resist sustained mechanical attack. The door body will deflect under prying force, the frame will pull away from the wall under kick-in force, and the lock hardware is typically not rated for forced-entry resistance.
| Attribute | Security Door | Standard Door |
|---|---|---|
| Body gauge | 1.0–1.5mm steel | Light-gauge / wood |
| Frame | 1.5–2.0mm, multi-anchor | Standard, minimal anchoring |
| Lock hardware | ANSI Grade 1 rated | Not forced-entry rated |
| Weight (900×2000mm) | 35–45 kg | 15–25 kg |
What certifications do I need for interior security doors going into healthcare facilities?
Requirements vary by market and application. For controlled substance storage in US healthcare facilities, DEA regulations specify construction requirements for the room and door — typically a solid steel door with a commercial-grade deadbolt at minimum, with more stringent requirements for Schedule I/II storage.
Our 1.2mm configuration with ANSI Grade 1 hardware satisfies DEA construction requirements for most controlled substance storage applications.
EN 1627 resistance class RC2 or RC3 is commonly specified for pharmacy and controlled substance rooms. Send us the specific requirement and we'll confirm whether our standard configuration qualifies.
Our CE marking and SGS audit reports satisfy the documentation requirements for most market import compliance reviews.
What is the MOQ for custom-sized interior security doors?
Color or hardware changes only — no tooling changes required.
Custom panel profiles or hardware configurations requiring tooling changes.
Depending on the size deviation from our standard tooling, we may accommodate smaller quantities at a tooling surcharge rather than requiring a full 100-unit run.
Interior Security Door vs. Sibling Products: Choosing the Right Configuration
The interior security door is one of 18 product lines in our security door range. If you're evaluating which configuration fits your sourcing requirement, here's the positioning.
Interior Security Door
Configured for internal secure zones: server rooms, cash offices, pharmacy dispensaries, evidence storage. No weather sealing; optimized for access control integration and forced-entry resistance from inside the building perimeter.
Best For
Internal secure zones — no outdoor exposure required
Configured for commercial building entrances and perimeter access points. Includes weather sealing, heavier threshold, and exterior-grade hardware. The right choice when the door faces outdoor exposure or serves as a building entry point.
Best For
Building entrances and perimeter access with outdoor exposure
1.5mm+ body gauge with multi-point locking and anti-pry edge profiles. For institutional and government applications where the door is a primary perimeter barrier and the threat model is the most demanding.
Best For
Institutional and government primary perimeter barriers — highest threat model
The core catalog SKU for residential and light commercial distribution. Broader market applicability, more price-competitive, but not configured specifically for internal secure zone applications.
Best For
Residential and light commercial distribution — broadest market reach
Not sure which configuration fits?
Send us the application details — we'll recommend the spec directly.
Source Interior Security Doors Factory-Direct

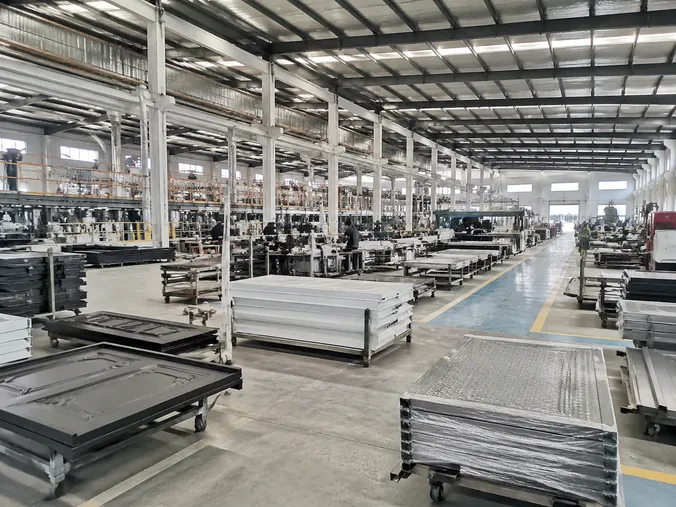

We manufacture interior security doors in our own 18,000 m² facility in Luoyang, Henan — the same floor where we cut, form, weld, coat, and inspect every unit. No trading company layer, no subcontracted production, no communication lag between your spec and the production floor.
If you're evaluating suppliers, the fastest way to assess fit is to send us your current sourcing spec: door size, gauge, lock grade, access control requirements, finish, and target volume. Our engineering team will review it and come back with a detailed quote and, for custom configurations, a 3D rendering. Most buyers in this category start with a sample order of 2–5 units to verify against a project spec or test with their own customers before committing to a container.
18,000 m²
Own manufacturing facility, Luoyang, Henan
2–5 units
Typical sample order to verify spec before container
Explore Related Products
