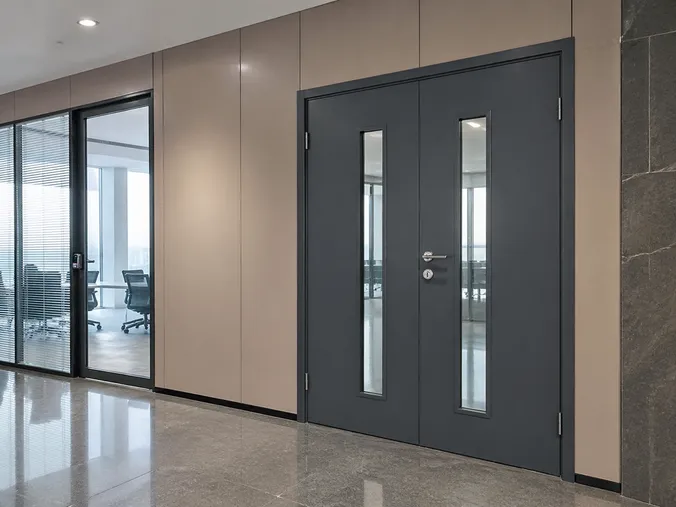

Architectural Commercial Doors Built to Specification
From hospitality lobbies to corporate headquarters, we manufacture architectural commercial doors that meet your project's aesthetic brief and your buyer's performance requirements — with full OEM/ODM capability and ISO 9001:2015 certification.
What Separates Architectural Doors from Standard Commercial Doors
Most commercial doors are specified by function — fire rating, security class, cycle count. Architectural commercial doors are specified by both function and form.
The door is part of the building's design language: the profile depth, the surface texture, the reveal geometry, the hardware integration all feed into how an architect's elevation drawing translates into a finished installation.
We've been manufacturing steel doors since 2008, and the architectural segment is where we see the most variation in buyer requirements. A hospitality contractor sourcing for a 400-room hotel needs doors that photograph well in marketing materials and survive housekeeping carts for 15 years. A corporate fit-out distributor needs doors that match a client's brand color system exactly — not "close enough." A developer building mixed-use residential needs doors that satisfy both the architect's specification and the building code's fire rating requirement simultaneously.
What this means for your sourcing: architectural commercial doors require a manufacturer with genuine customization depth, not just a standard product with a color chart stapled to it. The door body profile, the panel embossing pattern, the frame reveal, the hardware prep — these all need to be engineered together, not assembled from off-the-shelf components. Our in-house R&D team of 15+ engineers handles this integration, and we provide 3D renderings before production starts so you're not guessing at the final result.
A note from our production team: We've had buyers come to us after receiving a "custom" order from another factory that was just a standard door sprayed in a non-standard color. The profile was wrong, the hardware prep didn't match the specified lockset. We now include a pre-production approval drawing as standard on all architectural orders.
Hospitality Contractors
400-room hotel sourcing needs doors that photograph well in marketing materials and survive housekeeping carts for 15 years. Finish durability and visual consistency across large quantities are the primary spec drivers.
Corporate Fit-Out Distributors
Clients need doors that match a brand color system exactly — not "close enough." Custom RAL matching with documented color tolerances is non-negotiable at this specification level.
Mixed-Use Developers
Projects require doors that satisfy both the architect's specification and the building code's fire rating requirement simultaneously. Aesthetic and compliance are not separate conversations.
Technical Specifications

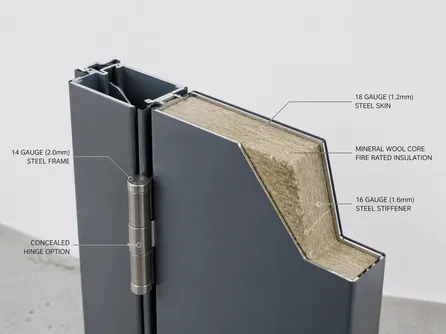

Architectural commercial doors are built on the same cold-rolled steel platform as our standard commercial range, with additional options for profile complexity, surface treatment, and hardware integration.
Standard Configuration Parameters
| Parameter | Standard Specification | Notes |
|---|---|---|
| Door leaf thickness | 45mm (typical) | 50mm available for acoustic or enhanced security applications |
| Steel body gauge | 1.0–1.2mm SPCC cold-rolled steel | 1.5mm available for high-traffic or reinforced specs |
| Core fill | Honeycomb paper or mineral wool | Mineral wool for acoustic/fire-rated variants |
| Frame material | 1.5mm cold-rolled steel | Welded or knock-down frame options |
| Surface finish | Powder coat, 60–80μm DFT | Primer + topcoat, 500-hour salt spray tested |
| Color options | 60+ standard RAL colors; custom RAL on request | Texture finishes (matte, satin, embossed) available |
| Standard door sizes | W700–1200mm × H2000–2400mm (single leaf) | Double-leaf and oversized on request |
| Hardware prep | Mortise lock, cylindrical, panic hardware | Pre-drilled and reinforced per specified hardware |
| Hinge type | 3× heavy-duty ball-bearing hinges (standard) | Concealed hinge option for flush architectural look |
| Vision panel | Optional — clear, frosted, or wired glass | Fire-rated glazing available for rated assemblies |
| Fire rating | Up to 60-minute (FD60) | NFPA 80 compliant assemblies available |
| Certifications | ISO 9001:2015, CE, SGS, NFPA 80 | Test reports available on request |
Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets and project-specific drawings.
Key Specification Highlights
-
Up to FD60 Fire RatingNFPA 80 compliant assemblies with mineral wool core
-
60+ RAL Colors + Custom500-hour salt spray tested, 60–80μm DFT powder coat
-
Concealed Hinge OptionFlush architectural look for premium interior applications
-
Custom Sizing AvailableDouble-leaf and oversized configurations on request
Get a Quote with Your Project Specifications
Send us your project brief — door count, size range, finish requirements, fire rating, and hardware spec. We'll return a detailed quote with 3D rendering within 48 hours.
Request a Specification QuoteSurface Finish Engineering — Where Margin Lives for Your Downstream Customers
The finish is what your customer sees and touches every day. It's also where most architectural door failures happen — adhesion failure at weld seams, color inconsistency across a batch, surface texture that doesn't match the approved sample.

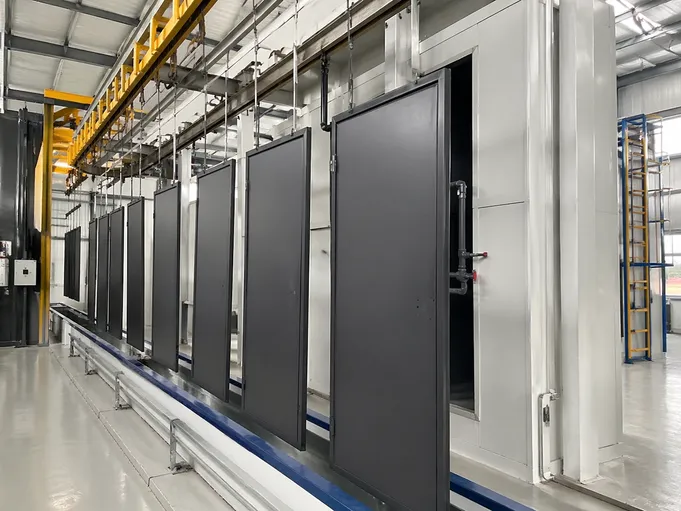

Automated Powder Coating Line
We run an automated powder coating line with consistent 60–80μm dry film thickness across every panel. Before powder hits the steel, every door goes through a 5-stage pre-treatment process. The phosphate layer is what makes the powder bond — skip it or rush it and you get adhesion failure at the weld seams within 18 months.
5-Stage Pre-Treatment Process
-
1
Alkaline Degreasing
Removes oils, lubricants, and surface contaminants from fabrication
-
2
Phosphate Conversion Coating
Critical bonding layer — creates the mechanical key for powder adhesion
-
3
Rinse
Removes residual chemistry before passivation stage
-
4
Chromate Passivation
Seals the phosphate layer and adds corrosion resistance
-
5
Final Rinse
Prepares the surface for powder application
Why This Matters for Your Projects
We've seen what happens when the phosphate step is compressed. That's why we don't compress it. Adhesion failure at weld seams within 18 months is a warranty claim, a site visit, and a lost repeat order — all at once.
Color Consistency Across Large Batches
For architectural projects, color consistency across a batch matters more than it does for a utility door. We batch-mix powder by order, not by production run, so door 1 and door 200 in your order come out of the same powder batch.
For custom RAL colors, we provide a pre-production color chip for your approval before the full run starts. This adds a step, but it eliminates the "the color doesn't match the sample" conversation after 200 doors are already coated.
Texture Options — Performance and Visual Outcome
Texture options affect both the visual result and the surface durability. We'll tell you which one fits your application rather than just listing options.
Matte
Hides minor handling marks better in high-traffic corridors. Preferred for back-of-house and utility-facing applications.
Satin
Photographs better for hospitality marketing materials. Preferred for guestroom corridors and public-facing areas.
Fine Texture
Tactile surface that adds depth and masks minor substrate imperfections. Durable in commercial environments.
Wood-Grain Transfer Film
Wood aesthetics with steel durability. Fast-growing in Middle East and Southeast Asia hospitality — developers want warmth without the maintenance liability of real wood.
Project Segments Where Architectural Commercial Doors Generate Repeat Business
The segments below share a common pattern: a supplier relationship that performs on one project gets repeated across the next three. Here's where architectural commercial doors generate that kind of pipeline.

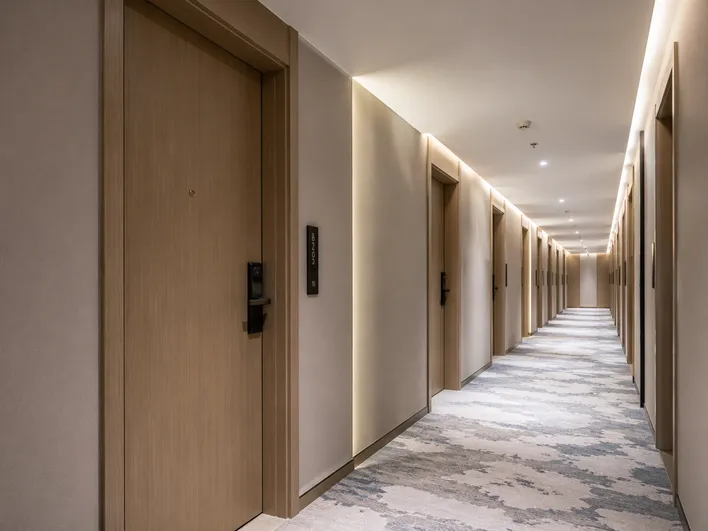

Hospitality & Hotel Fit-Out
Hotel projects are one of the most reliable volume segments for architectural commercial doors. A mid-scale hotel runs 150–400 guestroom doors plus corridor, stairwell, and back-of-house doors — often 500–800 units per property. Developers and fit-out contractors typically work on rolling project pipelines, so a supplier relationship that performs on one property gets repeated across the next three.
The specification requirements here are specific: guestroom doors need to meet local fire codes (typically FD30 or FD60), integrate with the hotel's master key system hardware, and match the interior design scheme. We manufacture to all three simultaneously — fire-rated core, pre-drilled for specified lockset, custom color matched to the designer's palette.
500–800
Units per mid-scale hotel
FD30/60
Fire rating compliance
3-in-1
Fire, hardware, finish spec
Your value-add as a distributor or contractor is the specification service. Our value-add is making sure the door that arrives on site matches what was approved.

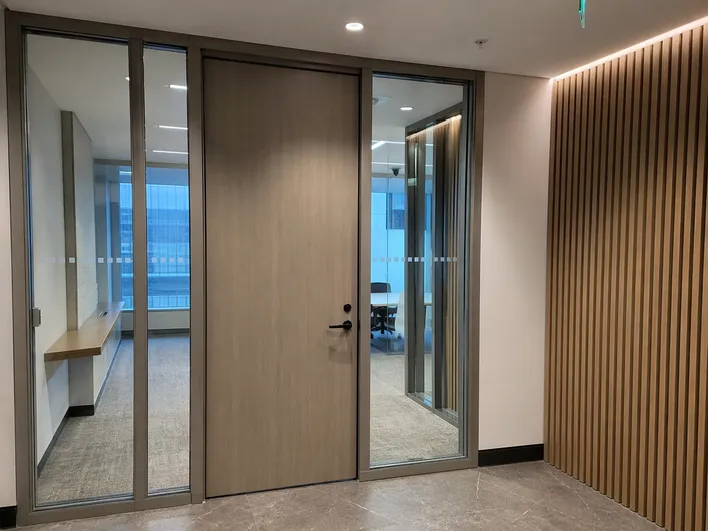

Corporate & Commercial Office Fit-Out
Office fit-out contractors and commercial interior distributors work on projects where the door specification is written by an architect and the contractor has to source to it. Architectural commercial doors in this segment need to match a design intent — often a specific profile, a specific hardware integration, and a specific finish that ties to the building's material palette.
We work directly with contractors who bring us the architect's door schedule and hardware specification. We reverse-engineer the spec into a manufacturable product, provide shop drawings for approval, and produce to the confirmed drawing. This process eliminates the RFI cycle that costs contractors time on every project.
Read and respond to architect's door schedule directly — no catalog-only sourcing
Shop drawings provided for approval before production starts
Eliminates the RFI cycle that costs contractors time on every project
Genuine competitive advantage for distributors over catalog-only suppliers

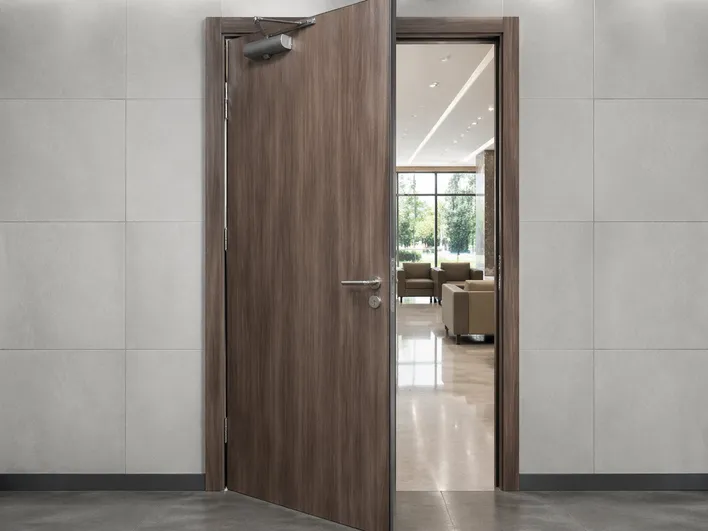

Mixed-Use Residential & Multi-Family Development
Developers building mixed-use or multi-family projects need doors that satisfy both the architect's aesthetic specification and the building code's performance requirements. In many markets, this means a door that is simultaneously fire-rated, acoustically rated, and finished to a design standard.
We manufacture combined-performance assemblies — a single door that carries FD60 fire rating, 35dB acoustic performance, and a custom architectural finish. The alternative is sourcing three different products and hoping they coordinate.
Combined-Performance Assembly
FD60
Fire Rating
35dB
Acoustic
Custom
Arch. Finish
For developers and their procurement teams, a single-source assembly reduces coordination risk and simplifies the compliance documentation package.

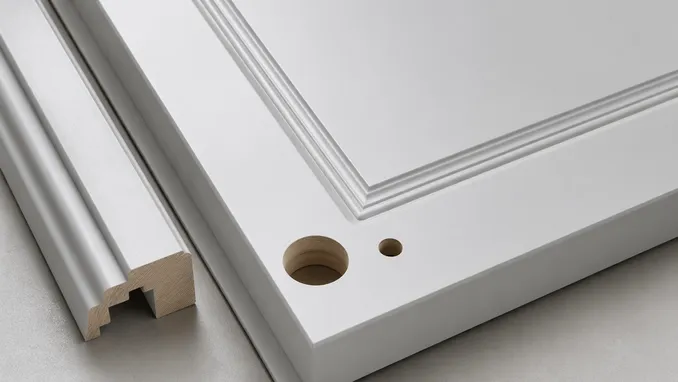

Custom Architectural Door Manufacturing — What's Actually Configurable
"Custom" means different things to different buyers. Here's what we can actually do, and where the practical limits are.
Profile & Panel Design
Flat panel, raised panel, recessed panel, grooved, or fully custom embossed patterns. Custom tooling is required for new emboss patterns — quoted separately and amortizes quickly on orders over 200 units.
Dimensions
Single-leaf doors from W600mm to W1200mm, H1800mm to H2800mm as standard. Oversized single-leaf up to W1400mm × H3200mm with engineering review. Double-leaf configurations up to W2400mm total opening width.
Hardware Integration
Pre-drilled and reinforced for any specified hardware — mortise locks, cylindrical locks, panic bars, electromagnetic holders, concealed closers, access control readers. Send us the hardware schedule and we prep the door to it.
Frame Options
Welded frame for new construction, knock-down (KD) frame for retrofit or container-efficient shipping. KD frames reduce container loading volume by approximately 30% compared to welded frames — relevant if you're importing into markets with high freight costs.
MOQ
50 units for standard architectural configurations. 100 units for fully custom profiles requiring new tooling. Below 50 units, we can discuss sample orders for project approval purposes.
Lead Time
Standard configurations: 25–35 days from order confirmation. Custom profiles with new tooling: 40–50 days. Exact lead time confirmed at order placement based on current line loading.
Factory Pre-Drilling vs. Field Modification
Pre-drilling in the factory is always cleaner than field modification. The reinforcement plate is welded in during fabrication, not bolted on after. Send us your hardware schedule before production — not after delivery.
Container Loading & Landed Cost Planning
Architectural commercial doors ship in one of two configurations, and the choice affects your landed cost more than most buyers initially expect.

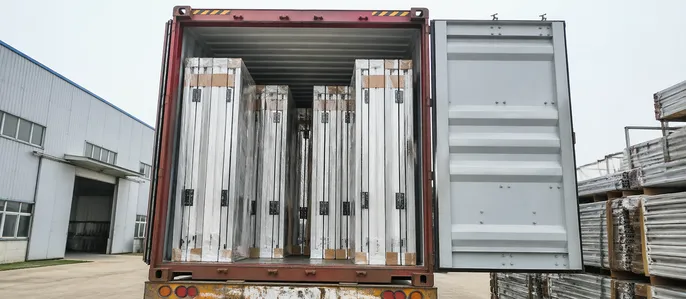

Welded Frame Assemblies
Door pre-hung in frame
Easier to install on site, but lower container density. A standard 40HQ container loads approximately 80–100 pre-hung assemblies depending on door size.
Best for:
- Projects where installation labor cost is high
- Sites where on-site assembly time is a constraint
- Buyers prioritizing installation speed over freight savings

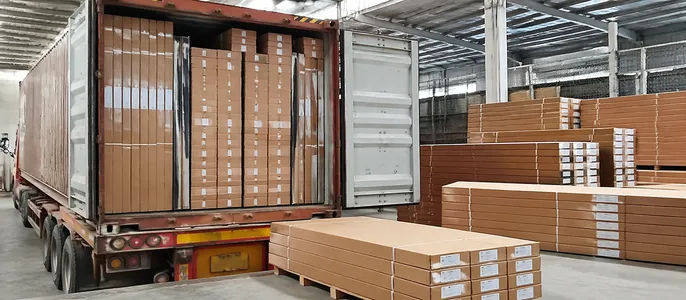

Knock-Down (KD) Flat-Pack
Door leaf and frame components packed separately
Higher container density — approximately 150–200 door sets per 40HQ. Frame assembly on site adds 15–20 minutes per door, but the freight saving on large orders typically outweighs the labor cost.
Best for:
- Orders over 100 units where freight savings are material
- North America and Australia import buyers (our default recommendation)
- Markets with high freight costs relative to local labor
Packaging for Custom Profiles
Corner-protected foam packaging with edge guards on all profile details. Powder coat damage during shipping is the most common complaint about competitors' products — the fix is adequate corner protection, not thicker powder.
Ocean Transit Durability
We pack to survive a 40-day ocean transit plus port handling. Packaging spec is validated against the full transit chain, not just factory-to-port.
Landed Cost Planning
KD frames reduce container loading volume by approximately 30% vs. welded frames. On large orders, this freight differential is often the deciding factor — we'll model both options in your quote.
Not Sure Which Configuration Fits Your Order?
Most of our export buyers in North America and Australia default to KD for orders over 100 units. We'll run the numbers for your specific destination and order volume so you can make the call with full cost visibility.

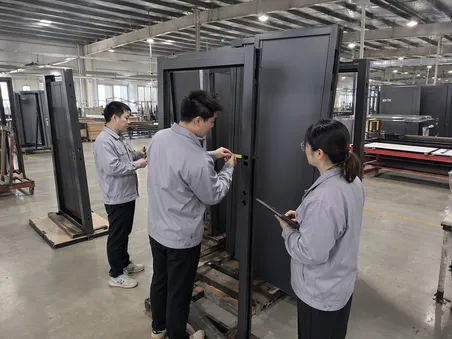

Quality Control at the Architectural Specification Level
Standard commercial doors go through our 5-stage QC process: material incoming inspection, in-process dimensional check, weld quality inspection, surface finish inspection, and final pre-shipment inspection. Architectural doors add two additional checkpoints.
Pre-Coating Profile Inspection
Before any surface treatment, every door is checked against the approved shop drawing for profile accuracy, panel flatness (tolerance ±1.5mm across the full face), and hardware prep location. Doors that don't pass don't go to the coating line.
Color and Finish Approval
For custom color orders, we pull a sample panel from the production batch and hold it against the approved color chip under standardized lighting before releasing the batch to final assembly. This catches batch-to-batch powder variation before it becomes a field problem.
5-Stage Standard QC + 2 Architectural Checkpoints
Material Incoming Inspection
Steel grade, thickness, and surface condition verified on receipt
In-Process Dimensional Check
Dimensions verified against order spec during fabrication
Weld Quality Inspection
All weld joints inspected for integrity and finish consistency
Surface Finish Inspection
Coating adhesion, coverage, and color uniformity checked
Final Pre-Shipment Inspection
Complete assembly review before packing and dispatch
Pre-Coating Profile Inspection Architectural
Profile accuracy and panel flatness (±1.5mm tolerance) verified against approved shop drawing before coating
Color and Finish Batch Approval Architectural
Sample panel from production batch held against approved color chip under standardized lighting before batch release
Third-Party Inspection
We carry ISO 9001:2015 certification, and our QC records are available for review. For buyers who require third-party inspection, we work with SGS and can accommodate buyer-nominated inspectors at the factory before shipment.
Frequently Asked Questions
Common questions from importers, distributors, and project buyers specifying architectural commercial doors.
What is the difference between architectural commercial doors and standard commercial doors?
Standard commercial doors are specified primarily by performance parameters — fire rating, security class, cycle count. Architectural commercial doors add design specification: custom profiles, specific surface textures, color-matched finishes, and hardware integration that aligns with an architect's design intent. The manufacturing process is more complex because profile tooling, finish batching, and hardware prep all need to be coordinated to a project-specific approval drawing rather than a standard catalog item.
Can architectural commercial doors also carry a fire rating?
Yes. We manufacture combined-performance assemblies that carry both an architectural finish specification and a fire rating (FD30 or FD60, NFPA 80 compliant). The fire-rated core uses mineral wool infill, and the assembly is tested and certified as a complete unit — door leaf, frame, hardware, and intumescent seals.
This is the configuration most commonly specified for hospitality and mixed-use residential projects where both code compliance and design quality are required.
What is the minimum order quantity for a custom architectural door profile?
50 units for configurations using existing tooling. 100 units for new emboss patterns or profiles requiring custom tooling.
50
units min. — existing tooling
100
units min. — custom tooling
For project-specific samples prior to a full order, we can produce 2–5 sample units for your approval — contact us to discuss sample terms.
How do you handle color matching for architectural projects?
For standard RAL colors, we match from our existing powder inventory. For custom RAL or brand-specific colors, we source powder to the specified color and produce a pre-production color chip for your approval before the full run.
We batch-mix by order, so all doors in your order come from the same powder batch. Color chip approval adds 5–7 days to the lead time but eliminates color inconsistency claims.
Color chip approval: +5–7 days lead time. Eliminates batch inconsistency risk.
What certifications do your architectural commercial doors carry?
ISO 9001:2015, CE, and SGS. Fire-rated assemblies are manufactured to NFPA 80 standards. Test reports and certification documents are available on request.
For market-specific compliance requirements (UL listing, local building code certifications), contact us — we can advise on what documentation is available and what additional testing may be required for your target market.
What happens if doors are damaged during shipping?
We pack architectural doors with corner-protected foam and edge guards on all profile details, designed for 40-day ocean transit plus port handling. In the event of shipping damage, we document the packing condition at dispatch with photos and provide this as part of the shipment record.
Claims are handled on a case-by-case basis — contact us at [email protected] with photos and we'll resolve it directly.
Packing: corner-protected foam + edge guards. Rated for 40-day ocean transit + port handling.
Start Your Architectural Door Specification
Send us your project's door schedule, architect's specification, or even just a photo of the design intent — our engineering team will review it and come back with a configuration recommendation, shop drawing, and detailed quote.
We've been doing this since 2008 and we've seen most specification combinations. If something in your brief is unusual, we'll tell you upfront rather than after production starts.
Response times: Most architectural door inquiries get a preliminary response within 24 hours. For projects requiring 3D renderings or custom tooling quotes, allow 3–5 business days for a complete technical response.
