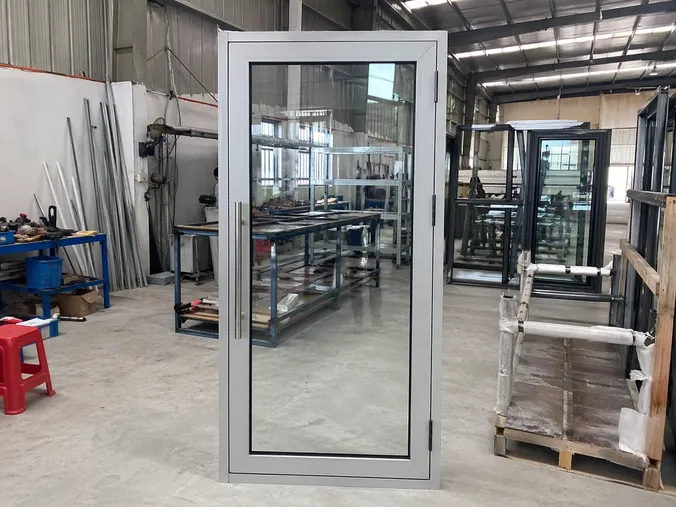

Aluminum Commercial Doors Direct From Factory
Factory-direct aluminum commercial doors — lightweight, corrosion-resistant, and built for high-traffic commercial deployment.
18+ years manufacturing doors for distributors and contractors across North America, the Middle East, Southeast Asia, and beyond. OEM/ODM supported from 50 units.
What Makes Aluminum the Right Material Choice for Commercial Door Projects
Aluminum commercial doors occupy a specific and profitable niche in the commercial door market — one that steel can't fully serve. The core reason is the weight-to-strength ratio. A standard aluminum commercial door runs 40–55% lighter than a comparable steel unit, which matters enormously in two scenarios: high-traffic swing applications where door closer fatigue is a real maintenance cost, and projects where the structural opening can't support heavy door assemblies without additional reinforcement.
We've been running aluminum alongside our steel lines since 2012. The buyers who come to us for aluminum are typically serving retail fit-outs, office building renovations, hospitality projects, and storefront applications — segments where the end client wants a clean, modern profile and the contractor needs a door that installs fast without heavy-gauge frame prep. Aluminum delivers on both counts.
The material also handles coastal and humid-climate markets better than uncoated steel. Aluminum's natural oxide layer means the substrate itself resists corrosion — your downstream customers in Gulf states, Southeast Asian coastal cities, or Caribbean resort projects aren't going to call you about rust bleed-through two years after installation. That's a warranty claim you never have to manage.
We still recommend our steel commercial doors for high-security or fire-rated applications — aluminum has its lane, and we're direct about where each material wins.
40–55% Lighter
Than comparable steel units — reduces closer fatigue and frame load requirements.
Natural Corrosion Resistance
Oxide layer protects the substrate — no rust bleed-through in coastal or humid climates.
Fast Installation
No heavy-gauge frame prep needed — contractors save time on retail, office, and hospitality fit-outs.
Technical Specifications
Aluminum commercial doors are not a single SKU — the spec varies meaningfully by application. Below are the industry-standard parameters we work within. Contact us for exact drawings and tolerances for your specific configuration.
Standard Configuration Parameters
Industry-standard values — actual specs vary by configuration
| Parameter | Standard Range | Notes |
|---|---|---|
| Frame Profile | 6063-T5 aluminum alloy | Extruded, wall thickness 1.4–2.0mm |
| Door Leaf Thickness | 44mm / 55mm | 44mm standard; 55mm for thermal break versions |
| Standard Door Width | 800–1200mm (single leaf) | Double leaf up to 2400mm total clear opening |
| Standard Door Height | 2000–2800mm | Custom heights available |
| Glass Options | 5mm tempered / 6+6mm laminated / IGU double-glazed | Dependent on thermal and acoustic spec |
| Hardware | SS hinges, floor spring or overhead closer, panic bar optional | All hardware pre-fitted at factory |
| Surface Finish | Powder coat or anodized | Powder coat: 60–80μm; Anodize: 15–25μm |
| Color Options | 60+ RAL colors (powder coat) | Silver, champagne, bronze, black (anodize). Custom RAL on orders 100+ units |
| Thermal Break Option | PA66 polyamide thermal break strip | Reduces U-value to ≤2.0 W/m²K |
| Weather Sealing | EPDM gasket perimeter seal | Standard on all units |
| Wind Load Rating | Up to 2000Pa | Dependent on profile selection and glazing |
| Typical Unit Weight | 28–65kg | Varies by size and glazing |
Specifications shown are industry-standard values for this product type. Actual specifications may vary by configuration. Contact us for detailed product data sheets and project-specific drawings.
Spec Highlights
Need a Different Spec?

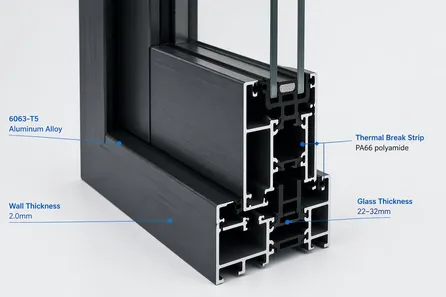

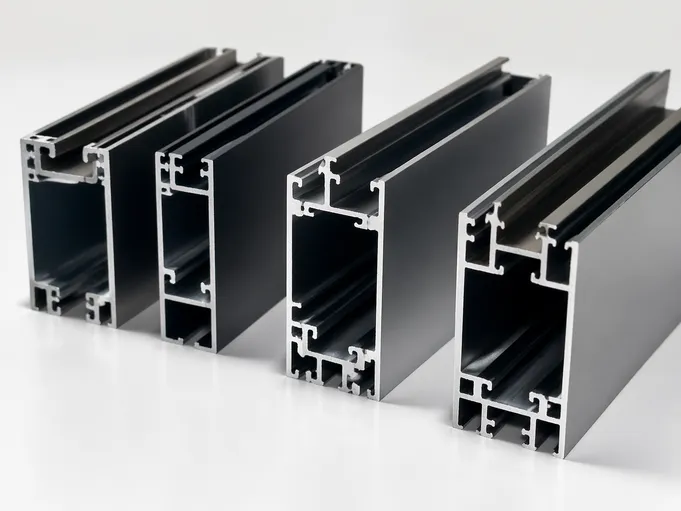

Extrusion Profile and Surface Finish: Where Margin Lives
This is the section most suppliers skip, and it's where your sourcing decision actually gets made.
The aluminum profile grade determines everything downstream — dimensional stability over time, paint adhesion, anodizing quality, and how the door behaves after 50,000 open-close cycles in a busy retail entrance. We specify 6063-T5 alloy across our aluminum commercial door range. The T5 temper designation means the extrusion is artificially aged after forming, which brings the yield strength up to approximately 145 MPa — meaningfully stiffer than T4 temper profiles that some lower-cost suppliers use.
In practical terms, a T5 frame holds its squareness under repeated thermal cycling; a T4 frame can develop a subtle bow over 18–24 months that causes the door to bind against the seal. Your customer notices. You get the call.
Wall thickness note: Main frame profile runs 1.4mm minimum in our standard range, with 1.8mm and 2.0mm available for heavier-duty projects. We can match competitor samples at 1.2mm — but we tell buyers upfront the profile will feel noticeably lighter and corner weld integrity drops. Most experienced buyers land on 1.6mm as the sweet spot for standard commercial applications.
Alloy Temper Comparison
6063-T5 (EUWOO Standard)
Yield strength ~145 MPa. Holds squareness through thermal cycling. No binding after 18–24 months.
6063-T4 (Lower-Cost Suppliers)
Lower yield strength. Subtle bow develops over 18–24 months. Door binds against seal. Customer calls you.
Powder Coat Finish
60+ RAL colors available. Film build runs 60–80μm. Passes our 500-hour salt spray test — zero RMA for your coastal accounts.
- 60+ RAL color options
- 60–80μm film build
- 500-hour salt spray tested
- Ideal for standard commercial and coastal accounts
Anodized Finish
Harder, more scratch-resistant surface in a metallic appearance. Architects specify this for premium fit-outs. Standard anodize runs 15–25μm, meeting AAMA 611 Class I equivalent standards.
- 15–25μm anodize depth
- AAMA 611 Class I equivalent
- Harder, more scratch-resistant than powder coat
- Commands 15–20% price premium in architectural & hospitality segments
Regional Sourcing Insight — Middle East Hotel Projects
Buyers sourcing for Middle East hotel projects almost always want anodized bronze or champagne. It photographs better in project documentation and the end client perceives it as higher-end. Worth knowing if you're building a SKU mix for that region.
Market Segments Where Aluminum Commercial Doors Generate Repeat Orders
Understanding where volume comes from helps you build a distribution business with defensible, recurring revenue — not one-off project wins.

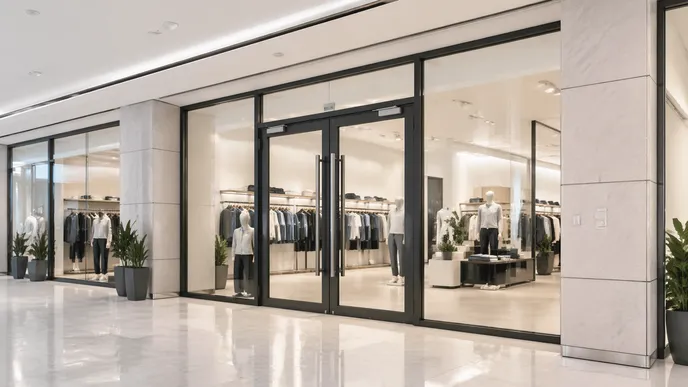

Retail and Shopping Center Fit-Outs
Retail chains and shopping center developers replace storefront doors on a rolling basis — lease renewals, brand refreshes, and tenant fit-outs generate consistent volume. A mid-size shopping center might run 80–200 aluminum commercial door units across its tenant mix.
Volume Potential
A regional fit-out contractor serving 10–15 centers per year is looking at 800–3,000 units annually.
Key Spec for This Segment
Floor spring or overhead closer configuration. Retail doors take 300–500 open-close cycles per day — hardware must be pre-fitted and adjusted at the factory so the installer isn't troubleshooting on-site. We pre-fit and test all hardware before shipment.

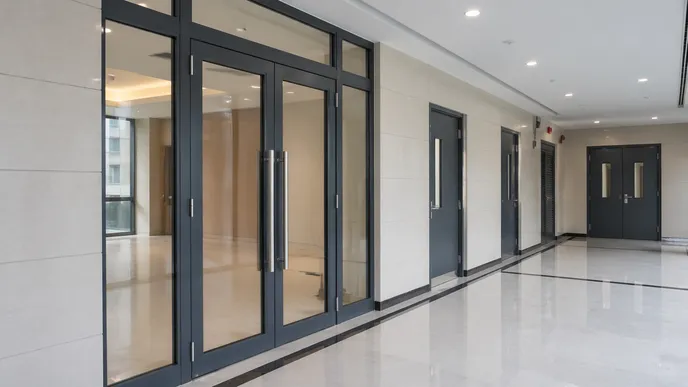

Office Building Renovation and New Construction
Commercial office projects — particularly mid-rise buildings in Southeast Asia, the Middle East, and Africa — are a high-volume segment. A 20-story office tower might specify 4–8 aluminum doors per floor for lobby, corridor, and service access points.
Volume Potential
A single project at 80–160 units. Developers increasingly specify thermal break versions for energy compliance.
Procurement Advantage
The ability to supply matching sidelights and transoms from the same extrusion system simplifies the contractor's procurement. We can supply coordinated door, sidelight, and transom packages from a single order.

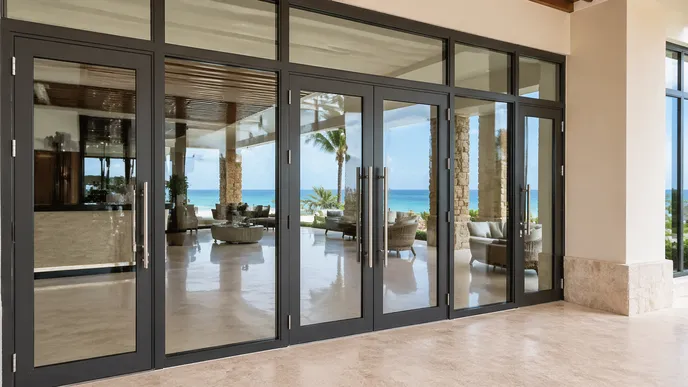

Hospitality: Hotels and Resorts
Hotel projects in coastal and tropical markets are one of the strongest repeat-order segments. A 200-room resort property might specify aluminum for lobby entrances, pool access, restaurant entries, and service corridors.
Volume Potential
60–120 units per property. Gulf, Caribbean, and Southeast Asian coastal markets are the strongest buyers.
The Corrosion Argument
Aluminum doesn't rust, so the property management team isn't calling the contractor two years post-opening. Distributors who establish themselves as the go-to supplier for hospitality fit-outs in a region build a defensible, recurring revenue stream.

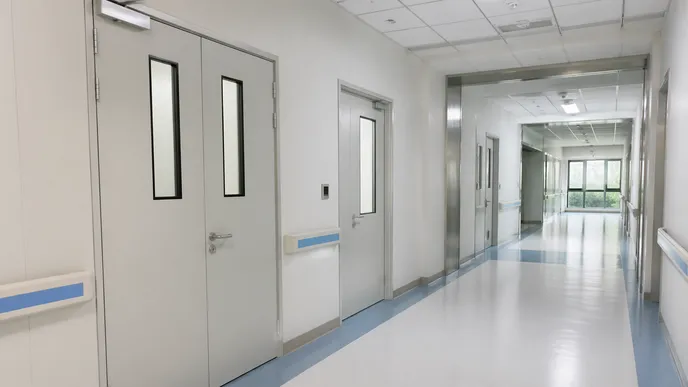

Healthcare and Education Facilities
Hospitals, clinics, and school buildings specify aluminum commercial doors for interior corridor and departmental access points where hygiene, ease of cleaning, and a non-institutional appearance matter.
Volume Potential
A regional hospital expansion might run 100–300 aluminum door units. Multi-year framework contracts are common in this channel.
Procurement Channel Note
Government and institutional procurement — slower sales cycles but larger order volumes. This segment rewards suppliers who can provide full compliance documentation (CE marking, test reports) upfront.
800–3,000
units/year for a regional retail fit-out contractor
80–160
units per mid-rise office tower project
60–120
units per 200-room hotel or resort property
100–300
units per regional hospital expansion
Tell us your target market — we'll recommend the right configuration and send a detailed quote.

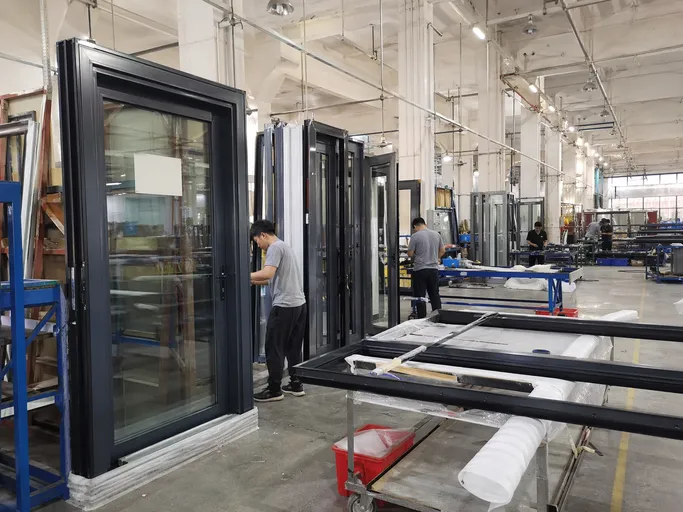

Request a Targeted QuoteOEM/ODM: Your Brand, Our Factory
We've been running OEM programs for overseas distributors and door brands since 2008. The mechanics are straightforward: your logo on the hardware, your packaging, your product codes in the documentation. What's less obvious — and what actually matters to your business — is the engineering support behind it.
In-House R&D Engineering
Our team of 15+ engineers handles custom profile design, hardware integration, and glazing configuration. We develop the tooling and run the validation testing — and provide 3D renderings before any tooling commitment, so you're not approving a product blind.
Examples of market-specific OEM development we've executed:
- Thermal break aluminum door optimized for Northern European energy standards
- Slim-profile storefront door built to a retail chain's brand specification
- Custom hardware integration for distributor-branded product lines
The Business Case for OEM
You're not competing on price against every other distributor sourcing the same catalog product. A branded, spec'd product with your documentation is a defensible SKU that your customers can't easily cross-shop.
OEM Program: Order Parameters
| Configuration | MOQ | Lead Time |
|---|---|---|
| Standard config + your branding | 50 units | 20–30 days (reorder) |
| Custom profile or color config | 100 units | 35–45 days (first run) |
| Reorder (any config) | Per agreement | 20–30 days |
First OEM production run lead time is after sample approval. Reorder scheduling depends on line availability.
Customization Parameters and Limitations
Knowing what can and can't be customized before you send an inquiry saves everyone time. Here's the honest picture.
What We Customize Without Issue
-
Door leaf dimensions
Width 600–1500mm (single leaf), height 1800–3200mm
-
Frame profile wall thickness
1.4mm, 1.6mm, 1.8mm, 2.0mm
-
Glazing
Tempered, laminated, IGU, frosted, tinted, low-E
-
Hardware
Floor spring, overhead closer, panic bar, electric strike, magnetic lock
-
Surface finish
Any RAL powder coat color (100+ unit minimum for non-standard RAL); anodized silver, champagne, bronze, black standard
-
Thermal break
PA66 strip integrated into standard profile tooling
-
Sidelights and transoms
Matched extrusion system, same order
What Has Real Constraints
-
Profile cross-section geometry
Custom profiles require new tooling. Cost is shared on orders 500+ units; buyer-owned tooling applies on smaller runs.
-
Fire rating
Aluminum commercial doors are not inherently fire-rated. If your project requires a fire-rated aluminum door, that's a different product with intumescent seals and tested assemblies — ask us separately.
-
Acoustic performance above Rw 35dB
Requires specific glazing and seal configurations. Achievable, but adds cost and lead time.
-
Delivery to remote inland destinations
We ship FOB Tianjin or Qingdao. Inland freight coordination is the buyer's responsibility.
MOQ Summary
| Configuration Type | Minimum Order Quantity | Notes |
|---|---|---|
| Standard catalog configurations | 50 units | With your branding applied |
| Custom color (non-standard RAL) | 100 units | Standard RAL colors available below this threshold |
| Custom profile geometry | 200 units min. | Tooling cost applies; shared on 500+ unit orders |

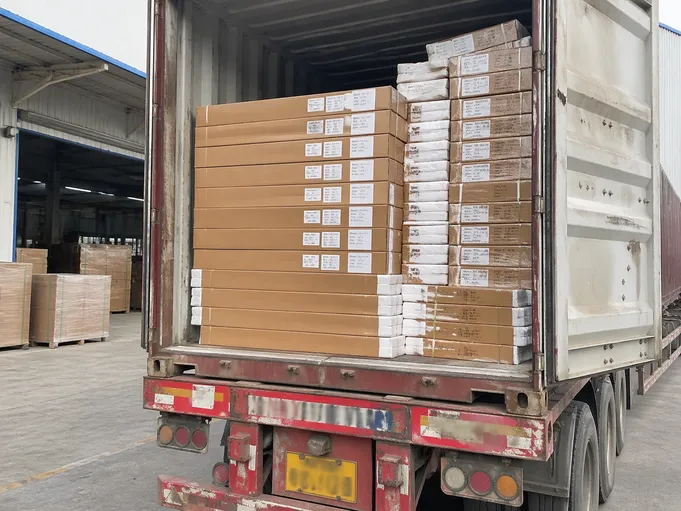

Container Loading and Landed Cost Planning
KD flat-pack shipping isn't just a packaging convention — it's a direct lever on your landed cost per unit. Here's how the math works and what to expect from your container plan.
Aluminum commercial doors ship KD (knocked-down) flat-pack as standard — frame sections, door leaf, and hardware packed separately in reinforced cartons with foam corner protection. This is not just a packaging choice; it's a landed cost decision. A KD-packed aluminum door occupies roughly 60% of the container volume of an assembled unit, which means you load more units per container and your per-unit freight cost drops proportionally.
Typical Container Loading
Standard single-leaf aluminum commercial doors (800×2100mm), KD-packed:
Figures vary with door size and glazing weight. Exact container loading plans provided with every order confirmation.
Assembled vs. KD: The Volume Threshold
Buyers occasionally try shipping assembled units to reduce on-site labor. It works for small quantities — but the freight premium on a full container makes it uneconomical past approximately 30 units. KD is the right call for volume orders.
Packaging and Labeling Details
Reinforced cartons with foam corner protection — frame sections, door leaf, and hardware packed separately
All cartons export-marked with product code, dimensions, and weight — designed for warehouse inventory management and job site forwarding
Custom SKU labels or barcodes added to packaging on OEM orders
Exact container loading plans provided with every order confirmation so you can optimize shipment before booking freight
Certifications and Compliance Pre-Qualification
EUWOO holds ISO 9001:2015, CE, and SGS certifications. Here's what each covers and how it maps to your target market's procurement requirements.
CE Marking
CECovers the door assembly as a construction product under the EU Construction Products Regulation. Relevant for European markets and markets that recognize CE as a compliance baseline — including parts of the Middle East, North Africa, and Southeast Asia.
CE test reports available on request.
SGS Audit
SGSThird-party verification of our manufacturing process and product quality. Useful documentation for buyers who need to qualify a new supplier with their own procurement compliance team.
Available as part of supplier qualification documentation packages.
ISO 9001:2015
ISOCovers our full quality management system — the 5-stage inspection process, material traceability, and production records that back up every shipment.
Full QMS documentation available for procurement review.
Market-Specific Compliance
North America
Aluminum commercial doors for commercial construction typically need to comply with AAMA/WDMA standards. We manufacture to AAMA 101/I.S.2/A440 equivalent specifications and can provide test data.
ADA hardware compliance — lever handles, panic bars — is available as a standard option.
Australia / New Zealand
AS 2047 equivalent performance testing available on request.
Gulf / Middle East
GSO and local municipality approvals vary by country. We've supplied projects in UAE, Saudi Arabia, Qatar, and Kuwait and can advise on documentation requirements for your specific market.
Need certification documentation for your market?
We'll send the relevant test reports, audit records, and compliance documentation for your procurement review.
Frequently Asked Questions
Technical and commercial questions from distributors, contractors, and OEM buyers — answered with the specificity your sourcing decisions require.
What aluminum alloy grade should I specify for commercial doors in coastal or high-humidity markets?
6063-T5 is the correct specification. The 6063 alloy has higher magnesium and silicon content than 6061, which gives it better extrudability for complex profiles and superior surface quality for anodizing — important for coastal markets where the anodized finish is the primary corrosion barrier. The T5 temper provides adequate yield strength (≥145 MPa) for commercial door frames without the brittleness of T6.
For extreme marine environments (direct seafront exposure), specify anodized finish over powder coat — the anodize layer is integral to the aluminum substrate and won't delaminate the way powder coat can if the substrate prep is compromised by salt air.

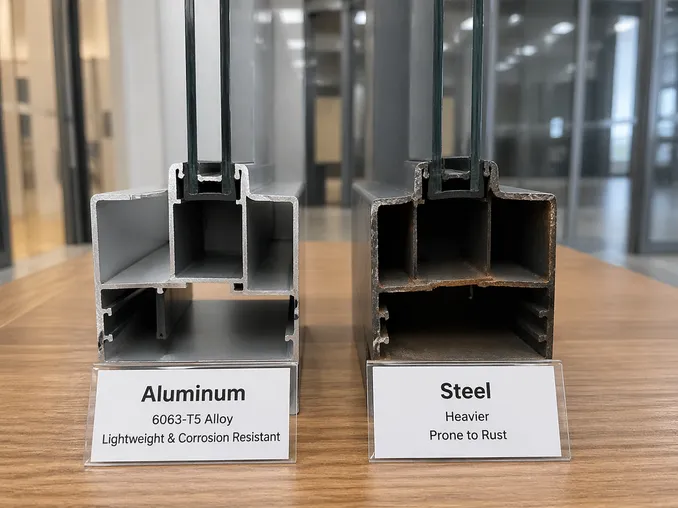

Aluminum vs. steel for commercial doors: which is better for high-traffic retail entrances?
Aluminum wins on weight and corrosion resistance; steel wins on impact resistance and security rating. For a retail storefront taking 300–500 cycles per day with no security requirement, aluminum is the right call — the lighter leaf reduces wear on the floor spring or overhead closer, cutting maintenance costs over a 5–7 year lifecycle.
For a back-of-house service entrance in a warehouse or distribution center where forklifts operate nearby, steel is the better choice. Most experienced distributors carry both and position them by application rather than competing them against each other.
What is the maximum custom size for aluminum commercial doors?
Single leaf: up to 1500mm wide × 3200mm tall within standard profile tooling. Beyond these dimensions, the profile deflection under wind load and the door weight exceed what standard hardware can manage reliably — we'd need to engineer a heavier profile and specify commercial-grade pivots rather than standard hinges.
Double-leaf configurations can achieve clear openings up to 3000mm wide. For oversized openings, send us the rough opening dimensions and we'll specify the right profile and hardware combination.
What MOQ applies to aluminum commercial doors, and how does customization affect it?
Catalog configurations (stock colors, standard sizes): 50 units.
Custom RAL powder coat colors: 100 units minimum — below that, the powder line changeover cost doesn't make sense for either side.
Custom profile geometry with new tooling: 200 units minimum, with tooling cost applied.
OEM branding (your logo, packaging, documentation): 100 units.
For first-time buyers, we recommend starting with a 2-unit sample order to verify the spec against your project requirements before committing to production volume.
How do I prevent aluminum commercial door frames from warping over time in high-temperature climates?
Two factors drive frame warping in hot climates: profile wall thickness and thermal expansion management. Specify 1.6mm minimum wall thickness — thinner profiles have less resistance to thermal deformation.
More importantly, ensure the installation detail includes proper expansion gaps at the frame head and jambs (typically 3–5mm per meter of frame length for aluminum in tropical climates). Frames that are hard-fixed without expansion allowance will bow as the aluminum expands in summer heat. We include installation guidelines with every shipment that specify the correct gap dimensions for different climate zones.
What certifications do aluminum commercial doors need for the North American market?
For commercial construction in the US and Canada, the relevant standards are AAMA 101 (performance classification for windows and doors), AAMA 2604/2605 (powder coat finish durability), and local building code compliance which typically references AAMA/WDMA/CSA standards.
ADA compliance for hardware (lever handles, panic bars, opening force requirements) is mandatory for public-access commercial buildings. We manufacture to these equivalent specifications and can provide test documentation. For fire-rated applications, aluminum doors require a separate tested assembly — standard aluminum commercial doors are not fire-rated.
Related Products in the Commercial Door Range
Aluminum commercial doors are one configuration in a broader commercial door portfolio. Depending on your project requirements, the following configurations may be the right specification.
Commercial Steel Doors
High SecurityHigher impact resistance and security rating. The right choice for back-of-house, warehouse, and high-security applications where aluminum's lighter construction isn't appropriate.
Glass Commercial Doors
Full VisionFull-vision glazed configurations for retail and hospitality applications where maximum transparency is the design requirement.
Storefront Commercial Doors
Retail FacadePurpose-built for retail storefront systems, with coordinated framing for continuous glazed facades.
Heavy Duty Commercial Doors
Industrial GradeFor industrial and high-abuse environments where standard commercial door construction isn't sufficient.
Exterior Commercial Doors
Weather RatedWeather-rated configurations for building perimeter applications where environmental exposure is the primary design constraint.
View Full Commercial Door Range
All ConfigurationsBrowse the complete EUWOO commercial door portfolio — all product types, specifications, and OEM/ODM options in one place.
Start Your Sourcing Inquiry
Send us your project specs — rough opening dimensions, target market, glazing requirement, hardware configuration, and approximate volume. Our engineering team will come back with a specific product recommendation, CAD drawing, and itemized quote.
What to Include in Your Inquiry
-
Opening Dimensions
Rough width × height in mm or inches. Tolerance range acceptable.
-
Target Market
Destination country and end-use segment (retail, office, hospitality, industrial).
-
Glazing Requirement
Single, double, or triple glazing; vision panel size; any acoustic or thermal spec.
-
Hardware Configuration
Closer type, lock grade, hinge count, access control compatibility.
-
Approximate Volume
Unit count per order and expected annual run rate. New buyers: 2-unit sample order is the standard starting point.
What You'll Receive Back
Product Recommendation
CAD Drawing
Itemized Quote
Contact EUWOO
[email protected]
+86 152 3616 2255
Phone
+86 189 3902 2227
Factory Address
Luoyang Industrial Park, Henan, China
New Buyer Starting Point
If you're evaluating aluminum commercial doors for the first time, a 2-unit sample order is the standard starting point for most new buyers in this category. Our engineering team will guide you through spec selection before committing to full production volume.
